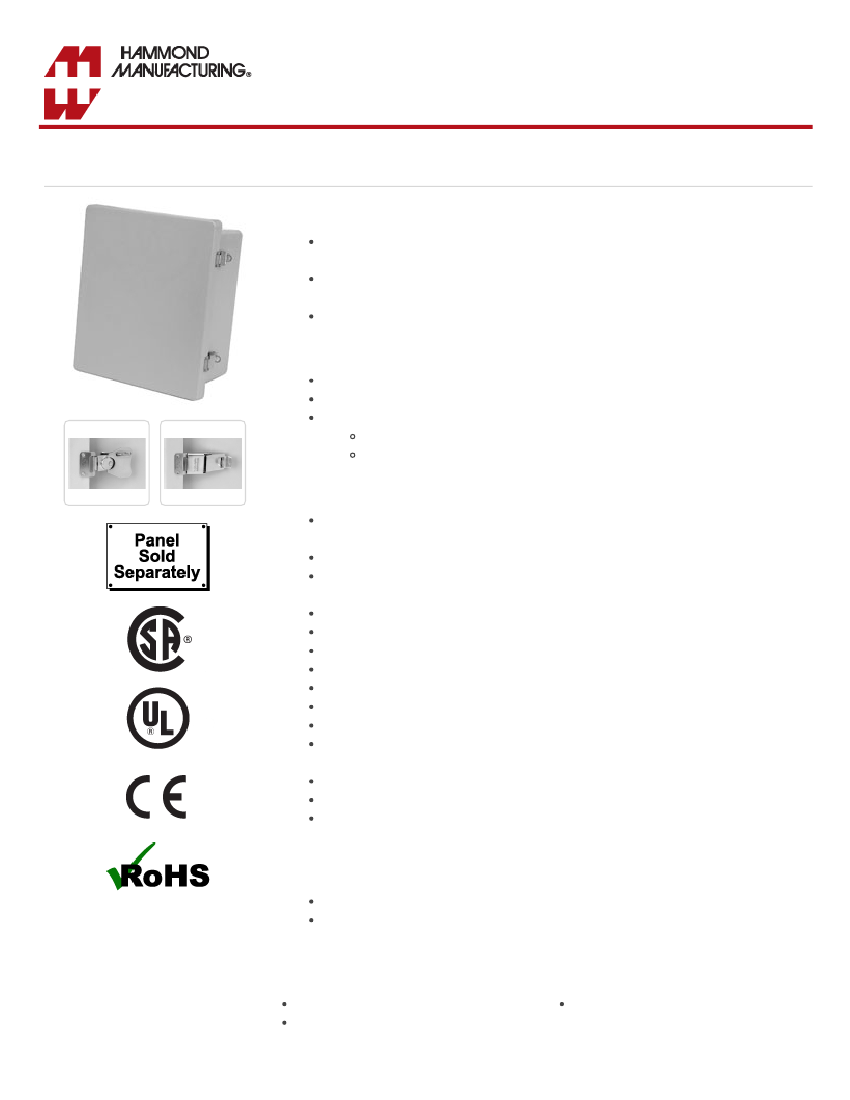

Type 4X Polyester Junction Box
PJ Series
Continuous Hinge Door with Twist/Snap Latches
Application
Designed for use as instrument enclosures, electric, hydraulic or pneumatic control
housings, electrical junction boxes or terminal wiring enclosures.
Provides outstanding insulation and protection where equipment may be hosed down or
be very wet.
Ideal in applications with high temperatures or highly corrosive environments.
Standards
UL 508A Type 1, 2, 3, 4, 4X, 12, & 13
CSA Type 1, 2, 3, 4, 4X, 12, & 13
Complies with
NEMA Type 1, 2, 3, 4, 4X,12, & 13
IEC 60529, IP66
Construction
Molded fiberglass polyester enclosure with matching cover is easily punched, cut, or
drilled.
Enhanced UV inhibitors protect against outdoor weathering.
10-32 threaded brass inserts are provided for optional inner panel or terminal kit
mounting. Mounting hardware is included.
Stainless steel butterfly type "twist latch" door fasteners.
Stainless steel draw type "snap latch" door fasteners.
Door fasteners include a provision for padlocking.
Twist latch enclosures are available with bonded polycarbonate viewing windows.
Door is supported with a continuous stainless steel hinge.
Captive oil resistant gasket provides a positive seal.
Threaded brass inserts are provided for mounting feet to the rear of the enclosure.
Stainless steel mounting brackets and hardware are provided for mounting to the rear of
the enclosure.
Operating temperatures between 130°C and -40°C (266°F to -40°F).
Impact index of 6.78J (5 ft/lb).
For corrosion resistance information, please refer to table in the
Technical Information
section.
Finish
Fiberglass polyester material has a gray finish.
Optional inner panels are available in white powder coated finished steel, unfinished
aluminum, or Fiberglass.
Accessories
PJ/PJU Replacement Hardware Kits
Terminal Kit Assemblies
Inner Panels
https://www.hammfg.com/electrical/products/corrosion/pjl
1/3
1/5/2018
Type 4X Polyester Junction Box (PJ Series) - Hammond Mfg.
Snap Latch

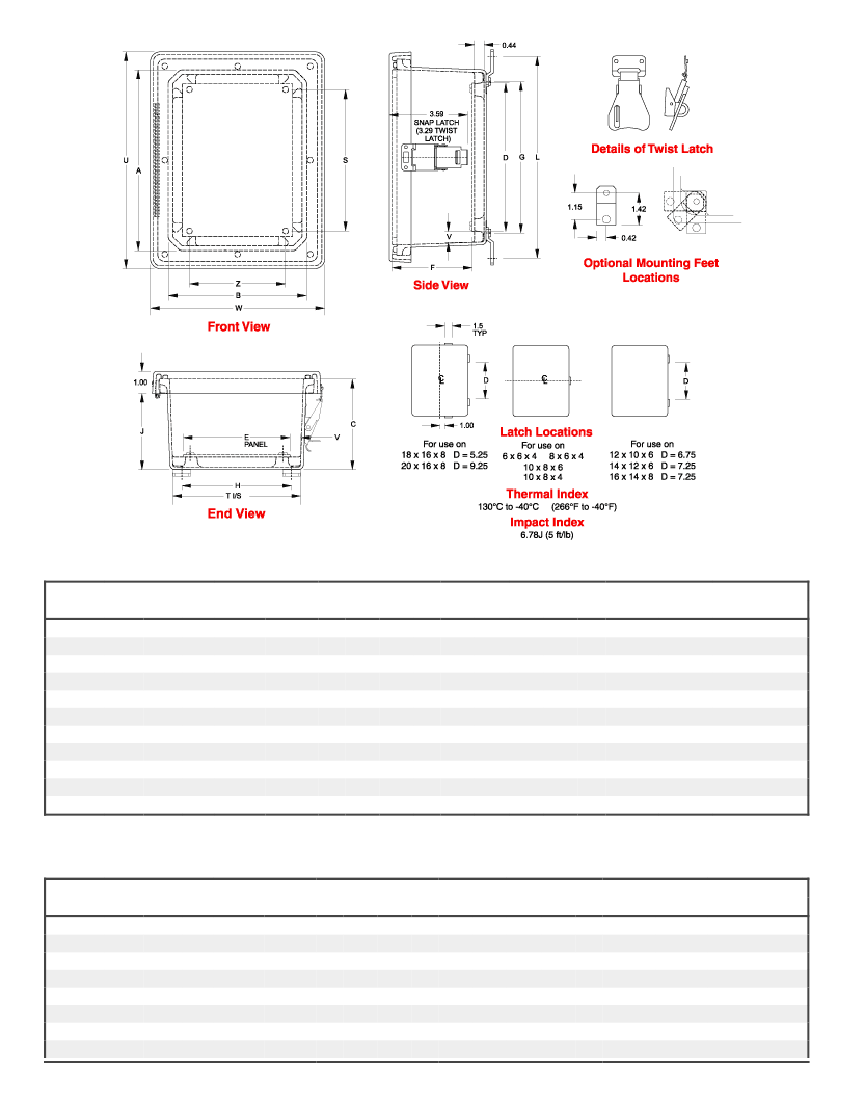

Overall Dimensions
Part No.
PJ664L
PJ864L
PJ1084L
PJ1086L
PJ12106L
PJ12124L
PJ12126L
PJ14126L
PJ16148L
PJ18168L
PJ20168L
A
6.10
8.00
10.13
10.13
12.13
12.13
12.13
14.13
16.27
18.40
20.00
B
6.10
6.12
8.26
8.26
10.26
12.13
12.13
12.26
14.40
16.40
16.00
C
4.18
4.13
4.13
6.13
6.13
4.13
6.13
6.13
8.13
8.13
8.13
Panel Dimensions
D
4.88
6.75
8.75
8.75
10.75
10.75
10.75
12.75
14.75
16.88
18.44
E
4.88
4.88
6.88
6.88
8.88
10.88
10.88
10.88
12.88
14.88
14.44
F
3.76
3.68
3.68
5.68
G
5.01
6.89
8.89
8.89
H
5.01
5.01
7.01
7.01
9.01
J
3.52
3.47
3.47
5.47
Centers
S
4.25
6.25
8.25
8.25
Z
4.25
4.25
6.25
6.25
8.25
L
7.32
9.19
11.19
11.19
13.19
T
5.83
5.85
7.85
7.85
9.85
V
0.49
0.50
0.50
0.50
0.50
Cover Dimensions
U
7.69
9.59
11.77
11.77
13.77
13.72
13.72
15.73
17.87
20.00
21.59
W
7.69
7.71
9.90
9.90
11.90
13.72
13.72
13.85
15.99
18.00
17.59
Opt. Steel Panel
Part No.
14R0505
14R0705
14R0907
14R0907
14R1109
14R1111
14R1111
14R1311
14R1513
P1868
P2068
5.68 10.89
5.47 10.25
3.68 10.89 11.03 3.47 10.25 10.25 13.33 11.85 0.50
5.68 10.89 11.03 5.47 10.25 10.25 13.33 11.85 0.50
5.68 12.89 11.01 5.47 12.25 10.25 15.19 11.85 0.50
7.68 14.89 13.01 7.47 14.25 12.25 17.19 13.71 0.50
7.68 16.97 14.97 7.47 16.25 14.25 19.28 15.72 0.50
7.68 18.54 14.54 7.47 17.81 13.81 20.84 15.31 0.52
Aluminum and fiberglass panels available
Twist Latch
Overall Dimensions
Part No.
PJ664T
PJ864T
PJ1084T
PJ1086T
PJ12106T
PJ14126T
PJ16148T
PJ18168T
A
6.10
8.00
10.13
10.13
12.13
14.13
16.27
18.40
B
6.10
6.12
8.26
8.26
10.26
12.26
14.40
16.40
C
4.18
4.13
4.13
6.13
6.13
6.13
8.13
8.13
Panel Dimensions
D
4.88
6.75
8.75
8.75
10.75
12.75
14.75
16.88
E
4.88
4.88
6.88
6.88
8.88
10.88
12.88
14.88
F
3.76
3.68
3.68
5.68
G
5.01
6.89
8.89
8.89
H
5.01
5.01
7.01
7.01
9.01
J
3.52
3.47
3.47
5.47
Centers
S
4.25
6.25
8.25
8.25
Z
4.25
4.25
6.25
6.25
8.25
L
7.32
9.19
11.19
11.19
13.19
T
5.83
5.85
7.85
7.85
9.85
V
0.49
0.50
0.50
0.50
0.50
Cover Dimensions
U
7.69
9.59
11.77
11.77
13.77
15.73
17.87
20.00
W
7.69
7.71
9.90
9.90
11.90
13.85
15.99
18.00
Opt. Steel Panel
Part No.
14R0505
14R0705
14R0907
14R0907
14R1109
14R1311
14R1513
P1868
5.68 10.89
5.47 10.25
5.68 12.89 11.01 5.47 12.25 10.25 15.19 11.85 0.50
7.68 14.89 13.01 7.47 14.25 12.25 17.19 13.71 0.50
7.68 16.97 14.97 7.47 16.25 14.25 19.28 15.72 0.50
https://www.hammfg.com/electrical/products/corrosion/pjl
2/3
