Type 12 Mild Steel Two Door Floormount Enclosure (1422 FM Series) - Hammond Mfg.
Quality Products. Service Excellence.
Type 12 Mild Steel Two Door Floormount Enclosure
1422 FM Series
Continuous Hinge Door with Handle
Application
Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments.
Provides a degree of protection from falling dirt, dust, oil and water.
Standards
UL 508A Type 12
CSA Type 12
Complies with
NEMA Type 12
IEC 60529, IP54

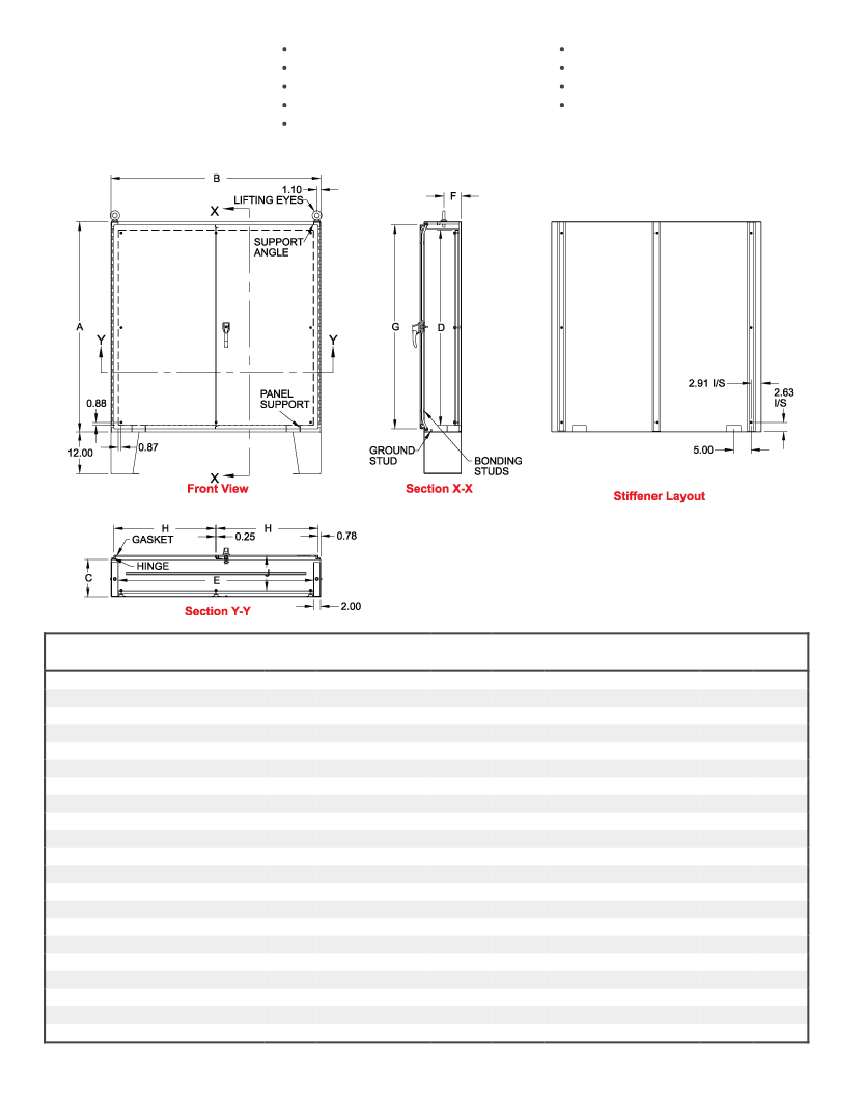

Construction
Enclosures are formed 14, 12, or 10 gauge steel as noted.
Smooth, continuously welded seams without knockouts, cutouts or holes.
Body stiffeners are provided in enclosures for extra rigidity.
Heavy duty lifting eyebolts are provided with reinforced support angles.
12" floor stands are welded to the enclosure. (w/ feet Part No.).
Welded brackets provide for enclosure mounting (w/o feet Part No.).
Gasketed overlapping doors eliminate the need for a center post.
Continuously hinged doors may be removed by pulling the hinge pin.
Doors are secured with a three point latch and operated with a key locking automotive
type handle.
Latch rods are equipped with rollers for easier door closing.
Oil resistant gaskets are permanently secured.
A removable 10 gauge inner panel is included in enclosures 60" and larger. Smaller sizes
include a 12 gauge inner panel.
Provision for light kit mounting.
Panel supports are provided in enclosures 60" and larger for easy panel installation.
Collar studs are provided for mounting inner panels.
A grounding stud is provided in the enclosure for each door and a bonding stud is pro‐
vided on the door.
A literature pocket is provided for the inside of the door.
Finish
Cover and enclosure are phosphatized and finished in recoatable smooth ANSI 61 gray
powder coating on the outside, with white powder coating on the inside.
Removable inner panel is finished in white powder coating.
Accessories
Inner Panels
Blowers and Fans
Door Stop Kit
Enclosure Stabilizers
https://www.hammfg.com/electrical/products/industrial/1422fm
Climate Control
Ventilation
Drip Shield Kit
Filtered Fans
