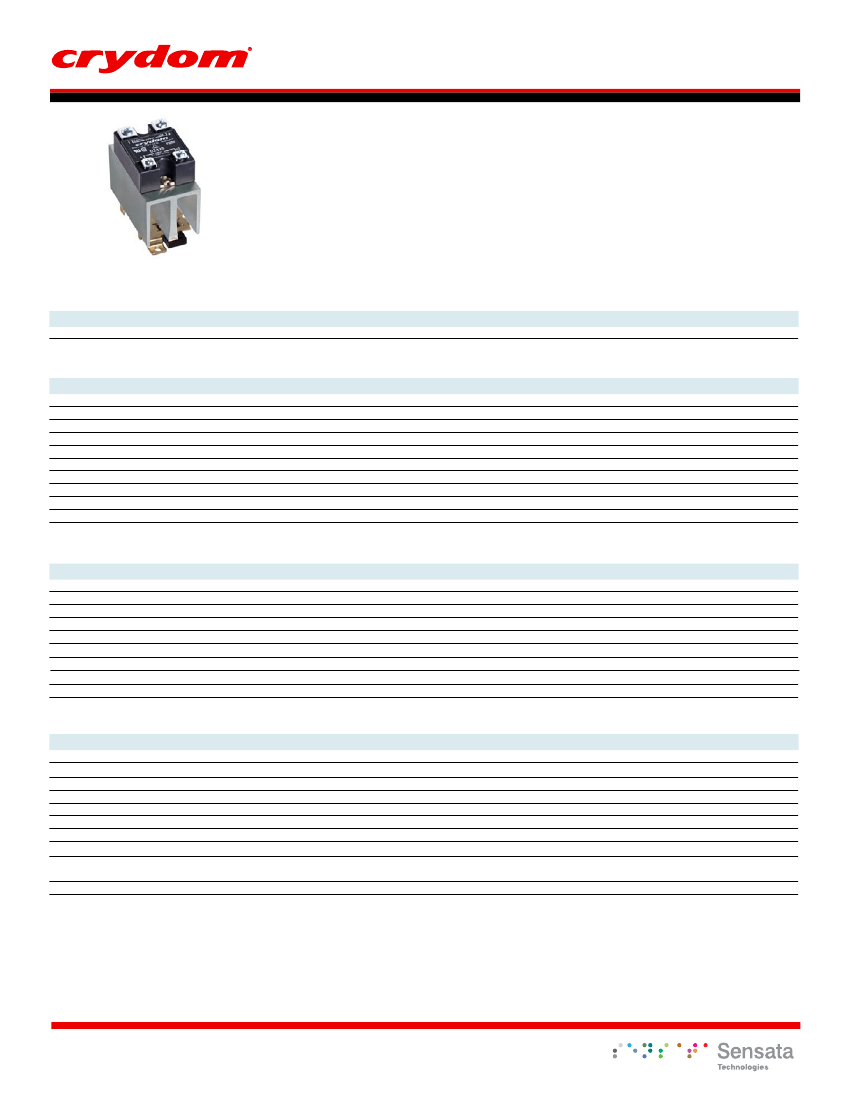

HS351DR Series Assemblies
•
20 amp AC output @ 40°C
•
Single Channel output
•
DC control
•
DIN Rail mounted
•
UL, CSA, VDE, CE approved SSRs
DIN Rail Mount
PRODUCT SELECTION
Description
3-32 VDC Control
20 A
HS351DR-D2425
25 A
HS351DR-HD6025
OUTPUT SPECIFICATIONS
(1)
Description
Operating Voltage (47-63Hz) [Vrms]
Transient Overvoltage [Vpk]
Maximum Off-State Leakage Current @ Rated Voltage [mArms]
Minimum Off-State dv/dt @ Maximum Rated Voltage [V/µsec]
(2)
Maximum Load Current [Arms]
Minimum Load Current [Arms]
Maximum Surge Current (16.6ms) [Apk]
Maximum On-State Voltage Drop @ Rated Current [Vpk]
Maximum I²t for Fusing (8.3 msec) [A² sec]
Minimum Power Factor (with Maximum Load)
HS351DR-D2425
24-280
600
1.0
500
20
150
250
1.15
259
0.5
HS351DR-HD6025
48-660
1200
1.0
500
20
150
250
1.15
259
0.5
INPUT SPECIFICATIONS
(1)
Description
Control Voltage Range
Minimum Turn-On Voltage
Minimum Turn-Off Voltage
Maximum Reverse Voltage
Minimum input current [mA]
Maximum Input current [mA]
Nominal Input Impedance
Maximum Turn-On Time [msec]
Maximum Turn-Off Time [msec]
HS351DR-D2425
HS201DR-D2450
3-32 VDC
3.0 VDC
1.0 VDC
-32 VDC
7.0
12
Current Regulated
1/2 Cycle
1/2 Cycle
HS351DR-HD6025
4-32 VDC
4.0 VDC
1.0 VDC
-32 VDC
7.0
12
Current Regulated
1/2 Cycle
1/2 Cycle
GENERAL SPECIFICATIONS
Description
Dielectric Strength, Input/Output/Base (50/60Hz)
Minimum Insulation Resistance (@ 500 V DC)
Maximum Capacitance, Input/Output
Ambient Operating Temperature Range
Ambient Storage Temperature Range
Status Indicator Display
Weight (typical)
Encapsulation
Recommended Terminal Screw Torque Range: (in-lb/Nm)
Thermal pad installed
Parameters
4000 Vrms
10
9
Ohm
8 pF
-40 to 80°C
-40 to 125°C
None
0.59 lb. (268g)
Themally Conductive Epoxy
6-32 Screws - 10 in/lbs. 8-32 Screws - 20 in/lbs.
(Screws dry without grease)
Yes
(1)
All parameters at 25°C unless otherwise specified.
(2)
Off-State dv/dt test method per EIA/NARM standard RS-443, paragraph 13.11.1
(3)
Input circuitry for DC control version incorporates active current limiter (HD model only)
GENERAL NOTES
Do not forget to visit us at:
www.crydom.com
Copyright © 2017 Crydom Inc. Specifications subject to change without notice.
DataSheet

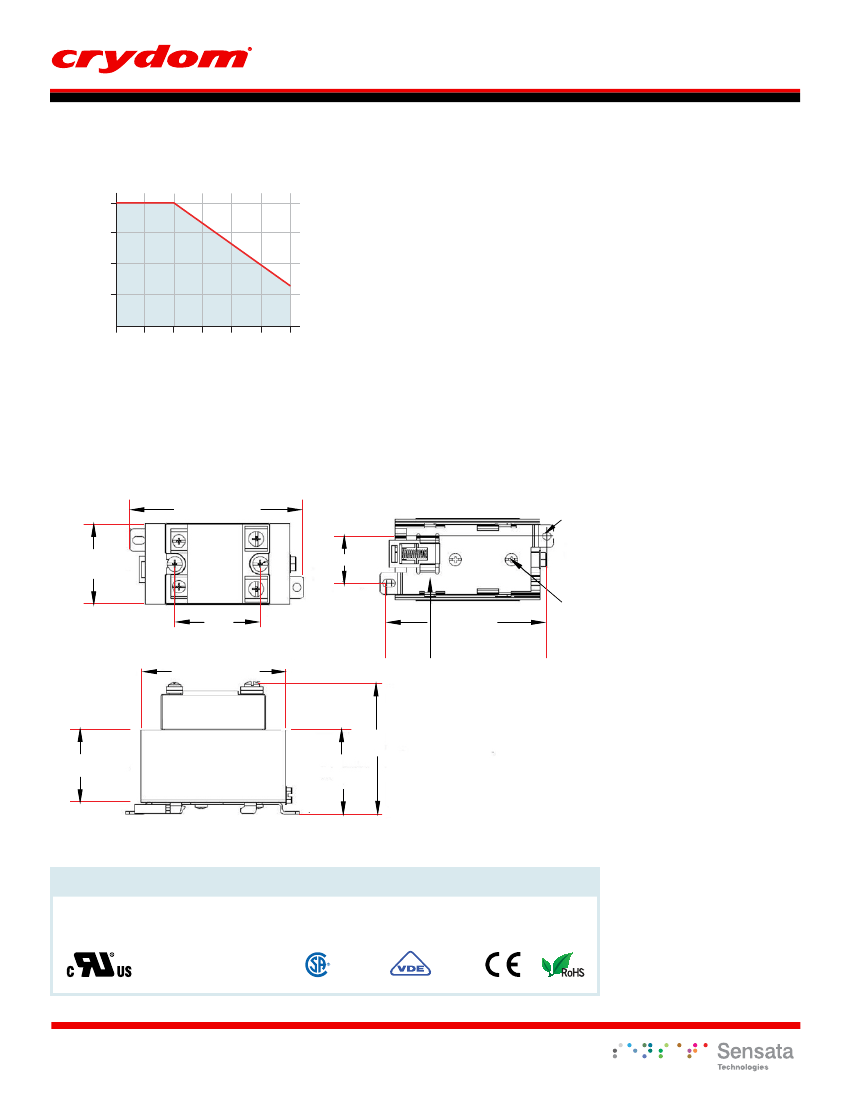

THERMAL DERATE INFORMATION
HS351DR w/25 A SSR
DIN Rail Mount
Load Current (Amps)
20
15
10
5
0
20
30
40
50
60
70
80
Ambient Temperature (ºC)
MECHANICAL SPECIFICATIONS
Tolerances: ±0.02 in / 0.5 mm
All dimensions are in: inches [millimeters]
3.82 [97.0]
1.77
[45.0]
1.88 [47.7]
2X Ø 0.18 [Ø4.5]
1.03 [26.2]
3.52 [89.4]
2X 6-32 UNC - 2B
TAP .260
3.19 [81.0]
New Din-Rail Bracket
3.17[80.5]
1.78 [45.0]
2.11[53.6]
Agency Approvals
Designed in accordance with the requirements of IEC 62314
Agency approvals are for relay only.
E116949 (D2425) E116950 (HD6025)
LR81689
10143
Rev. 110411
Do not forget to visit us at:
www.crydom.com
Copyright © 2017 Crydom Inc. Specifications subject to change without notice.
DataSheet
