EC-SYSTEMS
Options

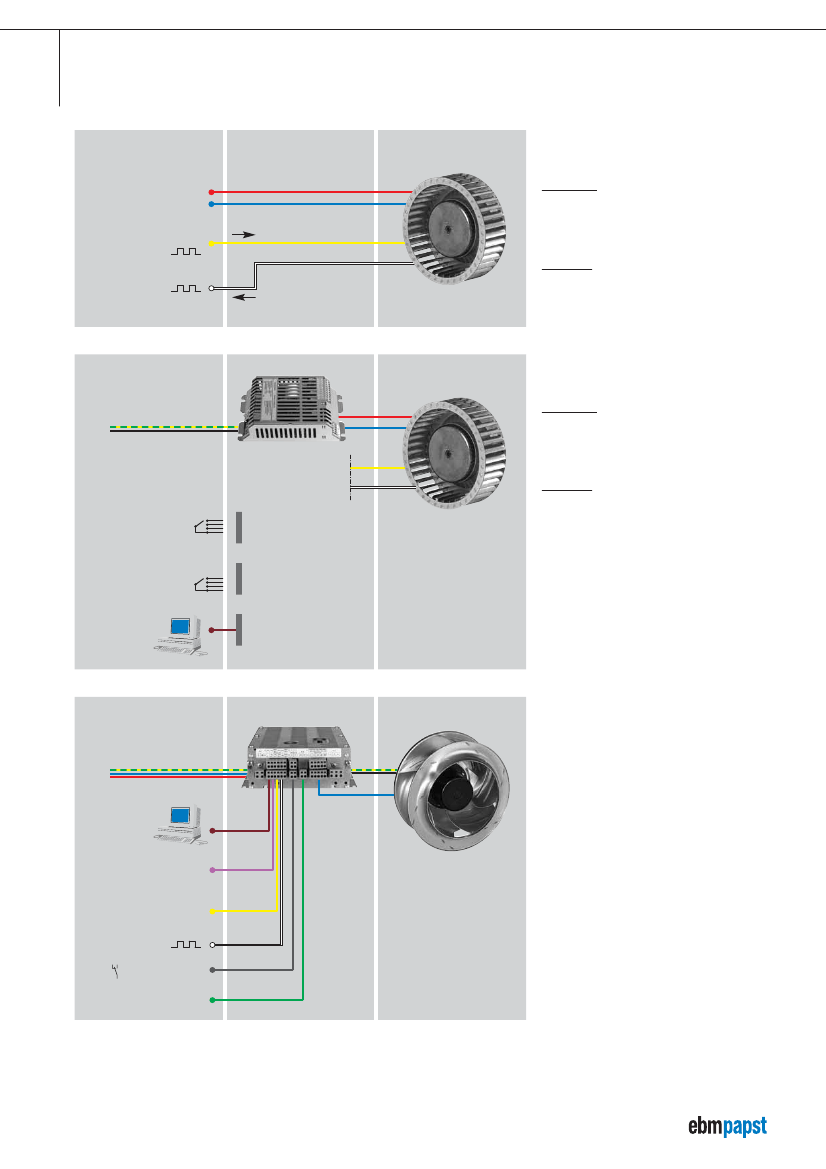

EC fan
PWM and Lin 0-10 VDC
red
EC fans 24 / 48 VDC
with integrated commutation electronics
Linear input:
< 1 VDC
1 VDC
10 VDC
24 / 48 VDC
blue
Control input
Lin
PWM
0-10 VDC
yellow
-> n=0
-> n
min
-> n
max
white
Tach output
PWM input:
< 10% PWM -> n=0
10% PWM -> n
min
100% PWM -> n
max
Power supply 230 VAC / 48 VDC
EC fan 48 VDC
PWM and Lin 0-10 VDC
EC fans 48 VDC
with integrated commutation electronics
Linear input:
< 1 VDC
1 VDC
10 VDC
red
230 VAC, 50 / 60 Hz
blue
yellow
-> n=0
-> n
min
-> n
max
Optional board (built-in):
white
Selector switch
3 speed steps
PWM input:
< 10% PWM -> n=0
10% PWM -> n
min
100% PWM -> n
max
Control input
selector switch
Lin 0-10 VDC or
Constant air flow
PC with interface
converter (RS485)
RS485 / ebmBUS
Commutation electronics 650 W
EC fan
EC fans
with external commutation electronics
650 W, 110 VDC (rail technology)
110 VDC
PC with interface
converter (RS485)
Actual value 0-10 VDC
(e.g. pressure, temperature, air flow,
air speed, moisture, CO
2
)
Control input
Lin
0-10 VDC
Potentiometer for set values
Tach output
Alarm
Controller enabling 10-100 VDC
10-253 VAC
330
EC fan with integrated electronics
EC fans (motor size 055)
with integrated commutation electronics
1~ 115 VAC or 230 VAC
50/60 Hz mains operation
EC fans (motor size 074)
with integrated commutation electronics
1~ 100 -130 VAC or 200 -277 VAC
50/60 Hz mains operation
Mains operation, 50 / 60 Hz
PC with interface
converter (RS485)
Control input 0-10 VDC / PWM
Actual value input 0-10 VDC
Supply for potentiometer 10 V
Tach output
Slave output
EC fan with integrated electronics
Mains operation, 50 / 60 Hz
PC with interface
converter (RS485)
Actual value input 0-10 VDC
Supply for potentiometer 10 V
Alarm
Slave output
331
Contacts
Technology
Accessories
EC-SYSTEMS
ESM
Control input 0-10 VDC / PWM
Q-motor
EC axial
S series
EC fans (motor size 084)
with integrated commutation electronics
1~ 100 -130 VAC or 200 -277 VAC
50/60 Hz mains operation
EC axial fans
AC axial
A series
AC axial
K series
AC axial
S series
AC axial fans
General
information
EC-SYSTEMS
Options

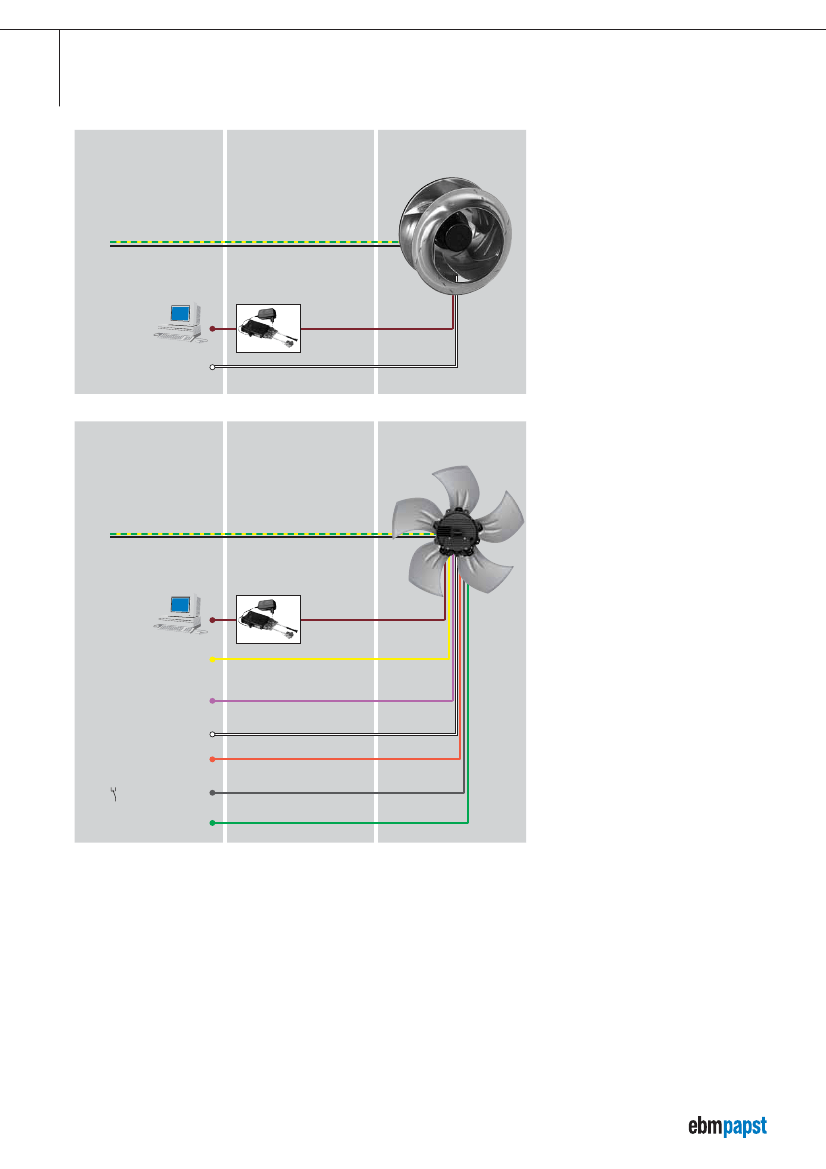

EC fan with integrated electronics
EC fans (motor size 084, ebmBUS)
with integrated commutation electronics
1~ 200-277 VAC,
50/60 Hz mains operation
Mains operation, 50 / 60 Hz
PC with interface
converter (RS485)
On/off and alarm
output 15 V
EC fan with integrated electronics
EC fans (motor size 112/150)
with integrated commutation electronics
1~ 200-277 VAC or
3~ 200-240 / 380-480 VAC
50/60 Hz mains operation
Mains operation, 50 / 60 Hz
PC with interface
converter (RS485)
Control input 0-10 VDC / PWM
Actual value input 0-10 VDC
Actual value input 4-20 mA
Supply for external sensor 20 V
Supply for potentiometer 10 V
Alarm
Slave output
332

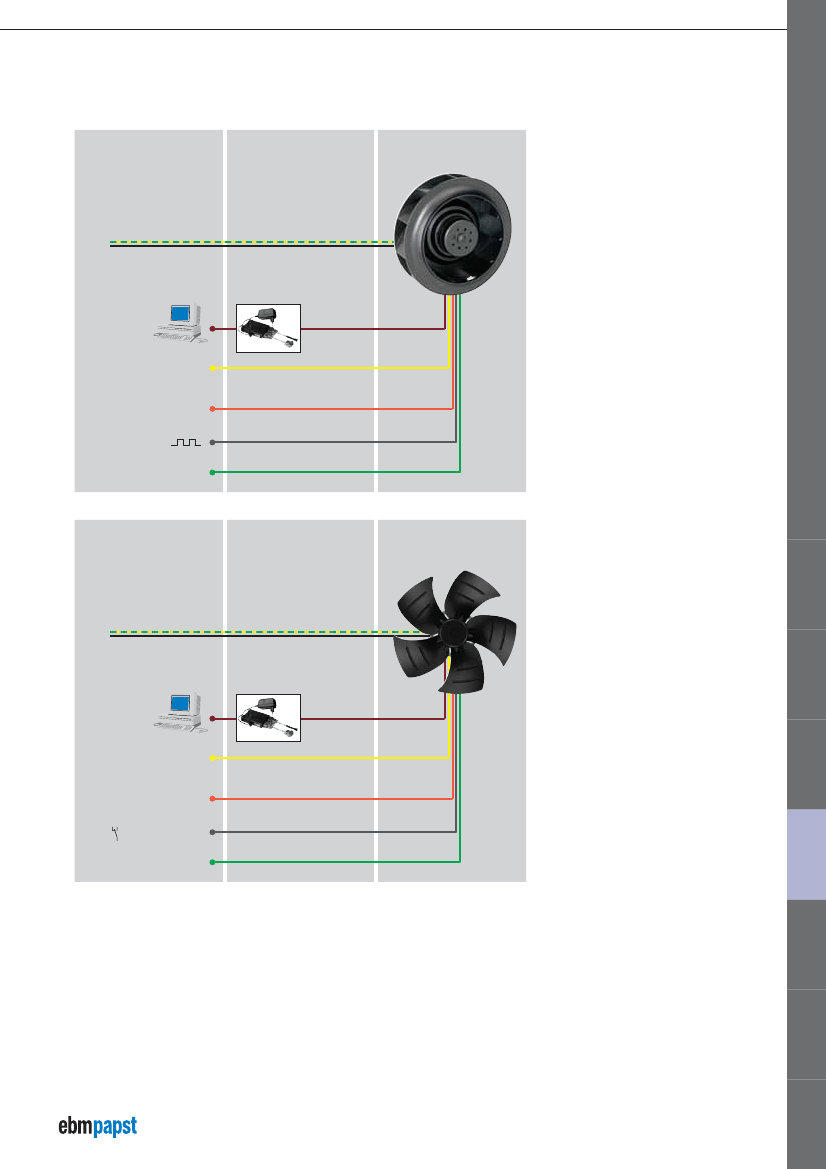

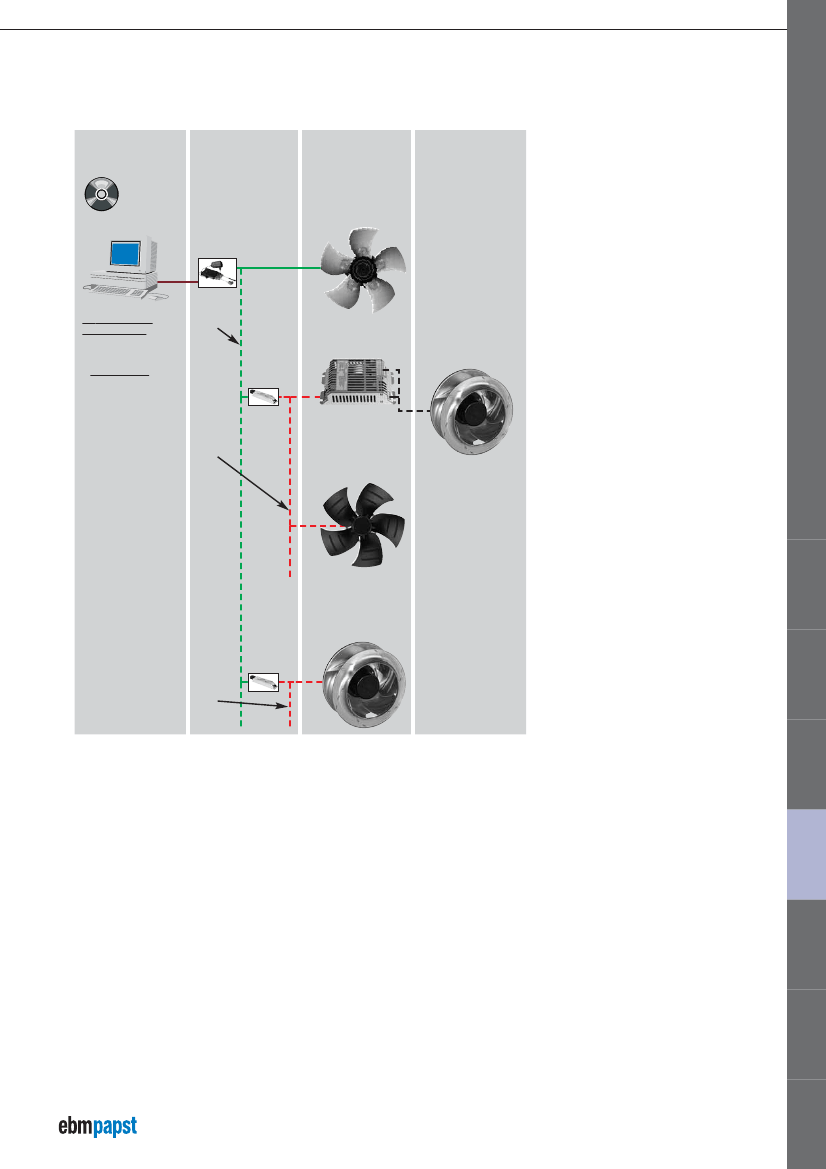

Customer PC with LISA
5.1 control software
Control software
part no.
25711-2-0199
Interface converter
and repeater
Electronics
EC fan
EC-SYSTEMS:
Networked EC fans with interface
converter and repeater
integrated electronics
Interface converter
part no. 21487-1-0174
Features of control
software LISA 5.1
– Individual control
and monitoring of
max. 7,905 fans
– Group-oriented
arrangement of the fans
– Level 1: Overview
display for 10 floors
– Level 2: Overview
display for 255 groups
– Level 3: Overview
display for 31 fans
within a group
– Broadcast command for
a group or all fans
– Speed, temperature or
pressure control
– Alarm signal
max. 31
addresses
Power supply 150 W
Repeater
part no.
25708-1-0174
max. 31
addresses
integrated electronics
integrated electronics
Repeater
max. 31
addresses
333
Contacts
Technology
Accessories
EC-SYSTEMS
ESM
Q-motor
EC axial
S series
EC axial fans
AC axial
A series
AC axial
K series
AC axial
S series
AC axial fans
General
information
