U.I. Lapp
GmbH
PRODUCT INFORMATION

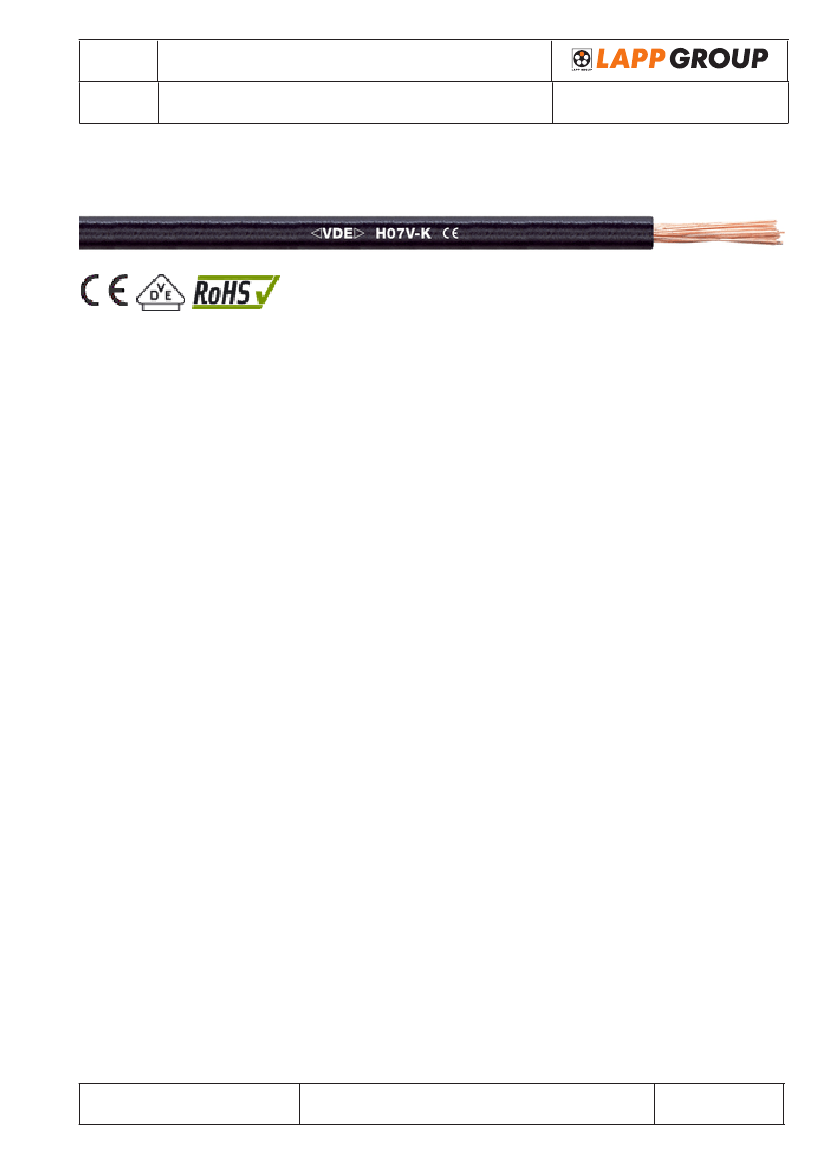

H07V-K
07.11.2014
<VDE> cable type certification
Cables' <VDE> marking is a testing mark/ proof of the successful testing according to VDE/ EN/ HD/ IEC standards as well as
possible health and safety regulations. <VDE> is issued by the VDE testing and certification institute.
Info
<VDE>
Application range
Laying in tubes, exposed or buried in plaster, and in closed installation ducts
For direct laying on racks, troughs and tubes only as potential equalisation conductor
Product Make-up
Fine-wired copper conductor of bare copper strands in line with conductor class 5 acc. IEC 60228
PVC core insulation
Norm references / Approvals
Product features
Remark
<VDE> cable type certification acc. EN 50525-2-31
Flame retardant acc. to IEC 60332-1-2
Unless specified otherwise, the shown product values are nominal values. Detailed values (e.g. tolerances) are available upon
request.Photographs are not to scale and do not represent detailed images of the respective products.The outer diameters
stated in the part number table are maximum values.
Technical Data
Classification:
ETIM 5.0 Class-ID: EC000993
ETIM 5.0 Class-Description: Single core cable
Fine-wired copper conductor of bare copper strands in line with
conductor class 5 acc. IEC 60228
At a cable temperature of 20°C ±10°C, according to HD 516
4 x outer diameter (OD) for normal use
2 x OD for cautions bending
U₀/U: 450/750 V
2500 V
VDE 0298 Part 4
HD 516/VDE 0298-300
Fixed installation:
-30°C to +80°C
Moved: +5°C to +70°C
Conductor stranding:
Minimum bending radius:
Nominal voltage:
Test voltage:
Current rating:
Temperature range:
Product Management
Document: LAPP_PRO211275EN.pdf
1/3
©2012 Lapp Group - Technical changes reserved
PN 0486/0_03.0
Photographs are not to scale and do not represent detailed images of the respective products.
Powered by TCPDF (www.tcpdf.org)
Part number
8120031
8120011
8120061
8120021
8120001
8120032
8120012
8120062
8120022
8120002
8120033
8120013
8120063
8120023
8120003
8120034
8120014
8120064
8120024
8120004
Document: LAPP_PRO211275EN.pdf
Product Management
Conductor cross-section Outer diameter (mm)
(mm²)
1,5
1,5
1,5
1,5
1,5
2,5
2,5
2,5
2,5
2,5
4
4
4
4
4
6
6
6
6
6
3.4
3.4
3.4
3.4
3.4
4.1
4.1
4.1
4.1
4.1
4.8
4.8
4.8
4.8
4.8
5.3
5.3
5.3
5.3
5.3
Core colour
brown
black
grey
blue
green/yellow
brown
black
grey
blue
green/yellow
brown
black
grey
blue
green/yellow
brown
black
grey
blue
green/yellow
m/ring
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
Copper index (kg/km)
14.4
14.4
14.4
14.4
14.4
24.0
24.0
24.0
24.0
24.0
38.4
38.4
38.4
38.4
38.4
57.6
57.6
57.6
57.6
57.6
Weight (kg/km)
22
22
22
22
22
37
37
37
37
37
45
©2012 Lapp Group - Technical changes reserved
PN 0486/0_03.0
Photographs are not to scale and do not represent detailed images of the respective products.
U.I. Lapp
GmbH
PRODUCT INFORMATION
H07V-K
45
45
45
45
71
71
71
71
71
07.11.2014
2/3
U.I. Lapp
GmbH
PRODUCT INFORMATION
H07V-K
07.11.2014
Product Management
Document: LAPP_PRO211275EN.pdf
3/3
©2012 Lapp Group - Technical changes reserved
PN 0486/0_03.0
Photographs are not to scale and do not represent detailed images of the respective products.
