R187.403.010 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> R187.403.010

R187.403.010: DescriptionRF Connector; CategoryThe connector The connector; File Size184KB，4 Pages; ManufacturerRadiall; Websitehttps://www.radiall.com/

Download Datasheet Parametric View All

R187.403.010 Overview

RF Connector

R187.403.010 Parametric

Parameter Name	Attribute value
Maker	Radiall
Reach Compliance Code	unknown
ECCN code	EAR99
Connector type	RF CONNECTOR
Manufacturer's serial number	R187.403.010
Base Number Matches	1

Preview

Download Datasheet

View All

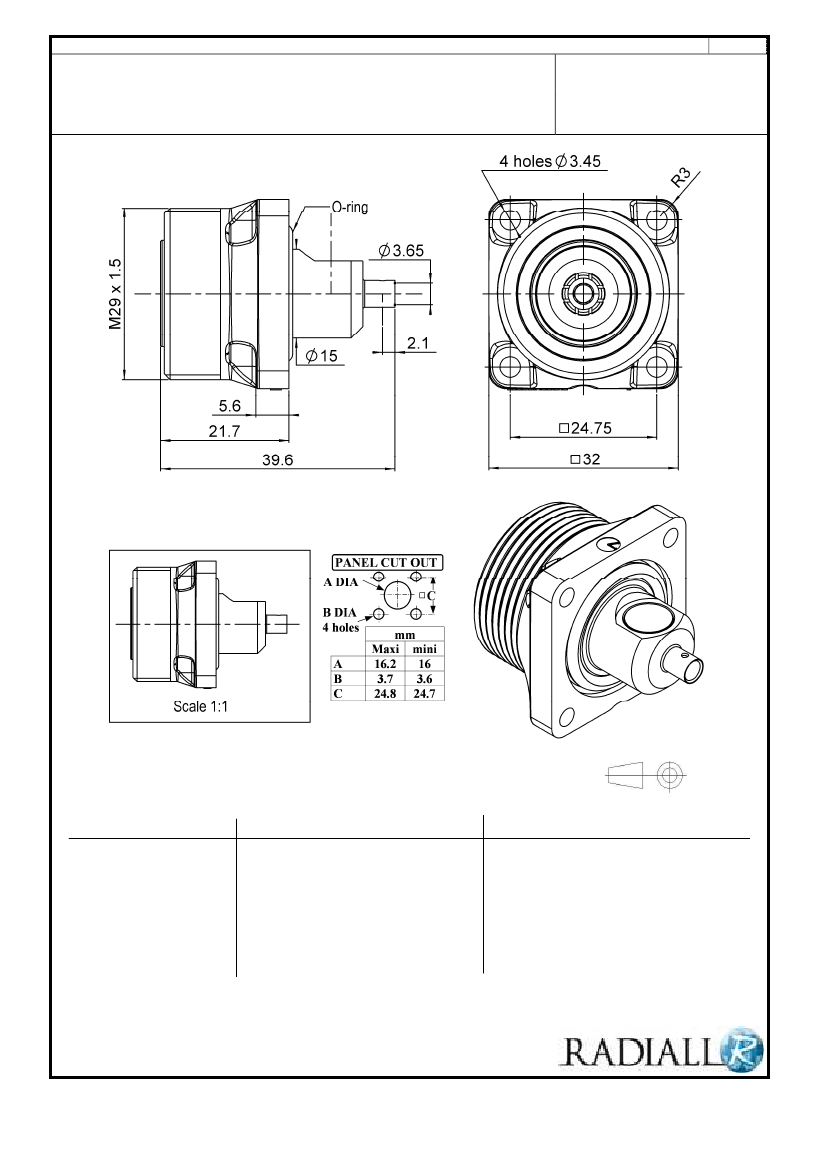

TECHNICAL DATA SHEET

1/4

COMPOSITE SQUARE FLANGE JACK RECEPTACLE

PANEL SEAL - SOLDER TYPE CABLE .141

R187.403.010

Series :

7/16

COMPOSITE

All dimensions are in mm.

COMPONENTS

BODY

CENTER CONTACT

OUTER CONTACT

INSULATOR

GASKET

OTHERS PARTS

MATERIALS

BRONZE

BRASS

PTFE

SILICONE RUBBER

PLATING

(µm)

SILVER 5 OVER COPPER 0.5

BBR 0.5 OVER SILVER 3

Issue : 0945 B

In the effort to improve our products, we reserve the right to make changes judged to

be necessary.
