568-0102323F: DescriptionT-1 DUAL COLOR LED ARRAY, YELLOW/GREEN, 3mm, ROHS COMPLIANT PACKAGE-8; CategoryLED optoelectronic/LED photoelectric; File Size472KB，2 Pages; ManufacturerDIALIGHT; Websitehttps://www.dialight.com; Environmental Compliance

Download Datasheet Parametric Compare View All

568-0102323F Overview

T-1 DUAL COLOR LED ARRAY, YELLOW/GREEN, 3mm, ROHS COMPLIANT PACKAGE-8

568-0102323F Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT PACKAGE-8
Reach Compliance Code	compliant
color	YELLOW/GREEN
Configuration	SEPARATE, 4 ELEMENTS
Maximum forward current	0.03 A
JESD-609 code	e4
Nominal luminous intensity	10.0/12.6 mcd
Installation features	RADIAL MOUNT
Number of functions	4
Number of terminals	8
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Optoelectronic device types	DUAL COLOR LED ARRAY
total height	20.32 mm
method of packing	BAG
peak wavelength	585/565 nm
shape	ROUND
size	3 mm
surface mount	NO
T code	T-1
Terminal surface	SILVER
Terminal pitch	2.54 mm
perspective	60 deg
Base Number Matches	1

Preview

Download Datasheet

View All

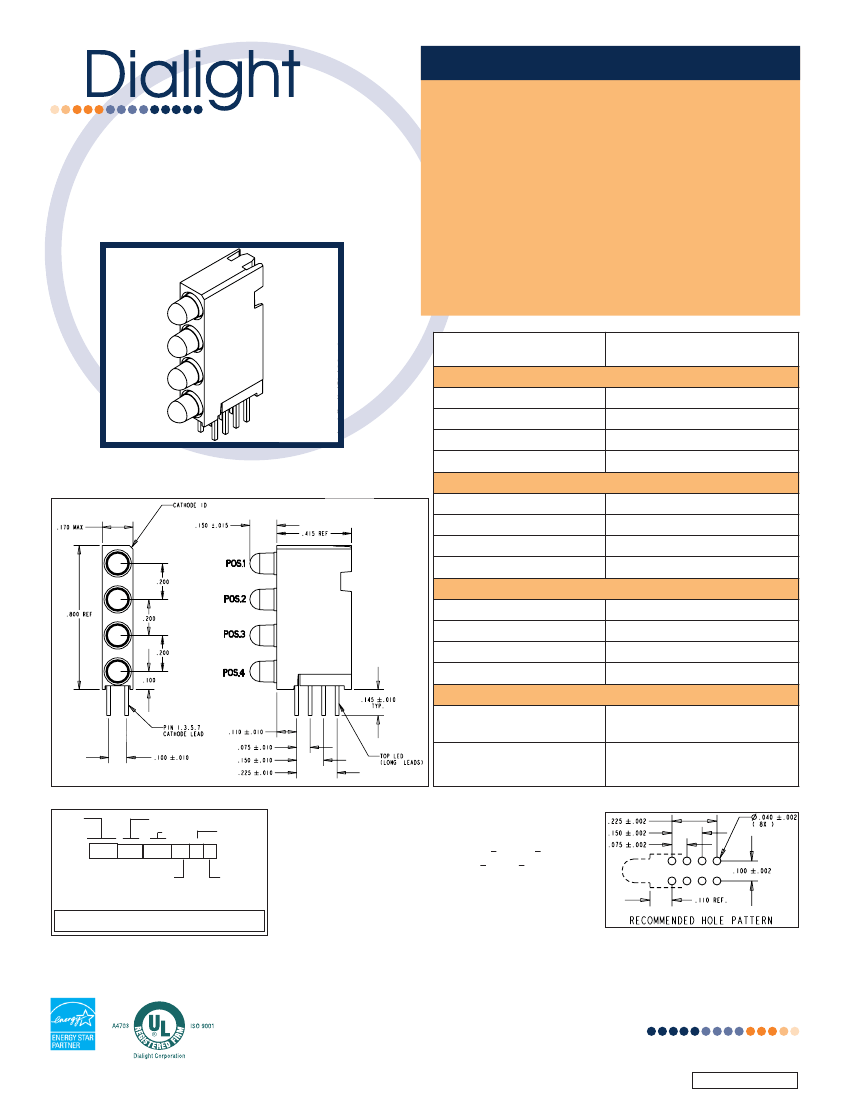

FEATURES / BENEFITS

Multiple CBIs form horizontal LED arrays on 1.91 mm

(0.075”) center lines.

High Contrast, UL 94 V-0 rated, black housing

Oxygen index: 32%

Polymer content: PBT, 0.949 g

Housing stand-offs facilitate PCB cleaning

Solderability per MIL-STD-202F, method 208F

LEDs are safe for direct viewing per IEC 825-1,

EN 60825-1

568 Series

3mm LED CBI

®

Circuit Board Indicator

QUAD-LEVEL

PART NUMBER

HIGH EFFICIENCY - LED TYPE 1

568-0101-111

568-0102-222

568-0102-323

568-0103-232

COLOR*

RED/RED/RED/RED

GREEN/GREEN/GREEN/GREEN

GREEN/YELLOW/GREEN/YELLOW

YELLOW/GREEN/YELLOW/GREEN

LOW CURRENT - LED TYPE 2

568-0201-111

568-0202-222

568-0202-323

568-0203-232

RED/RED/RED/RED

GREEN/GREEN/GREEN/GREEN

GREEN/YELLOW/GREEN/YELLOW

YELLOW/GREEN/YELLOW/GREEN

INTEGRAL RESISTOR, 5 VOLTS - LED TYPE 3

568-0301-111

568-0302-222

568-0302-323

568-0303-232

RED/RED/RED/RED

GREEN/GREEN/GREEN/GREEN

GREEN/YELLOW/GREEN/YELLOW

YELLOW/GREEN/YELLOW/GREEN

BI-COLOR - LED TYPE 7

568-0701-111

RED/GREEN-RED/GREEN-

RED/GREEN-RED/GREEN

568-0704-444

YELLOW/GREEN-YELLOW/GREEN-

YELLOW/GREEN-YELLOW/GREEN

PART NUMBER ORDERING CODE

Series

LED Type

LED 1

LED 3

* LED 1, LED 2, LED 3, LED 4

Tolerance note:

As noted, otherwise:

• LED Protrusion: +0.4 mm [+0.016]

• CBI Housing: +0.2mm [+0.008]

Contact factory for information on

custom color combinations.

568 -0x

0x

LED 2

-x x x

LED 4

Color =

0) Blank, 1) Red or Red/Green Bi-Color,

2) Green, 3) Yellow, 4) Yellow/Green Bi-Color

Dialight Corporation

1501 Route 34 South • Farmingdale, NJ 07727 USA

Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com

a Roxboro Group Company

MDEA568X001_A
