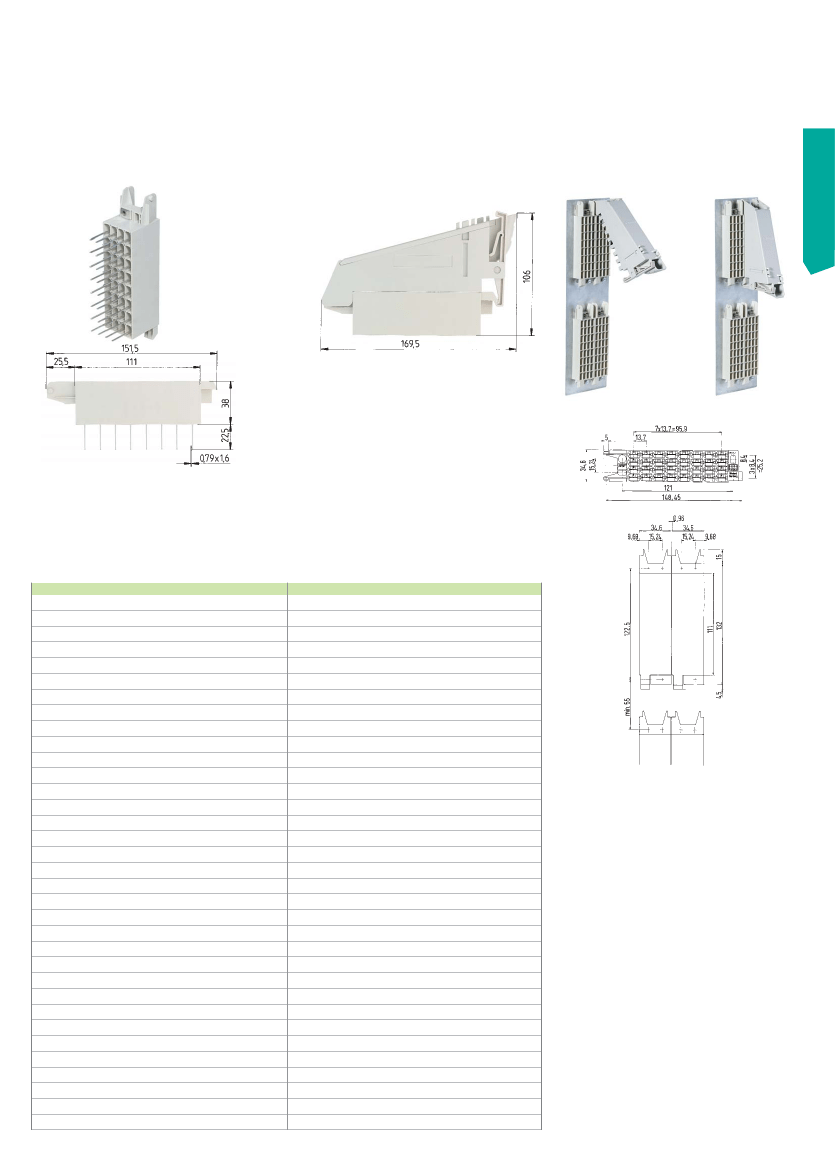

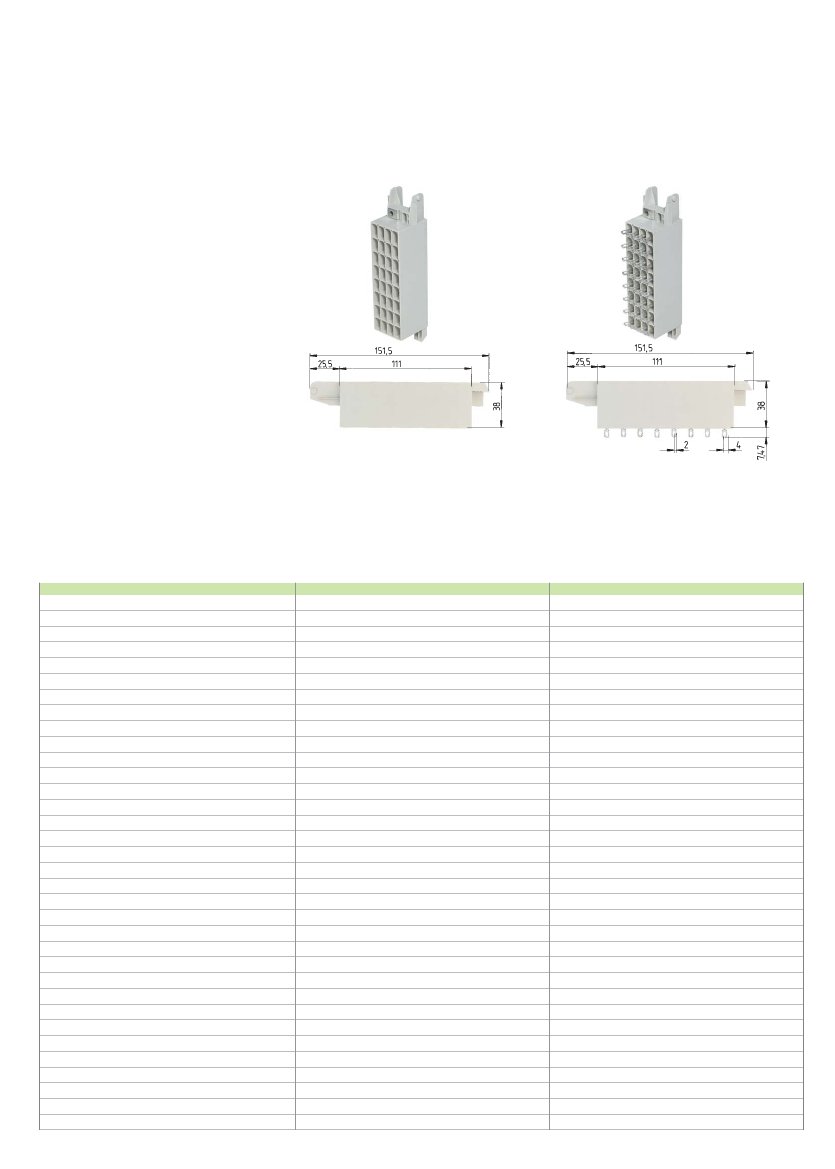

Distribution module, 32 pole
plug-able system with shield connection
Material:
Insulating part: Polyamide 66/6 gray, blue
Tab connector: tin-plated copper alloy
Spring contact: tin-plated bronze
Tab connector: 2.8 x 0.8 mm
*) Push-on connector
Push-on connector
TERMI-POINT
6.3 mm
2.8 mm
20 A
10 A
10 A
RV2S/...
Front
Voltage accord. to DIN VDE 0110
Distribution module
gray (per pole)
blue
3 x 2,8 x 0,8
2 x 2,8 x 0,8
Rear
3 x 2,8 x 0,8
2 x 2,8 x 0,8
V
400 V/6 kV/3
A
*)
RV2S/...L
Front
3 x 2,8 x 0,8
2 x 2,8 x 0,8
Rear
1 Lötanschluss
1 Lötanschluss
V
400 V/6 kV/3
A
*)
Type
Part no.
Std. pack
Type
Part no.
Std. pack
Distribution module
pluggable system
Color: gray
Color: blue
Plug-able connector
Color: gray
Color: blue
RV2S/6
RV2S/4 blau
26.500.2053.0
26.500.2353.0
10
10
RV2S/3L
RV2S/2L blau
26.500.2153.0
26.500.2453.0
10
10
Accessories
1. Spring contact for 0.5 - 1 mm
2
Banded contacts
Single contact
4. Spring contact for 0.1 – 0.5 mm
2
Banded contacts
Single contact
7. Crimp Tool
8. Contact removal tool
9. Replacement latch
For marking systems see pages 178 -183 and 250-251
206
selos
RV2S/...TP1
Front
3 x 2,8 x 0,8
2 x 2,8 x 0,8
Type
Rear
2 x 2,8 x 0,8
1 x Termi-Point
1 x Termi-Point
Part no.
V
400 V/6 kV/3
A
*)
V
400 V/6 kV/3
A
*)
Std. pack
Type
Part no.
Std. pack
RV2S/3TP1
RV2S/2TP1blau
26.500.2253.0
26.500.2553.0
10
10
93.004.0056.0
93.004.0056.6
10
10
02.124.4000.0 4000
02.124.4029.0
02.124.4100.0 4000
02.124.4129.0
95.101.0612.0
05.502.0200.0
05.502.0500.0
1
1
1
The narrow design of the terminal block is only 35 mm
wide, with 32 connections in four rows and, means
that you can increase the packing density when using
touch-on clamp type or solder connection methods.
This sytem can be expanded using a 32 pole plug which
enables simultaneous connection of 32 contacts.
Advantages:
– easy connection of all poles via a
hinged lever on the group plug
– can be fixed securely by means of an
easy-to-operate locking lever on the
lower section
– cable strain relief
– a cover on the plug connector enables
measurements to be taken when the
group plug in connected
– leading earth contact which can be directly
connected to the frame upon assembly
– marking facility – marker tag type
9705 AB and 9704 AB (see page 180)
207
