3XL7090CW-G100-WC-Q-002 datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 3XL7090CW-G100-WC-Q-002

3XL7090CW-G100-WC-Q-002: DescriptionSingle Color LED, White; CategoryLED optoelectronic/LED photoelectric; File Size540KB，6 Pages; ManufacturerCree; Websitehttp://www.cree.com/

Download Datasheet Parametric View All

3XL7090CW-G100-WC-Q-002 Overview

Single Color LED, White

3XL7090CW-G100-WC-Q-002 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
color	WHITE
Installation features	SURFACE MOUNT
Number of functions	1
Optoelectronic device types	SINGLE COLOR LED
method of packing	BULK
shape	ROUND
surface mount	YES
perspective	100 deg
Base Number Matches	1

Preview

Download Datasheet

View All

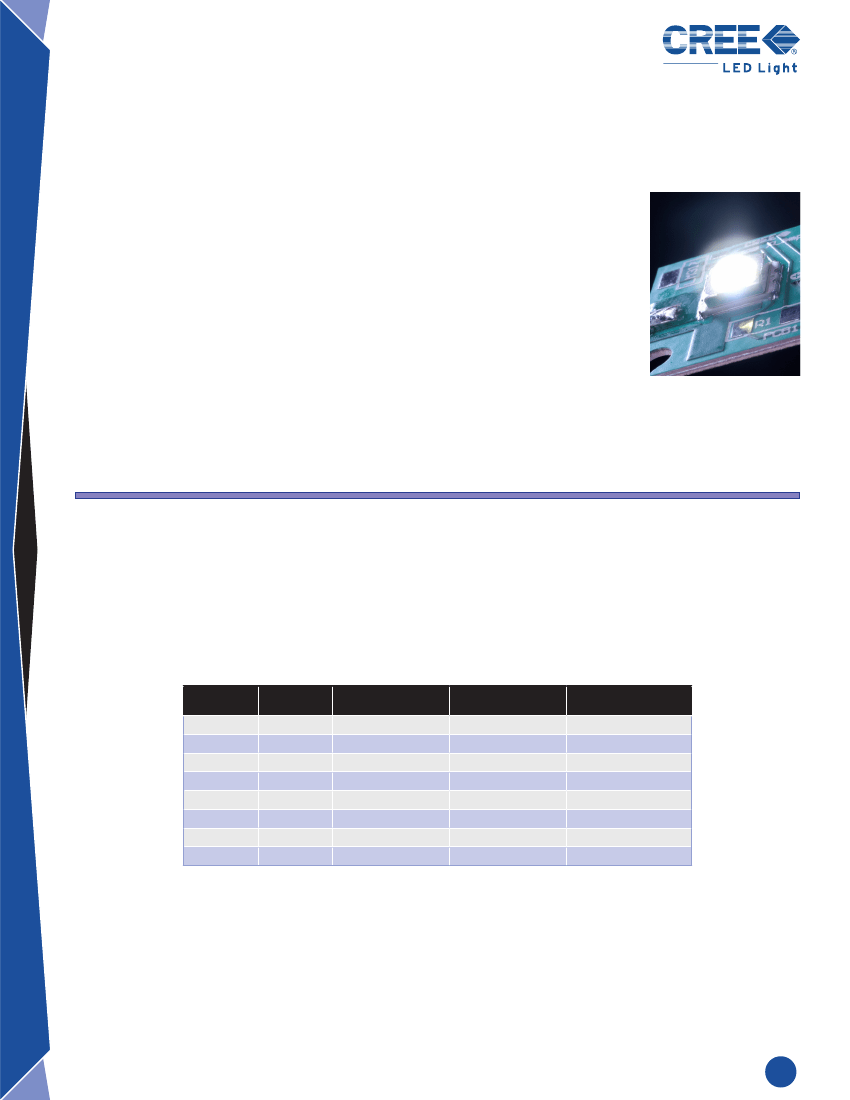

Cree

XLamp

3 7090 LED

Binning and Labeling

Cree XLamp 3 7090 LEDs combine the brightness of power LED chips with a rugged

package capable of operating in excess of three watts. XLamp LEDs lead the solid-state

lighting industry in brightness while providing a reflow-solderable design that is optimized

for ease-of-use and thermal management. Lighting applications featuring XLamp LEDs

maximize light output and increase design flexibility, while minimizing environmental

impact.

This application note describes Cree’s procedures for sorting XLamp 3 7090 LEDs by color

(dominant wavelength or chromaticity) and brightness (flux) and then lists the order

codes encompassing these color and brightness groups for easy reference.

Nomenclature

XLamp LEDs are tested and sorted into performance bins. A bin is specified by ranges of dominant wavelength and

brightness. Sorted XLamp LEDs are packaged on reels. A reel contains lamps from one bin and is labeled with its bin

code. For more information on packaging see the XLamp 3 7090 Data Sheet.

XLamp LEDs are sold by order codes in combinations of bins called kits. Kits include a minimum of two dominant

wavelength groups and two brightness groups. Order codes are configured in the following manner:

Viewing Angle

(degrees)

100

Kit #

Combination of bins

0001-9999

Family

3XL7090

Color

Spatial Pattern

L – Lambertian

G- Global*

D-AP03.002

tion Note: CL

Applica

*Global—is an alternative white product that has higher efficacy with slightly lower color uniformity.

XLamp LED order codes specify package family, color, optical configuration (spatial pattern and viewing angle) and

kit number (combination of bins).

Kit number 0001 is always the order code encompassing the broadest range of color and brightness groups.

Subject to change without notice.

www.cree.com/xlamp
