ASV1-FREQ-N-C-S1-T datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> ASV1-FREQ-N-C-S1-T

ASV1-FREQ-N-C-S1-T: DescriptionHCMOS/TTL Output Clock Oscillator, 1MHz Min, 150MHz Max, ROHS COMPLIANT, SMD, LCC-4; CategoryPassive components oscillator; File Size360KB，2 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ASV1-FREQ-N-C-S1-T Overview

HCMOS/TTL Output Clock Oscillator, 1MHz Min, 150MHz Max, ROHS COMPLIANT, SMD, LCC-4

ASV1-FREQ-N-C-S1-T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Abracon
Reach Compliance Code	compliant
Other features	TAPE AND REEL, TRI-STATE ENABLE/DISABLE FUNCTION
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
Manufacturer's serial number	ASV1
Installation features	SURFACE MOUNT
Maximum operating frequency	150 MHz
Minimum operating frequency	1 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Oscillator type	HCMOS/TTL
Output load	5 TTL, 15 pF
physical size	7.0mm x 5.08mm x 1.4mm
longest rise time	10 ns
Maximum supply voltage	3.63 V
Minimum supply voltage	2.97 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	45/55 %
Base Number Matches	1

Preview

Download Datasheet

View All

3.3Vdc HCMOS/TTL SMD CRYSTAL CLOCK OSCILLATOR

ASV1 SERIES

FEATURES:

• Low profile, Leadless Chip Carrier (LCC)

• HCMOS/TTL Compatible, 3.3Vdc, 2.5Vdc, & 1.8Vdc options

• Reflow capable, Seam Sealed Package

APPLICATIONS:

• Clock signaling for

μProcessors,

PC Motherboards & Graphic

Cards

• High output drive capability (up to 50pf)

RoHS

Compliant

7.0 x 5.0 x 1.4mm

| | | | | | | | | | | | | | |

STANDARD SPECIFICATIONS:

PARAMETERS

ABRACON P/N

Frequency Range

Operating Temperature

Storage Temperature

Overall Frequency Stability

Supply Voltage (Vdd)

Input Current

Symmetry

Rise time / Fall time (Tr/Tf)

Output Load

Output Voltage

Start-up Time

Tristate Function

Aging at 25°C/year

Period jitter one sigma

Disable Current

ASV1 Series

1.000 MHz to 150.000 MHz

-10° C to + 70° C (see options)

- 55° C to + 125° C

± 100 ppm max. (see options)

3.3 Vdc ± 10%

See Table 1

40/60 % max.@ 1/2Vdd (see options)

See Table 1

15pF (5TTL)

VOH = 0.9 * Vdd min.; VOL = 0.4 Vdc max.

10ms max.

"1" (VIH >= 2.2*Vdd) or open: Oscillation

"0" (VIL < 0.8*Vdd) : Hi Z

±5ppm max.

± 25ps max.

15μA max.

Table 1

Frequency

1.0 ~ 34.99MHz

35.0 ~ 60.0MHz

60.01~99.99MHz

100 ~ 150MHz

Idd (max)

Tr/Tf (max)

16mA

10ns

25mA

5ns

40mA

5ns

50mA

2.5ns

OPTIONS & PART IDENTIFICATION:

(Left blank if standard)

ASV1 - Frequency -

Frequency

XX.XXXXMHz

Packaging

Blank

Bulk

Tape and Reel

Operating Temp.

0°C to +50°C

-10°C to +60°C

-20°C to +70°C

-30°C to +70°C

-30°C to +85°C

-40°C to +85°C

Freq. Stability

± 10 ppm

± 20 ppm

± 25 ppm

± 30 ppm

± 35 ppm

± 50 ppm

Symmetry

45/55% @

1/2Vdd

45/55% @

1.4Vdd

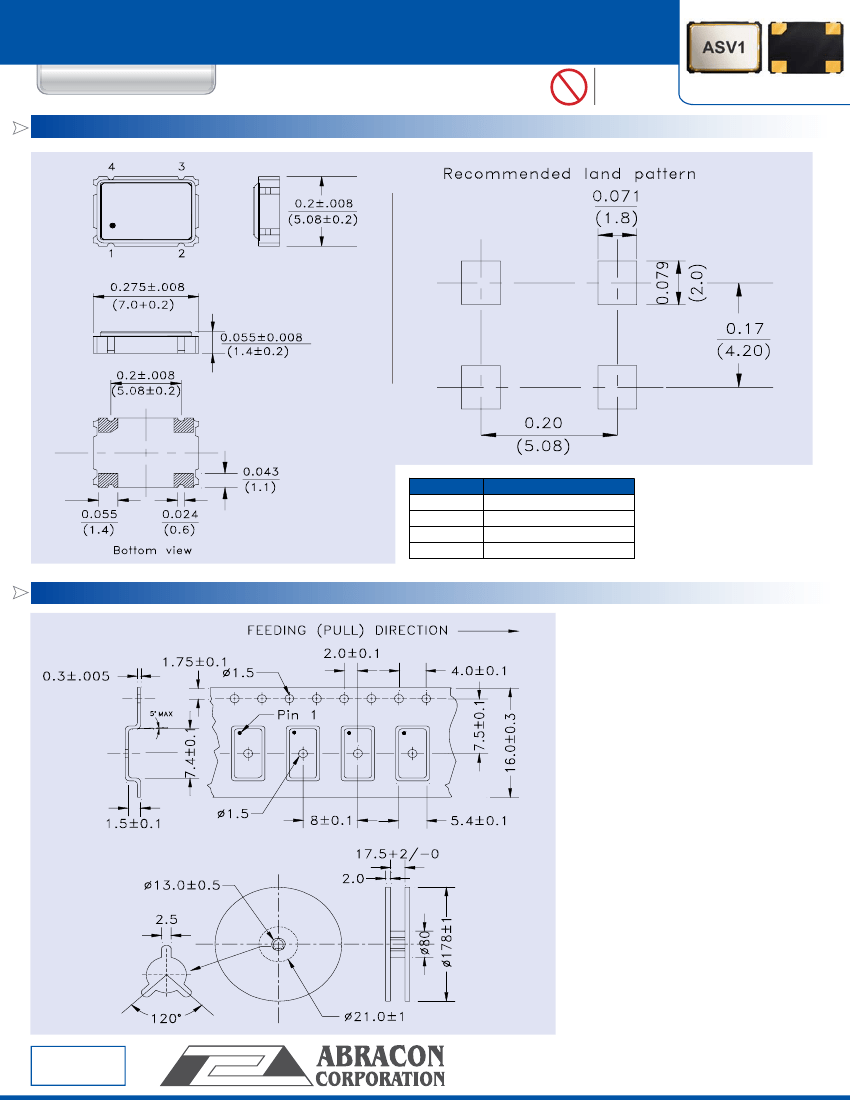

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

Revised: 07.12.07

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale
