831-00192 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> 831-00192

831-00192: DescriptionGeneral Purpose Inductor, 55.6uH, 20%, 1 Element,; CategoryPassive components inductor; File Size46KB，2 Pages; ManufacturerElec & Eltek; Websitehttp://www.eleceltek.com

Download Datasheet Parametric Compare View All

831-00192 Overview

General Purpose Inductor, 55.6uH, 20%, 1 Element,

831-00192 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Elec & Eltek
Reach Compliance Code	unknown
ECCN code	EAR99
DC Resistance	0.023 Ω
Nominal inductance(L)	55.6 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	831-00192
Number of functions	1
Number of terminals	2
Maximum operating temperature	130 °C
Minimum operating temperature	-40 °C
Maximum rated current	5 A
Shape/Size Description	CYLINDRICAL PACKAGE
shield	NO
surface mount	NO
Terminal location	RADIAL
Terminal shape	WIRE
Test frequency	0.02 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

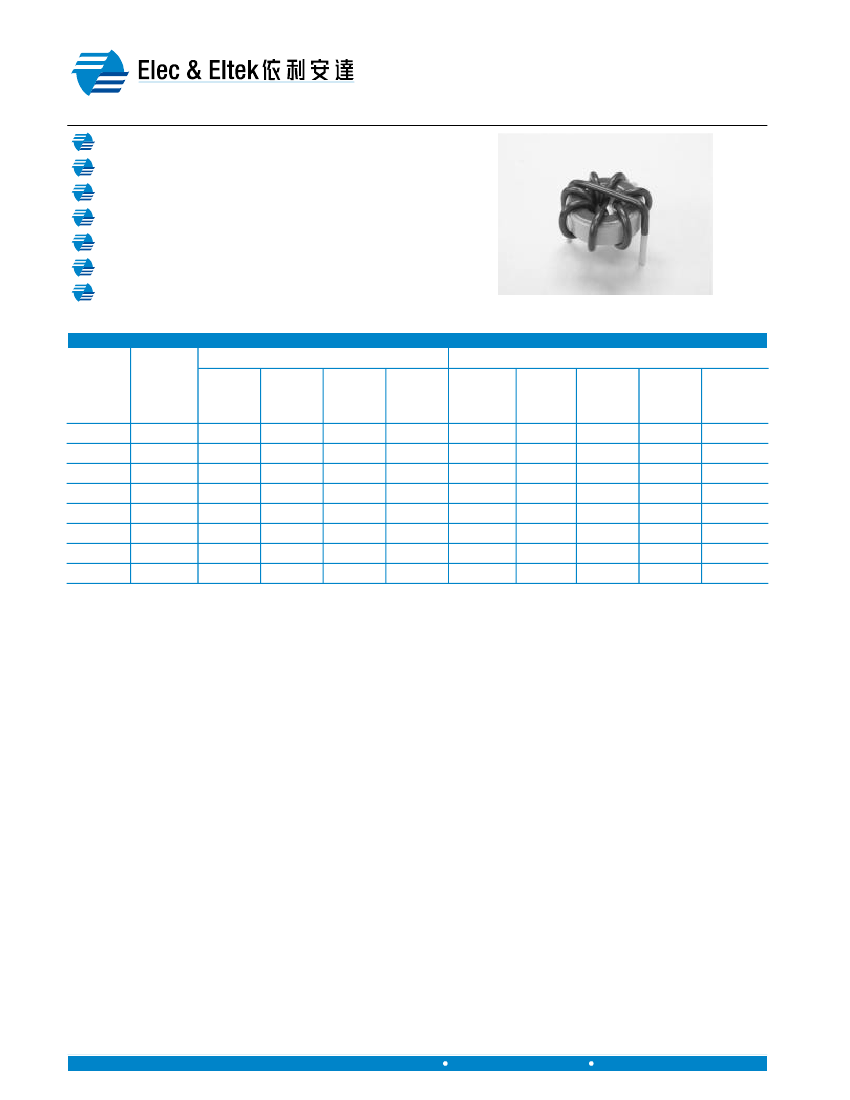

E & E Magnetic Products Limited

LOW COST THT

POWER INDUCTORS

Toroid Type - Low Profile

Available in low profile

Characterized for general purpose use and ripple filters

Can be used as differential mode inductors in EMI filters

Can be used as SMPS averaging filter

Single-layer design

Operating temperature -40

C to +130

RoHS compliant versions are available

LECTRICAL

PECIFICATION @

25°C

Reference Operating Values

Part

Number

RoHS

Part

Number

Inductance

Typical

(

100

145

100

35.6

Design Control Values

(A)

2.6

3.0

3.6

5.0

7.0

(V-

Sec)

140

130

200

100

150

Energy

Storage

(

169

338

315

653

648

1250

445

1348

Inductance Inductance

No DC (

H) Test Volt.

DCR

±20%

Ω

Max)

(mV)

45.7

94.1

61.0

141.8

90.7

55.6

49.1

140

110

180

100

110

95.7

49.5

Coil

Size

Code

Lead

Diameter

(Inch)

.003

.020

.025

.032

.042

.051

831-00186 831-00186F

831-00187 831-00187F

831-00188 831-00188F

831-00189 831-00189F

831-00190 831-00190F

831-00191 831-00191F

831-00192 831-00192F

831-00193 831-00193F

Notes:

1. Typical inductance occurs at I

and ET

values shown.

2. LI /2 rating is the ability of the inductor to store energy.

3. Inductance is tested at 20kHz.

4. Design control test voltage is critical, inductance increases with voltage.

5. Add 10% more for low profile part.

6. The part temperature (ambient temperature + temperature rise) should not exceed the upper limit of the operating

temperature under worst case operating conditions. Circuit design, component placement, PWB trace size and

thickness, airflow and other cooling provisions all affect the part temperature. Part temperature should be verified

in the end application.

2/F Block A, 94 Tokwawan Road, Kowloon, Hong Kong

Tel: (852) 2765 3888

Fax: (852) 2954 3304

PI008(05)

Revised in 06/07

831-00192 Related Products

	831-00192	831-00186	831-00190	831-00189	831-00188	831-00191	831-00187	831-00193
Description	General Purpose Inductor, 55.6uH, 20%, 1 Element,	General Purpose Inductor, 45.7uH, 20%, 1 Element,	General Purpose Inductor, 90.7uH, 20%, 1 Element,	General Purpose Inductor, 141.8uH, 20%, 1 Element,	General Purpose Inductor, 61uH, 20%, 1 Element,	General Purpose Inductor, 90.7uH, 20%, 1 Element,	General Purpose Inductor, 94.1uH, 20%, 1 Element,	General Purpose Inductor, 49.1uH, 20%, 1 Element,
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
DC Resistance	0.023 Ω	0.071 Ω	0.0495 Ω	0.0957 Ω	0.052 Ω	0.034 Ω	0.11 Ω	0.017 Ω
Nominal inductance(L)	55.6 µH	45.7 µH	90.7 µH	141.8 µH	61 µH	90.7 µH	94.1 µH	49.1 µH
Inductor Applications	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	831-00192	831-00186	831-00190	831-00189	831-00188	831-00191	831-00187	831-00193
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2
Maximum operating temperature	130 °C	130 °C	130 °C	130 °C	130 °C	130 °C	130 °C	130 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Maximum rated current	5 A	2.6 A	3.6 A	3 A	3 A	5 A	2.6 A	7 A
Shape/Size Description	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE
shield	NO	NO	NO	NO	NO	NO	NO	NO
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Terminal location	RADIAL	RADIAL	RADIAL	RADIAL	RADIAL	RADIAL	RADIAL	RADIAL
Terminal shape	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Test frequency	0.02 MHz	0.02 MHz	0.02 MHz	0.02 MHz	0.02 MHz	0.02 MHz	0.02 MHz	0.02 MHz
Tolerance	20%	20%	20%	20%	20%	20%	20%	20%
Maker	Elec & Eltek	Elec & Eltek	Elec & Eltek	Elec & Eltek	Elec & Eltek	Elec & Eltek	-	Elec & Eltek
Base Number Matches	1	1	1	1	1	1	1	-
