5681F5: DescriptionSingle Color LED Array, Green, Diffused, T-1, 3mm, PLASTIC PACKAGE-16; CategoryLED optoelectronic/LED photoelectric; File Size91KB，1 Pages; ManufacturerChicago Miniature

Download Datasheet Parametric Compare View All

5681F5 Overview

Single Color LED Array, Green, Diffused, T-1, 3mm, PLASTIC PACKAGE-16

5681F5 Parametric

Parameter Name	Attribute value
package instruction	PLASTIC PACKAGE-16
Reach Compliance Code	unknown
color	GREEN
Configuration	SEPARATE, 2 ELEMENTS
Maximum forward current	0.03 A
Lens type	DIFFUSED
Nominal luminous intensity	25.0 mcd
Installation features	RADIAL MOUNT
Number of functions	2
Number of terminals	4
Optoelectronic device types	SINGLE COLOR LED ARRAY
total height	10.8712 mm
method of packing	BULK
peak wavelength	563 nm
shape	ROUND
size	3 mm
surface mount	NO
T code	T-1
Terminal pitch	2.54 mm
perspective	55 deg
Base Number Matches	1

Preview

Download Datasheet

View All

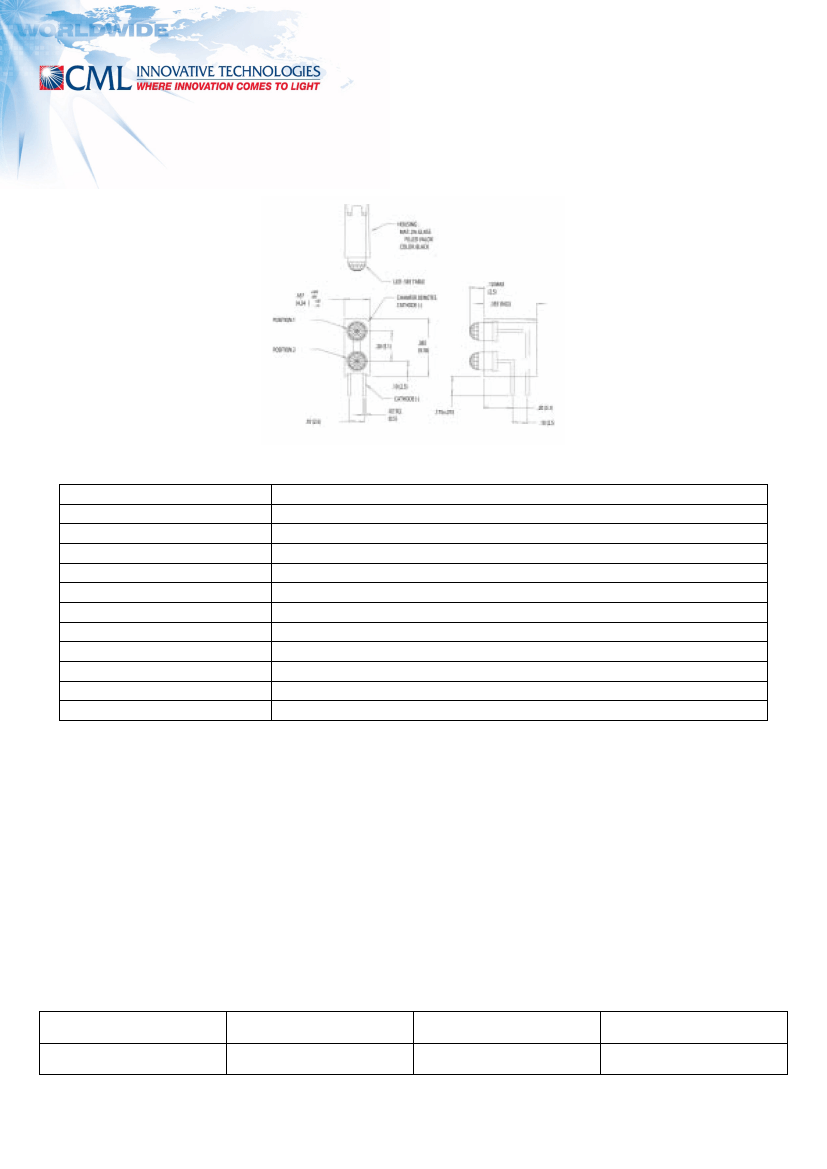

Part Number : 5681F5:5

Serial Number : 5681F

Circuit Board Indicators

Emitted color

Lens color

Lum in min (mcd)

Lum in type (mcd)

Rated current (mA)

Cont forward current max

Fwd volts type

Forward volt max.

Reverse breakdown V

Viewing angle (°)

Peak Wave Lenght (mA)

Housing type

Green

9

25

10

30

2,1

3

5

55

563

UL94V-0

Drawn : VG

Revision :

Ch'd : VG

Revision date : 2006-03-06

Datasheet : 5681F

Name : VG

Print date : 06/06/06

Scale :

All data are subject to changes without notices. Information include in datasheet is not binding.
