Printview: Female connector; with angled solder pins; 10-pole; with fixing flanges; Pin spacing 5 mm / 0.197
in; Solder pin 0.6x1 mm; codable; Horizontal PCB mounting; with 2 locking latches - Item No.: 232-240/031-
000
.
Female connector; with angled solder pins; 10-pole; with fixing
flanges; Pin spacing 5 mm / 0.197 in; Solder pin 0.6x1 mm;
codable; Horizontal PCB mounting; with 2 locking latches
Item No.: 232-240/031-000
.
Female connector; with angled solder pins; 10-pole; with fixing flanges; Pin spacing 5 mm / 0.197 in; Solder pin 0.6x1
mm; codable; Horizontal PCB mounting; with 2 locking latches
.
Marking
.
Business data
Supplier
Item no.
GTIN / EAN
Content
Order amount
Customer item number
.
Notes
WAGO
232-240/031-000
4044918624961
1
25
Item description:Integrated test ports for 2mm Ø test plugsFor “board-to-board” and “board-to-wire”
connectionsTouch-proof PCB outputsEasy-to-identify PCB inputs and outputsCoding option available
Technical data
Miscellaneous
No. of poles
Pin spacing
Color
Ratings according to 1
Rated voltage (III / 3) [V]
Rated surge voltage (III / 3) [kV]
10
5 mm (0.197 in %)
gray
IEC/EN 60664-1
320 [V]
4 [kV]
WAGO Kontakttechnik GmbH & Co. KG
1
Printview: Female connector; with angled solder pins; 10-pole; with fixing flanges; Pin spacing 5 mm / 0.197
in; Solder pin 0.6x1 mm; codable; Horizontal PCB mounting; with 2 locking latches - Item No.: 232-240/031-
000
Technical data
Rated voltage (III / 2) [V]
Rated surge voltage (III / 2) [kV]
Rated voltage (II / 2) [V]
Rated surge voltage (II / 2) [kV]
Nominal current [A]
Number of levels
Solder pin length [mm]
Drilled hole diameter (tolerance) [mm]
Material group
Insulating material
Flammability rating per UL 94
Limit temperature range
Contact material
Contact plating
Fire load [MJ]
Weight [g]
Width
Height
Height from the surface
Length
Type of mounting
Mounting type
320 [V]
4 [kV]
630 [V]
4 [kV]
12 [A]
1
5 [mm]
1.3(+ 0.1) [mm]
I
Polyamide 66 (PA 66)
V0
-60 … 85 C
Copper alloy
tin-plated
0.18 [MJ]
9.846 [g]
64.8 mm / 2.551 in
16.6 mm / 0.654 in
11.6 mm / 0.457 in
18.25 mm / 0.719 in
Durchführungsmontage
Befestigungsflansch
WAGO Kontakttechnik GmbH & Co. KG
2
Printview: Female connector; with angled solder pins; 10-pole; with fixing flanges; Pin spacing 5 mm / 0.197
in; Solder pin 0.6x1 mm; codable; Horizontal PCB mounting; with 2 locking latches - Item No.: 232-240/031-
000

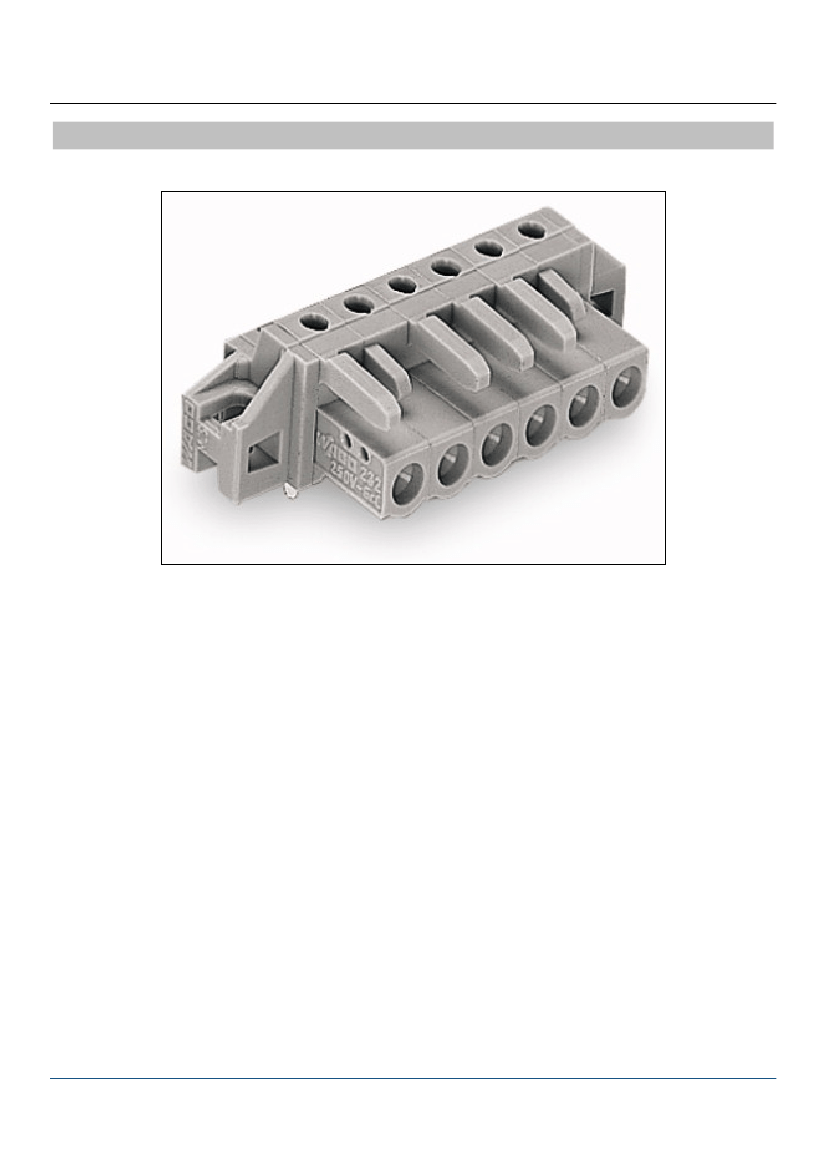

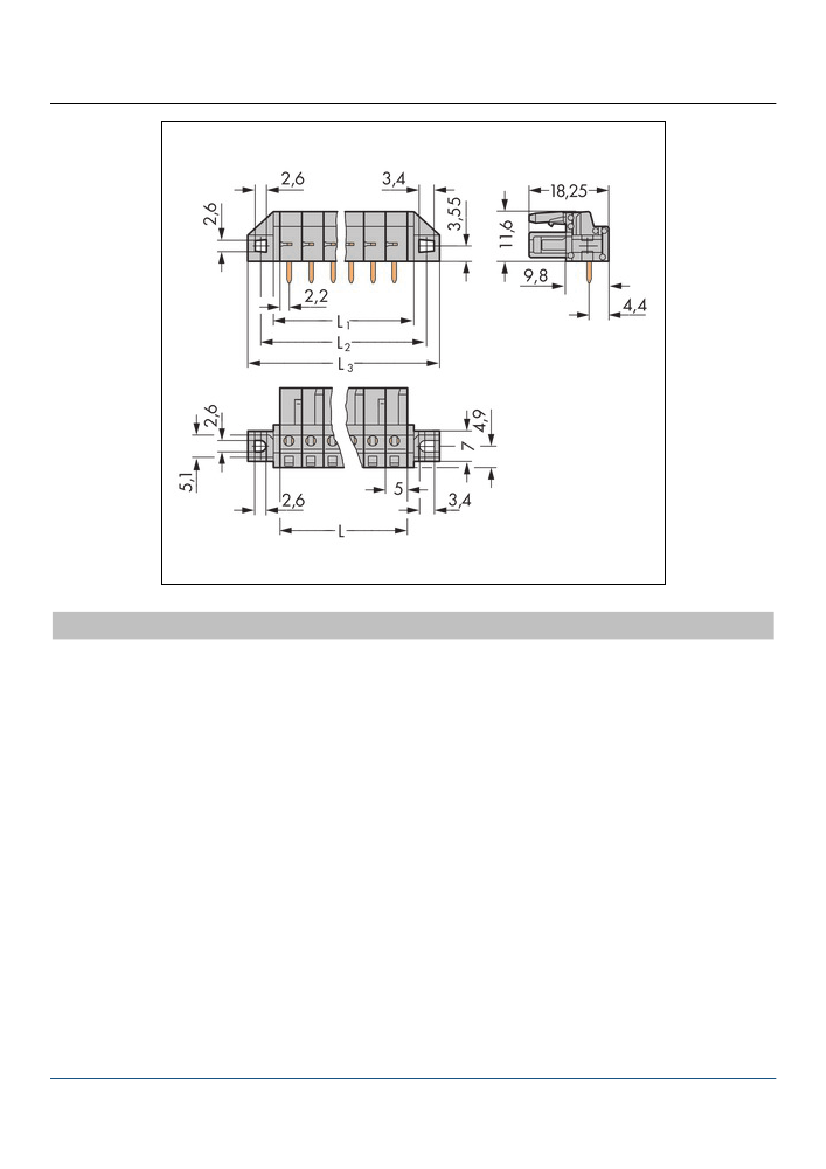

Images & drawings
WAGO Kontakttechnik GmbH & Co. KG
3
Printview: Female connector; with angled solder pins; 10-pole; with fixing flanges; Pin spacing 5 mm / 0.197
in; Solder pin 0.6x1 mm; codable; Horizontal PCB mounting; with 2 locking latches - Item No.: 232-240/031-
000
.
Address
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Telefon: 0571/887-0
Fax: 0571/887-169
http://www.wago.com
© WAGO Kontakttechnik GmbH & Co. KG
Technische Änderungen und Irrtümer vorbehalten.
WAGO Kontakttechnik GmbH & Co. KG
4
