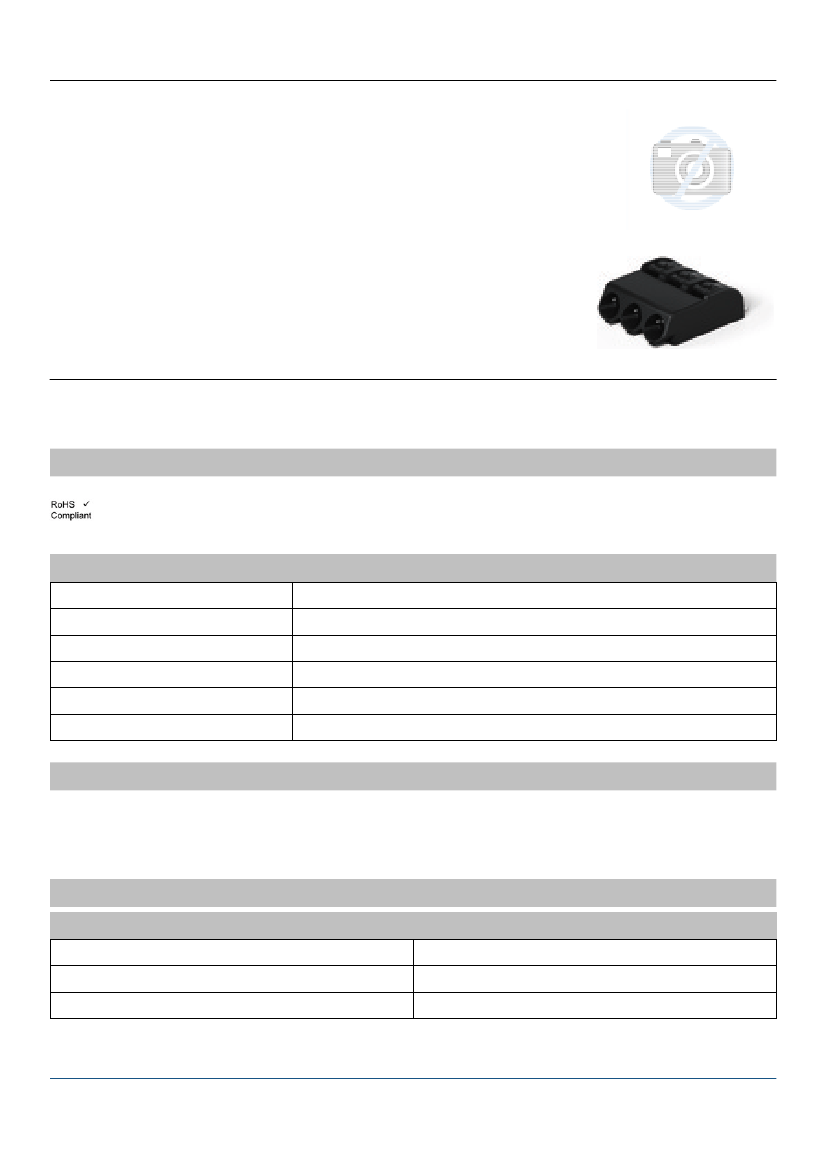

Printview: SMD PCB terminal block; Push-button; 0.75 mm²; Pin spacing 4 mm; 3-pole; Push-in CAGE
CLAMP®; in tape-and-reel packaging - Item No.: 2060-473/998-404
.
SMD PCB terminal block; Push-button; 0.75 mm²; Pin spacing 4
mm; 3-pole; Push-in CAGE CLAMP®; in tape-and-reel packaging
Item No.: 2060-473/998-404
.
SMD PCB terminal block; Push-button; 0.75 mm²; Pin spacing 4 mm; 3-pole; Push-in CAGE CLAMP®; in tape-and-
reel packaging
.
Marking
.
Business data
Supplier
Item no.
GTIN / EAN
Content
Order amount
Customer item number
.
Notes
WAGO
2060-473/998-404
4055143251174
1
750
Item description:SMD PCB terminal blocks with Push-in CAGE CLAMP® connection and push-buttonsHeight of just
4.5 mm minimizes on-board LED shadowingAvailable in tape-and-reel packaging for automated assembly
Technical data
Miscellaneous
No. of poles
Pin spacing
Total number of connection points
3
4 mm (0.157 in)
3
WAGO Kontakttechnik GmbH & Co. KG
1
Printview: SMD PCB terminal block; Push-button; 0.75 mm²; Pin spacing 4 mm; 3-pole; Push-in CAGE
CLAMP®; in tape-and-reel packaging - Item No.: 2060-473/998-404
Technical data
Total number of potentials
Color
Ratings per
Rated voltage (III / 3) [V]
Rated impulse voltage (III / 3) [kV]
Pollution degree (1)
Rated voltage (III/2) [V]
Rated impulse voltage (III / 2) [kV]
Rated voltage (II / 2) [V]
Rated impulse voltage (II / 2) [kV]
Rated current [A]
Legend for ratings
Number of connection objects
Number of levels
Pull-in time
Connection technology
Number of connection points connector
Actuation type
Solid conductor
Fine-stranded conductor
Fine-stranded conductor with ferrule with plastic collar
3
black
IEC/EN 60664-1
63 [V]
2.5 [kV]
2
160 [V]
2.5 [kV]
320 [V]
2.5 [kV]
9 [A]
(III / 2 ) Overvoltage category III /
1
1
0.0
Push-in CAGE CLAMP®
1
Operating lever
0.2 … 0.75 mm² / 24 … 18 AWG
0.2 … 0.75 mm² / 24 … 18 AWG
0.25 … 0.34 mm² / …
Fine-stranded conductor with ferrule without plastic collar 0.25 … 0.34 mm² / …
Strip length
Conductor entry angle to the PCB [°]
Solder pad dimensions [mm]
Reel diameter of tape-and-reel packaging [mm]
Tape width [mm]
Material group
Insulating material
Flammability class per UL94
Limit temperature range
Contact material
Contact plating
Weight [g]
7 … 9 mm / 0.28 … 0.35 Inch
0 [°]
6 x 2 [mm]
330 [mm]
24 [mm]
I
Polyphthalamide (PPA GF)
V0
-60 … 105 °C
Copper alloy
tin-plated
1.033 [g]
WAGO Kontakttechnik GmbH & Co. KG
2
Printview: SMD PCB terminal block; Push-button; 0.75 mm²; Pin spacing 4 mm; 3-pole; Push-in CAGE
CLAMP®; in tape-and-reel packaging - Item No.: 2060-473/998-404
Technical data
Width
Height
Depth
11.9 mm / 0.469 Inch
4.5 mm / 0.177 Inch
13.1 mm / 0.516 Inch
WAGO Kontakttechnik GmbH & Co. KG
3
Printview: SMD PCB terminal block; Push-button; 0.75 mm²; Pin spacing 4 mm; 3-pole; Push-in CAGE
CLAMP®; in tape-and-reel packaging - Item No.: 2060-473/998-404

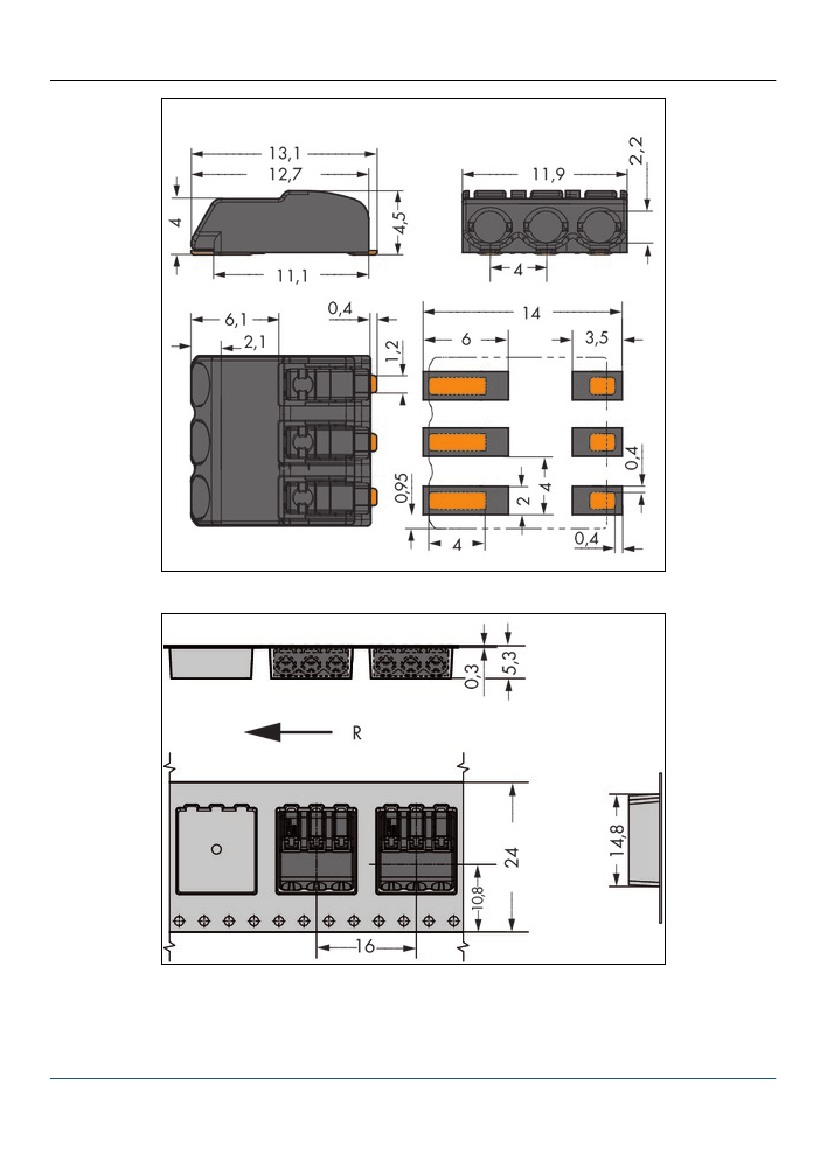

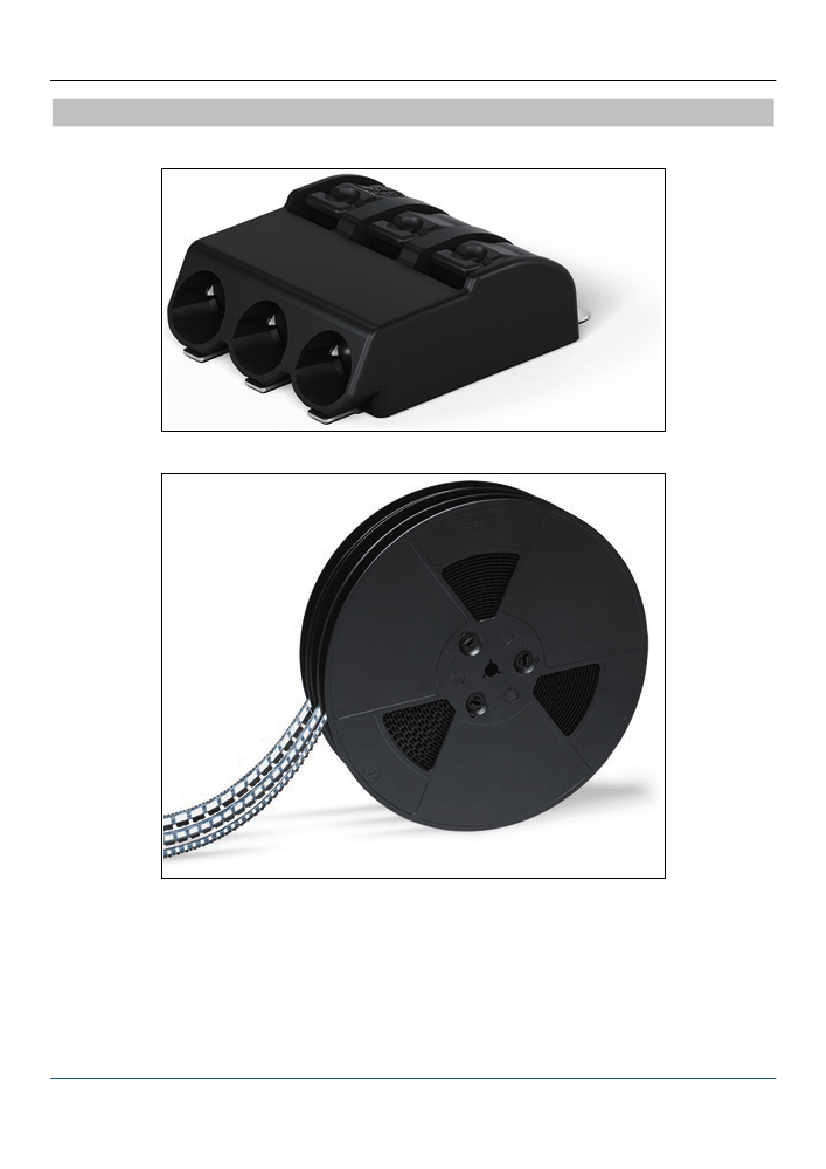

Images & drawings
WAGO Kontakttechnik GmbH & Co. KG
4
Printview: SMD PCB terminal block; Push-button; 0.75 mm²; Pin spacing 4 mm; 3-pole; Push-in CAGE
CLAMP®; in tape-and-reel packaging - Item No.: 2060-473/998-404
.
WAGO Kontakttechnik GmbH & Co. KG
5
