8630L37PLHTX datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 8630L37PLHTX

Preview

8630L37PLHTX: DescriptionD Subminiature Connector, 37 Contact(s), Male, Crimp Terminal,; CategoryThe connector The connector; File Size114KB，2 Pages; ManufacturerEsterline Technologies Corporation

Download Datasheet Parametric View All

8630L37PLHTX Overview

D Subminiature Connector, 37 Contact(s), Male, Crimp Terminal,

8630L37PLHTX Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
empty shell	YES
Filter function	NO
IEC compliance	NO
insulator material	POLYETHYLENE
JESD-609 code	e4
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE AND PANEL
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	4/C
Termination type	CRIMP
Total number of contacts	37
Base Number Matches	1

Preview

Download Datasheet

View All

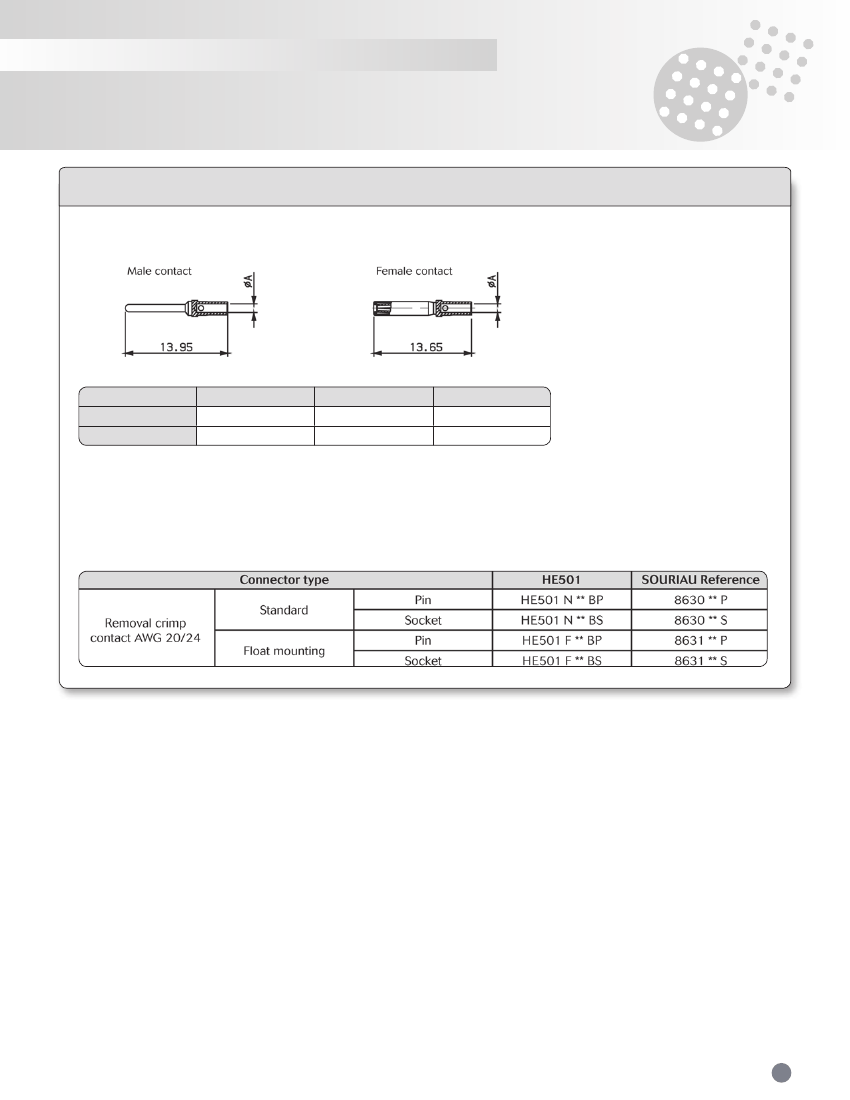

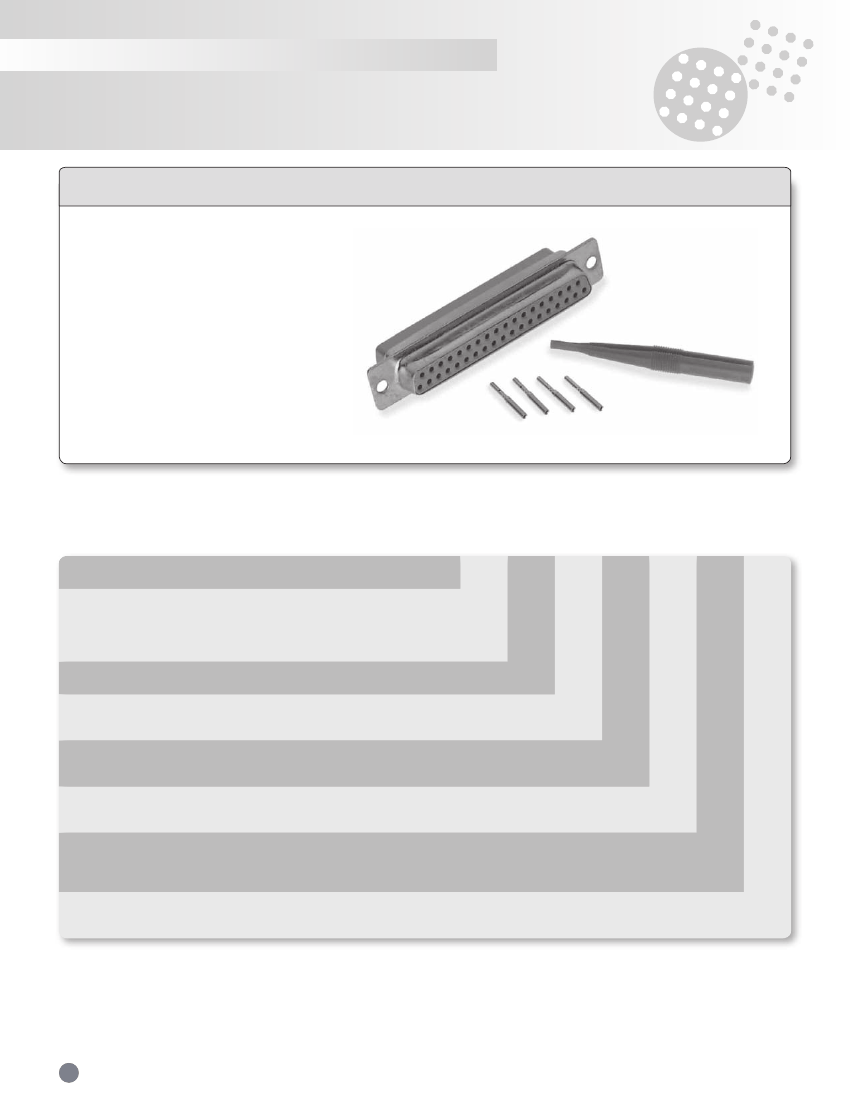

D-Subminiature Series

8630 Series HE501

Connector accomodating

removable machined crimp

contacts for 20/24 or

26/28 AWG wires

In compliance with NFC 93425/HE501

Standard shell plating: Cadmium

Other platings: Tin & Zinc

Ordering information

Basic Series

Basic Series (float mounting)

Option

None: Standard

L:

Clinch nut M3 (8630 only)

O:

Clinch nut UNC 4.40 (8630 only)

V:

Female screw lock UNC 4.40 (8630 only)

Number of contacts

09, 15, 25, 37, 50

Contact type

P:

S:

Socket

Contacts

None:

With standard 20/24 AWG contacts

L:

Without contacts

Rear type

None:

Standard

H:

Shielding termination fingers (only for T plating)

Shell plating

None:

Cadmium

T:

Tin

Z:

Zinc

Front type

None:

Standard

X:

With indents (only for front of male connector)

8630

8631

25

P

L

12

1
