4-175638-4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 4-175638-4

4-175638-4: Description14 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT, RECEPTACLE; CategoryThe connector The connector; File Size64KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

4-175638-4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	4-175638-4	-	-	View	Buy Now

4-175638-4 Overview

14 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT, RECEPTACLE

4-175638-4 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1420472068
Reach Compliance Code	compliant
Factory Lead Time	14 weeks
Samacsys Description	TE Connectivity 1.25mm 14 Way 2 Row Straight PCB Socket Surface Mount Board to Board
Samacsys Manufacturer	TE Connectivity
Samacsys Modified On	2018-09-05 19:08:57
YTEOL	8.3
Other features	1500 PER REEL
Board mount options	POLARIZATION POST
body width	0.158 inch
subject depth	0.134 inch
body length	0.402 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin/Lead (Sn/Pb)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
DIN compliance	NO
Dielectric withstand voltage	500VDC V
Filter function	NO
IEC compliance	NO
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	POLYPHENYLENE SULFIDE
JESD-609 code	e0
MIL compliance	NO
Plug contact pitch	0.049 inch
Match contact row spacing	0.049 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-30 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.0132 mm
Plating thickness	30u inch
polarization key	HOUSING SIDE
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.25 mm
Termination type	SURFACE MOUNT
Total number of contacts	14
UL Flammability Code	94V-0

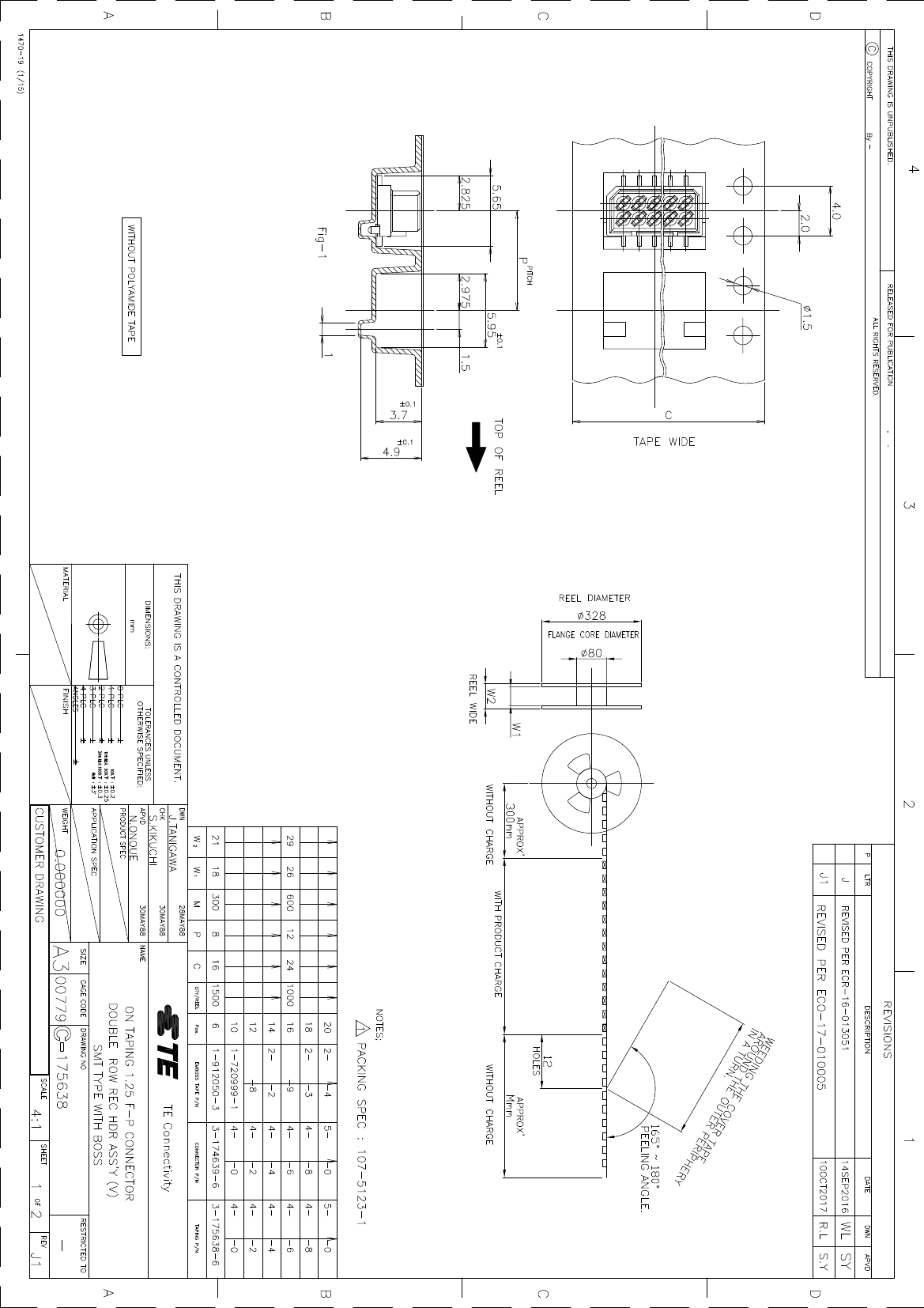

Preview
