5962F9862301VCX datasheet, PDF

Datasheet> All Categories > logic> logic> 5962F9862301VCX

5962F9862301VCX: DescriptionAC SERIES, HEX 1-INPUT INVERT GATE, CDIP14, SIDE BRAZED, CERAMIC, DIP-14; Categorylogic logic; File Size51KB，2 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

5962F9862301VCX Overview

AC SERIES, HEX 1-INPUT INVERT GATE, CDIP14, SIDE BRAZED, CERAMIC, DIP-14

5962F9862301VCX Parametric

Parameter Name	Attribute value
Parts packaging code	DIP
package instruction	DIP,
Contacts	14
Reach Compliance Code	unknown
series	AC
JESD-30 code	R-CDIP-T14
Logic integrated circuit type	INVERTER
Number of functions	6
Number of entries	1
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	14 ns
Certification status	Not Qualified
Filter level	MIL-PRF-38535 Class V
Maximum seat height	5.08 mm
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
total dose	300k Rad(Si) V
width	7.62 mm
Base Number Matches	1

Preview

Download Datasheet

View All

ACS14MS

Data Sheet

November 1998

File Number

4544

Radiation Hardened Hex Inverting Schmitt

Trigger

The Radiation Hardened ACS14MS is a Hex Inverting

Schmitt Trigger. This device simply inverts the level present

on each input. The Schmitt Trigger input stage provides

400mV (Min) of hysteresis and permits input signals with

longer rise times. All inputs are buffered and the outputs are

designed for balanced propagation delay and transition

times.

The ACS14MS is fabricated on a CMOS Silicon on Sapphire

(SOS) process, which provides an immunity to Single Event

Latch-up and the capability of highly reliable performance in

any radiation environment. These devices offer signiﬁcant

power reduction and faster performance when compared to

ALSTTL types.

Speciﬁcations for Rad Hard QML devices are controlled

by the Defense Supply Center in Columbus (DSCC). The

SMD numbers listed below must be used when ordering.

Detailed Electrical Speciﬁcations for the ACS14MS are

contained in SMD 5962-98623. A “hot-link” is provided

on our homepage with instructions for downloading.

www.intersil.com/data/sm/index.asp

Features

• QML Qualiﬁed Per MIL-PRF-38535 Requirements

• 1.25 Micron Radiation Hardened SOS CMOS

• Radiation Environment

- Latch-Up Free Under any Conditions

- Total Dose. . . . . . . . . . . . . . . . . . . . . . 3 x 10

RAD (Si)

- SEU Immunity . . . . . . . . . . . . <1 x 10

-10

Errors/Bit/Day

- SEU LET Threshold . . . . . . . . . . . >100MeV/(mg/cm

)

• Input Logic Levels . . . . V

= (0.3)(V

), V

= (0.7)(V

)

• Hysteresis Voltage . . . . . . . . . . . . . . . . . . . . 400mV (Min)

• Output Current . . . . . . . . . . . . . . . . . . . . . . . .

±8mA

(Min)

• Quiescent Supply Current . . . . . . . . . . . . . . 100µA (Max)

• Propagation Delay . . . . . . . . . . . . . . . . . . . . . 14ns (Max)

Applications

• High Speed Control Circuits

• Sensor Monitoring

• Low Power Designs

Ordering Information

ORDERING NUMBER

5962F9862301VCC

ACS14D/SAMPLE-03

5962F9862301VXC

ACS14K/SAMPLE-03

5962F9862301V9A

INTERNAL MKT. NUMBER

ACS14DMSR-03

ACS14D/SAMPLE-03

ACS14KMSR-03

ACS14K/SAMPLE-03

ACS14HMSR-03

TEMP. RANGE (

-55 to 125

PACKAGE

14 Ld SBDIP

14 Ld Flatpack

Die

DESIGNATOR

CDIP2-T14

CDFP4-F14

N/A

Pinouts

ACS14MS

(SBDIP)

TOP VIEW

A2 3

Y2 4

A3 5

Y3 6

GND 7

12 Y6

11 A5

10 Y5

9 A4

8 Y4

GND

ACS14MS

(FLATPACK)

TOP VIEW

A1 1

Y1 2

14 V

13 A6

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.

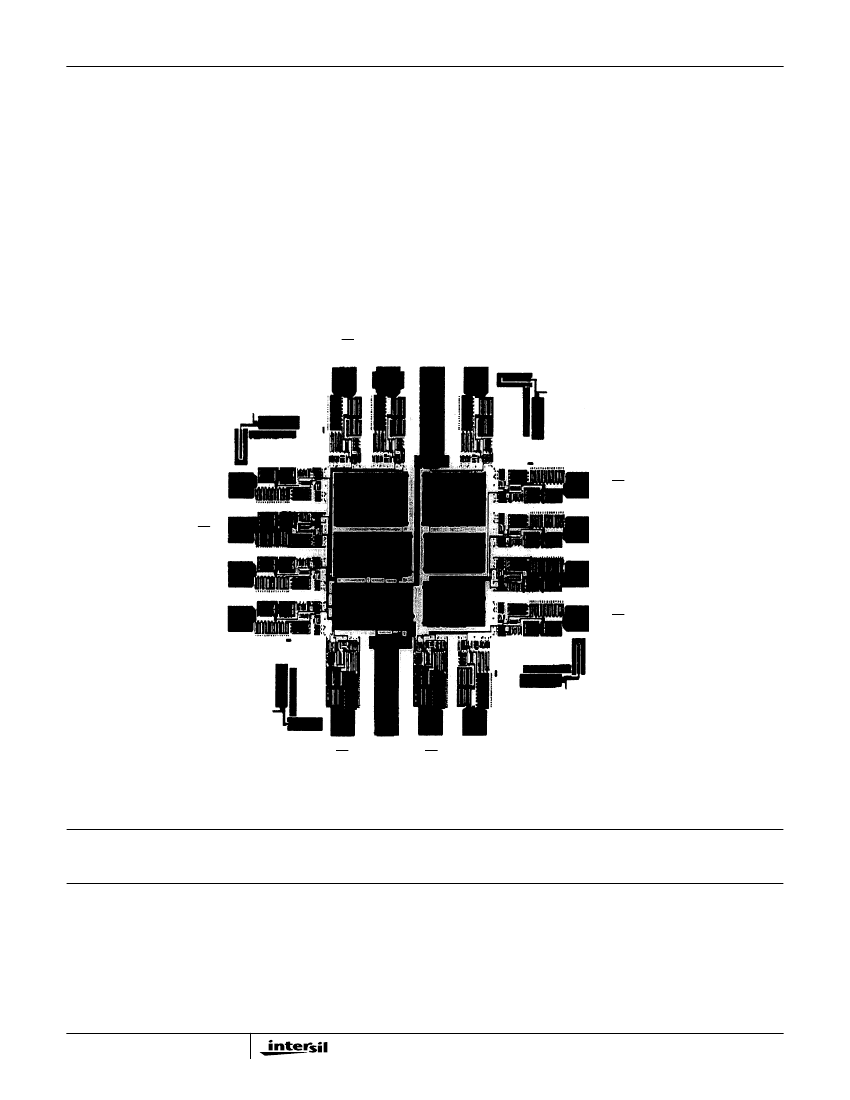

5962F9862301VCX Related Products

	5962F9862301VCX	5962F9862301VXX	5962F9862301V9X
Description	AC SERIES, HEX 1-INPUT INVERT GATE, CDIP14, SIDE BRAZED, CERAMIC, DIP-14	AC SERIES, HEX 1-INPUT INVERT GATE, CDFP14	HEX 1-INPUT INVERT GATE, UUC14
package instruction	DIP,	DFP,	DIE,
Reach Compliance Code	unknown	unknown	unknown
JESD-30 code	R-CDIP-T14	R-CDFP-F14	X-XUUC-N14
Logic integrated circuit type	INVERTER	INVERTER	INVERTER
Number of functions	6	6	6
Number of entries	1	1	1
Number of terminals	14	14	14
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED
encapsulated code	DIP	DFP	DIE
Package shape	RECTANGULAR	RECTANGULAR	UNSPECIFIED
Package form	IN-LINE	FLATPACK	UNCASED CHIP
propagation delay (tpd)	14 ns	14 ns	14 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	YES	YES
technology	CMOS	CMOS	CMOS
Terminal form	THROUGH-HOLE	FLAT	NO LEAD
Terminal location	DUAL	DUAL	UPPER
total dose	300k Rad(Si) V	300k Rad(Si) V	300k Rad(Si) V
Base Number Matches	1	1	1
Parts packaging code	DIP	DFP	-
Contacts	14	14	-
series	AC	AC	-
Maximum operating temperature	125 °C	125 °C	-
Minimum operating temperature	-55 °C	-55 °C	-
Filter level	MIL-PRF-38535 Class V	MIL-PRF-38535 Class V	-
Maximum seat height	5.08 mm	2.92 mm	-
Temperature level	MILITARY	MILITARY	-
Terminal pitch	2.54 mm	1.27 mm	-
width	7.62 mm	6.285 mm	-
