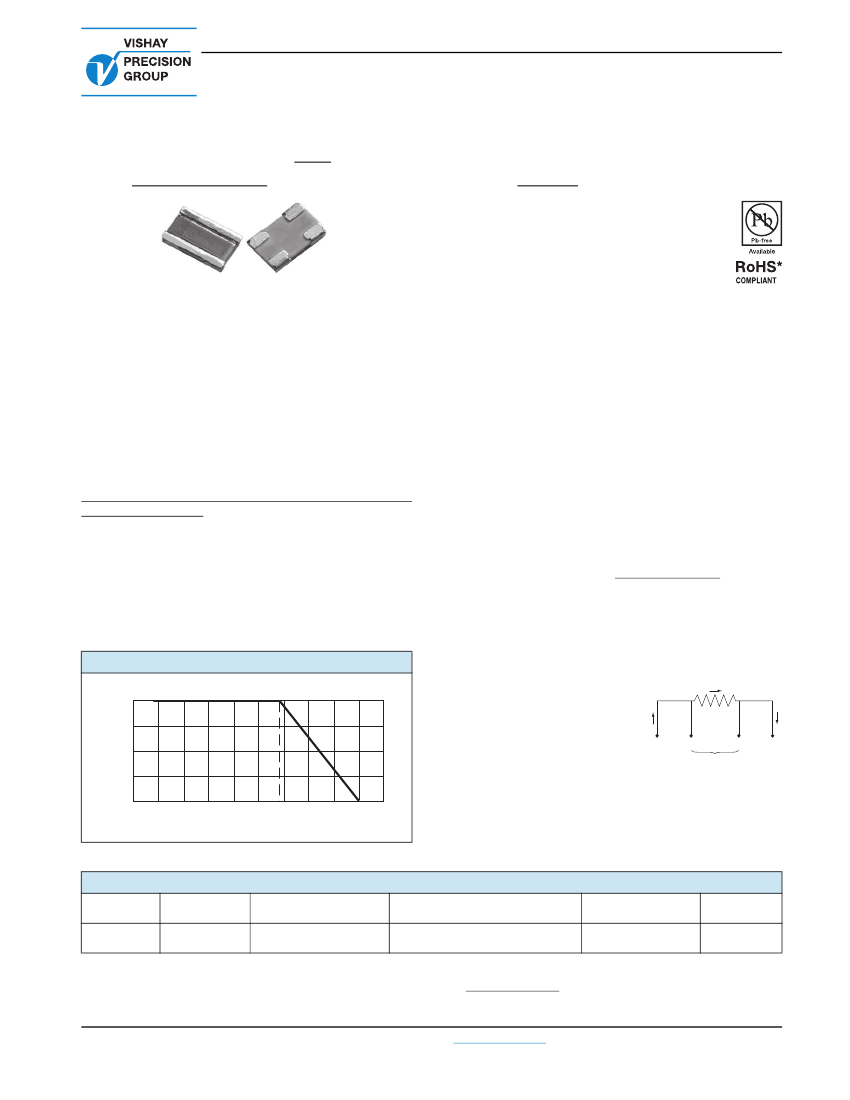

VCS1625ZP (Z-Foil)
Vishay Foil Resistors
Ultra High Precision Z-Foil Surface Mount Current Sensing Chip Resistor
with Power Rating to 1 W and Temperature Coefficient of Resistance of
± 0.05 ppm/°C and Power Coefficient of 5 ppm at Rated Power
FEATURES
Temperature coefficient of resistance (TCR):
± 0.05 ppm/°C typical (0 °C to + 60 °C)
± 0.2 ppm/°C typical (- 55 °C to + 125 °C,
+ 25 °C ref.) (see table 1)
Resistance range: 0.3
to 10
(for
higher or
lower values please contact us)
Vishay Foil resistors are not restricted to standard values,
we can supply specific “as required” values at no extra cost
or delivery (e.g. 1.234
vs. 1
)
Tolerance: to ± 0.2 %
Power coefficient “R due to self heating”: 5 ppm at rated
power
Load life stability: 0.02 % at 70 °C, 2000 h at rated power
Electrostatic discharge (ESD) up to 25 000 V
Short time overload < 0.005 %
Power rating: 1 W at + 70 °C (figure 1)
Non inductive, non capacitive design
Rise time: 1 ns effectively no ringing
Current rating: 5 A maximum
Current noise: < - 40 dB
Voltage coefficient: < 0.1 ppm/V
Non inductive: < 0.08 µH
Non hot spot design
Prototype samples available from 72 h. For more
information, please contact foil@vishaypg.com
For better performances please contact us
INTRODUCTION
The Z-foil technology provides a significant reduction of the
resistive component’s sensitivity to ambient temperature
variations (TCR) and applied power changes (PCR).
Designers can now guarantee a high degree of stability and
accuracy in fixed-resistor applications using solutions
based on Vishay’s revolutionary Z-foil technology.
Model VCS1625ZP is a surface mount chip resistor designed
with 4 pads for Kelvin connection. Utilizing Vishay’s Bulk
Metal
®
Z-foil as the resistance element, it provides
performance capabilities far greater than other resistor
technologies can supply in a product of comparable size.
0.05 ppm/°C absolute TCR removes errors due to
temperature gradients.
This small device dissipates heat almost entirely through the
pads so surface mount users are encouraged to be generous
with the board’s pads and traces.
IM
PR
O
VE
D
FIGURE 1 - POWER DERATING CURVE
Percent of Rated Power
- 55 °C
+ 70 °C
100
Our application engineering department is available to
advise and to make recommendations. For non-standard
technical requirements and special applications, please
contact us.
PR
O
DU
CT
TERMINATIONS
Two lead (Pb)-free options are available:
gold plated or tin plated
Tin/lead plated
APPLICATIONS
Military
I
Medical
Automatic test equipment (ATE)
E
E
Airborne (in heads-up display
I
V
systems)
High precision instrumentation
Electron beam recording equipment
Electron microscopes
Current sensing applications
Forced balance electronic scales
Applications that require superior frequency stability
R
1
1
2
I
75
50
25
I
2
0
- 75
- 50
- 25
0
+ 25
+ 50
+ 75 + 100 + 125 + 150 + 175
Ambient Temperature (°C)
TABLE 1 - SPECIFICATIONS
(2)
MODEL
NUMBER
RESISTANCE
RANGE
> 2.0
to 10
0.3
to 2.0
RESISTANCE
TOLERANCE
TYPICAL TCR and MAX. SPREAD
(- 55 °C to + 125 °C, + 25 °C)
± 0.2 ± 2.8 ppm/°C
POWER RATING
at + 70 °C
(1)
1 W on FR4 PCB
MAXIMUM
CURRENT
(1)
5A
VCS1625ZP
± 0.2 %, ± 0.5 %; ± 1.0 %
± 0.5 %; ± 1.0 %
Notes
(1)
Whichever is lower
(2)
Tighter performances are available. Please contact application engineering foil@vishaypg.com
* Pb containing materials are not RoHS compliant, exemptions may apply
Document Number: 63155
Revision: 29-Mar-10
For any questions, contact:
foil@vishaypg.com
www.foilresistors.com
1
VCS1625ZP (Z-Foil)
Vishay Foil Resistors
FIGURE 2 - DIMENSIONS
in Inches (Millimeters)
Solder Pad Layout
2 oz. Copper (70 Microns)
Coated by Solder mask
L
W
0.806 (20.47)
0.020 (0.51)
H
I2
E2
0.806 (20.47)
0.200 (5.08)
0.020 (0.51)
I1
E1
B
Top View
Bottom View
INCHES
L
H
W
A
B
0.250 ± 0.010
0.160 ± 0.010
0.040 maximum
0.080 ± 0.005
0.040 ± 0.010
FIGURE 3 - TRIMMING TO VALUES
(Conceptual Illustration)
IM
PR
O
VE
D
Interloop Capacitance
Reduction in Series
Current Path
Before Trimming
Mutual Inductance
Reduction due
to Opposing
Current in
Adjacent Lines
Current Path
After Trimming
Trimming Process
Removes this Material
from Shorting Strip Area
Changing Current Path
and Increasing
Resistance
Note:
Foil shown in
black,
etched spaces in
white
TABLE 2 - PERFORMANCE SPECIFICATIONS
TEST
Thermal shock 5 x (- 65 °C to + 150 °C)
Low temperature operation
Short time overload
High temperature exposure
Moisture resistance
Resistance to soldering heat
Load life 2000 h at 70 °C: at 1 W
Note
(1)
Measurement error 0.001R
www.foilresistors.com
2
For any questions, contact:
foil@vishaypg.com
PR
O
DU
CT
I
1
E
1
R
I
2
E
2
Solder Coated Pads
(Windows in Solder Mask)
0.070 (1.78)
0.260 (6.60)
Mounting
Pads (4)
0.070 (1.78)
A
Electrical
Schematic
MILLIMETERS
6.35 ± 0.25
4.06 ± 0.25
2.03 ± 0.13
1.02 ± 0.25
1.02 maximum
FIGURE 4 - TYPICAL TCR CURVE Z-FOIL
+ 500
+ 400
+ 300
+ 200
+ 100
ΔR
0
R
(ppm)
- 100
- 200
- 300
- 400
- 500
- 55
- 25
0
+ 25
+ 60 + 75
+ 100 + 125
- 0.16 ppm/°C
0.05 ppm/°C
- 0.1 ppm/°C
0.1 ppm/°C
0.14 ppm/°C
0.2 ppm/°C
Ambient Temperature (°C)
MIL-PRF-55342
R
LIMITS
± 0.10 %
± 0.10 %
± 0.10 %
± 0.10 %
± 0.2 %
± 0.2 %
± 0.5 %
TYPICAL
R
LIMITS
± 0.005 % (50 ppm)
± 0.005 % (50 ppm)
± 0.005 % (50 ppm)
± 0.01 % (100 ppm)
± 0.01 % (100 ppm)
± 0.01 % (100 ppm)
± 0.02 % (200 ppm)
MAXIMUM
R
LIMITS
(1)
± 0.01 % (100 ppm)
± 0.01 % (100 ppm)
± 0.02 % (200 ppm)
± 0.02 % (200 ppm)
± 0.03 % (300 ppm)
± 0.03 % (300 ppm)
± 0.04 % (400 ppm)
Document Number: 63155
Revision: 29-Mar-10
VCS1625ZP (Z-Foil)
Vishay Foil Resistors
TABLE 3 - GLOBAL PART NUMBER INFORMATION
NEW GLOBAL PART NUMBER: Y16061R50000D9W (preferred part number format)
DENOTES PRECISION
Y
VALUE
R
=
CHARACTERISTICS
(1)
0
= standard part, tin/lead termination
9
= standard part, lead (Pb)-free termination
129
= standard part, gold plated
Other
= custom
Y
1
6
0
6
1
R
5
0
0
0
0
D
9
W
PRODUCT CODE
1606
= VCS1625ZP
RESISTANCE TOLERANCE
E
= ± 0.2 %
D
= ± 0.5 %
F
= ± 1.0 %
G
= ± 2.0 %
J
= ± 5.0 %
PACKAGING
R
= tape and reel
W
= waffle pack
FOR EXAMPLE: ABOVE GLOBAL ORDER Y1607 1R50000 D 9 W:
TYPE: VCS1625ZP
VALUE: 1.5
ABSOLUTE TOLERANCE: ± 0.5 %
TERMINATION: lead (Pb)-free
PACKAGING: waffle pack
HISTORICAL PART NUMBER: VCS1625ZP 1R5000 TCR0.2 D S W (will continue to be used)
VCS1625ZP
MODEL
VCS1625ZP
1R5000
OHMIC VALUE
1.5
TCR0.2
TCR
Characteristic
D
RESISTANCE
TOLERANCE
E
= ± 0.2 %
D
= ± 0.5 %
F
= ± 1.0 %
G
= ± 2.0 %
J
= ± 5.0 %
S
TERMINATION
S
= lead (Pb)-free
B
= tin/lead
G
= gold plated
W
PACKAGING
T
= tape and reel
W
= waffle pack
Note
(1)
Application engineering release: for non-standard requests, please contact application engineering.
Document Number: 63155
Revision: 29-Mar-10
For any questions, contact:
foil@vishaypg.com
www.foilresistors.com
3
