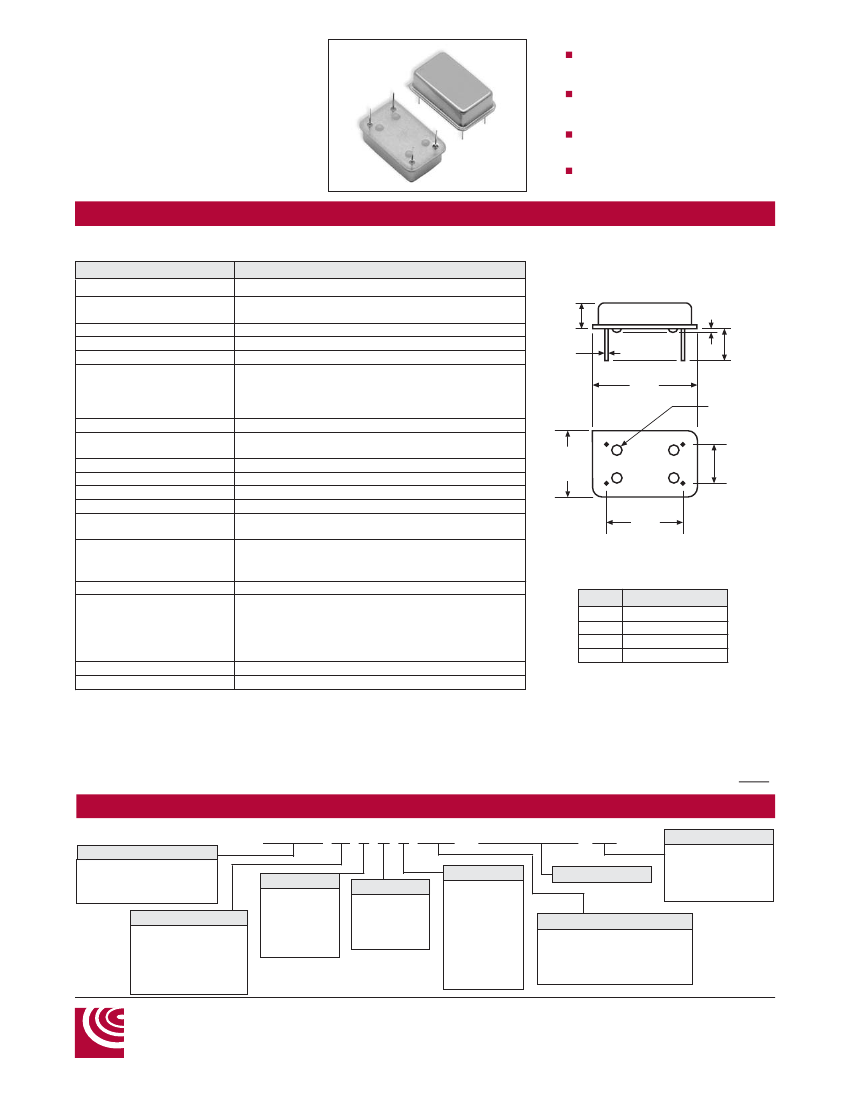

FMVC33
SERIES
3.3 Vdc VCXO
3.3 Vdc Supply Voltage
HCMOS/TTL Compatible
Low Current Consumption
High Frequency
14 PIN DIP
SPECIFICATIONS
Parameter
Frequency Range
Overall Frequency Tolerance
Operating Temperature Range
Storage Temperature
Supply Voltage (Vdd)
Supply Current (Icc)
Specification
20.0 kHz to 200 MHz (Std.)
±20 ppm to ±100 ppm
(Inclusive of Operating Temp., Supply Voltage, & Load.)
0 to +70°C Std.
-55 to +125°C
+3.3 Vdc (±0.3 Vdc)
15 mA max. @ 20.0 kHz to 23.9 MHz
30 mA max. @ 24.0 to 60.0 MHz
75 mA max. @ 61.0 to 160.0 MHz
90 mA max. @ 161.0 to 200.0 MHz
40/60% Std., 45/55% Available. (See Spec. Option S)
0.4 Vdc max. (TTL)
0.4 Vdc max. (HCMOS)
2.4 Vdc min. (TTL)
2.7 Vdc min. (HCMOS)
10 ns max. < 5 ns typical
±20% max. Std. , ±10% Available (See Spec. Option L)
10 TTL / 15 pF HCMOS < 40.0 MHz
15 pF HCMOS
±50 to ±125 ppm Available.
(Select a min. and max. pullability from part number.)
Voltage Control Pin 1 Nom. 1.65 Vdc, Range 0.0 to 3.3 Vdc
< 10 pico seconds, one sigma
10 Hz
-75dBc/Hz
100 Hz
-110dBc/Hz
1kHz
-125dBc/Hz
10kHz
-130dBc/Hz
100kHz
-140dBc/Hz
Nominal 1.65 Vdc, Range 0.0-3.3 Vdc, Positive Transfer
±3 ppm max first year
0.240
(6.1)
MAX.
0.018
(0.46)
05|issue1|031406
FULL SIZE 14 PIN DIP
0.031
(0.76)
MAX
0.250
(6.35)
MAX.
0.800
(20.3)
MAX.
1
0.510
(12.95)
MAX.
14
0.600
(15.24)
8
7
Symmetry (Duty Cycle)
Output “0” Level (V
OL
)
Output “1” Level (V
OH
)
Rise and Fall Time
Linearity
Output Load
Pullability
Insulated
Stand-Offs
0.300
(7.62)
Jitter (typical)
Phase Noise (typical)
PIN FUNCTION TABLE
Pin
1
7
8
14
Function
Control Voltage (Vc)
Case Ground
Output
Supply Voltage (Vdd)
Control Voltage (Vc)
Aging @ 25°C
All specifications subject to change without notice.
NOTE: Waveforms & Test Circuits on pages 48, 49
Standard Specifications for product indicated in
color
Dimensions:
Inches
(mm)
PART NUMBERING SYSTEM
Product Family
HCMOS/TTL Compatible
3.3 Vdc VCXO
Full-Size 14 Pin DIP
Overall Frequency Tol.
20 - ± 20 ppm
25 - ± 25 ppm
50 - ± 50 ppm
00 - ± 100 ppm
nn - ± Custom Value
MARKING: See Page 57, Format G
MARKING: See Page 52, Format A
Options
GW- Gull Wing
PD - Parameter Data
CM - Custom Mark
BLANK - None Req’d.
FMVC33 25 A D A S / L - XX.XXXXXXM - CM
Min. Pullability
A - ± 50 ppm
B - ± 75 ppm
C - ± 100 ppm
X - Custom
Z - No Spec.
Max. Pullability
C - ± 100 ppm
D - ± 125 ppm
X - Custom
Z - No Spec.
Temp. Range
A 0 to 70 °C
B -20 to 70 °C
C -40 to 85 °C
D -10 to 50 °C
E -10 to 60 °C
F -30 to 60 °C
J 0 to 50 °C
X - Custom
Frequency (MHz)
Spec. Options
S - Tight Symmetry
(45/55%) Duty Cycle
L - Linearity ±10% Max.
BLANK- None Required (Std.)
FREQUENCY MANAGEMENT |
INTERNATIONAL
15302 Bolsa Chica Street
Huntington Beach, CA 92649
ph (714) 373-8100 | fx (714) 373-8700
1-800-800-XTAL
[9825]
www.fmi-inc.com
