54F563DMQB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54F563DMQB

54F563DMQB: DescriptionBus Driver, F/FAST Series, 1-Func, 8-Bit, Inverted Output, TTL, CDIP20, CERAMIC, DIP-20; Categorylogic logic; File Size199KB，10 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

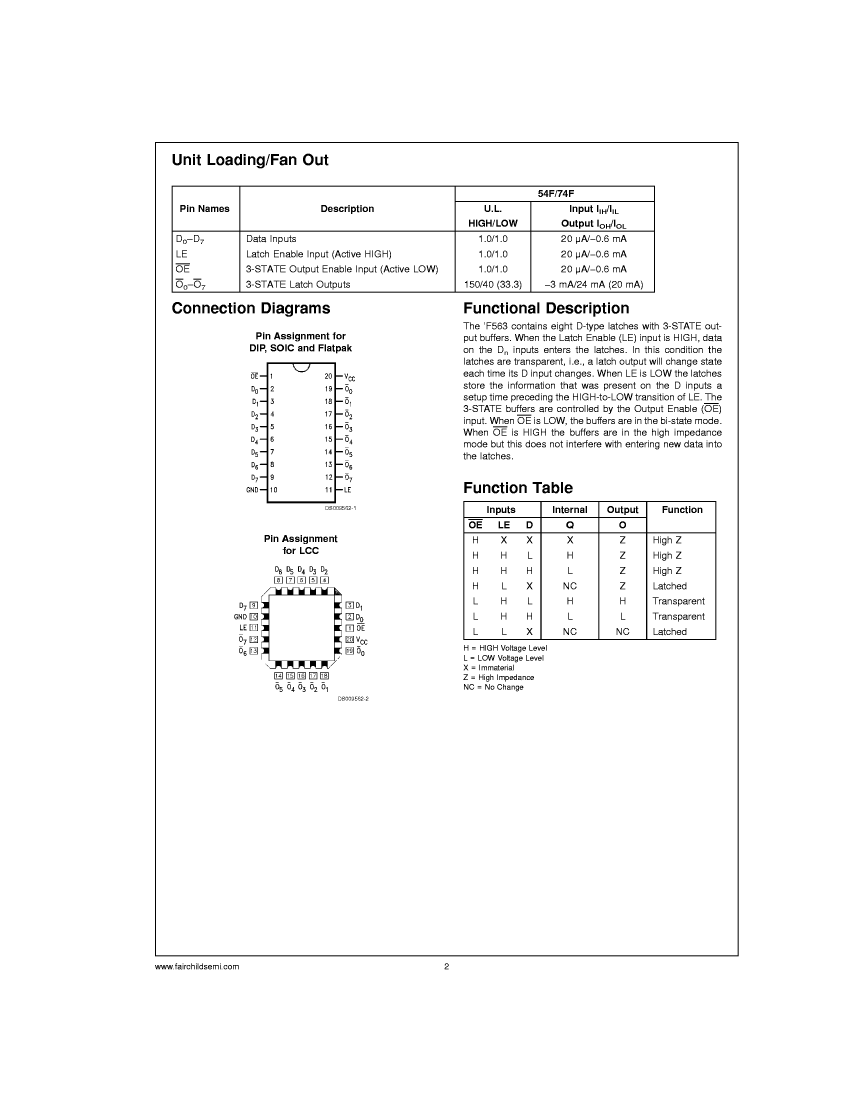

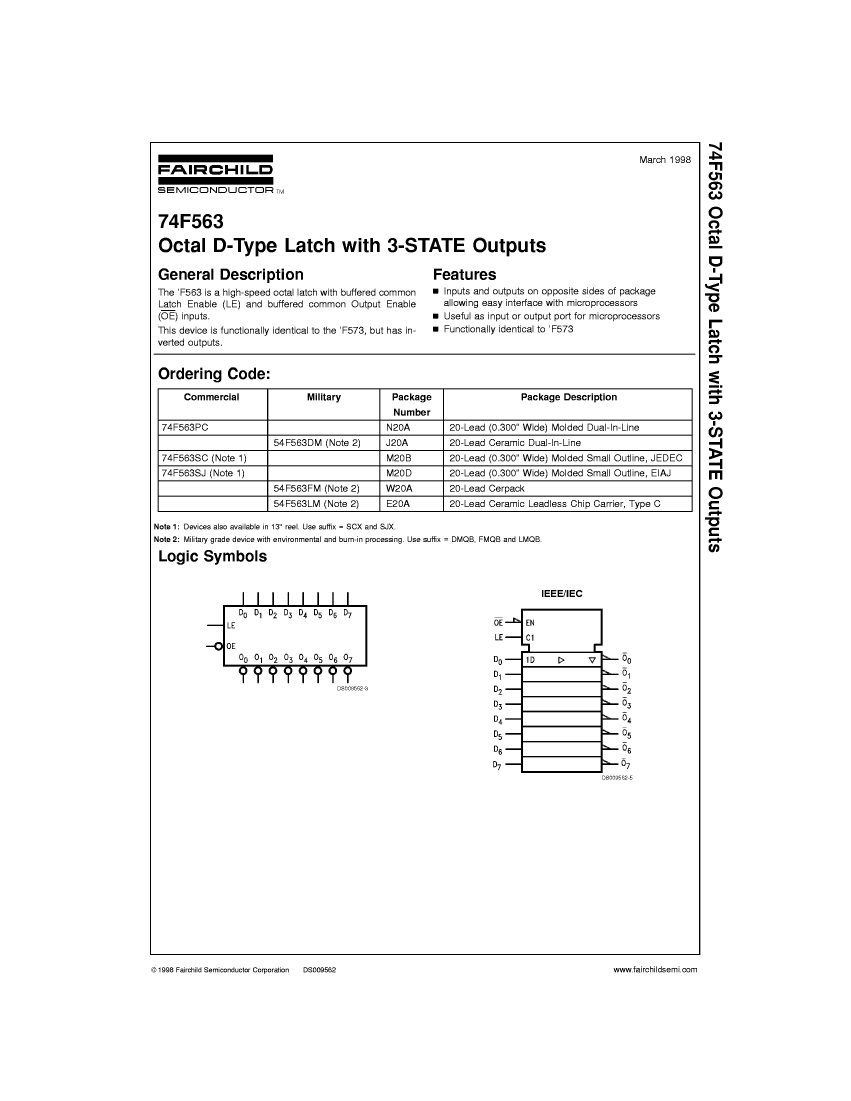

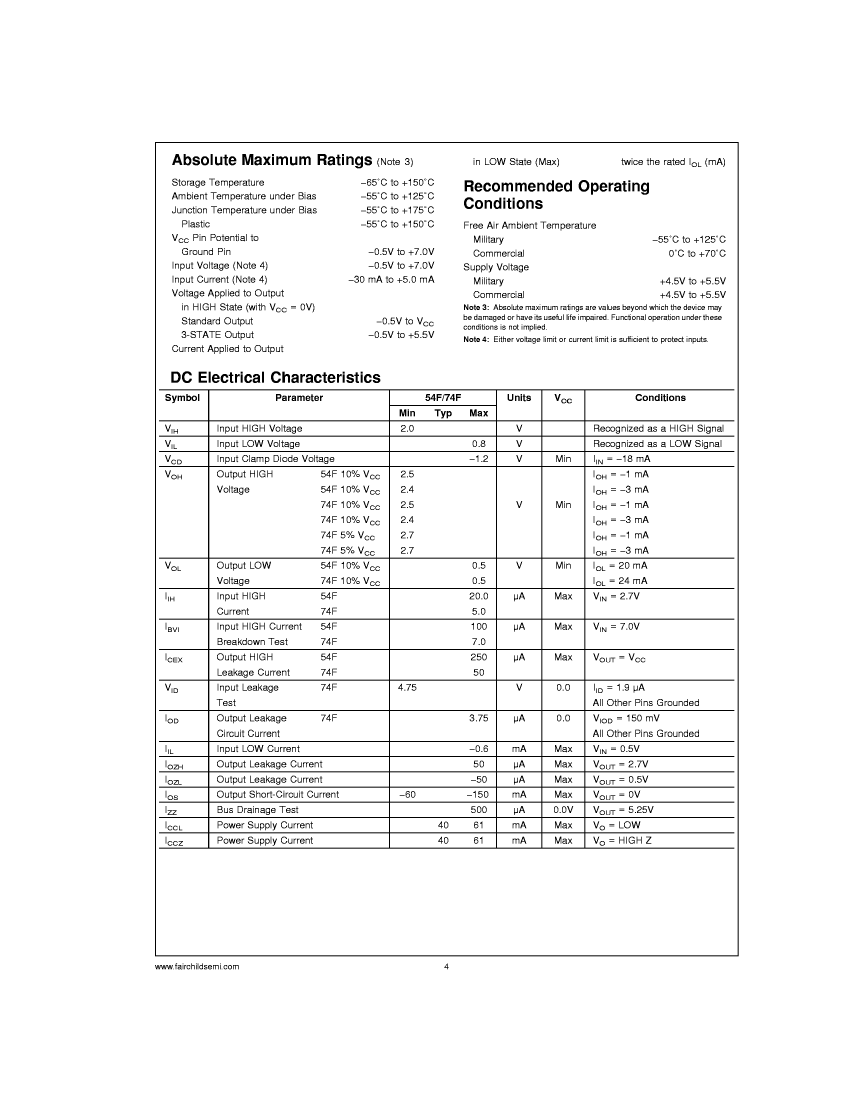

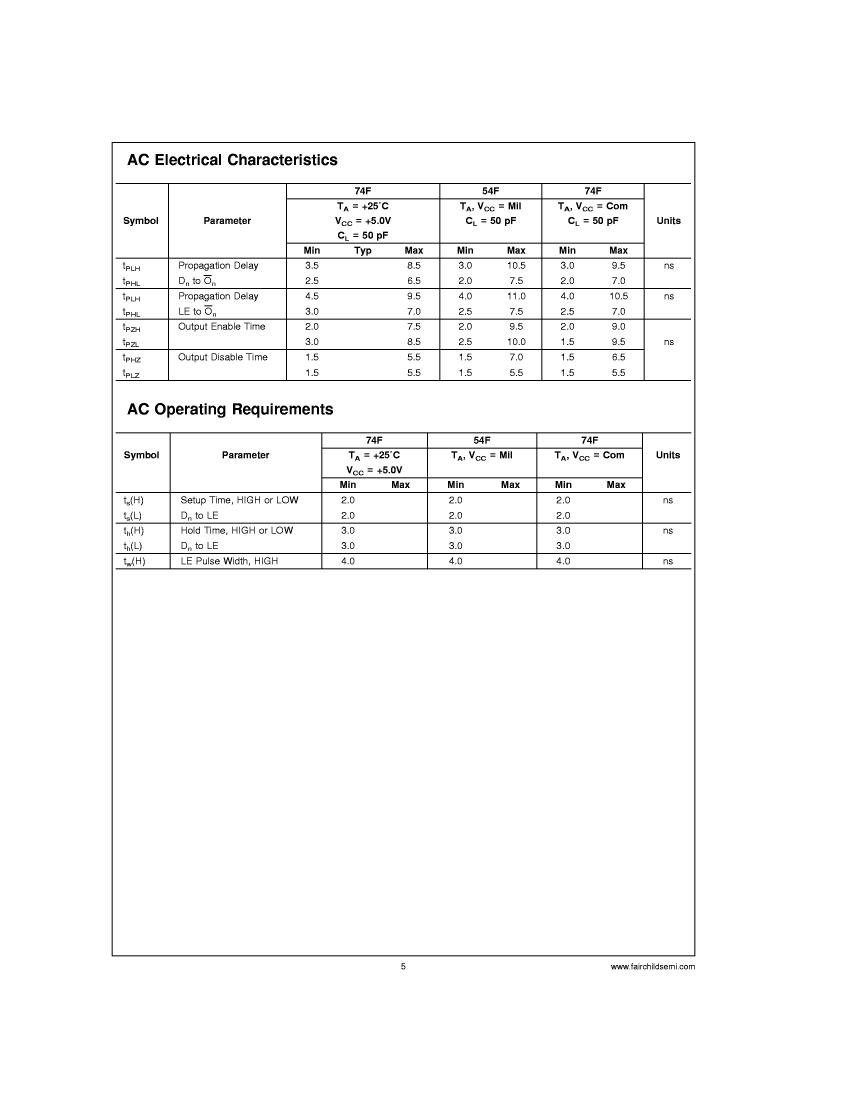

54F563DMQB Overview

Bus Driver, F/FAST Series, 1-Func, 8-Bit, Inverted Output, TTL, CDIP20, CERAMIC, DIP-20

54F563DMQB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Fairchild
Parts packaging code	DIP
package instruction	CERAMIC, DIP-20
Contacts	20
Reach Compliance Code	unknown
Other features	BROADSIDE VERSION OF 533
series	F/FAST
JESD-30 code	R-GDIP-T20
JESD-609 code	e0
length	24.51 mm
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.02 A
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP20,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Maximum supply current (ICC)	61 mA
Prop。Delay @ Nom-Sup	11 ns
propagation delay (tpd)	7 ns
Certification status	Not Qualified
Filter level	MIL-STD-883 Class B
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
Base Number Matches	1

Preview

Download Datasheet

View All

54F563DMQB Related Products

	54F563DMQB	54F563DM	54F563LMQB	54F563FMQB	54F563LM	54F563FM	74F563SJX
Description	Bus Driver, F/FAST Series, 1-Func, 8-Bit, Inverted Output, TTL, CDIP20, CERAMIC, DIP-20	Bus Driver, F/FAST Series, 1-Func, 8-Bit, Inverted Output, TTL, CDIP20, CERAMIC, DIP-20	Bus Driver, F/FAST Series, 1-Func, 8-Bit, Inverted Output, TTL, CQCC20, CERAMIC, LCC-20	Bus Driver, F/FAST Series, 1-Func, 8-Bit, Inverted Output, TTL, CDFP20, CERAMIC, FP-20	Bus Driver, F/FAST Series, 1-Func, 8-Bit, Inverted Output, TTL, CQCC20, CERAMIC, LCC-20	Bus Driver, F/FAST Series, 1-Func, 8-Bit, Inverted Output, TTL, CDFP20, CERAMIC, FP-20	Bus Driver, F/FAST Series, 1-Func, 8-Bit, Inverted Output, TTL, PDSO20, 5.30 MM, EIAJ TYPE2, SOP-20
Parts packaging code	DIP	DIP	QLCC	DFP	QLCC	DFP	SOIC
package instruction	CERAMIC, DIP-20	CERAMIC, DIP-20	QCCN, LCC20,.35SQ	DFP, FL20,.3	QCCN,	DFP,	SOP, SOP20,.3
Contacts	20	20	20	20	20	20	20
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	compliant
series	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST
JESD-30 code	R-GDIP-T20	R-GDIP-T20	S-CQCC-N20	R-GDFP-F20	S-CQCC-N20	R-GDFP-F20	R-PDSO-G20
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1
Number of ports	2	2	2	2	2	2	2
Number of terminals	20	20	20	20	20	20	20
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	70 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY
encapsulated code	DIP	DIP	QCCN	DFP	QCCN	DFP	SOP
Package shape	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	CHIP CARRIER	FLATPACK	CHIP CARRIER	FLATPACK	SMALL OUTLINE
propagation delay (tpd)	7 ns	7 ns	7.5 ns	7.5 ns	7.5 ns	7.5 ns	10.5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	5.08 mm	1.905 mm	2.286 mm	1.905 mm	2.286 mm	2.1 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	YES	YES	YES	YES	YES
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	FLAT	NO LEAD	FLAT	GULL WING
Terminal pitch	2.54 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	QUAD	DUAL	QUAD	DUAL	DUAL
width	7.62 mm	7.62 mm	8.89 mm	6.731 mm	8.89 mm	6.731 mm	5.3 mm
Base Number Matches	1	1	1	1	1	1	1
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	-	-	incompatible
Maker	Fairchild	Fairchild	-	-	-	Fairchild	Fairchild
JESD-609 code	e0	e0	e0	e0	-	-	e0
length	24.51 mm	24.51 mm	8.89 mm	-	8.89 mm	-	12.6 mm
MaximumI(ol)	0.02 A	-	0.02 A	0.02 A	-	-	0.024 A
Encapsulate equivalent code	DIP20,.3	DIP20,.3	LCC20,.35SQ	FL20,.3	-	-	SOP20,.3
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	-	NOT SPECIFIED
power supply	5 V	5 V	5 V	5 V	-	-	5 V
Maximum supply current (ICC)	61 mA	-	61 mA	61 mA	-	-	61 mA
Prop。Delay @ Nom-Sup	11 ns	-	11 ns	11 ns	-	-	9.5 ns
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	-	Tin/Lead (Sn/Pb)
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	-	NOT SPECIFIED
