SG304G0106JEN datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> SG304G0106JEN

SG304G0106JEN: DescriptionCAPACITOR, METALLIZED FILM, POLYESTER, 250V, 10uF, THROUGH HOLE MOUNT, AXIAL LEADED; CategoryPassive components capacitor; File Size50KB，4 Pages; ManufacturerAVX

Download Datasheet Parametric View All

SG304G0106JEN Overview

CAPACITOR, METALLIZED FILM, POLYESTER, 250V, 10uF, THROUGH HOLE MOUNT, AXIAL LEADED

SG304G0106JEN Parametric

Parameter Name	Attribute value
Maker	AVX
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	STANDARD: CECC30000
capacitance	10 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYESTER
Installation features	THROUGH HOLE MOUNT
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Package shape	TUBULAR PACKAGE

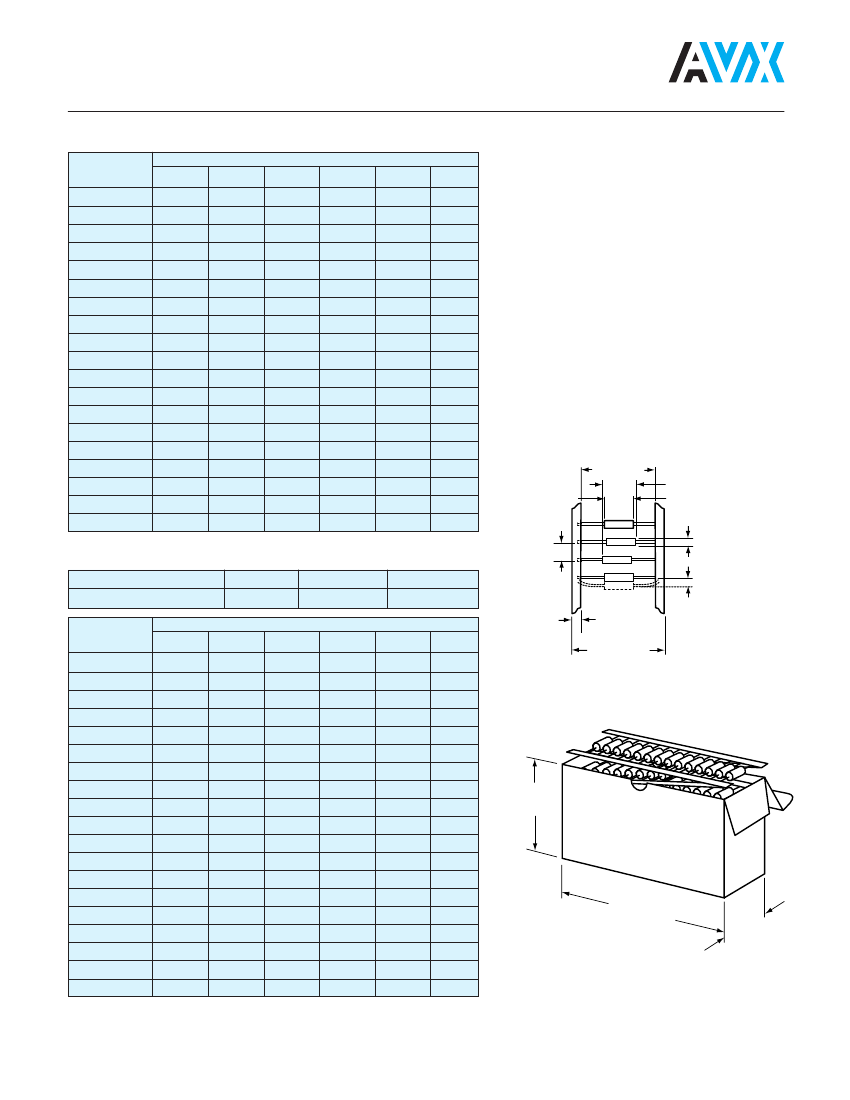

method of packing	AMMO PACK
positive tolerance	5%
Rated (AC) voltage (URac)	160 V
Rated (DC) voltage (URdc)	250 V
surface mount	NO
Terminal shape	WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

SG 13/18/25/30/40

CPM72 – Axial Leads 63/100/250/400/630/1000 V-

APPLICATIONS

Non-inductive, insulated capacitor for professional use.

Cylindrical axial leads, polyester wrapped, epoxy resin

sealed.

Some examples of use:

Oscillating circuit, LF filter, coupling and decoupling, frequency

discriminator.

dø

STANDARDIZATION

Generic specifications:

CEI 384-1/CECC 30000/UTE 83100

Sectional specifications:

CEI 384-2/CECC 30400/UTE 83151

On the LNZ 44-04 list:

Complies with type CPM72

(1.378

0.197)

(1.378

0.197)

PERFORMANCE CHARACTERISTICS

Protection:

Temperature range:

Cylindrical axial leads, polyester

wrapped, epoxy resin sealed

-55°C to +100°C with voltage

derating of 1.25%/°C between

85°C and 100°C

55/100/56

63 VDC to 1000 VDC

10 nF to 22 µF

±5%, ±10%, ±20%

1.6 Vn

/2 s

millimeters (inches)

D max.

Ø d ± 0.05 (0.002)

≤

8mm

0.6 (0.024)

> 8mm

0.8 (0.031)

≥

15mm

1.0 (0.039)

Climatic category:

Voltage range:

Capacitance range:

Tolerances on C

Test voltage:

Insulation resistance:

Measurement condition:

Temperature:

25°C ± 5°C

Duration:

1 minute

Measurement Voltage: 100 V for Vn

≥

100 V

50 V for Vn < 100 V

Requirements:

For Un

≤

100 V:

≤

0.33 µF

≥

15 000 MΩ

C > 0.33 µF

≥

5 000 S

For Un > 100 V:

≤

0.33 µF

≥

30 000 MΩ

C > 0.33 µF

≥

10 000 S

Tangent of loss angle:

LIMIT VALUES

≤

0.1 µF

1 kHz

10 kHz

100 Hz

8 x 10

-3

15 x 10

-3

30 x 10

-3

0.1 µF < C

≤

1 µF

8 x 10

-3

15 x 10

-3

C > 1 µF

10 x 10

-3

TPC
