54ACT138DM

Description

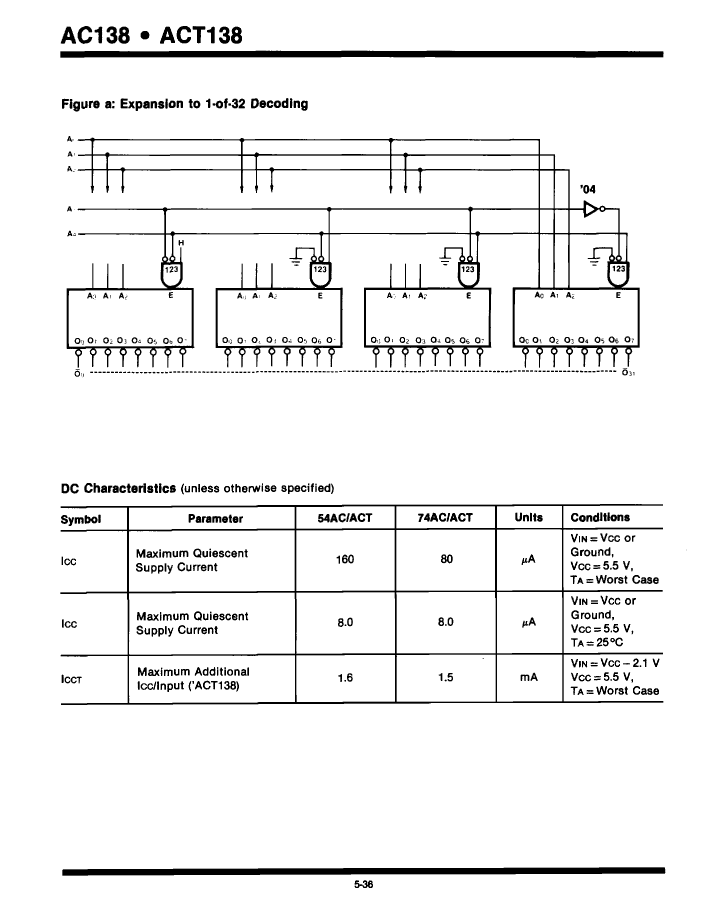

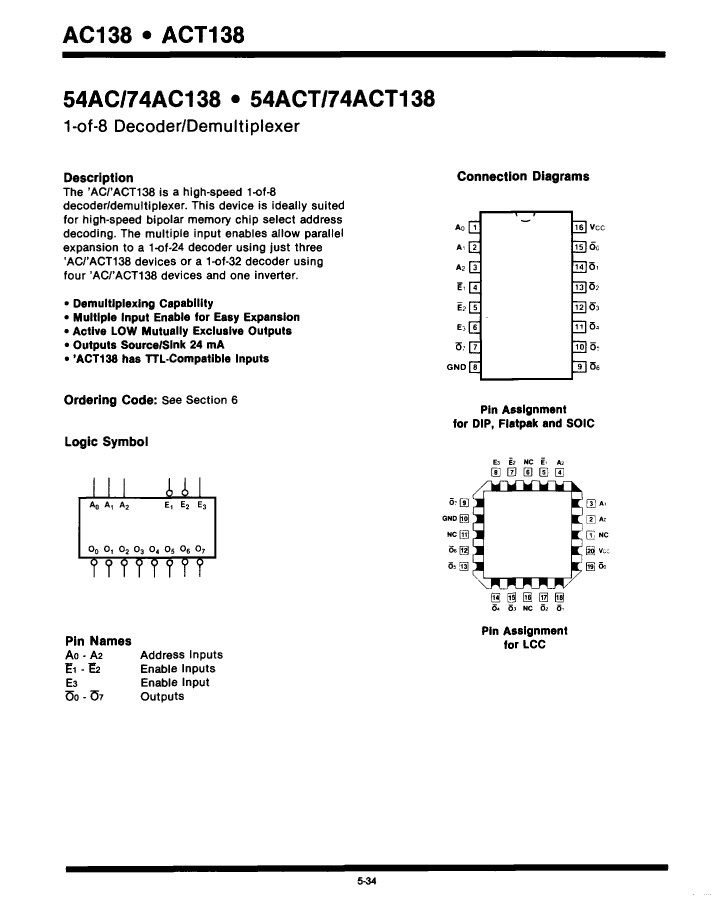

Decoder/Driver, ACT Series, Inverted Output, CMOS, CDIP16, CERAMIC, DIP-16
Categorylogic    logic
File Size102KB,5 Pages
ManufacturerFairchild
Websitehttp://www.fairchildsemi.com/
Download Datasheet Parametric View All

54ACT138DM Overview

Decoder/Driver, ACT Series, Inverted Output, CMOS, CDIP16, CERAMIC, DIP-16

54ACT138DM Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Parts packaging codeDIP
package instructionDIP, DIP16,.3
Contacts16
Reach Compliance Codeunknown
ECCN codeEAR99
Other features3 ENABLE INPUTS
seriesACT
JESD-30 codeR-GDIP-T16
JESD-609 codee0
length19.43 mm
Load capacitance (CL)50 pF
Logic integrated circuit typeOTHER DECODER/DRIVER
MaximumI(ol)0.024 A
Number of functions1
Number of terminals16
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Output polarityINVERTED
Package body materialCERAMIC, GLASS-SEALED
encapsulated codeDIP
Encapsulate equivalent codeDIP16,.3
Package shapeRECTANGULAR
Package formIN-LINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
power supply5 V

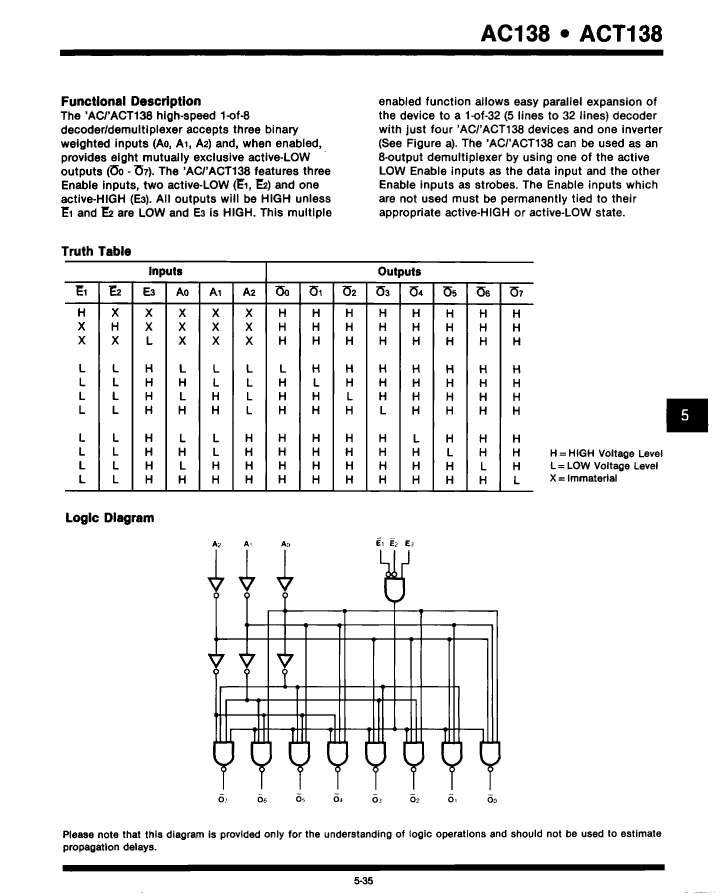

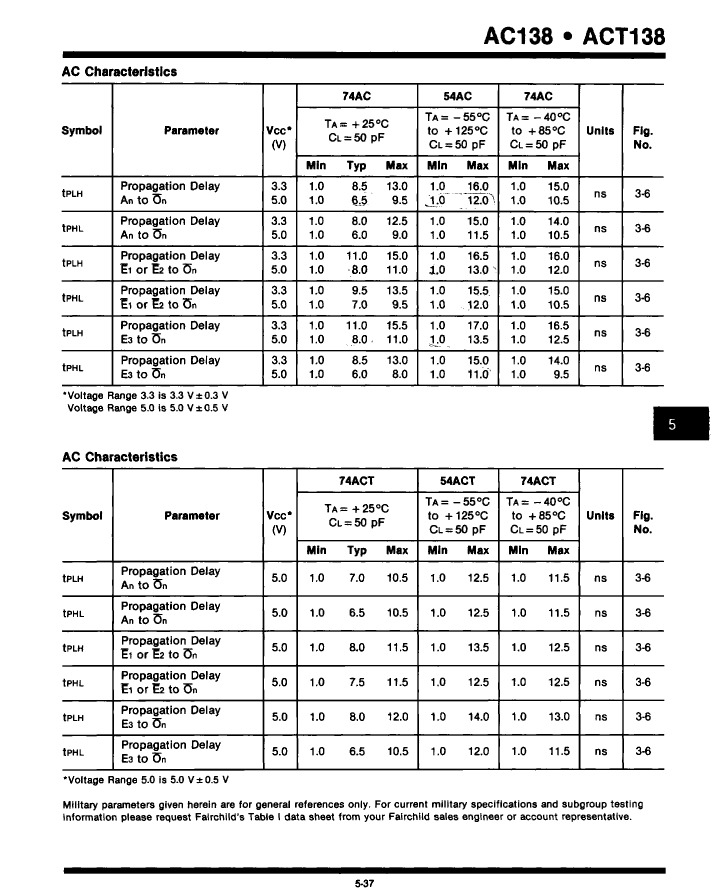

Prop。Delay @ Nom-Sup14 ns
propagation delay (tpd)12.5 ns
Certification statusNot Qualified
Maximum seat height5.08 mm
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)4.5 V
Nominal supply voltage (Vsup)5 V
surface mountNO
technologyCMOS
Temperature levelMILITARY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
width7.62 mm
Base Number Matches1
