32K621-K00E3: DescriptionRF Connector Adapter, SMA-SMA, Panel Mount, Female, Jack,; CategoryThe connector The connector; File Size60KB，2 Pages; ManufacturerRosenberger; Websitehttps://www.rosenberger.com/

Download Datasheet Parametric View All

32K621-K00E3 Overview

RF Connector Adapter, SMA-SMA, Panel Mount, Female, Jack,

32K621-K00E3 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Adapter type	SMA-SMA
Other features	STANDARDS: MIL-C-39012; IEC 169-15
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR ADAPTER
Contact completed and terminated	GOLD (50) OVER NICKEL
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.13 dB
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	32K621-K00E3
Maximum operating frequency	18 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
voltage standing wave ratio	1.14
Base Number Matches	1

Preview

Download Datasheet

View All

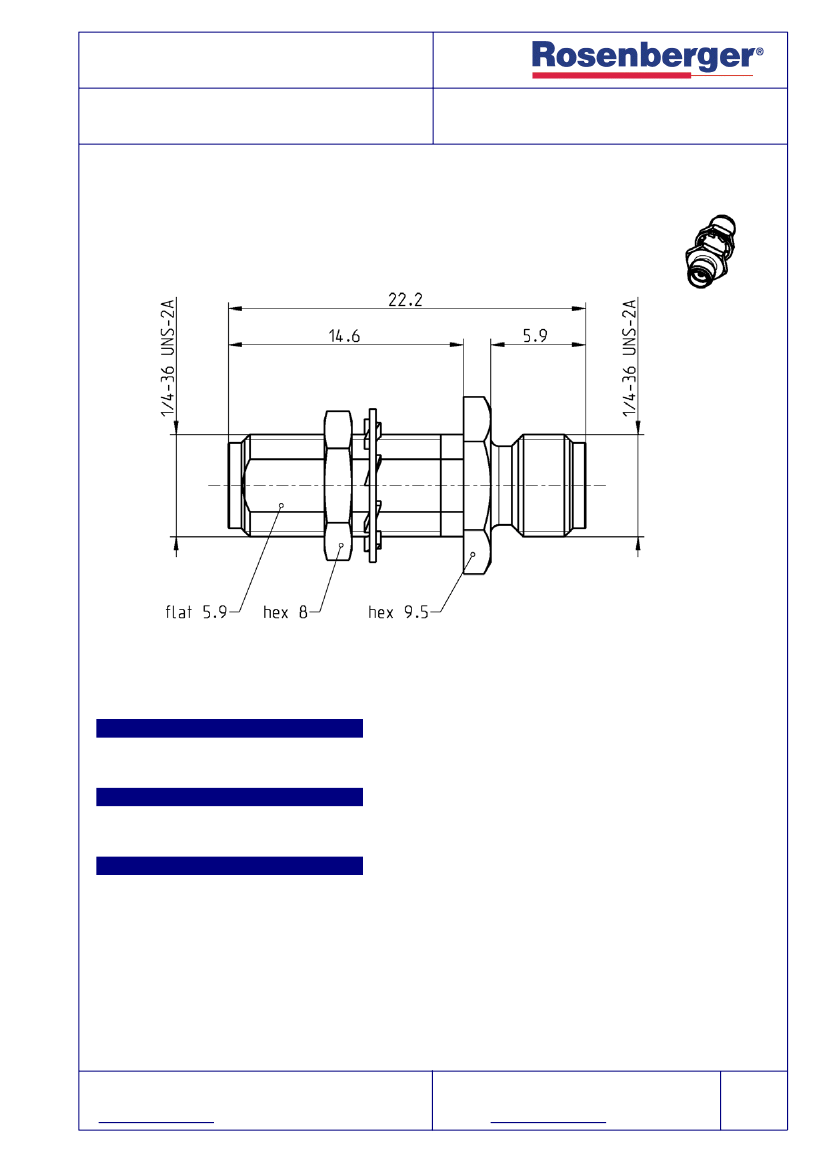

TECHNICAL DATA SHEET

ADAPTOR

SMA JACK – JACK

32K621-K00E3

All dimensions are in mm; tolerances according to ISO 2768 m-H

Interface

According to

IEC 60169-15; EN 122110; MIL-STD-348A, Fig. 310

Documents

Panel piercing

B 56

Material and plating

Connector parts

Center contact

Outer contact

Dielectric

Material

Plating

Beryllium copper Gold, min. 1.27 µm, over nickel

Stainless steel

Gold, min. 0.8 µm, over nickel

PTFE

RF_35/11.05/3.1

Rosenberger Hochfrequenztechnik GmbH & Co. KG

P.O.Box 1260

D-84526 Tittmoning

Germany

www.rosenberger.de

Tel.: +49 8684 18-0

Fax: +49 8684 18-499

email: info@rosenberger.de

Page

1/2
