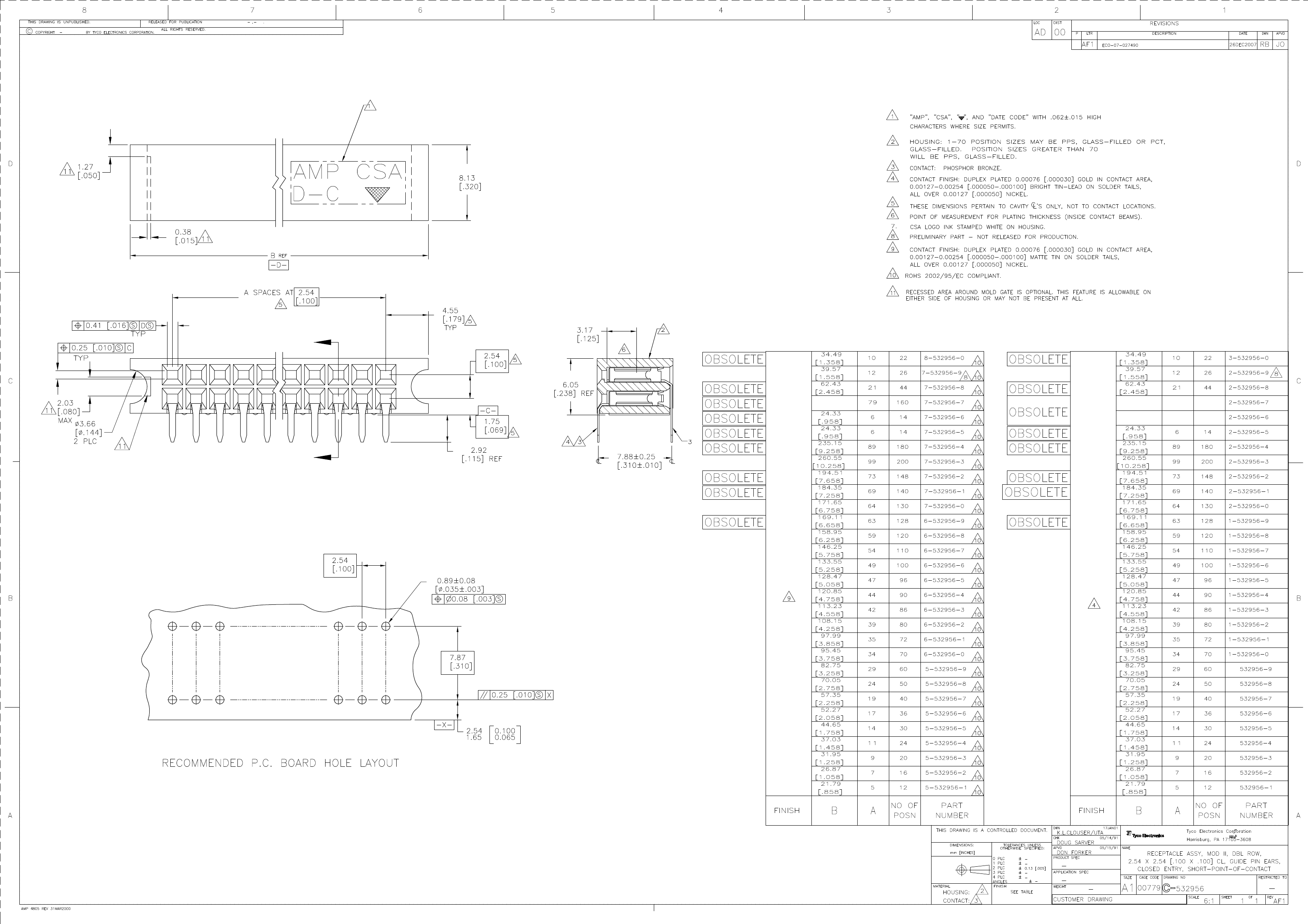

2-532956-4: DescriptionHEADER CONNECTOR,PCB MNT,PLUG,180 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,GUIDE SLOT; CategoryThe connector The connector; File Size225KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

2-532956-4 Overview

HEADER CONNECTOR,PCB MNT,PLUG,180 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,GUIDE SLOT

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
body width	0.238 inch
subject depth	0.32 inch
body length	9.258 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	12 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	750VAC V
Durability	200 Cycles
maximum insertion force	1.112 N
Insulation resistance	1000000000 Ω
insulator material	POLYPHENYLENE SULPHIDE
Manufacturer's serial number	532956
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	GUIDE SLOT
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	7.874 mm
Plating thickness	30u inch
polarization key	POLAR PIN POSITION
Rated current (signal)	2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.115 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	180
Evacuation force-minimum value	.2085 N
Base Number Matches	1
