FCN-235D028-G/J datasheet, PDF

Datasheet> All Categories > The connector> The connector> FCN-235D028-G/J

FCN-235D028-G/J: DescriptionCONNECTOR, 28 CONTACT(S), FEMALE, TELECOM AND DATACOM CONNECTOR, SOLDER, SOCKET; CategoryThe connector The connector; File Size334KB，6 Pages; ManufacturerFUJITSU; Websitehttp://edevice.fujitsu.com/fmd/en/index.html

Download Datasheet Parametric Compare View All

FCN-235D028-G/J Overview

CONNECTOR, 28 CONTACT(S), FEMALE, TELECOM AND DATACOM CONNECTOR, SOLDER, SOCKET

FCN-235D028-G/J Parametric

Parameter Name	Attribute value
Maker	FUJITSU
Reach Compliance Code	unknown
Board mount options	HOLE .112-.124
body width	0.413 inch
subject depth	0.484 inch
body length	1.514 inch
Body/casing type	SOCKET
Connector type	TELECOM AND DATACOM CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU
Contact completed and terminated	PALLADIUM
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	DUAL PRONG
DIN compliance	NO
Dielectric withstand voltage	750VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
insulator material	POLYESTER
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.05 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	M2.5
Installation option 2	THREADED
Installation type	BOARD AND PANEL
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Termination type	SOLDER
Total number of contacts	28
UL Flammability Code	94V-0
Base Number Matches	1

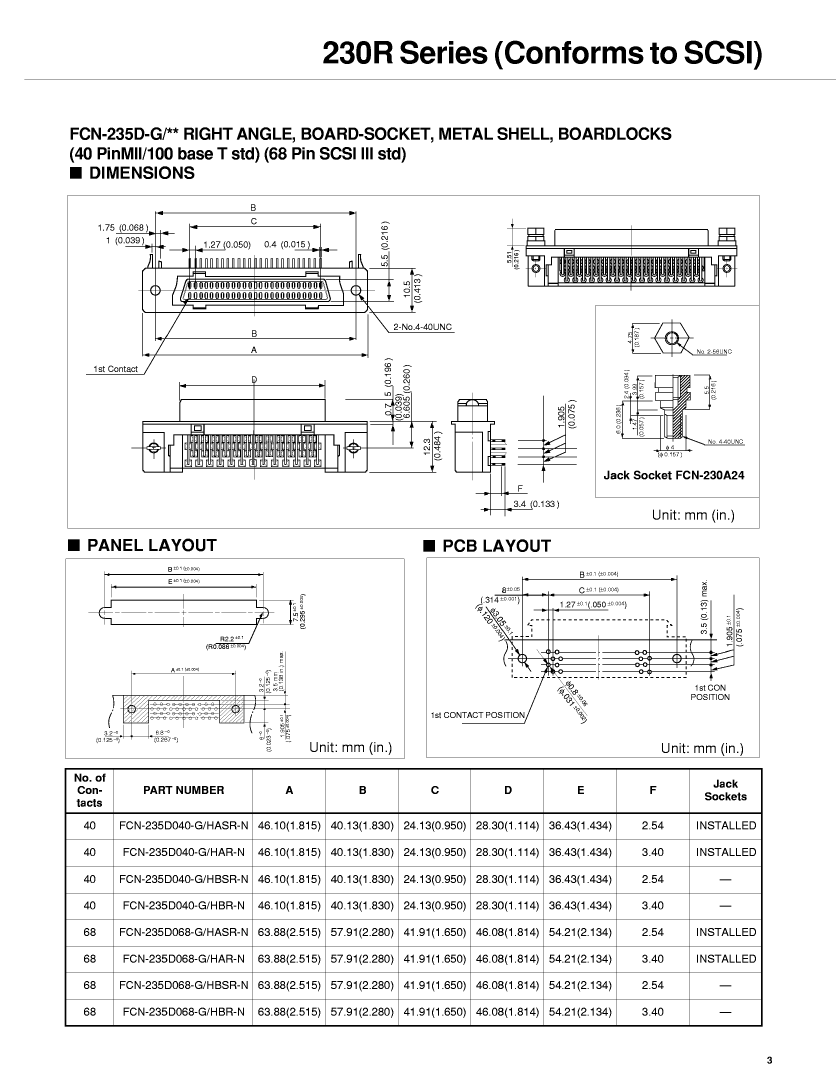

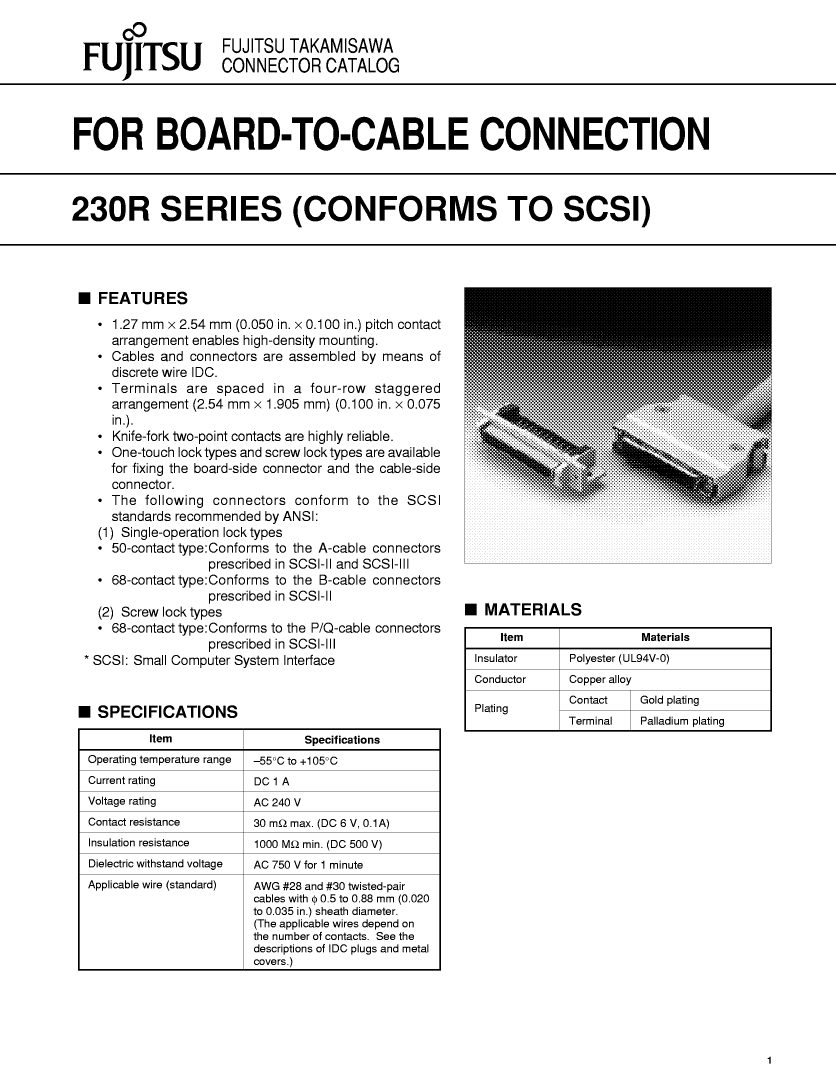

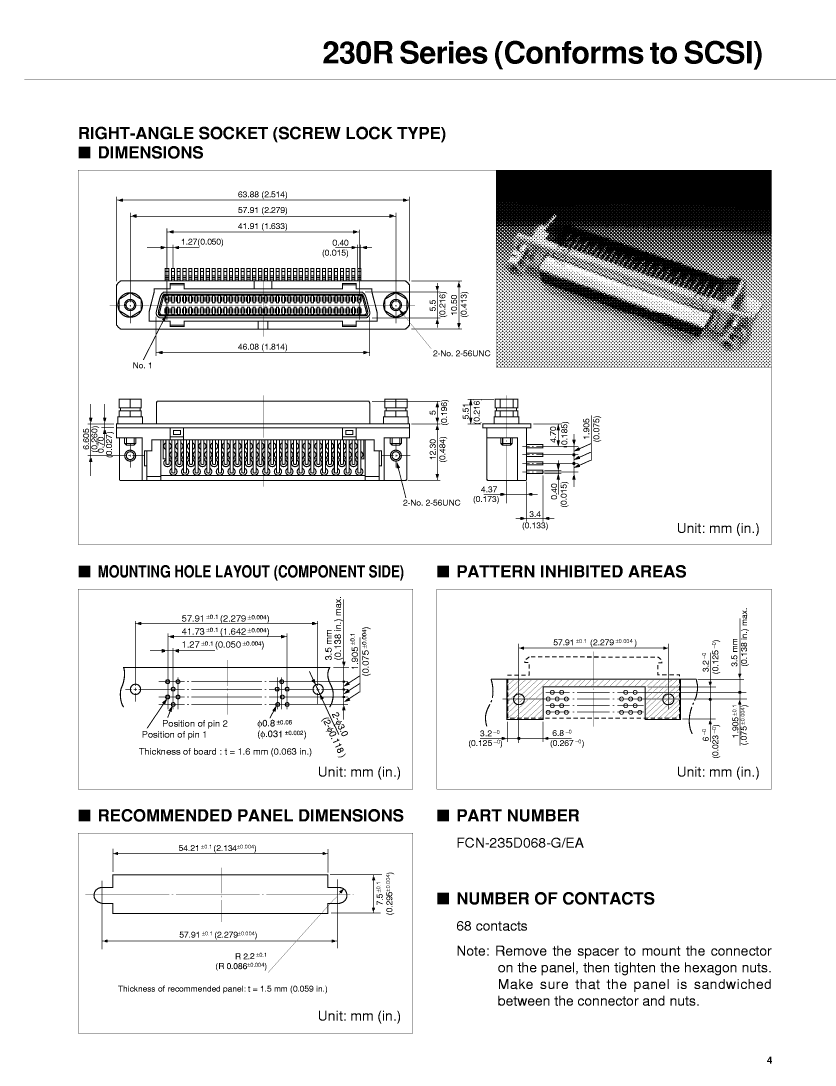

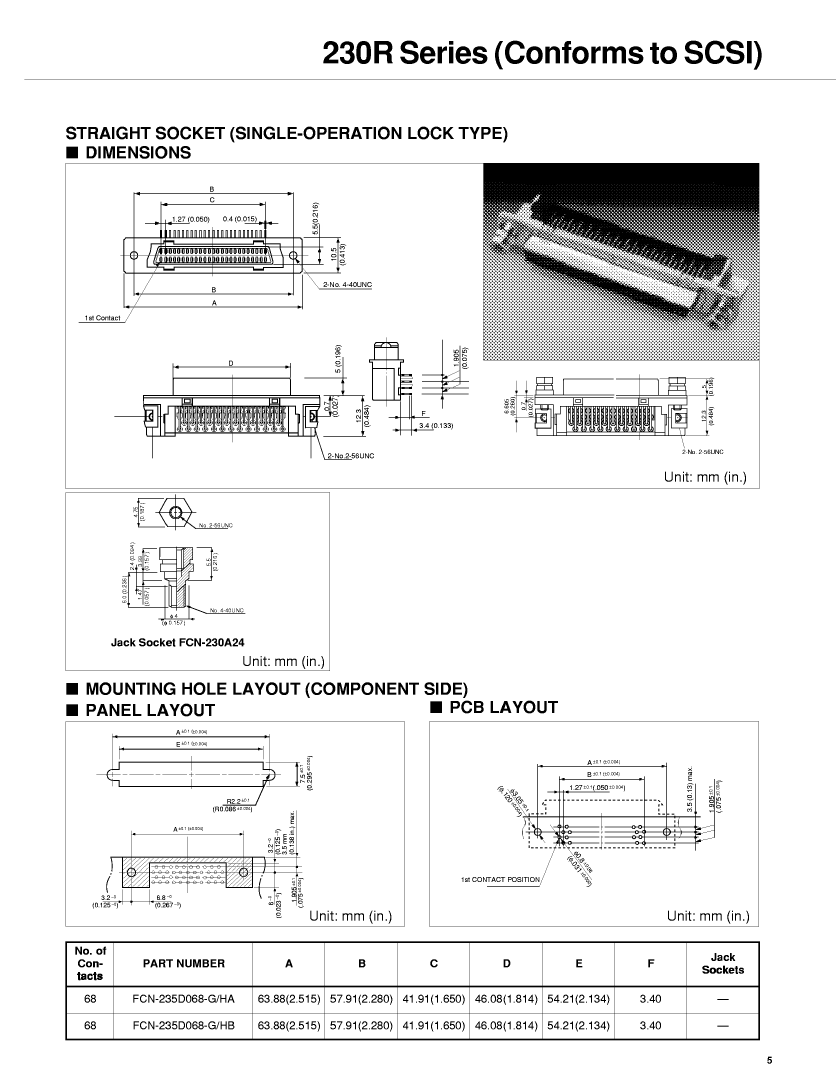

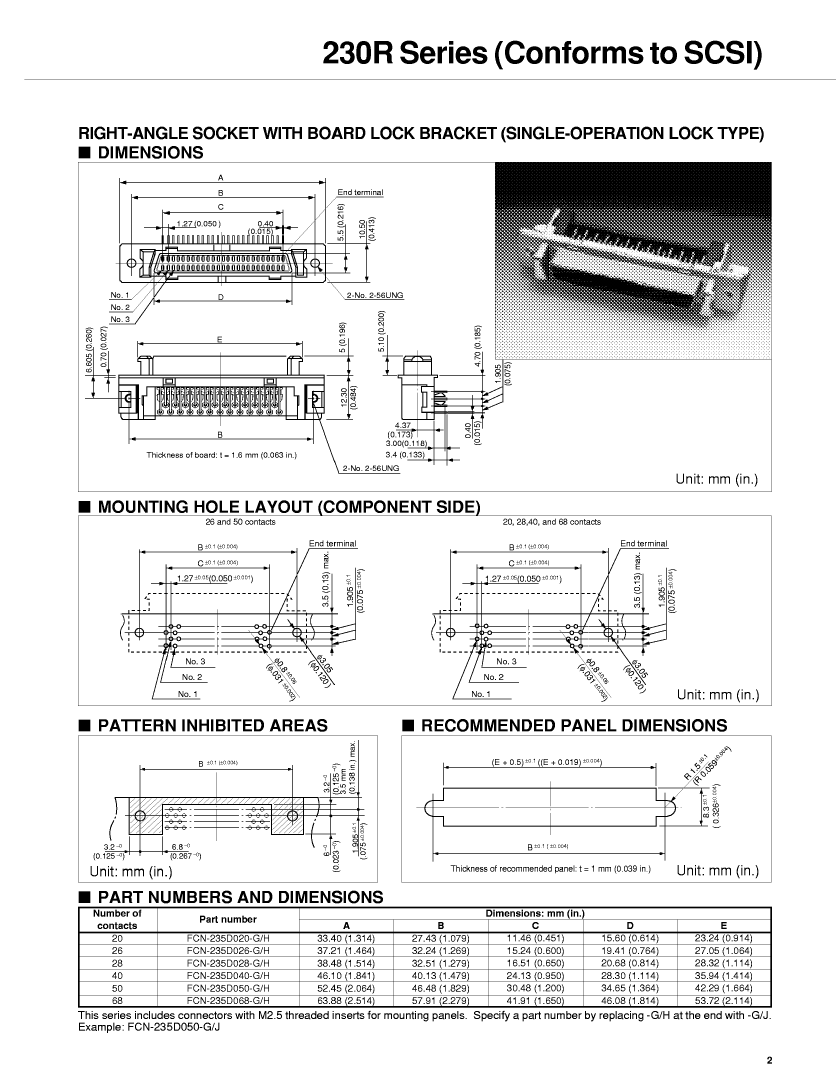

Preview

Download Datasheet

View All

FCN-235D028-G/J Related Products

	FCN-235D028-G/J	FCN-235D068-G/HASR-N	FCN-235D040-G/H	FCN-235D068-G/HBSR-N	FCN-235D040-G/J	FCN-235D040-G/HASR-N	FCN-235D040-G/HAR-N	FCN-235D068-G/HAR-N	FCN-235D068-G/J
Description	CONNECTOR, 28 CONTACT(S), FEMALE, TELECOM AND DATACOM CONNECTOR, SOLDER, SOCKET	CONNECTOR, 68 CONTACT(S), FEMALE, TELECOM AND DATACOM CONNECTOR, SOLDER, SOCKET	CONNECTOR, 40 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SOLDER, SOCKET	CONNECTOR, 68 CONTACT(S), FEMALE, TELECOM AND DATACOM CONNECTOR, SOLDER, SOCKET	CONNECTOR, 40 CONTACT(S), FEMALE, TELECOM AND DATACOM CONNECTOR, SOLDER, SOCKET	CONNECTOR, 40 CONTACT(S), FEMALE, TELECOM AND DATACOM CONNECTOR, SOLDER, SOCKET	CONNECTOR, 40 CONTACT(S), FEMALE, TELECOM AND DATACOM CONNECTOR, SOLDER, SOCKET	CONNECTOR, 68 CONTACT(S), FEMALE, TELECOM AND DATACOM CONNECTOR, SOLDER, SOCKET	CONNECTOR, 68 CONTACT(S), FEMALE, TELECOM AND DATACOM CONNECTOR, SOLDER, SOCKET
Maker	FUJITSU	FUJITSU	FUJITSU	FUJITSU	FUJITSU	FUJITSU	FUJITSU	FUJITSU	FUJITSU
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
body width	0.413 inch	0.413 inch	0.413 inch	0.413 inch	0.413 inch	0.413 inch	0.413 inch	0.413 inch	0.413 inch
subject depth	0.484 inch	0.484 inch	0.484 inch	0.484 inch	0.484 inch	0.484 inch	0.484 inch	0.484 inch	0.484 inch
body length	1.514 inch	2.515 inch	1.841 inch	2.515 inch	1.841 inch	1.815 inch	1.815 inch	2.515 inch	2.514 inch
Body/casing type	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU	AU	AU	AU	AU	AU	AU	AU	AU
Contact completed and terminated	PALLADIUM	PALLADIUM	PALLADIUM	PALLADIUM	PALLADIUM	PALLADIUM	PALLADIUM	PALLADIUM	PALLADIUM
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Dielectric withstand voltage	750VAC V	750VAC V	750VAC V	750VAC V	750VAC V	750VAC V	750VAC V	750VAC V	750VAC V
empty shell	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Plug contact pitch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation option 1	M2.5	#4-40	#2-56	#4-40	M2.5	#4-40	#4-40	#4-40	M2.5
Installation option 2	THREADED	LOCKING	LOCKING	LOCKING	THREADED	LOCKING	LOCKING	LOCKING	THREADED
Installation type	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL
Number of rows loaded	2	2	2	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Rated current (signal)	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Guideline	UL	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	28	68	40	68	40	40	40	68	68
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1	1	1	-
ECCN code	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	-
Other features	-	MII/100 BASE T STD,W/ JACK SKT	STAGGERED CONFIGURATION	MII/100 BASE T STD	-	MII/100 BASE T STD,W/ JACK SKT	MII/100 BASE T STD,W/ JACK SKT	MII/100 BASE T STD,W/ JACK SKT	-
Shell material	-	METAL	POLYAMIDE	METAL	-	METAL	METAL	METAL	-
