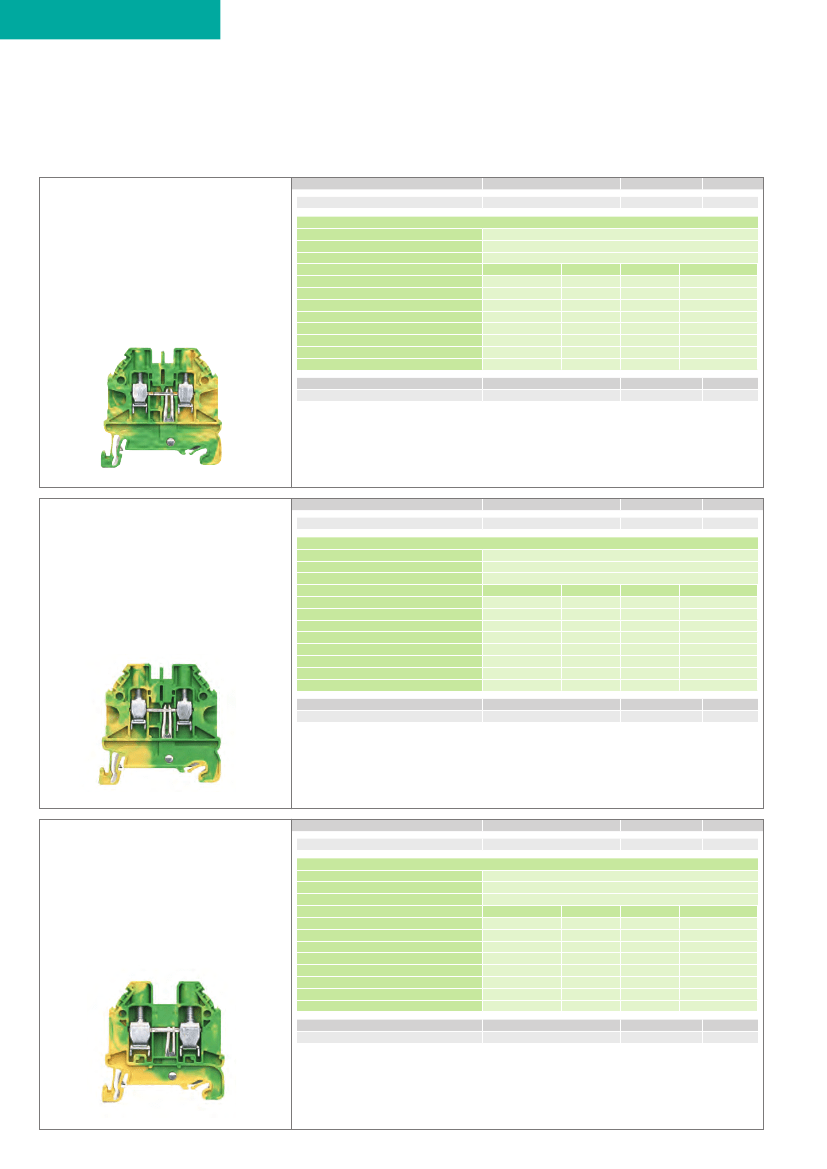

Ground blocks with screw connection
WT 2,5 PE
• Ground block with screw connection for mounting
on TS 35
• Nominal cross section 2.5 mm
2
•
?
II 2G 2D Ex eb IIC
EN 60 079-0:12+A11:13 / IEC 60 079-0:2011 Ed:6.0
EN 60 079-7:07
/ IEC 60 079-7:2006-07 Ed:4
Follow the EX installation instructions on page 149
• Connection capacity: 2 wires, equal size
0.14 – 1.5 mm
2
Description
Type
Part No.
Std. Pack
Ground block, green/yellow
General data
Width / length / height, incl. TS 7.5
Wire strip length
Approvals
Technical data
Cross section fine-stranded
Cross section solid/stranded
Cross section, AWG
Rated current
Rated voltage
Rated impulse voltage
Pollution degree
Accessories
End plate
WT 2,5 PE
5 mm / 48 mm / 48 mm
9 mm
E M D 8
IEC Ex
IEC
UL
EN 60 947-7-2
0.14 – 4 mm
2
0.14 – 4 mm
2
26 – 12
1000 V
8 kV
3
Type
58.503.9055.0
100
IECEx SEV 14.0004 U
SEV 14 ATEX 0124 U
?
CSA
0.14 – 4 mm
2
0.14 – 4 mm
2
26 – 12
600 V
600 V
Part No.
Std. Pack
AP WT 2,5 - 10
07.313.2555.0
10
WT 4 PE
• Ground block with screw connection for mounting
on TS 35
• Nominal cross section 4 mm
2
•
?
II 2G 2D Ex eb IIC
EN 60 079-0:12+A11:13 / IEC 60 079-0:2011 Ed:6.0
EN 60 079-7:07
/ IEC 60 079-7:2006-07 Ed:4
Follow the EX installation instructions on page 149
• Connection capacity: 2 wires, equal size
0.14 – 2.5 mm
2
Description
Type
Part No.
Std. Pack
Ground block, green/yellow
General data
Width / length / height, incl. TS 7.5
Wire strip length
Approvals
Technical data
Cross section fine-stranded
Cross section solid/stranded
Cross section, AWG
Rated current
Rated voltage
Rated impulse voltage
Pollution degree
Accessories
End plate
WT 4 PE
6 mm / 48 mm / 48 mm
9 mm
E M D 8
IEC Ex
IEC
UL
EN 60 947-7-2
0.14 – 6 mm
2
0.14 – 6 mm
2
26 – 10
1000 V
8 kV
3
Type
58.504.9055.0
100
IECEx SEV 14.0004 U
SEV 14 ATEX 0124 U
?
CSA
0.14 – 6 mm
2
0.14 – 6 mm
2
26 – 10
600 V
600 V
Part No.
Std. Pack
AP WT 2,5 - 10
07.313.2555.0
10
WT 6 PE
• Ground block with screw connection for mounting
on TS 35
• Nominal cross section 6 mm
2
•
?
II 2G 2D Ex eb IIC
EN 60 079-0:12+A11:13 / IEC 60 079-0:2011 Ed:6.0
EN 60 079-7:07
/ IEC 60 079-7:2006-07 Ed:4
Follow the EX installation instructions on page 149
• Connection capacity: 2 wires, equal size
0.2 – 4 mm
2
Description
Type
Part No.
Std. Pack
Ground block, green/yellow
General data
Width / length / height, incl. TS 7.5
Wire strip length
Approvals
Technical data
Cross section fine-stranded
Cross section solid/stranded
Cross section, AWG
Rated current
Rated voltage
Rated impulse voltage
Pollution degree
Accessories
End plate
WT 6 PE
8 mm / 48 mm / 48 mm
11 mm
E M D 8
IEC Ex
IEC
UL
EN 60 947-7-2
0.2 – 10 mm
2
0.2 – 10 mm
2
24 – 8
1000 V
8 kV
3
Type
58.506.9055.0
100
IECEx SEV 14.0004 U
SEV 14 ATEX 0124 U
?
CSA
0.2 – 10 mm
2
0.2 – 10 mm
2
24 – 8
600 V
600 V
Part No.
Std. Pack
AP WT 2,5 - 10
07.313.2555.0
10
