3.5 mm SINGLE MONO AND STEREO JACKS
MATERIALS
Coil Springs:
Steel wire.
Tip Spring:
Silver-plated copper alloy.
Ring Spring:
Silver-plated copper alloy.
Contactors:
Silver-plated copper alloy.
Ground Terminal:
Silver-plated copper alloy.
Bushing:
Nickel-plated copper alloy.
Cover:
Thermoplastic, transparent UL 94V-2.
Body:
Thermoplastic, UL 94V-1 black color.
PERFORMANCE SPECIFICATIONS
Contact Resistance:
20 milliohms maximum, initial
100 milliohms maximum, after life.
Insulation Resistance:
100 megohms minimum.
Dielectric Withstanding Voltage:
250V AC.
Life:
5000 cycles, minimum.
Insertion Force:
0.88 - 3.5 pounds.
Withdrawal Force:
0.88 - 3.1 pounds.

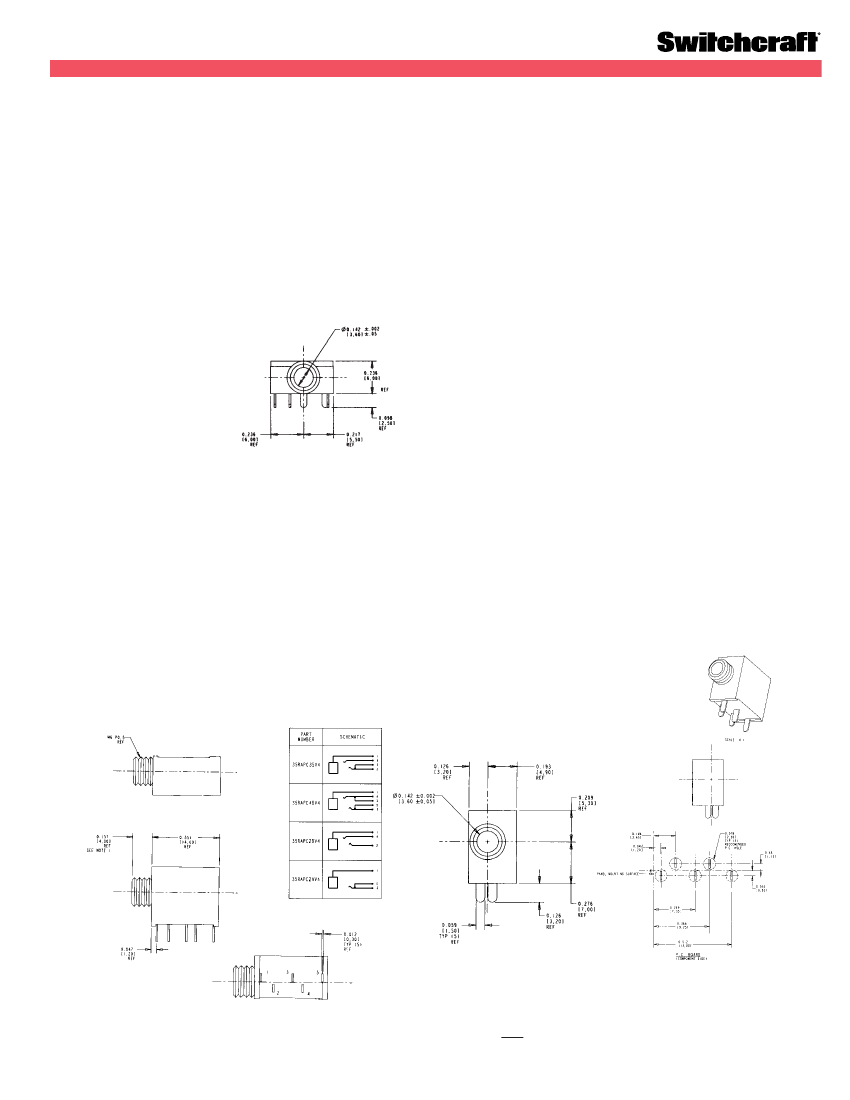

35RAPC2BV4 - STEREO, VERTICAL , THREADED
MATERIALS
Coil Springs:
Steel Wire.
Ring Spring:
Copper alloy strip , tin alloy plating.
Ground Terminal:
Copper alloy strip , tin alloy plating.
Bushing:
Nickel-plated copper alloy.
Cover:
Thermoplastic, UL 94V-0 black color.
Body:
Thermoplastic, UL 94V-0 black color.
**
PERFORMANCE SPECIFICATIONS
Contact Resistance:
20 milliohms maximum ,
initial 50 milliohms maximum , after life.
Insulation Resistance:
50 megohms minimum at 500V DC.
Dielectric Withstanding Voltage:
250V AC.
Life:
5 ,000 cycles , minimum.
Insertion Force:
0.88 lbs. to 3.50 lbs.
Withdrawal Force:
0.88 lbs. to 3.10 lbs.
**Same drawing for jack with non-threaded bushing.
DIMENSIONS ARE FOR REFERENCE ONLY
Inch
(mm)
NOTE:
Contact your Switchcraft Representative for price and delivery.
