FN1A4P-L datasheet, PDF - EEWORLD Datasheet

FN1A4P-L: Description100mA, 50V, PNP, Si, SMALL SIGNAL TRANSISTOR, PLASTIC, SC-59, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size81KB，3 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

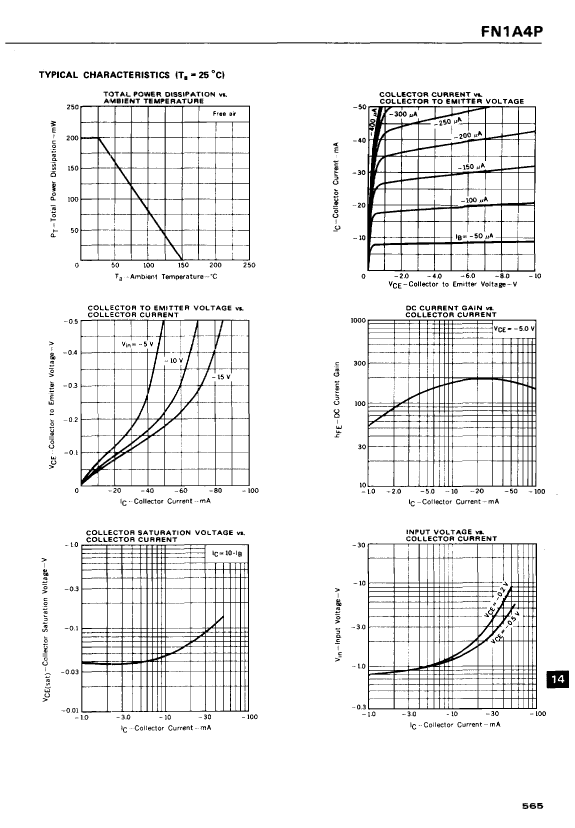

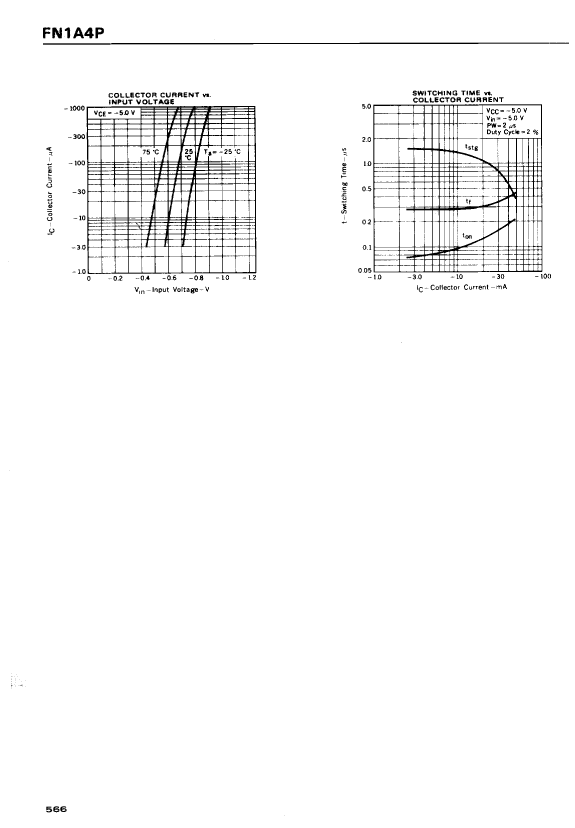

FN1A4P-L Overview

100mA, 50V, PNP, Si, SMALL SIGNAL TRANSISTOR, PLASTIC, SC-59, 3 PIN

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Renesas Electronics Corporation
Parts packaging code	SC-59
package instruction	SMALL OUTLINE, R-PDSO-G3
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	BUILT-IN BIAS RESISTOR RATIO IS 4.7
Maximum collector current (IC)	0.1 A
Collector-emitter maximum voltage	50 V
Configuration	SINGLE WITH BUILT-IN RESISTOR
Minimum DC current gain (hFE)	95
JESD-30 code	R-PDSO-G3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	PNP
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
transistor applications	SWITCHING
Transistor component materials	SILICON
Maximum off time (toff)	6000 ns
Maximum opening time (tons)	200 ns
VCEsat-Max	0.2 V
Base Number Matches	1

	FN1A4P-L	FN1A4P-T2B
Description	100mA, 50V, PNP, Si, SMALL SIGNAL TRANSISTOR, PLASTIC, SC-59, 3 PIN	100 mA, 50 V, PNP, Si, SMALL SIGNAL TRANSISTOR, PLASTIC, SC-59, 3 PIN
Is it Rohs certified?	incompatible	incompatible
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation
Parts packaging code	SC-59	SC-59
package instruction	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3
Contacts	3	3
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Other features	BUILT-IN BIAS RESISTOR RATIO IS 4.7	BUILT-IN BIAS RESISTOR RATIO IS 4.7
Maximum collector current (IC)	0.1 A	0.1 A
Collector-emitter maximum voltage	50 V	50 V
Configuration	SINGLE WITH BUILT-IN RESISTOR	SINGLE WITH BUILT-IN RESISTOR
Minimum DC current gain (hFE)	95	95
JESD-30 code	R-PDSO-G3	R-PDSO-G3
Number of components	1	1
Number of terminals	3	3
Maximum operating temperature	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Polarity/channel type	PNP	PNP
Certification status	Not Qualified	Not Qualified
surface mount	YES	YES
Terminal form	GULL WING	GULL WING
Terminal location	DUAL	DUAL
transistor applications	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON
Maximum off time (toff)	6000 ns	6000 ns
Maximum opening time (tons)	200 ns	200 ns
VCEsat-Max	0.2 V	0.2 V
Base Number Matches	1	1
