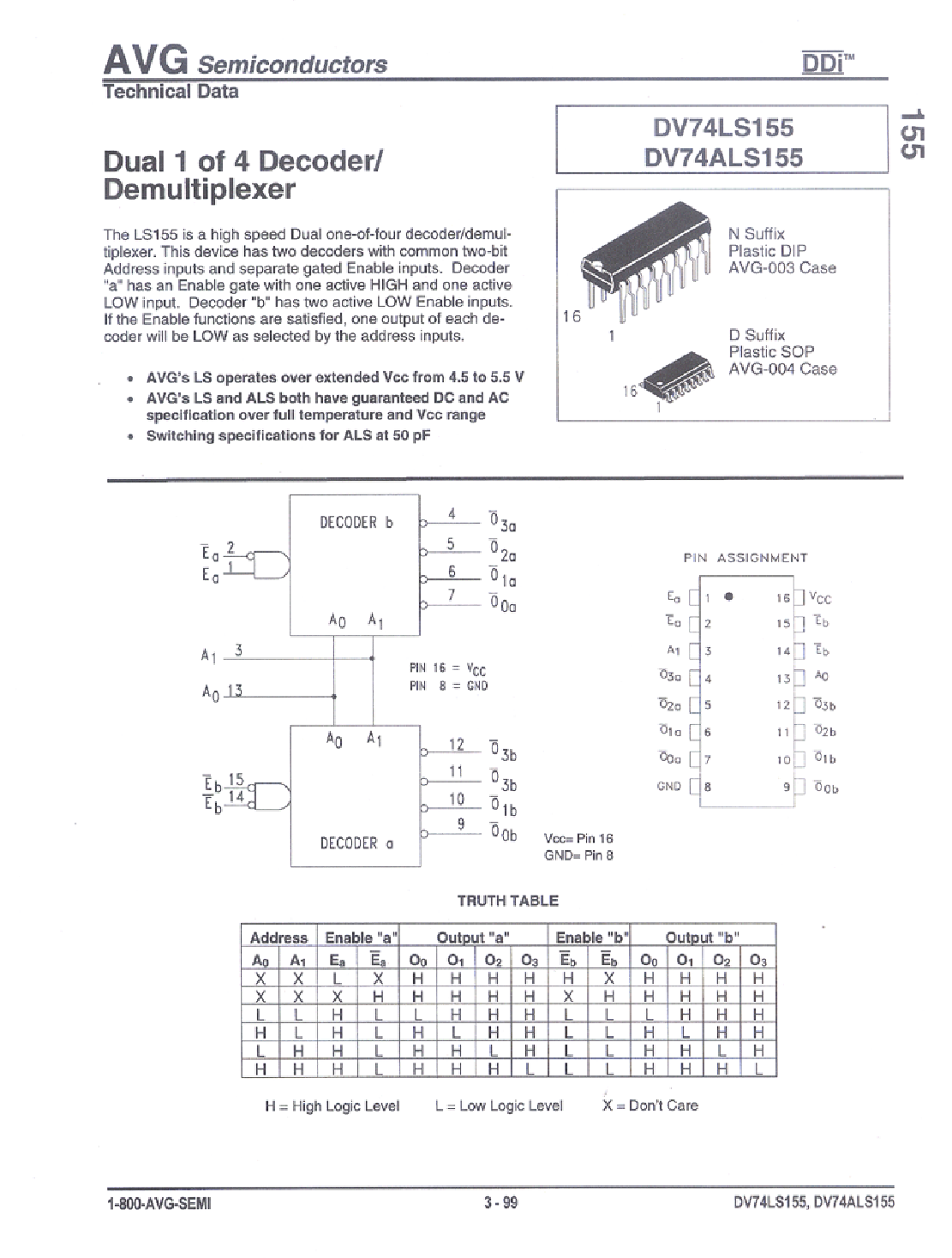

DV74LS155N Overview

Decoder/Driver, LS Series, True Output, TTL, PDIP16, PLASTIC, DIP-16

Parameter Name	Attribute value
Maker	AVG [AVG Semiconductors(HITEK)]
Parts packaging code	DIP
package instruction	DIP,
Contacts	16
Reach Compliance Code	unknown
ECCN code	EAR99
series	LS
Input adjustment	STANDARD
JESD-30 code	R-PDIP-T16
length	19.175 mm
Number of functions	2
Number of terminals	16

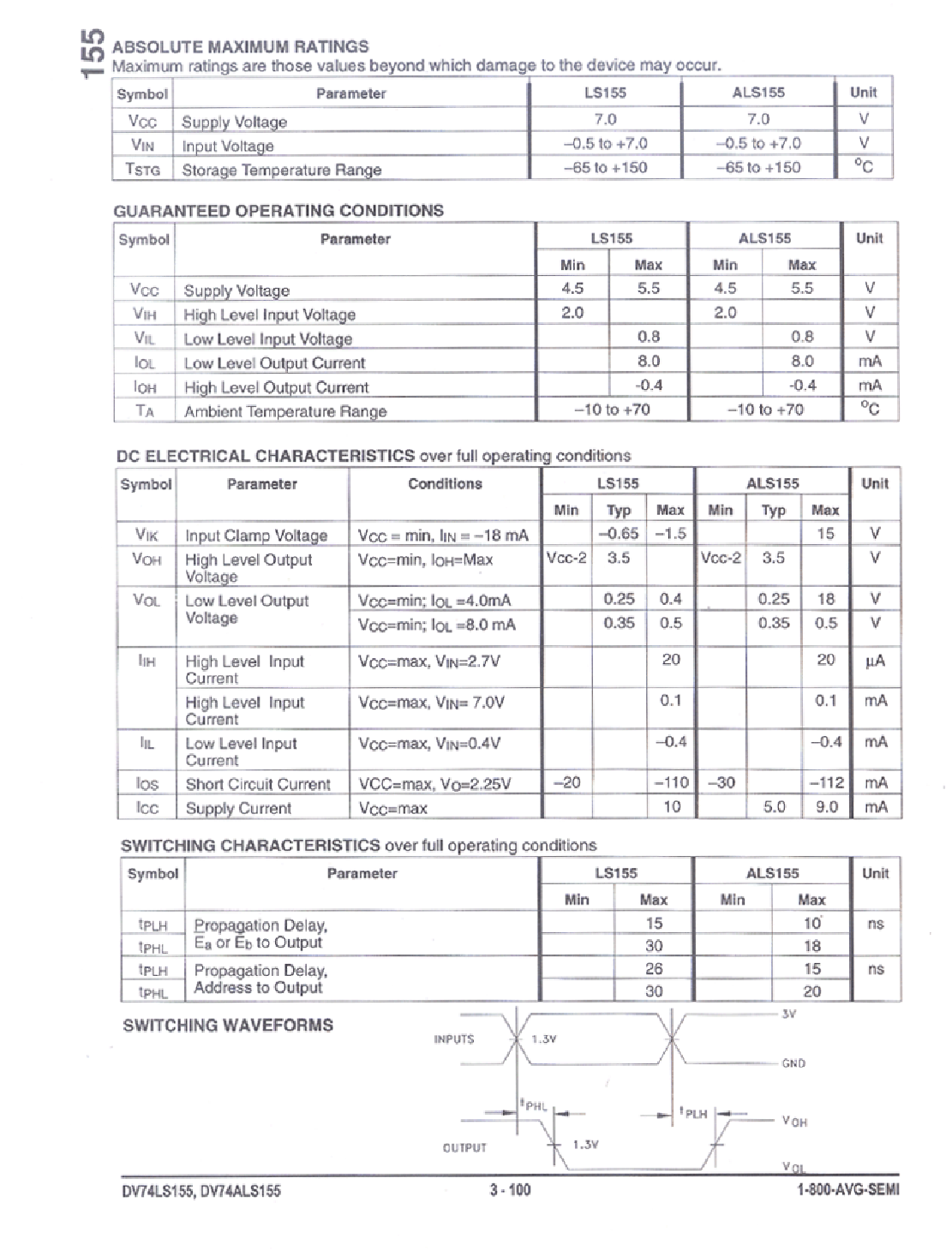

Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum supply current (ICC)	10 mA
propagation delay (tpd)	30 ns
Certification status	Not Qualified
Maximum seat height	4.44 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1
