803-44-050-10-004000: DescriptionBoard Connector, 50 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Socket, ROHS COMPLIANT; CategoryThe connector The connector; File Size664KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

803-44-050-10-004000 Overview

Board Connector, 50 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Socket, ROHS COMPLIANT

803-44-050-10-004000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN (100)
Contact completed and terminated	TIN (200)
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	803
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	50
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

INTERCONNECTS

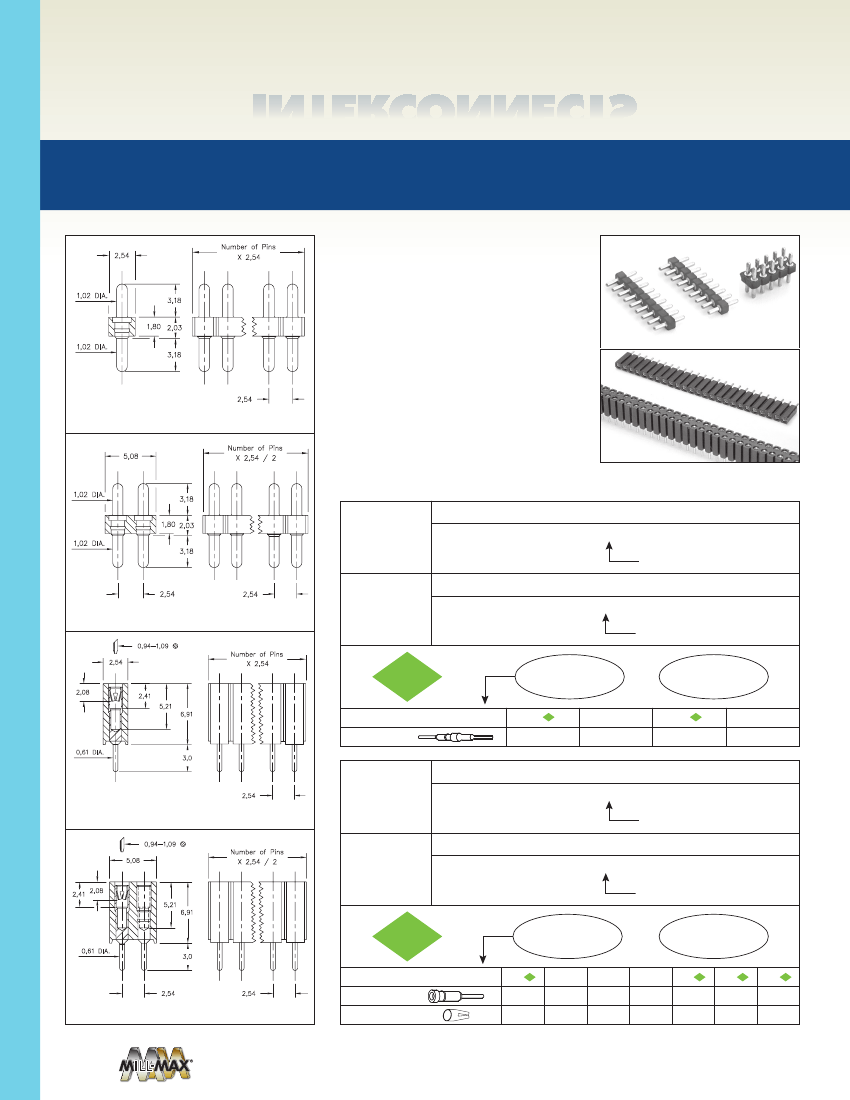

SERIES 800, 801, 802, 803 • 2,54 GRID (1,02 DIA. PINS),

HEADERS AND SOCKETS • SINGLE AND DOUBLE ROW STRIPS

Number of Pins

2,54

X 2,54

•

Series 800 and 802 single and double row

1,02 DIA.

interconnects feature sturdy 1,02 dia. leads

(MM #3077) and low profile (1,80 thick)

insulator. See page 215 for details

sockets use MM #1313 receptacles. See page

181 for details

6-finger BeCu #18 contact rated at 8 amps.

Receptacles accept 0,94 - 1,09 diameter pins.

See page 257 for details

suitable for all soldering operations

3,18

•

Series 801 and 803 single and double row

•

Series 801 and 803 receptacles use Hi-Rel,

2,54

1,80 2,03

1,02 DIA.

3,18

FIG. 1

5,08

Number of Pins

X 2,54 / 2

•

Insulators are high temperature thermoplastic,

1,02 DIA.

3,18

ORDERING INFORMATION

Series 800...10-004

Single Row Pin Header

01-50

1,80 2,03

1,02 DIA.

3,18

FIG. 1

2,54

800-XX-0_ _-10-004000

Specify number of pins

2,54

Series 802...10-004

Double Row Pin Header

004-100

For

Electrical, Mechanical

& Enviromental Data,

See page 264

FIG. 2

0,94-1,09

FIG. 2

RoHS - 2

802-XX-_ _ _-10-004000

Specify number of pins

Number of Pins

2,54

X 2,54

2011/65/EU

2,08

2,41

5,21

6,91

XX=Plating Code

See Below

10

0,25μm Au

SPECIFY PLATING CODE XX=

Pin Plating

90

5,08μm Sn/Pb

40

5,08μm Sn

0,61 DIA.

3,0

Series 801...10-004

2,54

Single Row Socket

01-50

FIG. 3

0,94-1,09

5,08

FIG. 3

801-XX-0_ _-10-004000

Specify number of pins

Number of Pins

X 2,54 / 2

Series 803...10-004

Double Row Socket

004-100

For

Electrical, Mechanical

& Enviromental Data,

See page 264

PAGE 62 | INTERCONNECTS

FIG. 4

RoHS - 2

803-XX-_ _ _-10-004000

Specify number of pins

2,41

2,08

5,21

6,91

2011/65/EU

0,61 DIA.

3,0

XX=Plating Code

See Below

13

91

93

99

SPECIFY PLATING CODE XX=

2,54

41

43

44

FIG. 4

Sleeve (Pin)

Contact (Clip)

0,25μm Au

5,08μm Sn/Pb 5,08μm Sn/Pb 5,08μm Sn/Pb

5,08μm Sn 5,08μm Sn 5,08μm Sn

0,76μm Au 0,25μm Au 0,76μm Au

2,54μm Sn/Pb

0,25μm Au 0,76μm Au 2,54μm Sn
