54LS138LMQB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54LS138LMQB

54LS138LMQB: DescriptionDecoder/Driver, LS Series, Inverted Output, TTL, CQCC20, CERAMIC, LCC-20; Categorylogic logic; File Size212KB，8 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

54LS138LMQB Overview

Decoder/Driver, LS Series, Inverted Output, TTL, CQCC20, CERAMIC, LCC-20

54LS138LMQB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	QLCC
package instruction	QCCN, LCC20,.35SQ
Contacts	20
Reach Compliance Code	compliant
ECCN code	EAR99
series	LS
JESD-30 code	S-CQCC-N20
JESD-609 code	e0
length	8.89 mm
Logic integrated circuit type	OTHER DECODER/DRIVER
MaximumI(ol)	0.004 A
Number of functions	1
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	INVERTED
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Encapsulate equivalent code	LCC20,.35SQ
Package shape	SQUARE
Package form	CHIP CARRIER
power supply	5 V
Maximum supply current (ICC)	10 mA
Prop。Delay @ Nom-Sup	40 ns
propagation delay (tpd)	40 ns
Certification status	Not Qualified
Filter level	MIL-STD-883 Class B
Maximum seat height	1.905 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
width	8.89 mm
Base Number Matches	1

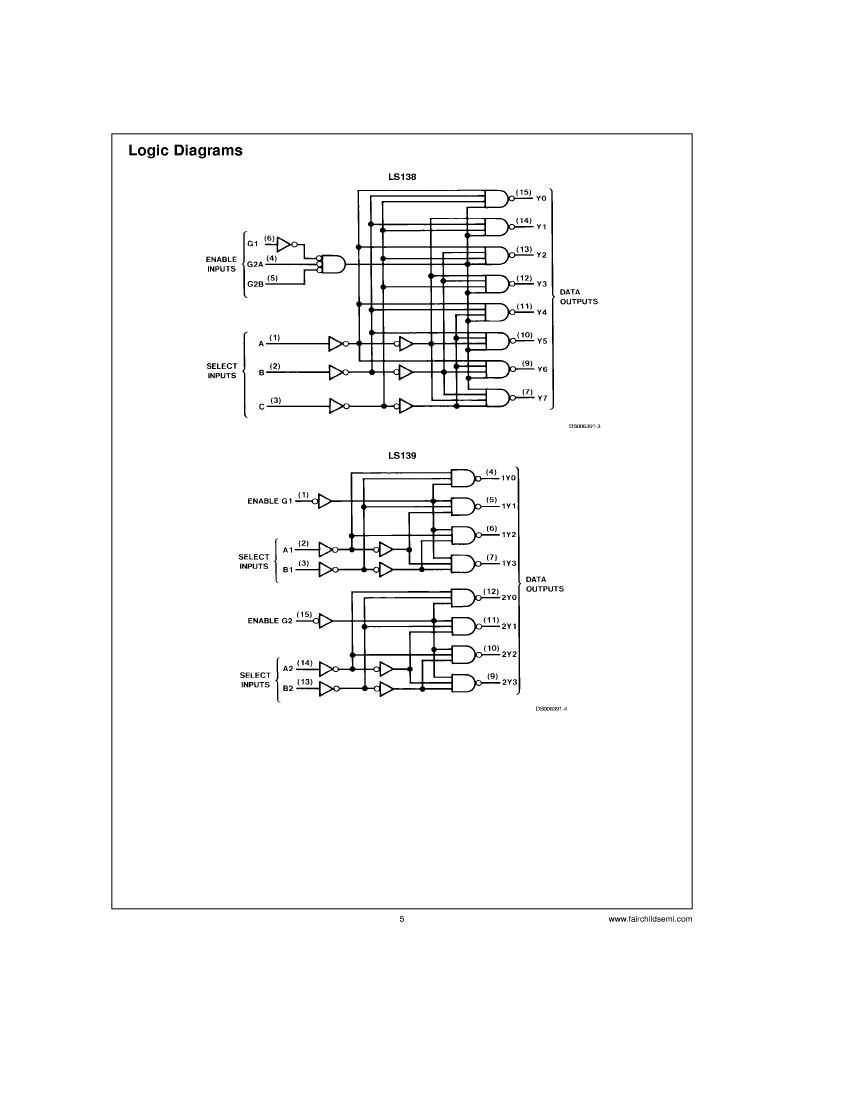

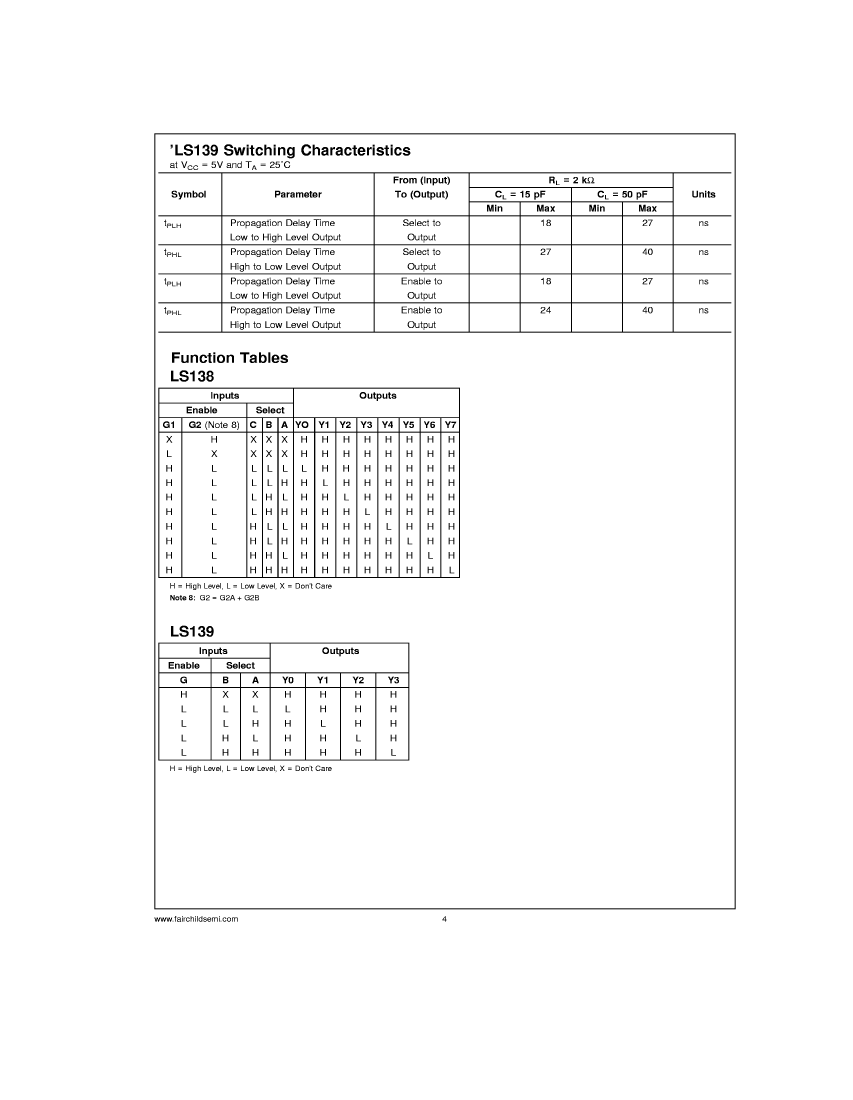

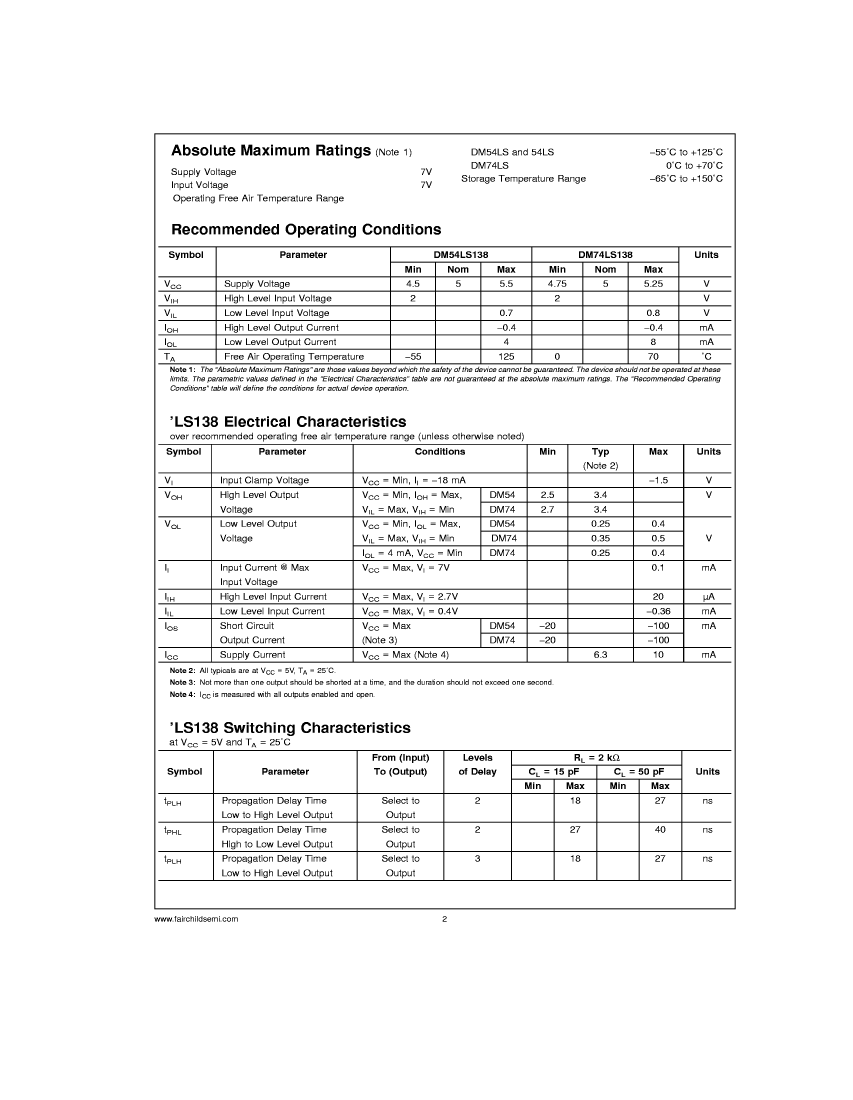

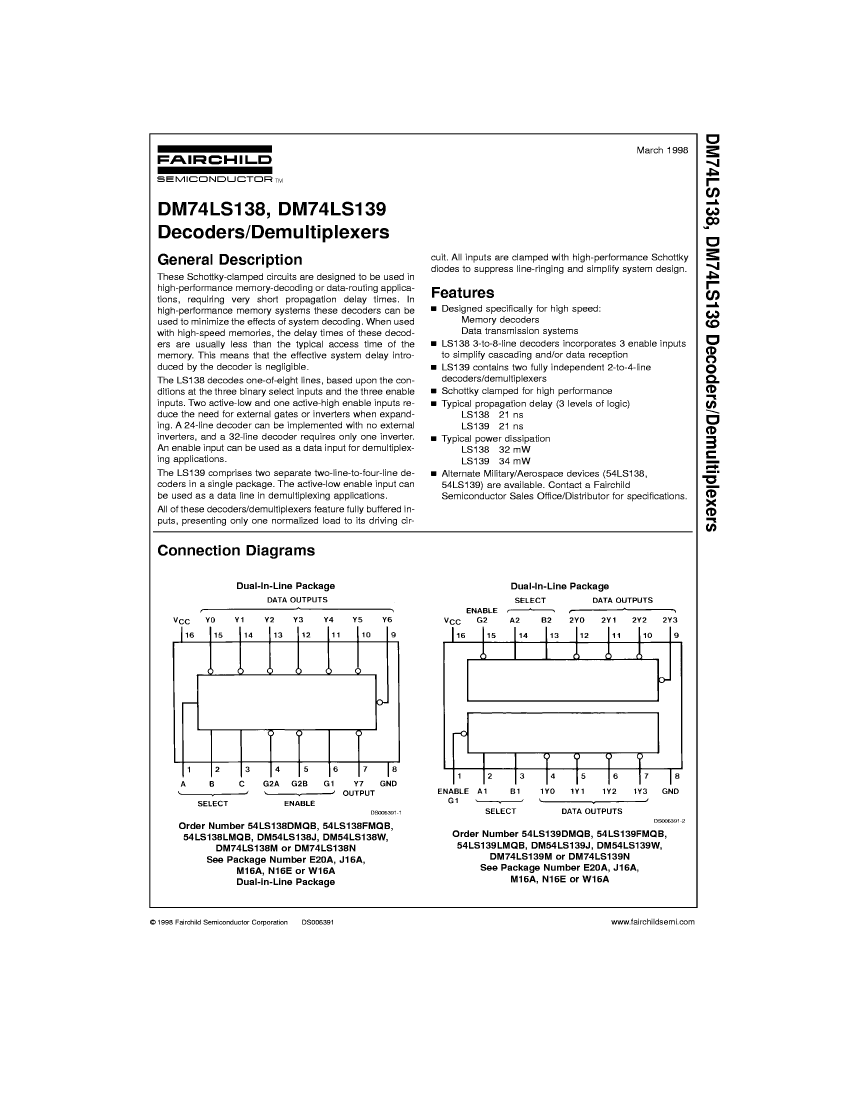

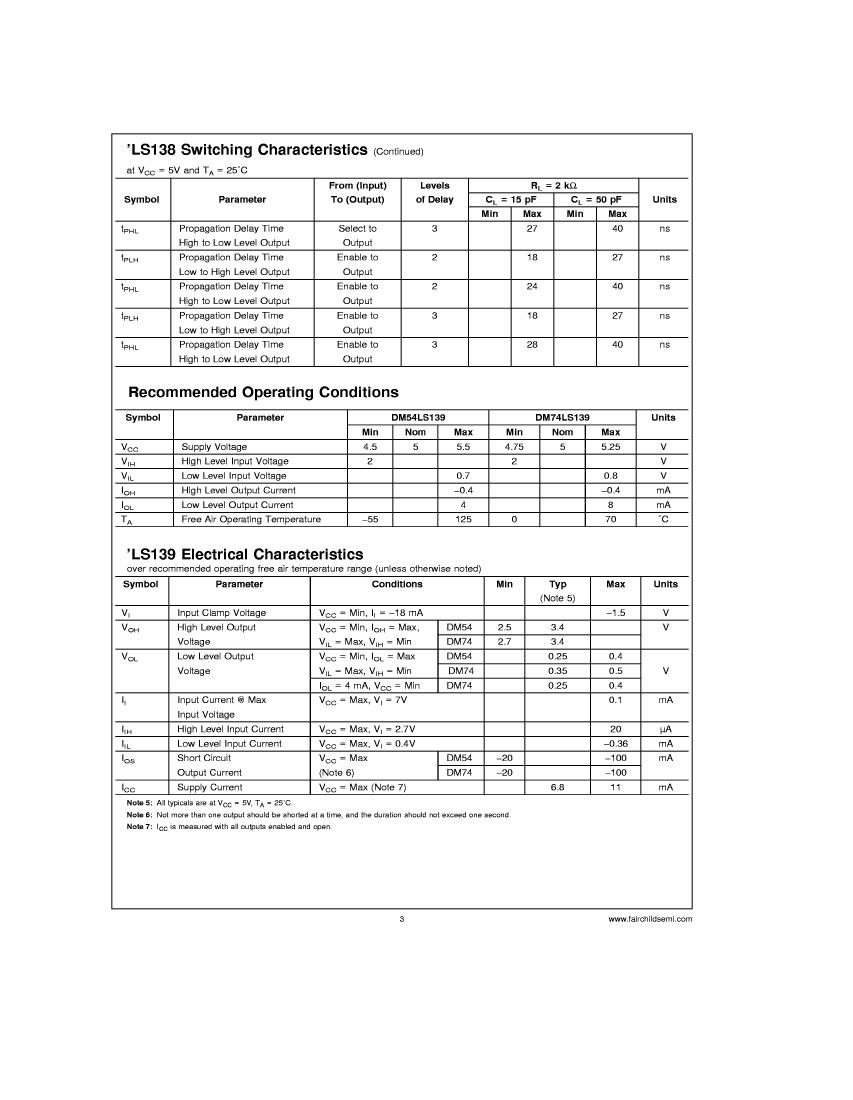

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

54LS138LMQB Related Products

	54LS138LMQB	DM54LS139W	54LS139FMQB	DM54LS139J	DM54LS138W	54LS138DMQB	DM54LS138J	54LS139LMQB	54LS139DMQB	54LS138FMQB
Description	Decoder/Driver, LS Series, Inverted Output, TTL, CQCC20, CERAMIC, LCC-20	Decoder/Driver, LS Series, Inverted Output, TTL, CDFP16, CERAMIC, FP-16	Decoder/Driver, LS Series, Inverted Output, TTL, CDFP16, CERAMIC, FP-16	Decoder/Driver, LS Series, Inverted Output, TTL, CDIP16, CERAMIC, DIP-16	Decoder/Driver, LS Series, Inverted Output, TTL, CDFP16, CERAMIC, FP-16	Decoder/Driver, LS Series, Inverted Output, TTL, CDIP16, CERAMIC, DIP-16	Decoder/Driver, LS Series, Inverted Output, TTL, CDIP16, CERAMIC, DIP-16	Decoder/Driver, LS Series, Inverted Output, TTL, CQCC20, CERAMIC, LCC-20	Decoder/Driver, LS Series, Inverted Output, TTL, CDIP16, CERAMIC, DIP-16	Decoder/Driver, LS Series, Inverted Output, TTL, CDFP16, CERAMIC, FP-16
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	QLCC	DFP	DFP	DIP	DFP	DIP	DIP	QLCC	DIP	DFP
package instruction	QCCN, LCC20,.35SQ	DFP, FL16,.3	DFP, FL16,.3	DIP, DIP16,.3	DFP, FL16,.3	DIP, DIP16,.3	DIP, DIP16,.3	QCCN, LCC20,.35SQ	DIP, DIP16,.3	DFP, FL16,.3
Contacts	20	16	16	16	16	16	16	20	16	16
Reach Compliance Code	compliant	compliant	compliant	unknown	compliant	unknown	unknown	compliant	unknown	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
series	LS	LS	LS	LS	LS	LS	LS	LS	LS	LS
JESD-30 code	S-CQCC-N20	R-GDFP-F16	R-GDFP-F16	R-GDIP-T16	R-GDFP-F16	R-GDIP-T16	R-GDIP-T16	S-CQCC-N20	R-GDIP-T16	R-GDFP-F16
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0	e0
length	8.89 mm	9.6645 mm	9.6645 mm	19.43 mm	9.6645 mm	19.43 mm	19.43 mm	8.89 mm	19.43 mm	9.6645 mm
Logic integrated circuit type	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER
MaximumI(ol)	0.004 A	0.004 A	0.004 A	0.004 A	0.004 A	0.004 A	0.004 A	0.004 A	0.004 A	0.004 A
Number of functions	1	2	2	2	1	1	1	2	2	1
Number of terminals	20	16	16	16	16	16	16	20	16	16
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output polarity	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	QCCN	DFP	DFP	DIP	DFP	DIP	DIP	QCCN	DIP	DFP
Encapsulate equivalent code	LCC20,.35SQ	FL16,.3	FL16,.3	DIP16,.3	FL16,.3	DIP16,.3	DIP16,.3	LCC20,.35SQ	DIP16,.3	FL16,.3
Package shape	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	FLATPACK	FLATPACK	IN-LINE	FLATPACK	IN-LINE	IN-LINE	CHIP CARRIER	IN-LINE	FLATPACK
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Maximum supply current (ICC)	10 mA	11 mA	11 mA	11 mA	10 mA	10 mA	10 mA	11 mA	11 mA	10 mA
Prop。Delay @ Nom-Sup	40 ns	40 ns	40 ns	40 ns	40 ns	40 ns	40 ns	40 ns	40 ns	40 ns
propagation delay (tpd)	40 ns	40 ns	40 ns	40 ns	40 ns	40 ns	40 ns	40 ns	40 ns	40 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.905 mm	2.032 mm	2.032 mm	5.08 mm	2.032 mm	5.08 mm	5.08 mm	1.905 mm	5.08 mm	2.032 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	NO	YES	NO	NO	YES	NO	YES
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD	FLAT	FLAT	THROUGH-HOLE	FLAT	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	THROUGH-HOLE	FLAT
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm	1.27 mm	2.54 mm	1.27 mm
Terminal location	QUAD	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	QUAD	DUAL	DUAL
width	8.89 mm	6.604 mm	6.604 mm	7.62 mm	6.604 mm	7.62 mm	7.62 mm	8.89 mm	7.62 mm	6.604 mm
Base Number Matches	1	1	1	1	1	1	1	1	1	1
Filter level	MIL-STD-883 Class B	-	MIL-STD-883 Class B	-	-	MIL-STD-883 Class B	-	MIL-STD-883 Class B	MIL-STD-883 Class B	MIL-STD-883 Class B
