SIG12304030070 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> SIG12304030070

SIG12304030070: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID; CategoryPassive components capacitor; File Size606KB，4 Pages; ManufacturerLeclanche Capacitors; Websitehttp://www.lcap.ch; Environmental Compliance

Download Datasheet Parametric View All

SIG12304030070 Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID

SIG12304030070 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Leclanche Capacitors
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	12000 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	30 mm
dielectric materials	ALUMINUM (WET)
ESR	16 mΩ
length	70 mm
Manufacturer's serial number	SIG
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	Snap-in
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	40 V
ripple current	6500 mA
series	SIG
Terminal pitch	10 mm
Base Number Matches	1

Preview

Download Datasheet

View All

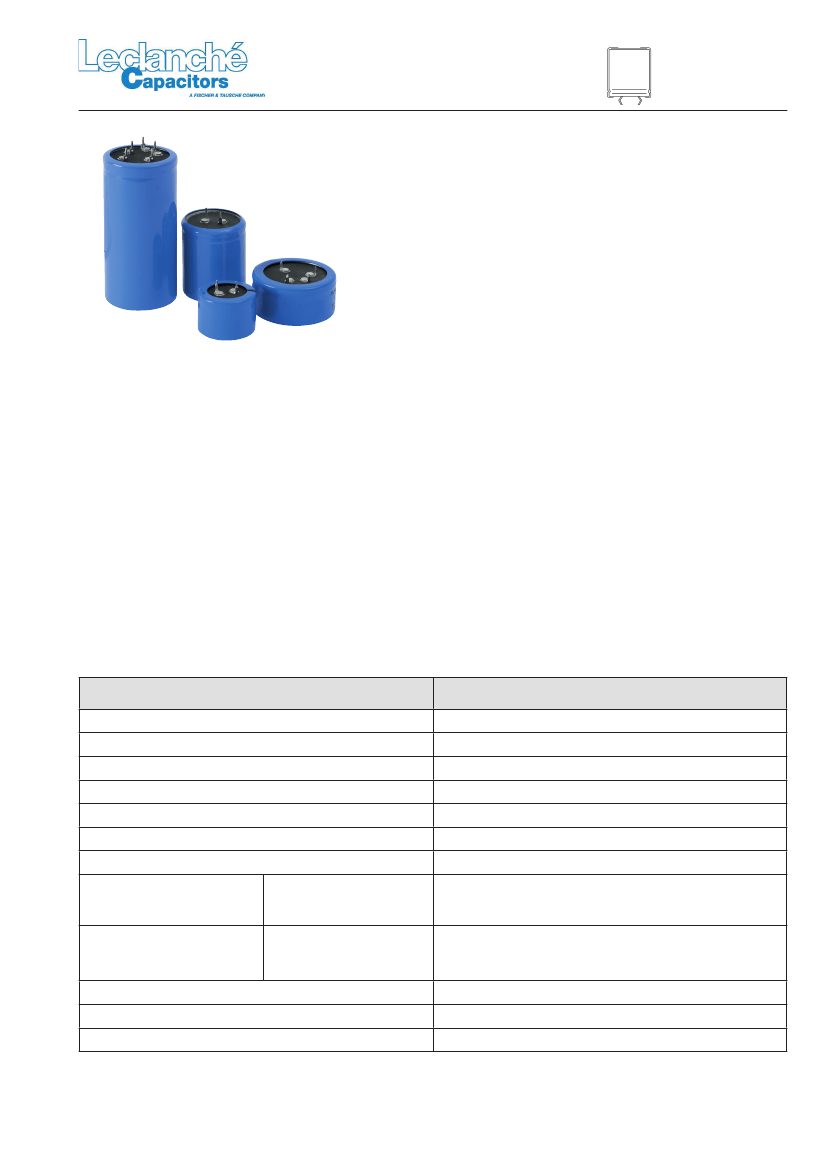

125 °C

High reliabilty

SIG

Long lifetime at 125°C

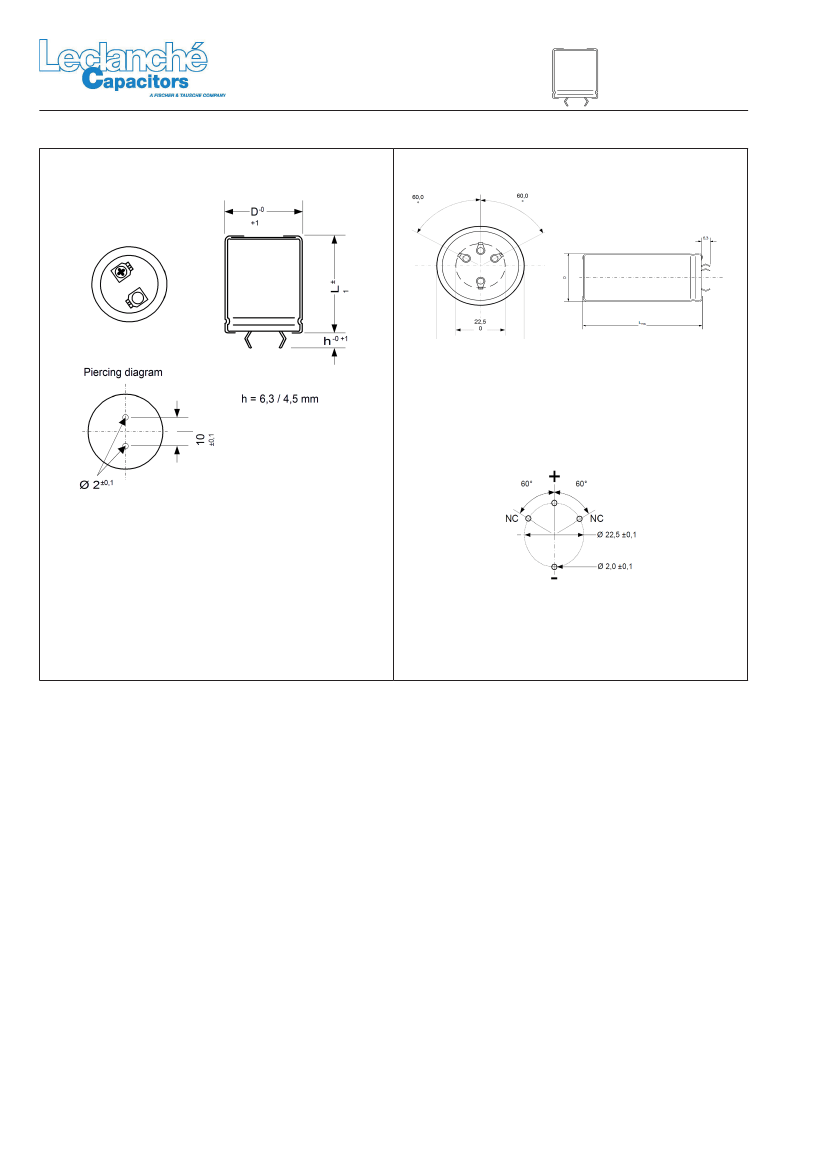

SIG: snap in, 2 pins

SI4PG: snap in, 4 pins

Features

•

RoHS compliant

REACH compliant

Different case sizes, voltages and

capacitance combinations

are available on request.

Also in small lots.

All internal contact welded

High temp 125°C

High CV product

High performance

Low temperature

Automotive

Consumer

Industrial

Tube amplifier

Applications

General specifications

Items

Rated capacitance range C

Capacitance tolerance

Rated voltage range U

Surge voltage U

Max. reverse voltage

Category temperature range

Leakage current I

after 5 min @ U

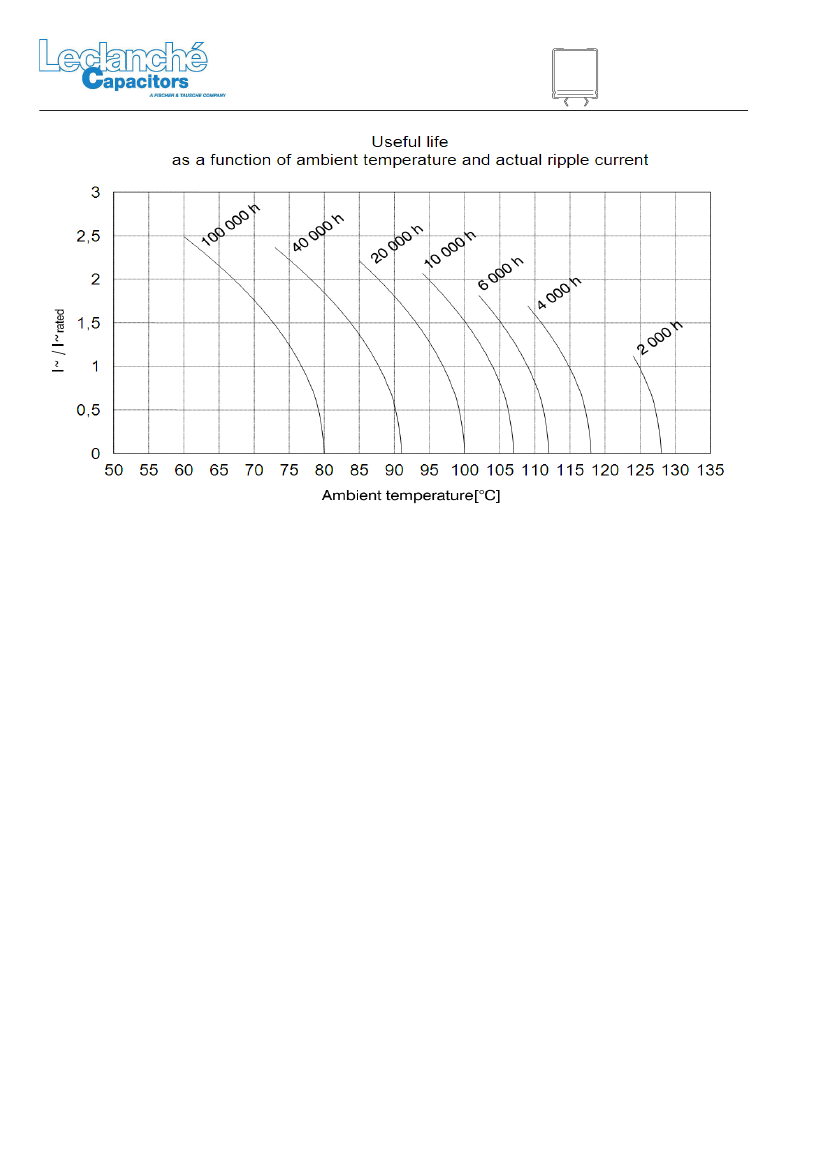

Useful life

2000 h @ 125 °C ; U

; I

Characteristics

1.200 … 130.000 µF

± 20%

16 … 63 V

= 1,15 U

- 55°C ... + 125°C

≤ 0,006 * C

[µF] * U

[V] + 6 µA [µA]

Δ C/C ≤ 30 % of initial value

ESR ≤ 300 % of specified limit

≤ specified limit

Δ C/C ≤ 20 % of initial value

ESR ≤ 130 % of specified limit

≤ specified limit

55/125/56

≥ 2500 V AC

IEC 60384-4

Endurance test

Climatic category IEC 60068

1000 h @ 125 °C , U

Voltage proof of the external insulation

Sectional specification

Leclanché Capacitors

1400 Yverdon, Switzerland

Tel. +41 24 445 66 88

Fax +41 24 445 66 89

www.Lcap.ch

capinfo@Lcap.ch
