5962-87591033X datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> 5962-87591033X

5962-87591033X: DescriptionIC 1-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, CQCC28, LEAD FREE, QCC-28, Analog to Digital Converter; CategoryAnalog mixed-signal IC converter; File Size691KB，13 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

5962-87591033X Overview

IC 1-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, CQCC28, LEAD FREE, QCC-28, Analog to Digital Converter

5962-87591033X Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	QLCC
package instruction	LEAD FREE, QCC-28
Contacts	28
Reach Compliance Code	not_compliant
ECCN code	3A001.A.2.C
Maximum analog input voltage	5 V
Minimum analog input voltage
Maximum conversion time	12.5 µs
Converter type	ADC, SUCCESSIVE APPROXIMATION
JESD-30 code	S-CQCC-N28
JESD-609 code	e0
length	11.43 mm
Maximum linear error (EL)	0.0122%
Nominal negative supply voltage	-15 V
Number of analog input channels	1
Number of digits	12
Number of functions	1
Number of terminals	28
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output bit code	BINARY
Output format	PARALLEL, 8 BITS
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Encapsulate equivalent code	LCC28,.45SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5,-15 V
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum seat height	2.54 mm
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	11.43 mm
Base Number Matches	1

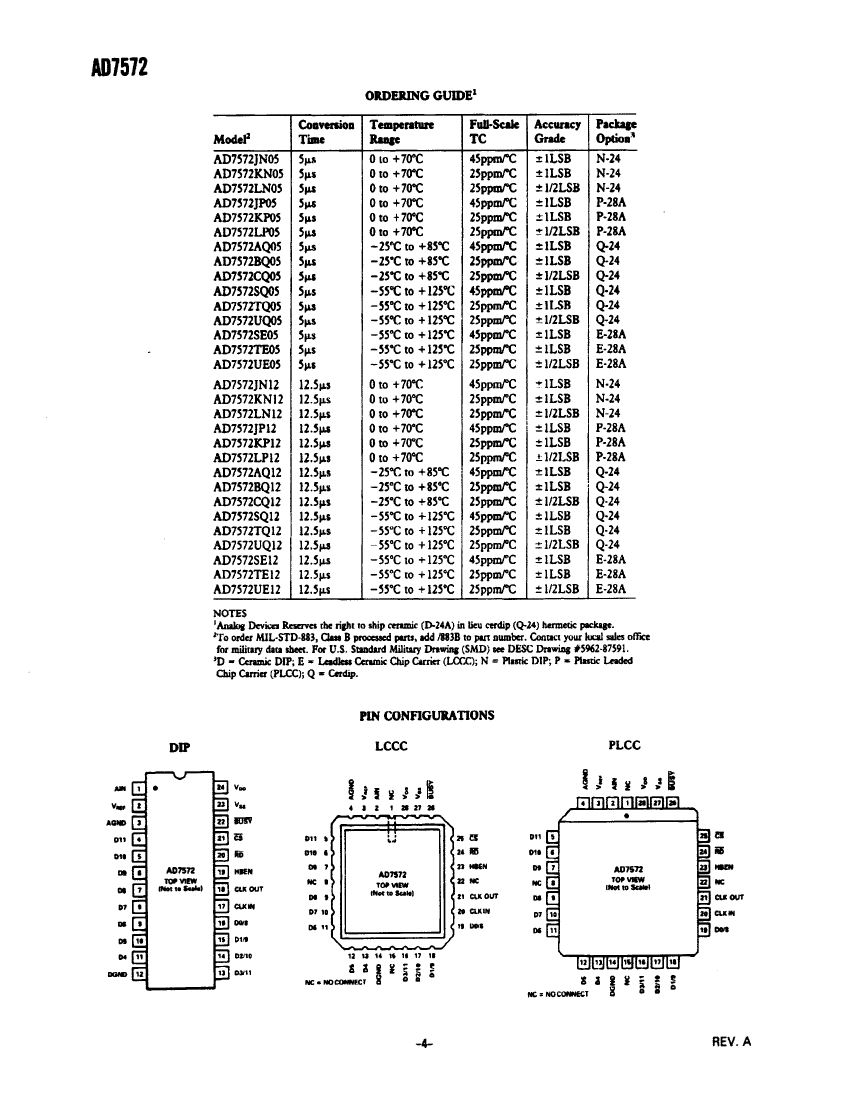

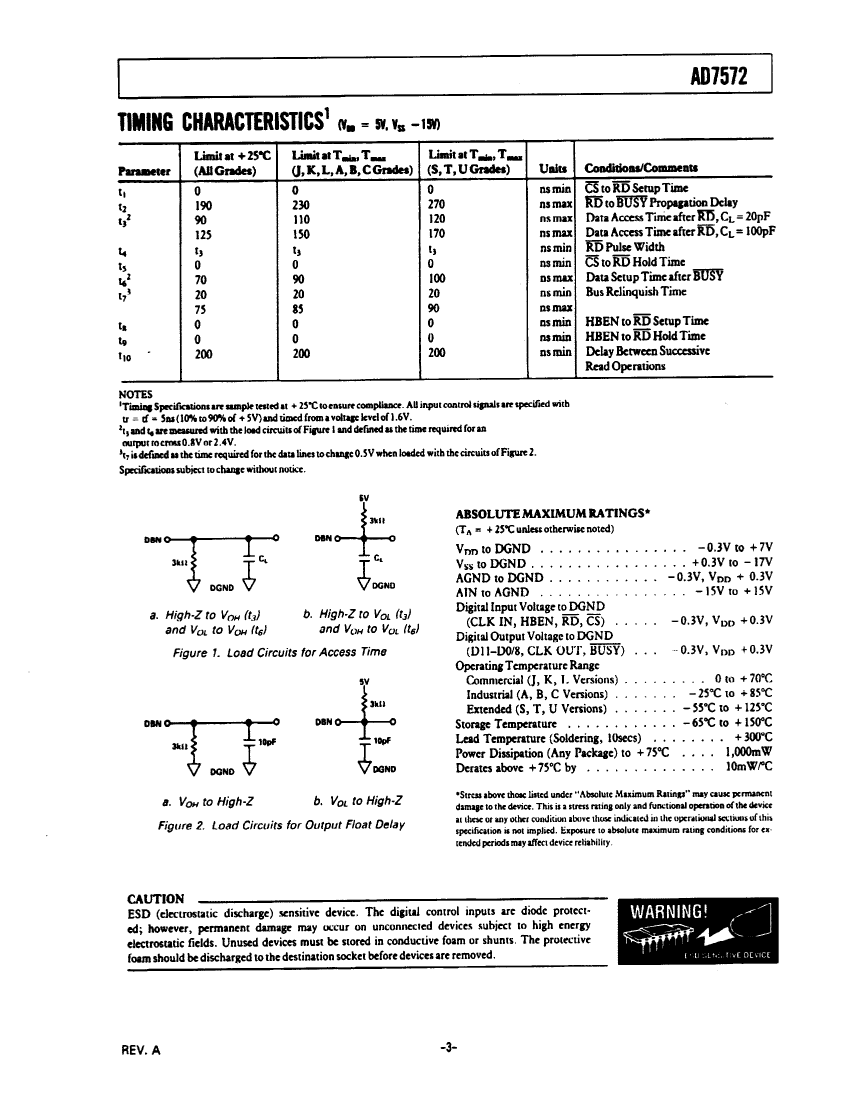

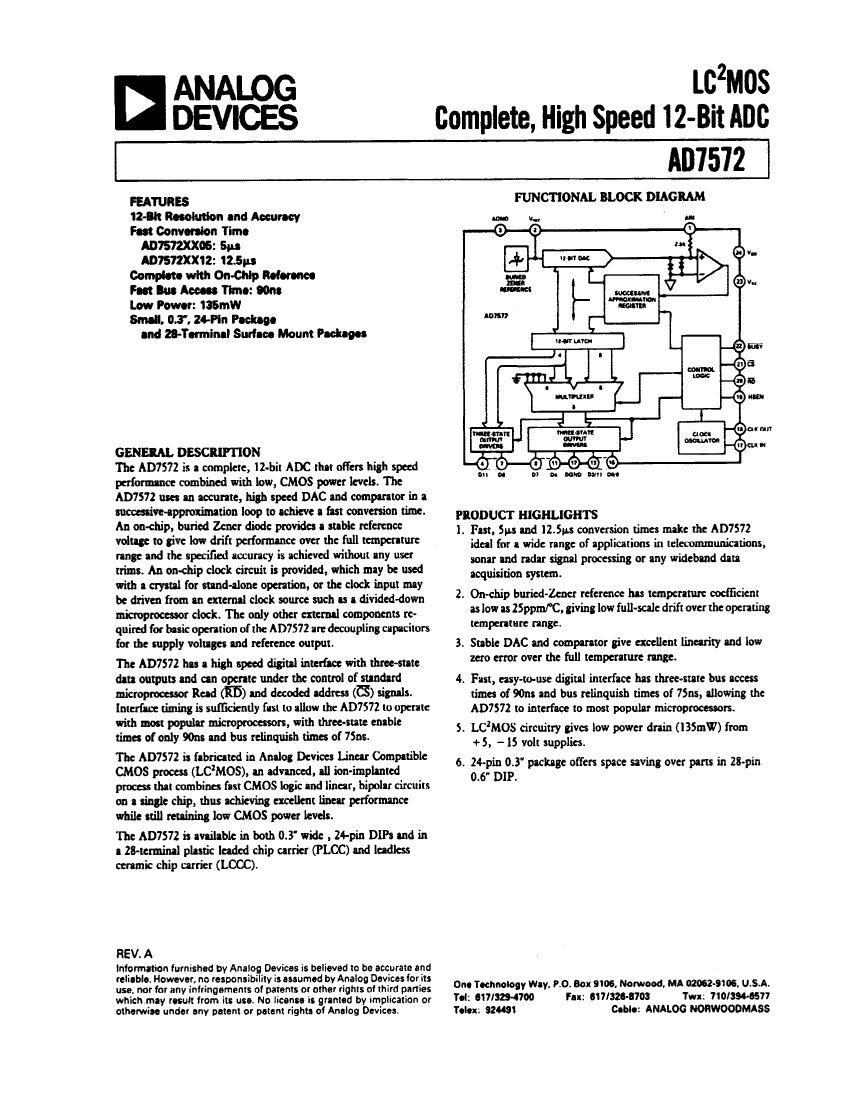

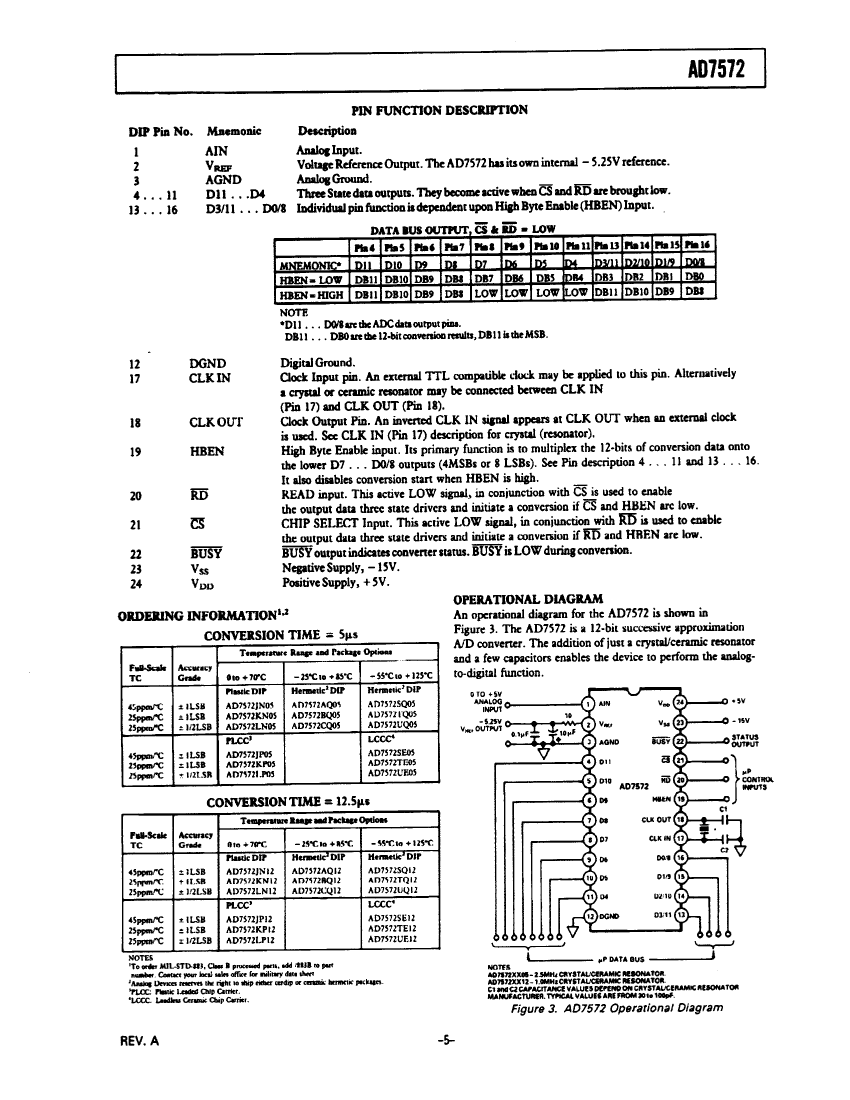

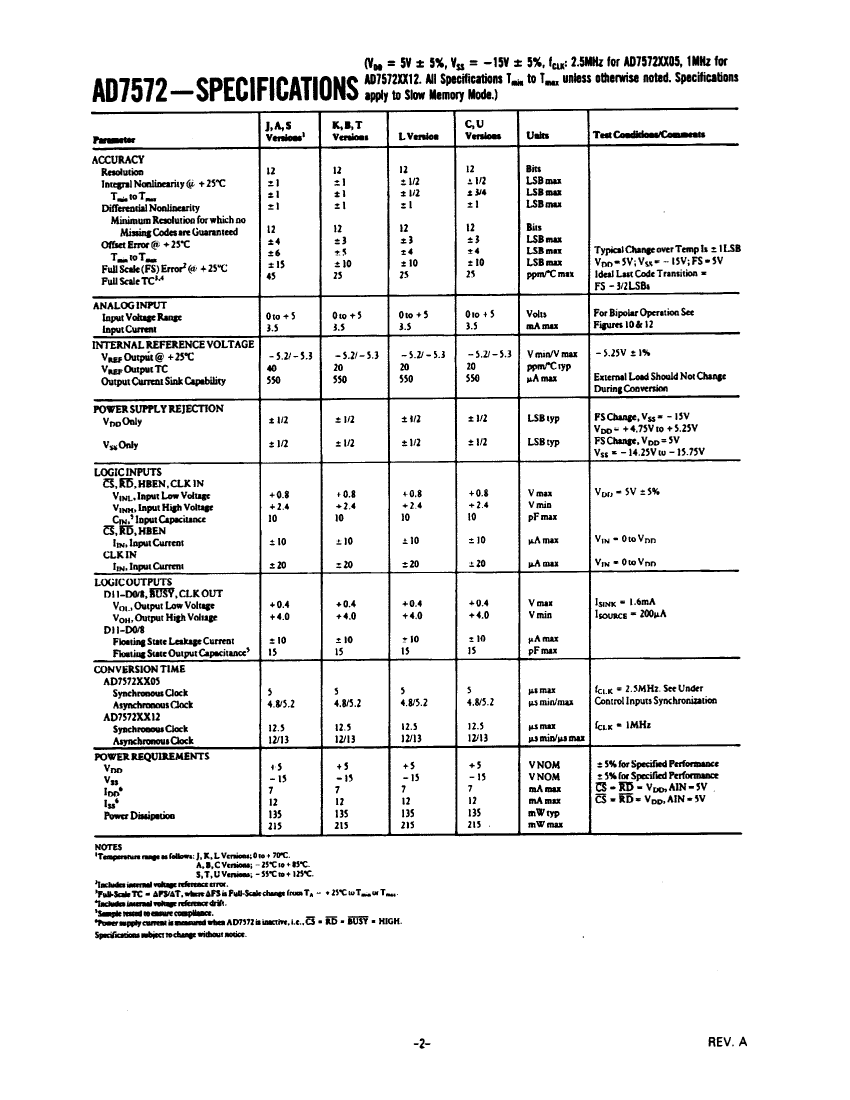

Preview

Download Datasheet

View All

5962-87591033X Related Products

	5962-87591033X	G802A02810EU	5962-8759102LX	5962-8759103LX	5962-8759106LX	5962-87591063X	5962-87591013X
Description	IC 1-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, CQCC28, LEAD FREE, QCC-28, Analog to Digital Converter	Board Connector	IC 1-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, CDIP24, 1.280 X 0.310 INCH, CERDIP-24, Analog to Digital Converter	IC 1-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, CDIP24, LEAD FREE, DIP-24, Analog to Digital Converter	IC 1-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, CDIP24, LEAD FREE, DIP-24, Analog to Digital Converter	IC 1-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, CQCC28, LEAD FREE, QCC-28, Analog to Digital Converter	IC 1-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, CQCC28, CERAMIC, LCC-28, Analog to Digital Converter
Reach Compliance Code	not_compliant	unknown	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
ECCN code	3A001.A.2.C	EAR99	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C
Is it Rohs certified?	incompatible	-	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	QLCC	-	DIP	DIP	DIP	QLCC	QLCC
package instruction	LEAD FREE, QCC-28	-	DIP, DIP24,.3	DIP, DIP24,.3	DIP, DIP24,.3	LEAD FREE, QCC-28	CERAMIC, LCC-28
Contacts	28	-	24	24	24	28	28
Maximum analog input voltage	5 V	-	2.5 V	5 V	5 V	5 V	2.5 V
Maximum conversion time	12.5 µs	-	13 µs	12.5 µs	5 µs	5 µs	13 µs
Converter type	ADC, SUCCESSIVE APPROXIMATION	-	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION
JESD-30 code	S-CQCC-N28	-	R-GDIP-T24	R-CDIP-T24	R-CDIP-T24	S-CQCC-N28	S-CQCC-N28
JESD-609 code	e0	-	e0	e0	e0	e0	e0
Maximum linear error (EL)	0.0122%	-	0.0244%	0.0122%	0.0122%	0.0122%	0.0244%
Nominal negative supply voltage	-15 V	-	-15 V	-15 V	-15 V	-15 V	-15 V
Number of analog input channels	1	-	1	1	1	1	1
Number of digits	12	-	12	12	12	12	12
Number of functions	1	-	1	1	1	1	1
Number of terminals	28	-	24	24	24	28	28
Maximum operating temperature	125 °C	-	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output bit code	BINARY	-	OFFSET BINARY, COMPLEMENTARY OFFSET BINARY	BINARY	BINARY	BINARY	OFFSET BINARY, COMPLEMENTARY OFFSET BINARY
Output format	PARALLEL, 8 BITS	-	PARALLEL, WORD	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, WORD
Package body material	CERAMIC, METAL-SEALED COFIRED	-	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN	-	DIP	DIP	DIP	QCCN	QCCN
Encapsulate equivalent code	LCC28,.45SQ	-	DIP24,.3	DIP24,.3	DIP24,.3	LCC28,.45SQ	LCC28,.45SQ
Package shape	SQUARE	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE
Package form	CHIP CARRIER	-	IN-LINE	IN-LINE	IN-LINE	CHIP CARRIER	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	220
power supply	5,-15 V	-	5,-15 V	5,-15 V	5,-15 V	5,-15 V	5,-15 V
Certification status	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	MIL-STD-883	-	38535Q/M;38534H;883B	MIL-STD-883	MIL-STD-883	MIL-STD-883	38535Q/M;38534H;883B
Maximum seat height	2.54 mm	-	5.08 mm	5.715 mm	5.715 mm	2.54 mm	2.54 mm
Nominal supply voltage	5 V	-	5 V	5 V	5 V	5 V	5 V
surface mount	YES	-	NO	NO	NO	YES	YES
technology	CMOS	-	BICMOS	CMOS	CMOS	CMOS	BICMOS
Temperature level	MILITARY	-	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	NO LEAD	-	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	NO LEAD
Terminal pitch	1.27 mm	-	2.54 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm
Terminal location	QUAD	-	DUAL	DUAL	DUAL	QUAD	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	30
width	11.43 mm	-	7.62 mm	7.62 mm	7.62 mm	11.43 mm	11.43 mm
Base Number Matches	1	-	1	1	1	1	1
