Part Number

Search

307119302

Description
THUMB/PUSHWHEEL SWITCH-0SWITCHES, BINARY CODED HEXADECIMAL, 0.1A, 28VDC, PANEL MOUNT
CategoryMechanical and electronic products    switch
File Size668KB,8 Pages
ManufacturerC&K
Download Datasheet Parametric View All

307119302 Overview

THUMB/PUSHWHEEL SWITCH-0SWITCHES, BINARY CODED HEXADECIMAL, 0.1A, 28VDC, PANEL MOUNT

307119302 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerC&K
Reach Compliance Codecompliant
ECCN codeEAR99
body width5.26 mm
body height33.02 mm
Body length or diameter28.96 mm
Contact (AC) maximum rated R load.1A@120VAC
Maximum contact current (AC)0.1 A
Maximum contact current (DC)0.1 A
Contact (DC) maximum rated R load.1A@28VDC
Maximum contact voltage (AC)120 V
Maximum contact voltage (DC)28 V
Electrical life100000 Cycle(s)
Manufacturer's serial number3
Installation featuresPANEL MOUNT
Number of positions16
Number of switching segments
Maximum operating temperature65 °C
Minimum operating temperature-10 °C
sealDUST PROOF
surface mountNO
switch functionBINARY CODED HEXADECIMAL
Switch typeTHUMB/PUSHWHEEL SWITCH
Termination typeSOLDER
Base Number Matches1
C&K 3 Series
Thumbwheel Switches
Features/Benefits
Most complete product offering in the industry
Spacers available to fit most panel cutouts
Front or rear mounting options
Typical Applications
Test & measurement equipment
Industrial equipment
Computer devices
Specifications
CONTACT RATING:
CARRY: 1 AMP continuous.
SWITCH: 100 mA max.
OPERATING VOLTAGE: 50 mV to 28 V DC or 120 V AC.
ELECTRICAL LIFE: 100,000 actuations.
CONTACT RESISTANCE: Below 100 m
typ. initial @
2-4 V DC, 100 mA.
INSULATION RESISTANCE: 109
min.
DIELECTRIC STRENGTH: 500 Vrms min. @ sea level
between common terminal and any output.
OPERATING TEMPERATURE: -10ºC to 65ºC.
Materials
HOUSING: ABS plastic.
THUMBWHEEL: ABS plastic.
ROTOR CONTACTS: Precious metal on copper alloy.
STATOR CONTACTS: Hard gold over nickel over copper
on epoxy fiberglass.
NOTE:
Specifications and materials listed above are for switches with standard options
For information on specific and custom switches, consult Customer Service Center.
* Note: All models listed are RoHS compliant. See Technical Data section of this catalog for
RoHS compliant and compatible definitions and specifications.
Build-A-Switch
To order, simply select desired option from each category and place in the appropriate box. Available options are shown and
described on pages N–9 thru N–12. For additional options not shown in catalog, consult Customer Service Center.
Consult factory for illumination availability.
Thumbwheel & Pushwheel
Series
3
Thumbwheel switch
Number of Sections
0
Switch section
1
1 Switch section
2
2 Switch sections
3
3 Switch sections
4
4 Switch sections
5
5 Switch sections
6
6 Switch sections
7
7 Switch sections
8
8 Switch sections
9
More than 8
switch sections

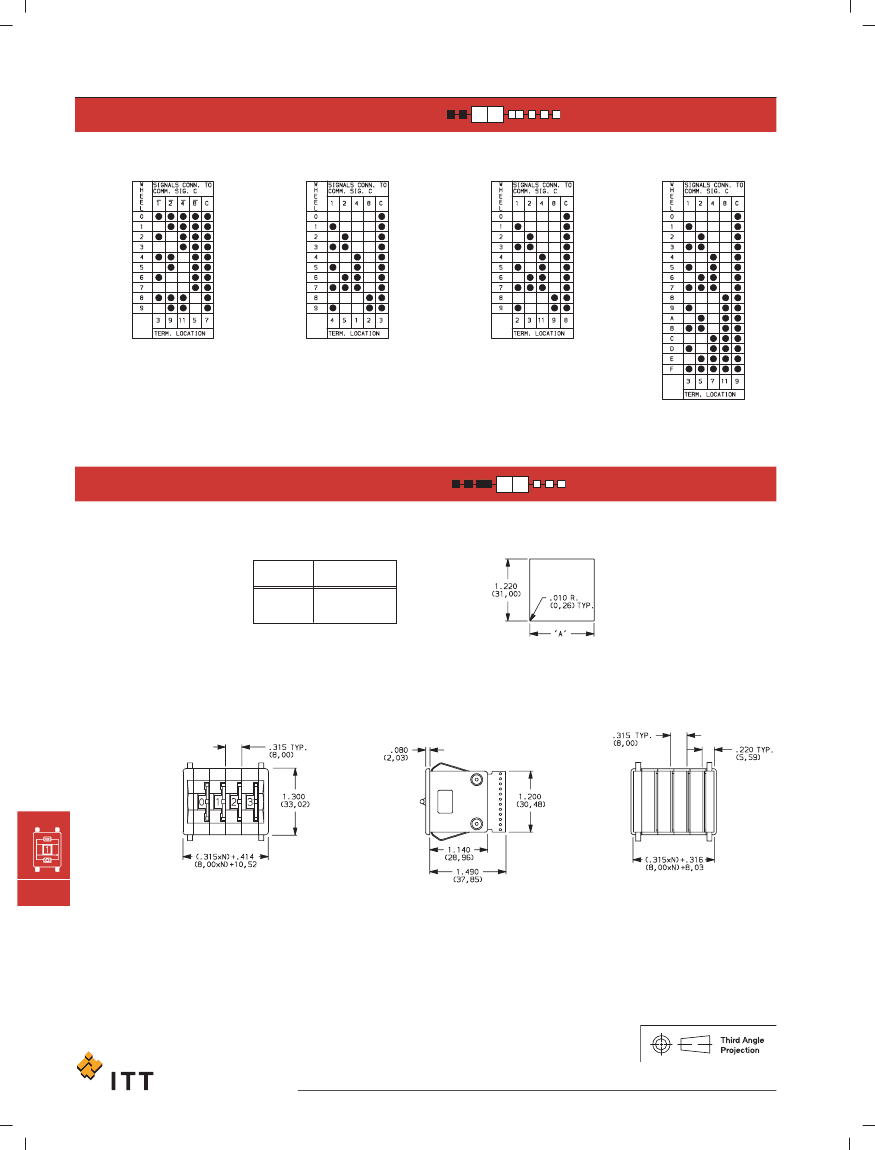

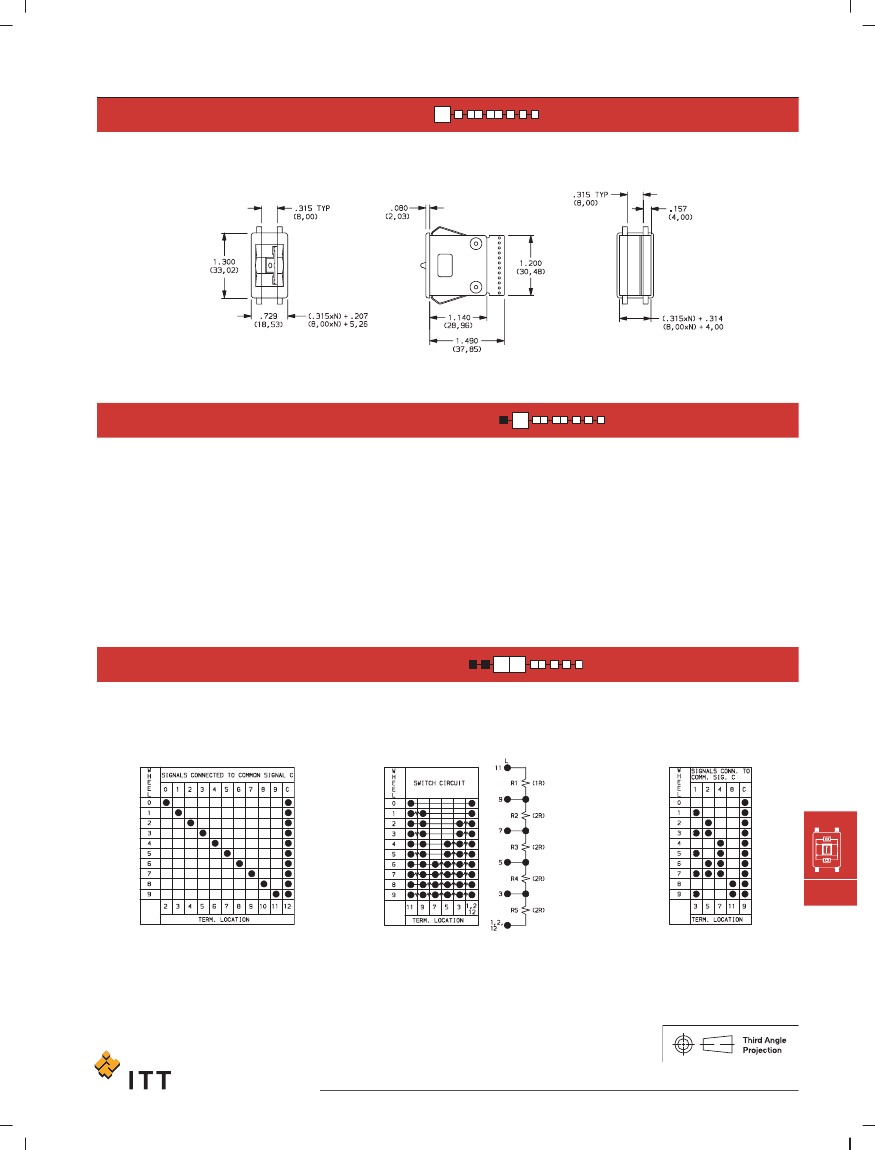

Function Code
11
Decimal, SP, 10 position
14
Resistor decade
21
BCD, 10 position
23
Complement of BCD, 10 position
27
BCD, 10 position
31
BCD, 10 position
71
BCH, 16 position

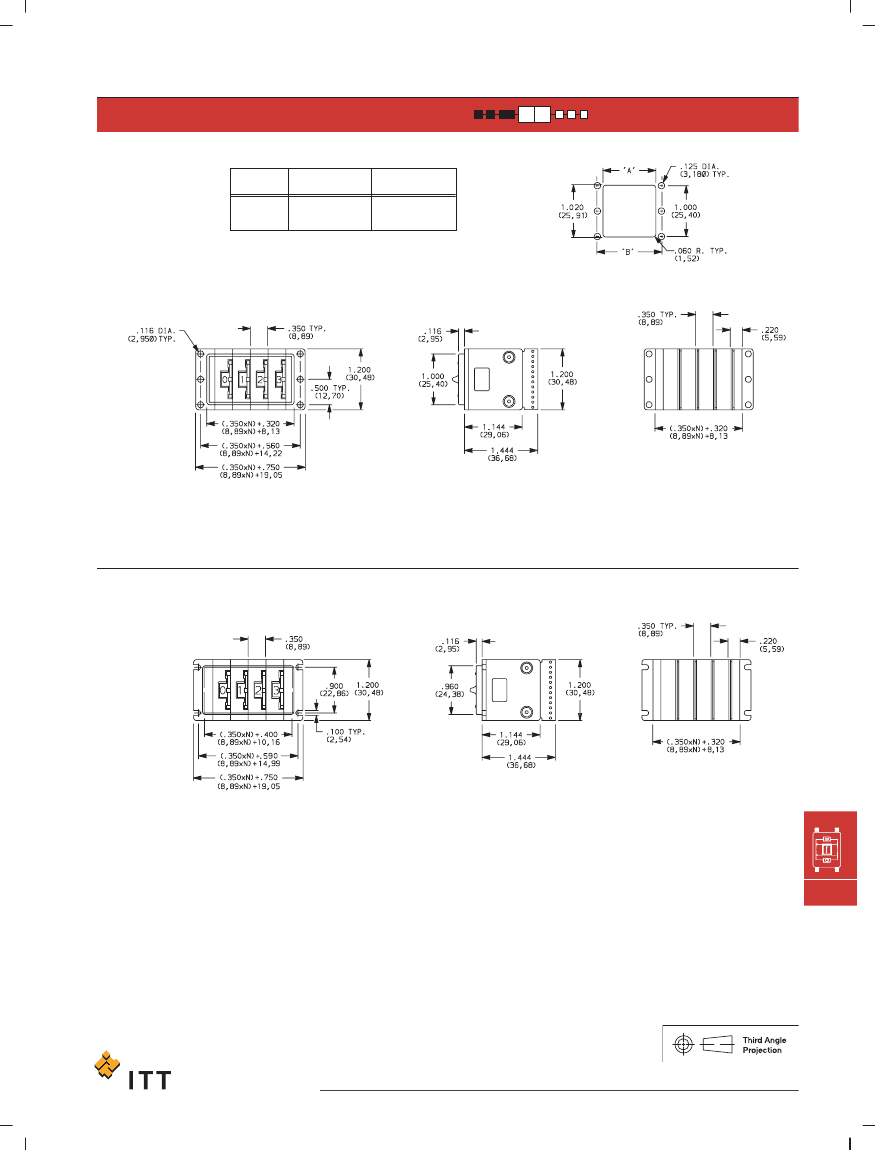

Mounting Style
00
Snap-in, front mount
09
Snap-in, front mount*
10
Rear mount

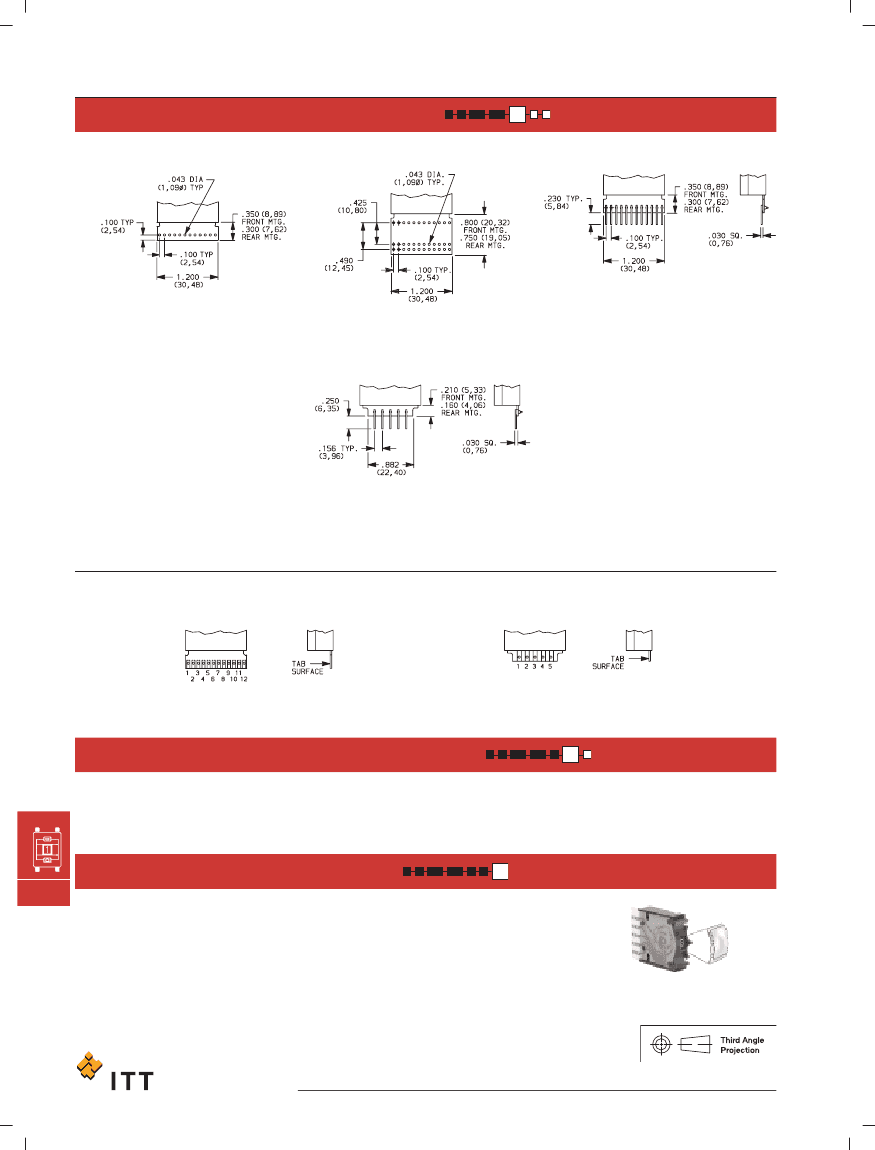

Terminations
19
Rear mount*
0
Type 0
20
Rear mount
1
Type 1, extended type 0
29
Rear mount*
N
Solder pins with .100” spacing**
P
Solder pins with .156” spacing**
9
Any combination
Color/Marking/Stops
0
Matte black body, gloss
black wheel,
white marking
N
*X9 mounting styles must be ordered with ‘0’ number of sections.
** Note: Termination option N (RoHS compliant) replaced termination option 3 (Non-RoHS compliant).
Termination option P (RoHS compliant) replaced termination option B (Non-RoHS compliant).
Seal
0
No seal
1
Sealed contacts
2
Dust lens
3
Sealed contacts & dust lens
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
N–8
www.ittcannon.com
