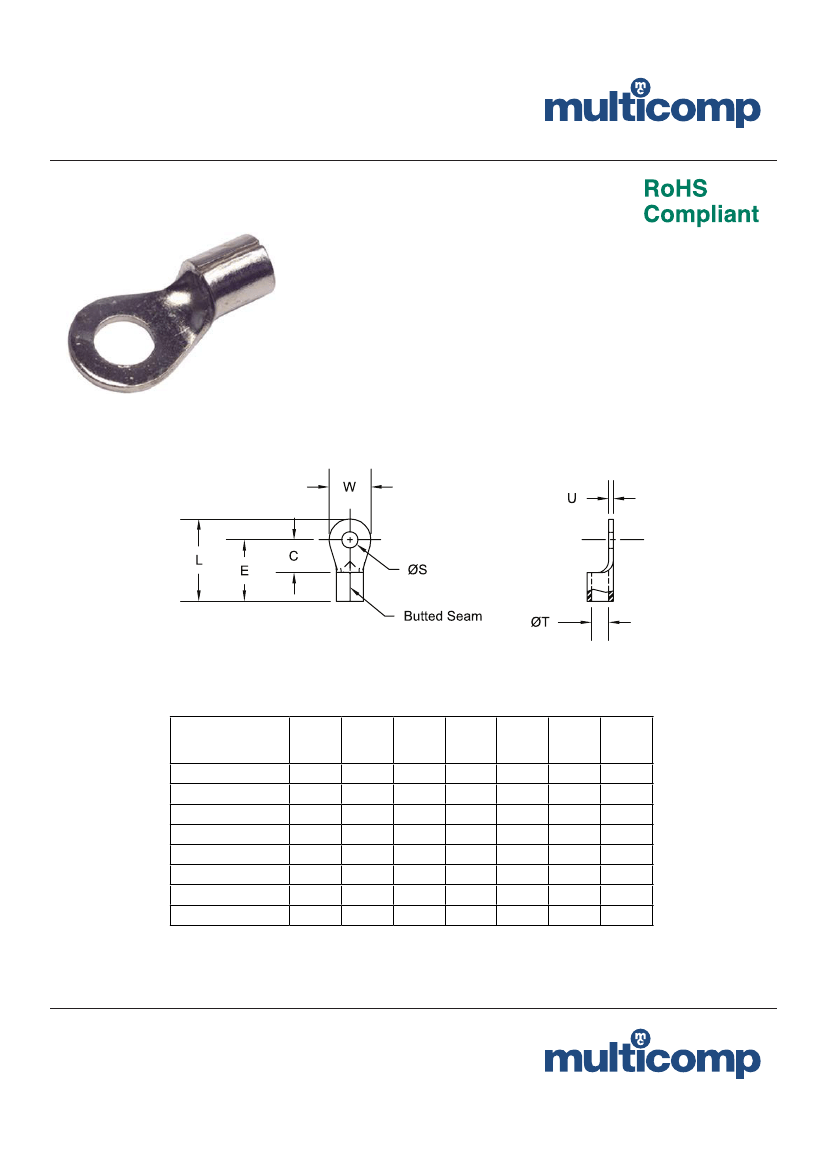

High Temperature Ring Terminal
Specifications:
Connector Type
Termination Method
Material
Voltage Rating
Continuous Operating Temperature
Intermittent Operating Temperature
To be Free of Burrs
: Ring Tongue
: Crimp
: Alloy Steel, Nickel Plating
: 600V
: 900°F (482°C)
: 1,200°F (649°C)
Part Number
CRS-TO-1006-HT
CRS-TO-1010-HT
CRS-TO-1025-HT
CRS-TO-1406-HT
CRS-TO-1425-HT
CRS-TO-1410-HT
CRS-TO-1806-HT
CRS-TO-1810-HT
L
0.73
0.73
0.99
0.6
0.93
0.7
0.6
0.7
W
0.38
0.38
0.61
0.25
0.56
0.33
0.25
0.33
E
0.54
0.54
0.69
0.47
0.65
0.54
0.47
0.54
C
0.29
0.29
0.44
0.22
0.4
0.29
0.22
0.29
S
0.148
0.196
0.264
0.148
0.265
0.2
0.148
0.2
T
0.135
0.135
0.135
0.09
0.09
0.09
0.07
0.07
U
0.04
0.04
0.04
0.03
0.03
0.03
0.03
0.03
Dimensions : Inches
www.element14.com
www.farnell.com
www.newark.com
Page <1>
07/10/13
V1.1
High Temperature Ring Terminal
Part Number Table:
Description
Wire
Size
(AWG)
12 to 10
12 to 10
12 to 10
Ring T
ongue T
erminal
16 to 14
16 to 14
16 to 14
22 to 18
22 to 18
Tolerances Unless
Otherwise Specified
.X = ±.015
.XX = ±.01
.XXX = ±.005
Stud
Size
6
10
1/4
6
1/4
10
6
10
Part Number
CRS-TO-1006-HT
CRS-TO-1010-HT
CRS-TO-1025-HT
CRS-TO-1406-HT
CRS-TO-1425-HT
CRS-TO-1410-HT
CRS-TO-1806-HT
CRS-TO-1810-HT
