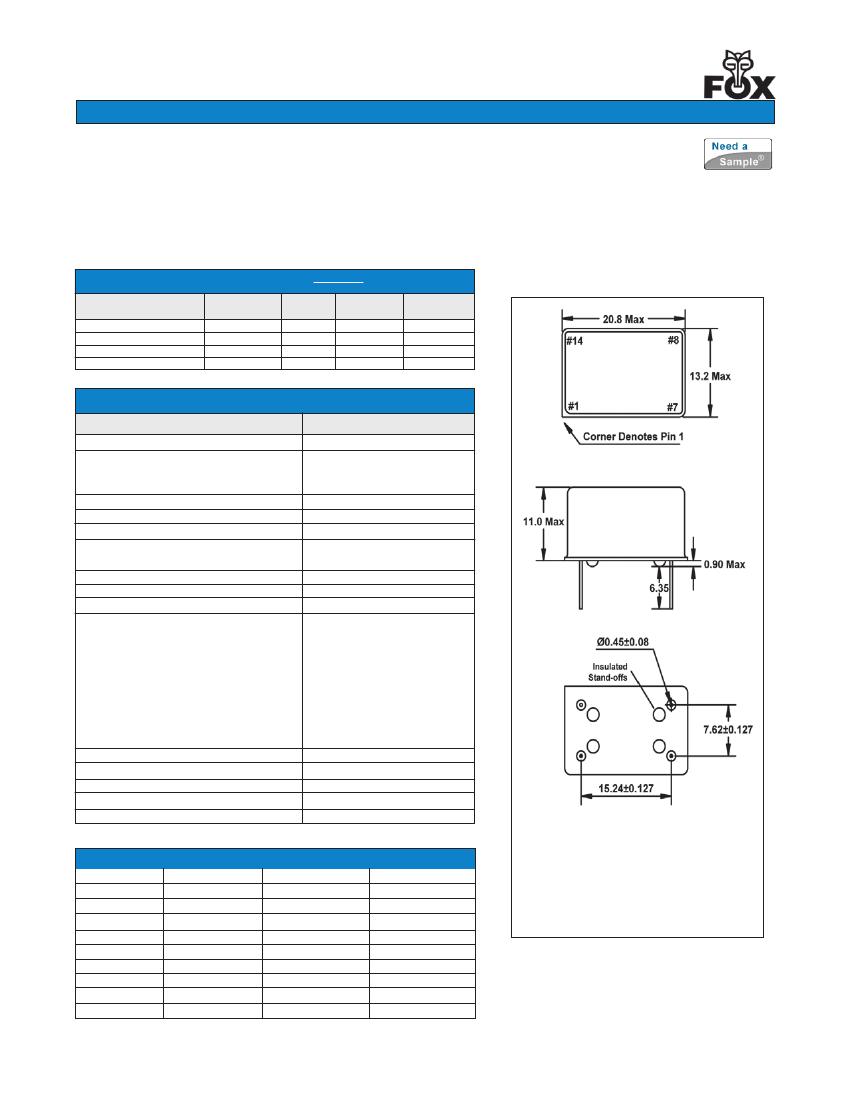

STRATUM III 14-PIN DIP OCXO
Model: FTS501_HLF Series
Page 1 of 1
RoHS Compliant
Rev. 2/25/2009
http://www.foxonline.com/need_a_sample.htm
FEATURES
•
•
•
•
Meets Stratum III
5.0V Operation
HCMOS Output
14-Pin DIP
• PART NUMBER SELECTION
Learn More - Internet Required
Model
Frequency
Operating
Number
Stability
Temperature
570LF-Frequency-xxxxx
FTS501AHLF ±4.6 PPM 0 ~ +70 (ºC)
570BLF-Frequency-xxxxx FTS501BHLF ±4.6 PPM -20 ~ +70 (ºC)
570NLF-Frequency-xxxxx FTS501AHNLF ±4.6 PPM 0 ~ +70 (ºC)
570BNLF-Frequency-xxxxx FTS501BHNLF ±4.6 PPM -20 ~ +70 (ºC)
Part Number
Frequency
Range (MHz)
2.430 ~ 60.000
2.430 ~ 60.000
2.430 ~ 60.000
2.430 ~ 60.000
Note: FTS501AHNLF & FTS501BHNLF have no voltage control capability.
• ELECTRICAL CHARACTERISTICS
PARAMETERS
Frequency Range (F
o
)
Temperature Range
Operating
(T
opr
)
Storage
(T
stg
)
Supply Voltage
(V
dd
)
Output Type
Output Load
(C
l
)
Output Voltage
(V
ol
)
(V
oh
)
Pullability
(Referenced to F
o
- AhlF & BhlF
only)
Accuracy
(Applies to AHNLF & BHNLF only at 25º C)
Control Voltage
(Vc)
(AHLF & BHLF only)
Frequency Stability
All effects for 10 years
Vs. Temp, (ref @ 25º C)
Vs. V
dd
Change
Holdover Aging (24 hours)
Holdover Stability
Load Stability
Long Term Aging (1
st
year)
Aging (10 years)
Warm-up to within ±4.6 PPM
Warm-up Power
Operating Power (Typical)
Phase Noise (@100Hz, 10kHz)
Termination Finish
All specifications subject to change without notice.
MAX
(unless otherwise noted)
2.430 ~ 60.000 MHz
See table above
-40ºC ~ +85ºC
+5.0 VDC ±5%
HCMOS
15pF
0.5V
4.5V Min
±4.0 PPM Min
±0.75PPM
0.5V ~ 5.0V
±4.6 PPM
±250 PPB
±100 PPB
±20 PPB
±370 PPB
±10 PPB
±0.75 PPM
±4.2 PPM
2 Minutes
< 1.5 Watts
1.0W ~ 0ºC, 0.6W @ +25ºC
-115, -140 dBc/Hz
Sn/Ag/Cu
All dimensions are in millimeters.
• DEVELOPED FREQUENCIES
2.430 MHz
2.500 MHz
2.560 MHz
3.088 MHz
3.250 MHz
3.750 MHz
4.000 MHz
4.096 MHz
4.860 MHz
5.000 MHz
5.120 MHz
5.500 MHz
6.176 MHz
6.500 MHz
7.500 MHz
8.000 MHz
8.192 MHz
9.720 MHz
10.000 MHz
10.240 MHz
11.000 MHz
12.352 MHz
13.000 MHz
15.000 MHz
16.000 MHz
16.384 MHz
19.440 MHz
20.000 MHz
20.480 MHz
22.000 MHz
24.704 MHz
26.000 MHz
30.000 MHz
32.000 MHz
32.768 MHz
38.880 MHz
40.000 MHz
40.960 MHz
44.000 MHz
Pin Connections
FTS501AHLF/BHLF
#1) Vc
#7) GND
#8) Output
#14) V
DD
FTS501AHNLF/BHNLF
#1) NC
#7) GND
#8) Output
#14) V
DD
FOXElectronics
5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1.239.693.0099 FAX +1.239.693.1554
http://www.foxonline.com
© 2009 FOX ELECTRONICS | ISO9001:2000 Certified
