54F259/BEA datasheet, PDF - EEWORLD Datasheet

54F259/BEA: DescriptionD Latch, F/FAST Series, 1-Func, Low Level Triggered, 1-Bit, True Output, TTL, CDIP16; Categorylogic logic; File Size222KB，6 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

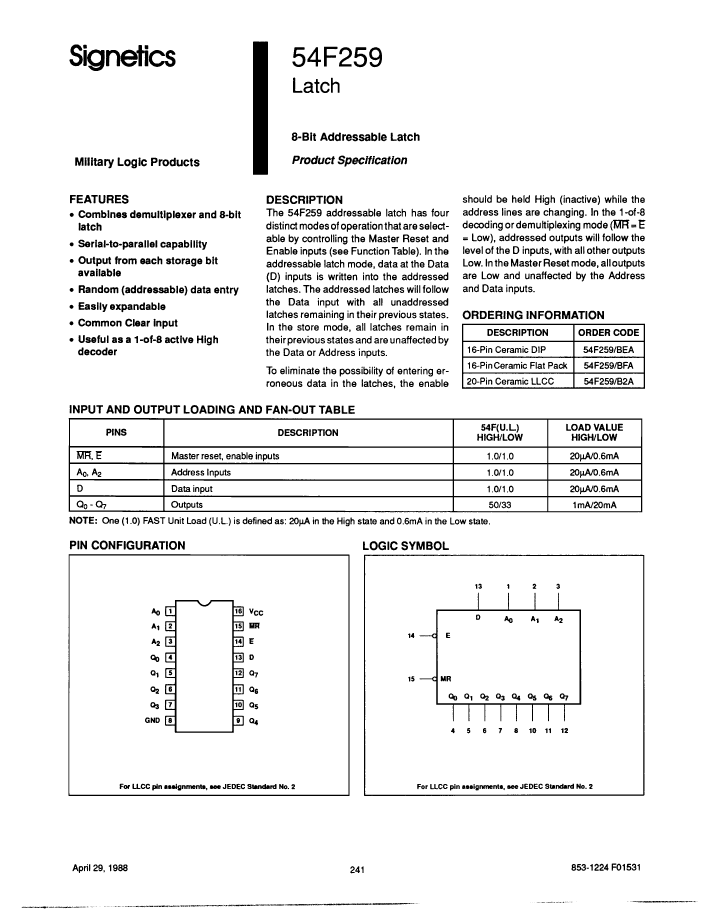

54F259/BEA Overview

D Latch, F/FAST Series, 1-Func, Low Level Triggered, 1-Bit, True Output, TTL, CDIP16

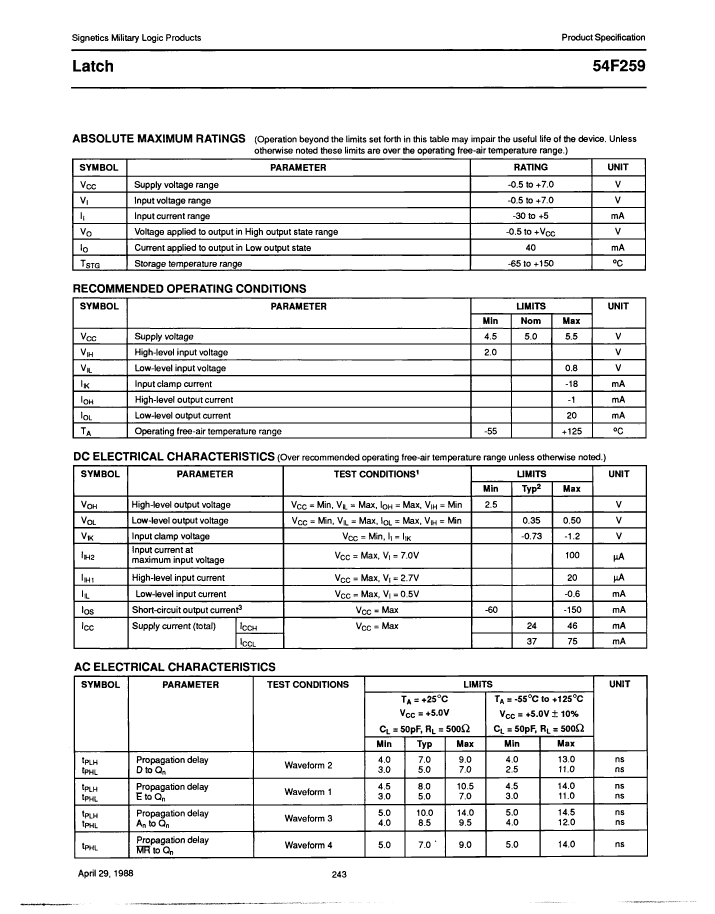

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown

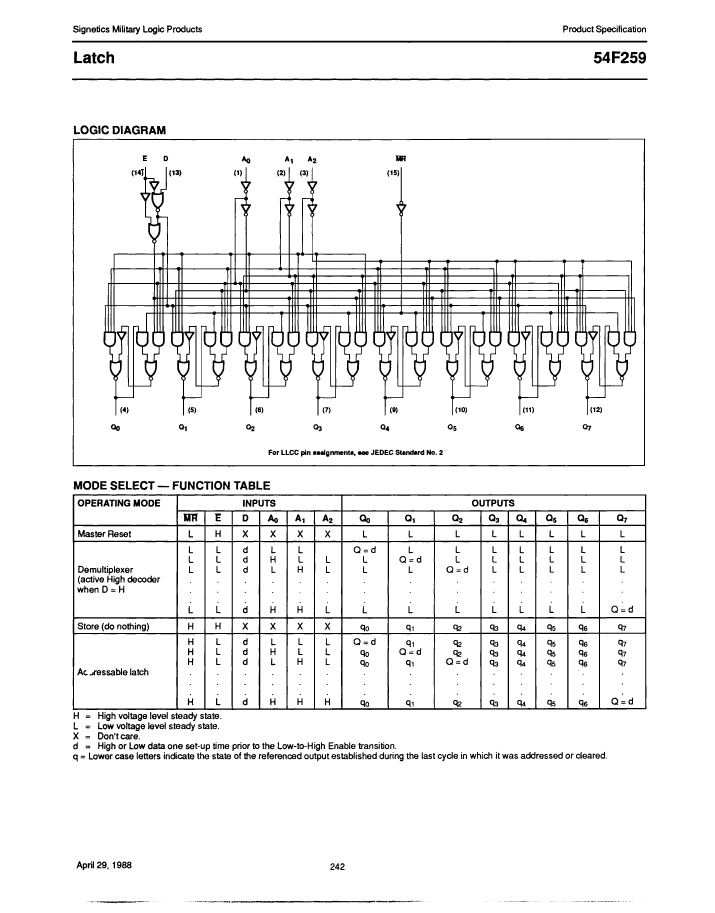

Other features	1:8 DMUX FOLLOWED BY LATCH
series	F/FAST
JESD-30 code	R-CDIP-T16
Load capacitance (CL)	50 pF
Logic integrated circuit type	D LATCH
Number of digits	1
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum supply current (ICC)	75 mA

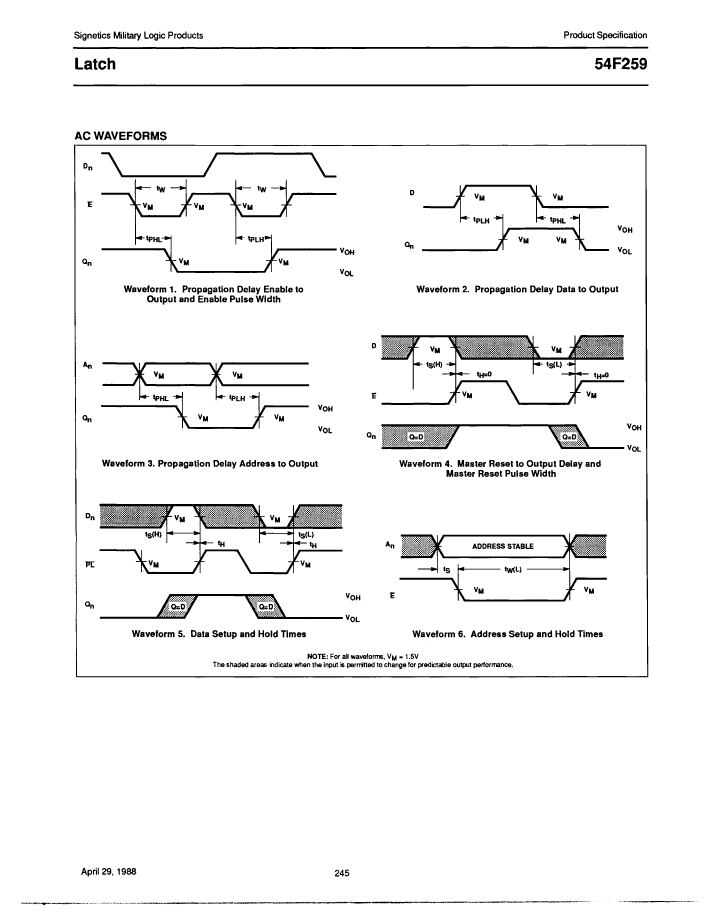

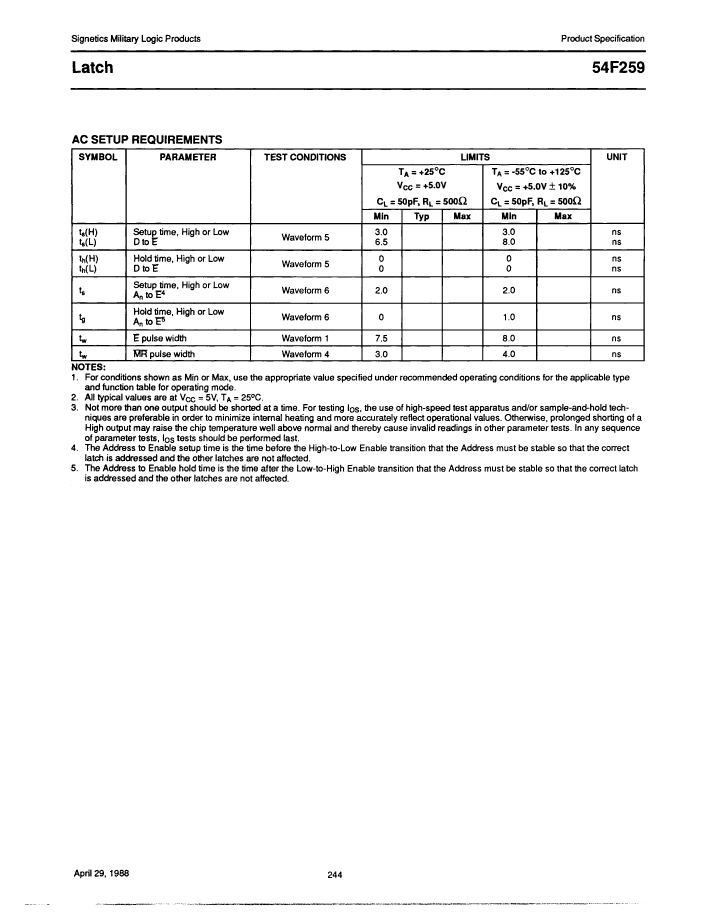

propagation delay (tpd)	11 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Trigger type	LOW LEVEL
Base Number Matches	1

	54F259/BEA	54F259/B2A	54F259/BFA
Description	D Latch, F/FAST Series, 1-Func, Low Level Triggered, 1-Bit, True Output, TTL, CDIP16	D Latch, F/FAST Series, 1-Func, Low Level Triggered, 1-Bit, True Output, TTL, CQCC20	D Latch, F/FAST Series, 1-Func, Low Level Triggered, 1-Bit, True Output, TTL, CDFP16
Reach Compliance Code	unknown	unknown	unknown
Other features	1:8 DMUX FOLLOWED BY LATCH	1:8 DMUX FOLLOWED BY LATCH	1:8 DMUX FOLLOWED BY LATCH
series	F/FAST	F/FAST	F/FAST
JESD-30 code	R-CDIP-T16	S-CQCC-N20	R-CDFP-F16
Load capacitance (CL)	50 pF	50 pF	50 pF
Logic integrated circuit type	D LATCH	D LATCH	D LATCH
Number of digits	1	1	1
Number of functions	1	1	1
Number of terminals	16	20	16
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Output polarity	TRUE	TRUE	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	SQUARE	RECTANGULAR
Package form	IN-LINE	CHIP CARRIER	FLATPACK
Maximum supply current (ICC)	75 mA	75 mA	75 mA
propagation delay (tpd)	11 ns	11 ns	11 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	NO	YES	YES
technology	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	NO LEAD	FLAT
Terminal location	DUAL	QUAD	DUAL
Trigger type	LOW LEVEL	LOW LEVEL	LOW LEVEL
Base Number Matches	1	1	-
Maker	-	YAGEO	YAGEO
