AQV252G3SZ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> AQV252G3SZ

AQV252G3SZ: DescriptionTransistor Output SSR,; CategoryLED optoelectronic/LED photoelectric; File Size165KB，5 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html; Environmental Compliance

Download Datasheet Parametric Compare View All

AQV252G3SZ Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	AQV252G3SZ	-	-	View	Buy Now

AQV252G3SZ Overview

Transistor Output SSR,

AQV252G3SZ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Panasonic
Reach Compliance Code	compliant
Samacsys Description	Solid State Relays - PCB Mount PhotoMOS SOP 1Form A 3.3A 60V AC/DC
Optoelectronic device types	TRANSISTOR OUTPUT SSR
Base Number Matches	1

Preview

Download Datasheet

View All

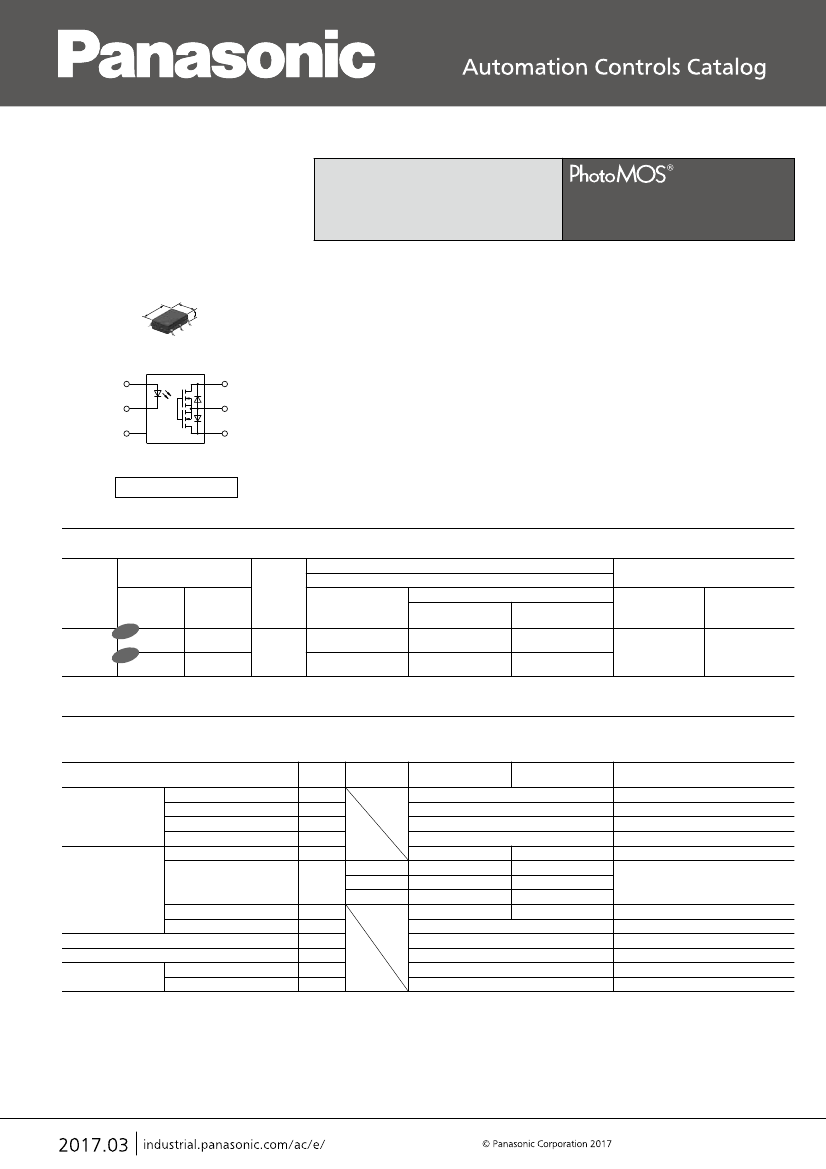

Miniature SOP6-pin type

with high capacity

of 3.3A load current

HE SOP 1 Form A

High Capacity (AQV25❍G3S)

FEATURES

6.3

.248

4.4

.173

2.1

.083

TYPICAL APPLICATIONS

• Security equipment

• Fire-preventing system

• Industrial machine

• Thermostat (HVAC temperature

controller)

inch

1. High capacity in a miniature SOP

package

Continuous load current: Max. 3.3A

Load voltage: 60V and 100V

2. Greatly improved speciﬁcations

allow you to use this in place of

mercury and mechanical relays.

RoHS compliant

TYPES

Output rating*

Package

Load voltage

Load current

3.3 A

SOP6-pin

2.2 A

AQV255G3S

AQV255G3SX

AQV255G3SZ

Tube packing style

AQV252G3S

Part No.

Surface-mount terminal

Tape and reel packing style

Picked from the

1/2/3-pin side

4/5/6-pin side

AQV252G3SX

AQV252G3SZ

Packing quantity

Tube

1 tube contains:

75 pcs.

1 batch contains:

1,500 pcs.

Tape and reel

New

60 V

AC/DC

dual use

New

1,000 pcs.

100 V

Note: For space reasons, the two initial letters of the part number “AQ” and the packing style indicator “X” or “Z” are not marked on the device.

* Indicate the peak AC and DC values.

RATING

1. Absolute maximum ratings

(Ambient temperature: 25°C

77°F)

Item

LED forward current

LED reverse voltage

Peak forward current

Power dissipation

Load voltage (peak AC)

Continuous load current

Peak load current

Power dissipation

Total power dissipation

I/O isolation voltage

Ambient temperature

Operating

Storage

Symbol

Output

peak

out

iso

opr

stg

Type of

connection

AQV252G3S

50 mA

75 mW

60 V

3.3 A

3.5 A

6.6 A

10 A

100 V

2.2 A

2.4 A

4.4 A

6.6 A

A connection: Peak AC, DC

B, C connection: DC

100ms (1 shot), V

= DC at A connection

AQV255G3S

Remarks

Input

f = 100 Hz, Duty factor = 0.1%

450 mW

500 mW

1,500 Vrms

–40 to +85°C

–40 to +185°F

–40 to +100°C

–40 to +212°F

(Non-icing at low temperatures)

–1–

ASCTB388E 201703-T

AQV252G3SZ Related Products

	AQV252G3SZ	AQV252G3S	AQV252G3SX
Description	Transistor Output SSR,	Transistor Output SSR, SOP-4	Transistor Output SSR,
Is it Rohs certified?	conform to	conform to	conform to
Maker	Panasonic	Panasonic	Panasonic
Reach Compliance Code	compliant	compliant	compliant
Samacsys Description	Solid State Relays - PCB Mount PhotoMOS SOP 1Form A 3.3A 60V AC/DC	Solid State Relays - PCB Mount PhotoMOS SOP 1Form A 3.3A 60V AC/DC	PANASONIC - AQV252G3SX - MOSFET RELAY, SPST-NO, 60V, 3.3A, SMD
Optoelectronic device types	TRANSISTOR OUTPUT SSR	TRANSISTOR OUTPUT SSR	TRANSISTOR OUTPUT SSR
Base Number Matches	1	1	1
