0.5mm and 1mm Pitch, 2mm Height, FPC/FFC ZIF Connectors
FH52 Series
Secure actuator retention
Metal fittings are designed to hold and
stabilize the actuator
Feb.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Contacts are designed to hold and
stabilize the actuator

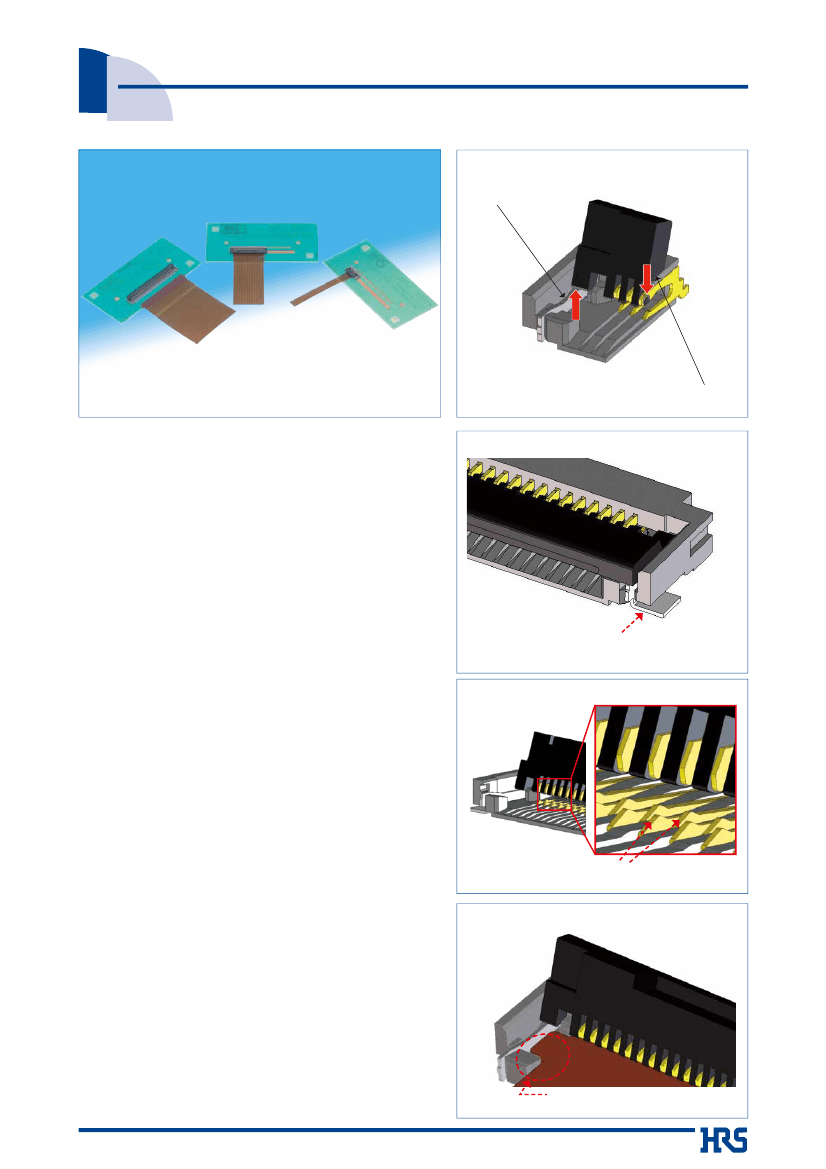

■Features
1. Highly reliable connection and robust structure
With the need for higher contact counts and the need for
a connector body that delivers unquestionable strength
and a reliable connection in a FPC/FFC connector, the
FH52 series has made great strides to meet this need. It
meets this need with the following:
-An FPC positioning mechanism that delivers the high
reliability requested
-A reliable and secure connection that is packed into a
well-designed, durable structure.
Extended metal fitting option (FH52E/FH52K/FH52T)
2. Product variations capable of meeting a range of needs
½FH52E
: Long metal fittings type
Easy visual inspection of solder posts after processing.
½
FH52K : Long metal fittings type, 125℃ Heat Resistant Type
125℃ heat resistant connector meets severe automotive requirements
½FH52T
: Long metal fittings type, 2-Point Contact Type
Contact structure with independent springs connects with
FPC/FCC at 2 points reducing failure from dust intrusion.
The flip lock structure makes it easier to engage/
disengage the actuator and reduces the required force
needed to operate. A clear tactile click is delivered upon
the successful completion of the mating process.
The metal fittings extend out from the connector body to
enable a visual inspection of its soldering conditions.
2-Points
of Contact (FH52T)
3. Simplified operations
4. Increased retention force
The side catch technology combined with tabbed FPC/FFC
increase the horizontal retention force of the FPC/FFC.
5. Accepts standard 0.3mm thick FPC/FFC
It accepts 0.3mm thick products that are easy to
manufacture and have superb insertion performance.
6. Fully molded structure aids PCB layout
The bottom of this connector is enclosed by a fully
molded structure that protects the contacts and removes
any restrictions from PCB patterning and design.
2-point contact structure with independent springs to
improve reliability.
Side
catch technology designed to place a temporary
hold on the FPC/FFC before
the lock is engaged.
7. Halogen-free
All materials and substances used to produce this
product comply with Halogen-free standards.* As
defined in IEC 61249-2-21. Br : 900 ppm or less, Cl : 900
ppm or less, Br+Cl : 1,500 ppm or less
8. Supports automatic pick-n-place mounting
Offered in tape and reel packaging that is compatible with
automatic machine mounting. (3,000pcs/reel)
9. Multiple packing options
The standard packaging is 3,000pcs/reel, but it is also
offered in a 500pcs/reel. (The outer diameter of the reel
will be Ø180mm in this case.)
FPC/FFC with tab increase the
retention force in horizontal direction.
2017.8
r
1
FH52 Series●0.5mm and 1mm Pitch, 2mm Height, FPC/FFC ZIF Connectors
■Product
Specifications
Rating
Rated current 0.5A (Note 1)
Rated voltage 50V AC rms
Operating temperature range : -40ç to +105°C (Note 2)(Note 4) Storage temperature range : -10ç to +50°C (Note 3)
Operating humidity range : Relative humidity 90% max.
Storage humidity range : Relative humidity 90% max.
(No condensation)
(No condensation)
Adaptive FPC/FFC
contact specifications
Thickness: = 0.3 ± 0.05mm Gold plated contact traces
Item
1. Insulation resistance
2. Withstanding voltage
3. Contact
resistance
4. Durability
(insertion / withdrawal)
500M
ø
min.
Specification
100V DC
No flashover or insulation breakdown
50mø max.
* Including FPC/FFC conductor resistance
Contact resistance : 50mø max.
No damage, cracks, or parts dislocation
No electrical discontinuity of 1µs or more
Contact resistance : 50mø max.
No damage, cracks, or parts dislocation
No electrical discontinuity of 1µs or more
Contact resistance : 50mø max.
No damage, cracks, or parts dislocation
Contact resistance : 50mø max.
Insulation resistance : 50Mø min.
No damage, cracks, or parts dislocation
Contact resistance : 50mø max.
Insulation resistance : 50Mø min.
No damage, cracks, or parts dislocation
No deformation of components affecting
performance
Conditions
150V AC rms / 1 minute
1mA (DC or 1000Hz)
Feb.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
20 cycles
5. Vibration
Frequency : 10 to 55Hz, single amplitude of 0.75mm,
10 cycles in each of the 3 directions
6. Shock
Acceleration of 981m/s
2
, duration of 6 ms, sine half-wave
waveform, 3 cycles in each of the 3 axes
7. Humidity
(Steady state)
96 hours at temperature of 40ç and humidity of 90% to
95%
Temperature : -40°C
/
+15ç to +35ç
/
+105ç(Note 4)
/
+15ç to +35ç
Time :
30
/
2 to 3
/
30
/
2 to 3 (Minutes)
5 cycles
Reflow : Peak temperature 250°C max., 230°C or more, 30 seconds or less
Manual soldering: 350 ± 10°C for 5 seconds
8. Temperature
cycle
9. Resistance to
soldering heat
Note 1 : When passing the current through all of the contacts, use 70% of the current rating.
Note 2 : Includes temperature rise caused by current flow.
Note 3 : The term “storage” refers to products stored for long period of time prior to mounting and use. Operating Temperature Range
and Humidity Range covers non-conducting condition of installed connectors in storage, shipment or during transportation.
Note 4 : FH52K withstands up to +125°C.
■Materials
/ Finish
Part
Insulator
Contacts
Metal fittings
Material
LCP
Copper alloy
Brass
Finish
Color : Grey
Color : Black
Partially gold plated
Tine plated
Remarks
UL94V-0
––––––
■Product
Number Structure
Refer to the chart below when datermining the product specifications from the product number.
Please select from the product numbers listed in this catalog when placing orders.
FH 52 E − 50 (25) S B − 0.5 SH (99)
❶
w
e
r
t
y
u
i
o
!0
q
Series name : FH
w
Series No. : 52
e
Blank : Standard type
E : Long metal fittings type
K : Long metal fittings type, +125°C Heat Resistant type
T : Long metal fittings type, 2-Point Contact type
y
Contact arrangement : Single (pole piece array)
u
Alternating direction :
No symbol : Standard type (all contacts loaded)
A : Alternating contact type (Alternating on the polarity side)
B : Alternating contact type (Alternating on the opposite polarity side)
r
Standard type : Number of contacts
Alternating contact type : Mold size
i
Contact pitch : 0.5mm, 1mm
o
Termination type
SH : SMT horizontal mounting type
t
Standard type : No symbol
Alternating contact type : Number of contacts
!00
SpecificationBlank : Partially gold plated, 3,000pcs/reel
(99) : Partially gold plated, 500pcs/reel
2

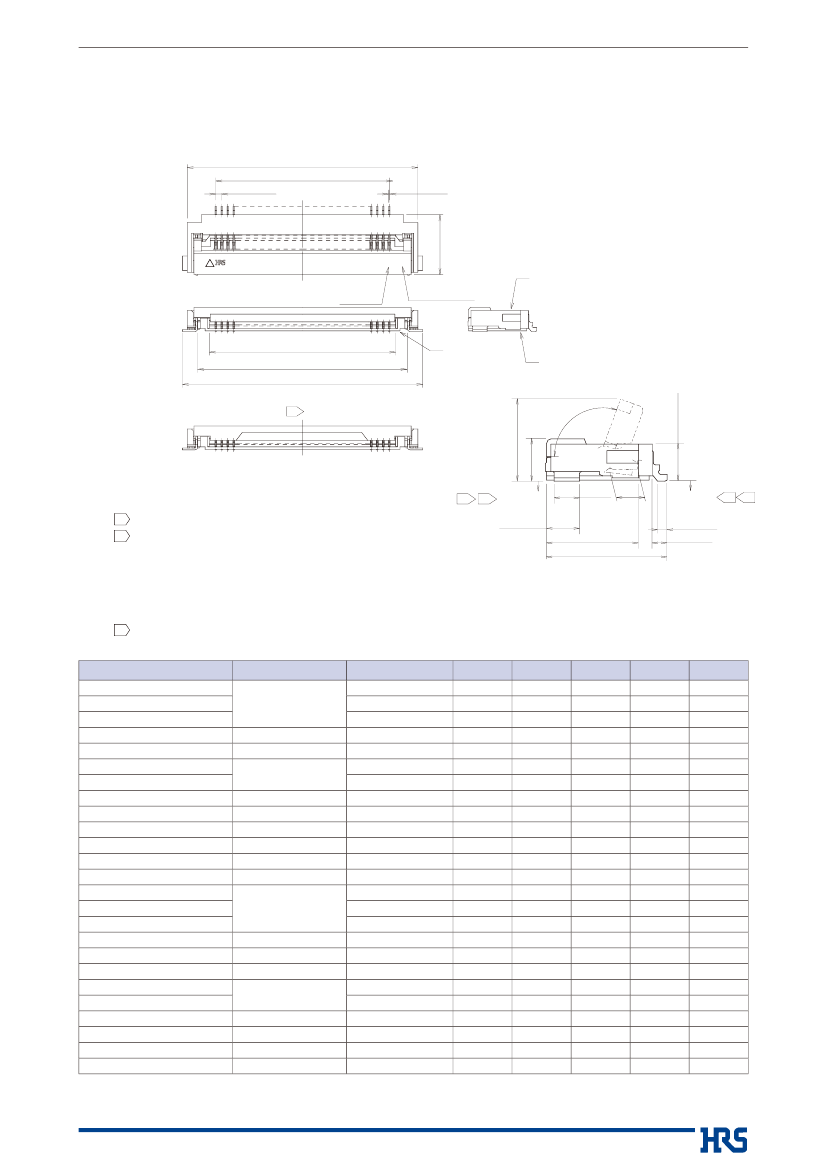

FH52 Series●0.5mm and 1mm Pitch, 2mm Height, FPC/FFC ZIF Connectors

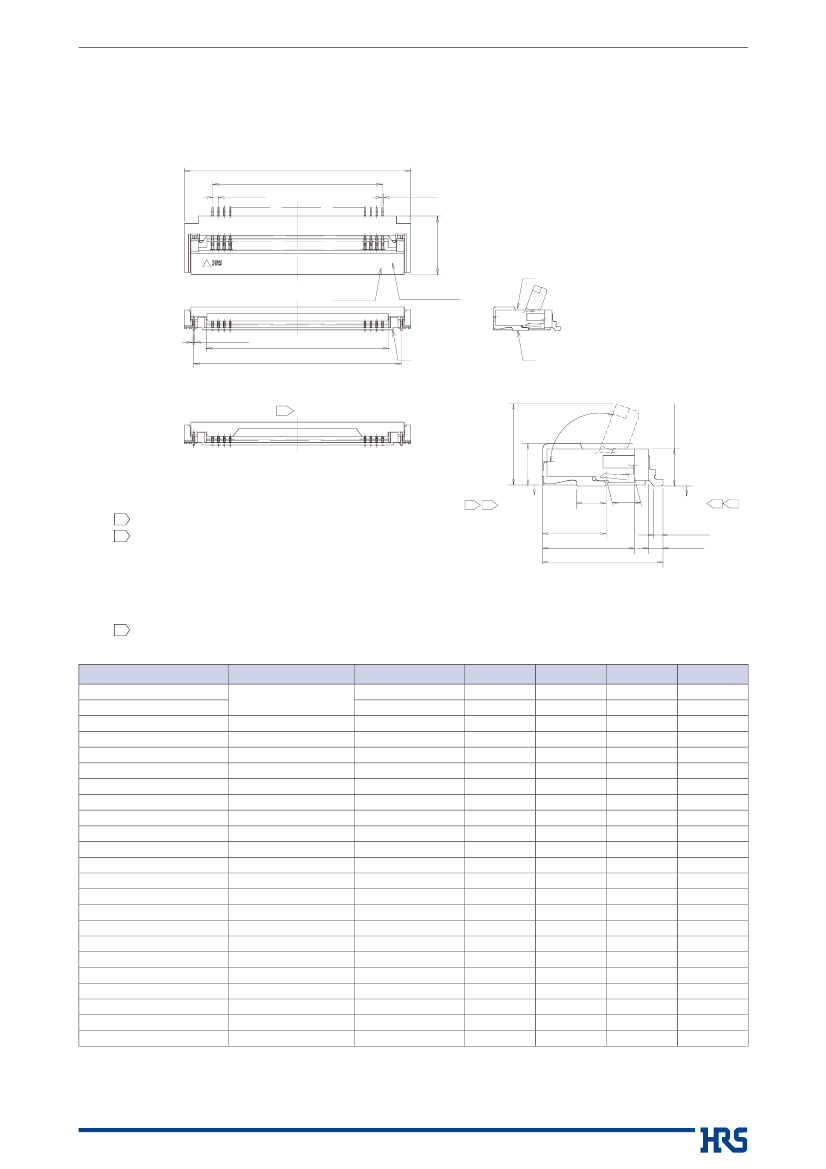

■Connector
Dimensions
[FH52 (Standard Type) 0.5mm Pitch product]
A±0.15
B±0.08
0.5±0.08
(0.12)
A
**
(5)
a
Number of
contacts indicator
Feb.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Cav No.
(0.15)
(C)
D±0.1
c
b
a detail drawing
6 c
(3.9)
1
(1
)
0˚
2±0.2
0
(1.3)
1.4±0.1
3±0.1
(4.3)
5.7±0.2
1.75±0.2
0
0.15MAX 1
0.45±0.1
0.7±0.2
2
1
2
0.15MAX
Notes 1 The coplanarity of each terminal lead is within 0.1.
2 The contact terminal lead position indicates the dimension from the b surface, the bottom
surface of the insulator body.
3 Packaged on tape and reel only. Check the packaging specification on Page 16 for details.
4 Sink mark reliefs may be added due to improvements
5 Sight variations in color of the plastic compounds do not affect form, fit or function.
After reflow, the terminal plating may change color; however this does not represent a quality issue.
6 The dimensions of 60-contact actuators are shown in the figures.
Unit : mm
Part No.
FH52-4S-0.5SH(**)
FH52-5S-0.5SH(**)
FH52-6S-0.5SH(**)
FH52-8S-0.5SH(**)
FH52-10S-0.5SH(**)
FH52-11S-0.5SH(**)
FH52-12S-0.5SH(**)
FH52-15S-0.5SH(**)
FH52-16S-0.5SH(**)
FH52-18S-0.5SH(**)
FH52-20S-0.5SH(**)
FH52-22S-0.5SH(**)
FH52-24S-0.5SH(**)
FH52-25S-0.5SH(**)
FH52-26S-0.5SH(**)
FH52-28S-0.5SH(**)
FH52-30S-0.5SH(**)
FH52-32S-0.5SH(**)
FH52-40S-0.5SH(**)
FH52-42S-0.5SH(**)
FH52-45S-0.5SH(**)
FH52-50S-0.5SH(**)
FH52-60S-0.5SH(**)
HRS No.
Under planning (Note 2)
580-3304-0 **
580-3305-3 **
580-3306-6 **
580-3320-7 **
580-3307-9 **
580-3302-5 **
Under planning (Note 2)
580-3321-0 **
580-3309-4 **
580-3317-2 **
580-3318-5 **
580-3316-0 **
580-3319-8 **
580-3324-8 **
580-3310-3 **
580-3325-0 **
580-3300-0 **
580-3329-1 **
580-3311-6 **
580-3303-8 **
580-3301-2 **
No. of contacts
4
5
6
8
10
11
12
15
16
18
20
22
24
25
26
28
30
32
40
42
45
50
60
A
6.3
6.8
7.3
8.3
9.3
9.8
10.3
11.8
12.3
13.3
14.3
15.3
16.3
16.8
17.3
18.3
19.3
20.3
24.3
25.3
26.8
29.3
34.3
B
1.5
2.0
2.5
3.5
4.5
5.0
5.5
7.0
7.5
8.5
9.5
10.5
11.5
12.0
12.5
13.5
14.5
15.5
19.5
20.5
22.0
24.5
29.5
C
2.57
3.07
3.57
4.57
5.57
6.07
6.57
8.07
8.57
9.57
10.57
11.57
12.57
13.07
13.57
14.57
15.57
16.57
20.57
21.57
23.07
25.57
30.57
D
4.7
5.2
5.7
6.7
7.7
8.2
8.7
10.2
10.7
11.7
12.7
13.7
14.7
15.2
15.7
16.7
17.7
18.7
22.7
23.7
25.2
27.7
32.7
Note 1 : Tape and reel packaging. (3,000pcs/reel, 500pcs/reel)
Order by number of reels.
Note 2 : Contact positions without HRS No. are currently under planning.
Please contact hirose for detailed information about product variation.
3
FH52 Series●0.5mm and 1mm Pitch, 2mm Height, FPC/FFC ZIF Connectors
■Connector
Dimensions
[FH52 (Standard Type) 1mm Pitch product]
A±0.15
(Q)
1±0.08
B±0.08
(0.12)
(R)
A **
Feb.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Cav No.
½
(5)
½
(0.15)
(C)
D±0.1
)
0˚
½
a detail drawing
2±0.2
6
½
1.75±0.2
0
(1.3) 0.15MAX
0.45±0.1
0.7±0.2
1
2
1
(1
0
1
2
0.15MAX
1.4±0.1
3±0.1
(4.3)
5.7±0.2
Notes 1 The coplanarity of each terminal lead is within 0.1.
2 The contact terminal lead position indicates the dimension from the b surface,
the bottom surface of the insulator body.
3 Packaged on tape and reel only. Check the packaging specification on Page 16 for details.
4 Sink mark reliefs may be added due to improvements
5 Sight variations in color of the plastic compounds do not affect form, fit or function.
After reflow, the terminal plating may change color; however this does not represent a quality issue.
6 The dimensions of 30-contact actuators are shown in the figures.
(3.9)
Unit : mm
Part No.
FH52-10(4)SA-1SH(**)
FH52-12S-1SH(**)
FH52-32(16)SB-1SH(**)
FH52-60(30)SB-1SH(**)
HRS No.
580-3330-0 **
580-3323-5 **
580-3338-2 **
580-3315-7 **
No. of contacts
4
12
16
30
A
9.3
16.8
20.3
34.3
B
3
11
15
29
C
5.57
13.07
16.57
30.57
D
7.7
15.2
18.7
32.7
Q
2.9
2.9
2.4
2.4
R
3.4
2.9
2.9
2.9
Note 1 : Tape and reel packaging. (3,000pcs/reel, 500pcs/reel)
Order by number of reels.
4
FH52 Series●0.5mm and 1mm Pitch, 2mm Height, FPC/FFC ZIF Connectors
■Connector
Dimensions
[FH52E (Long Metal Fittings Type) 0.5mm Pitch product]
A±0.15
B±0.08
0.5±0.08
（0.12）
A **
(5)
a
Number of
contacts indicator
Feb.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Cav No.
(C)
D±0.1
E±0.2
6
c
c
b
a detail drawing
˚
）
10
1
（
3.9
）
（
2
±
0.2
1.75
±
0.2
0
0.15MAX
0.45
±
0.1
0.7
±
0.2
0
（
1.2
±
0.2 1.3
）
1
2
0.15MAX
1
2
Notes 1 The coplanarity of each terminal lead is within 0.1.
1.55
±
0.2
2 The contact terminal lead position indicates the dimension from the b surface,
the bottom surface of the insulator body.
3 Packaged on tape and reel only. Check the packaging specification on Page 16 for details.
4 Sink mark reliefs may be added due to improvements
5 Sight variations in color of the plastic compounds do not affect form, fit or function.
After reflow, the terminal plating may change color ; however this does not represent a quality issue.
6 The dimensions of 60-contact actuators are shown in the figures.
（
4.3
）
5.7
±
0.2
Unit : mm
Part No.
FH52E-4S-0.5SH(**)
FH52E-5S-0.5SH(**)
FH52E-6S-0.5SH(**)
FH52E-8S-0.5SH(**)
FH52E-10S-0.5SH(**)
FH52E-11S-0.5SH(**)
FH52E-12S-0.5SH(**)
FH52E-15S-0.5SH(**)
FH52E-16S-0.5SH(**)
FH52E-18S-0.5SH(**)
FH52E-20S-0.5SH(**)
FH52E-22S-0.5SH(**)
FH52E-24S-0.5SH(**)
FH52E-25S-0.5SH(**)
FH52E-26S-0.5SH(**)
FH52E-28S-0.5SH(**)
FH52E-30S-0.5SH(**)
FH52E-32S-0.5SH(**)
FH52E-40S-0.5SH(**)
FH52E-42S-0.5SH(**)
FH52E-45S-0.5SH(**)
FH52E-50S-0.5SH(**)
FH52E-60S-0.5SH(**)
FH52E-64S-0.5SH(**)
FH52E-68S-0.5SH(**)
HRS No.
Under planning (Note 2)
580-3349-0 **
580-3346-0 **
Under planning (Note 2)
580-3337-0 **
Under planning (Note 2)
580-3331-3 **
580-3357-0 **
580-3343-2 **
580-3340-4 **
Under planning (Note 2)
580-3347-3 **
Under planning (Note 2)
580-3334-1 **
Under planning (Note 2)
580-3335-4 **
580-3339-5 **
580-3333-9 **
580-3332-6 **
No. of contacts
4
5
6
8
10
11
12
15
16
18
20
22
24
25
26
28
30
32
40
42
45
50
60
64
68
A
6.3
6.8
7.3
8.3
9.3
9.8
10.3
11.8
12.3
13.3
14.3
15.3
16.3
16.8
17.3
18.3
19.3
20.3
24.3
25.3
26.8
29.3
34.3
36.3
38.3
B
1.5
2.0
2.5
3.5
4.5
5.0
5.5
7.0
7.5
8.5
9.5
10.5
11.5
12.0
12.5
13.5
14.5
15.5
19.5
20.5
22.0
24.5
29.5
31.5
33.5
C
2.57
3.07
3.57
4.57
5.57
6.07
6.57
8.07
8.57
9.57
10.57
11.57
12.57
13.07
13.57
14.57
15.57
16.57
20.57
21.57
23.07
25.57
30.57
32.57
34.57
D
4.55
5.05
5.55
6.55
7.55
8.05
8.55
10.05
10.55
11.55
12.55
13.55
14.55
15.05
15.55
16.55
17.55
18.55
22.55
23.55
25.05
27.55
32.55
34.55
36.55
E
7.1
7.6
8.1
9.1
10.1
10.6
11.1
12.6
13.1
14.1
15.1
16.1
17.1
17.6
18.1
19.1
20.1
21.1
25.1
26.1
27.6
30.1
35.1
37.1
39.1
Note 1 : Tape and reel packaging. (3,000pcs/reel, 500pcs/reel)
Order by number of reels.
Note 2 : Contact positions without HRS No. are currently under planning.Please contact hirose for detailed information about product variation.
5
京公网安备 11010802033920号
EEWORLD
