M505025V datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Trigger device> M505025V

M505025V: DescriptionSilicon Controlled Rectifier, 1200V V(RRM), 2 Element, MODULE-6; CategoryAnalog mixed-signal IC Trigger device; File Size113KB，2 Pages; ManufacturerCynergy 3; Environmental Compliance

Download Datasheet Parametric View All

M505025V Overview

Silicon Controlled Rectifier, 1200V V(RRM), 2 Element, MODULE-6

M505025V Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Cynergy 3
Parts packaging code	MODULE
package instruction	FLANGE MOUNT, R-XUFM-X6
Contacts	6
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	UL RECOGNIZED
Shell connection	ISOLATED
Configuration	BRIDGE, HALF-CONTROLLED, COMMON CATHODE WITH BUILT-IN DIODE
Maximum DC gate trigger current	150 mA
Maximum DC gate trigger voltage	3 V
Quick connection description	2G
Description of screw terminals	2AK-CA-CK
JESD-30 code	R-XUFM-X6
On-state non-repetitive peak current	600 A
Number of components	2
Number of terminals	6
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Repeated peak reverse voltage	1200 V
surface mount	NO
Terminal form	UNSPECIFIED
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	SCR
Base Number Matches	1

Preview

Download Datasheet

View All

50-100Amp • SCR/DIODE Modules

Series

M50

• Over 40KW Output

Capability

The M50 Series modules utilize highly

efﬁcient thermal management of pro-

vide high surge capability, long lifetime

and reliable performance. Available in

eight standard circuits, all models come

in an industry standard package, pro-

vide 2500Vrms from all terminals to the

baseplate and are UL recognized (ﬁle

no. E72445).

Manufactured in Cynergy3's ISO 9002

Certiﬁed facility for optimum product

performance and reliability.

PART NUMBER IDENTIFICATION

Series Type

Current

M50 -Case style

50 - 50 Amps

100 - 100 Amps

Circuit Type

1-8

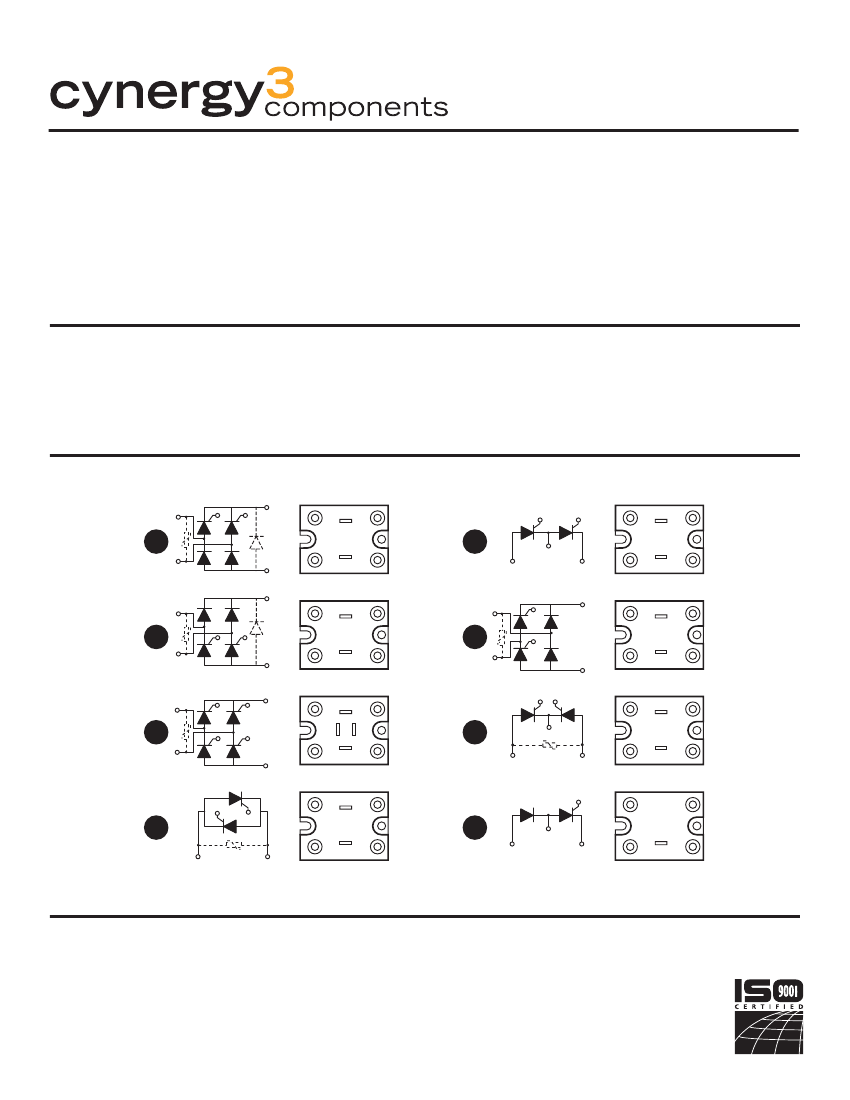

(see schematic

diagrams)

Example: M505012FV

MECHANICAL DIMENSIONS

All dimensions are in inches (millimeters)

AC Line Voltage

1 - 120 Vac

2 - 240 Vac

3 - 280 Vac

4 - 380 Vac

5 - 480 Vac

Options

Free Wheeling Diode

(Circuits 1 & 2 Only)

V - External Suppressor

(Circuits 1, 2, 3, 4, 6 & 7 Only)

ELECTRICAL SPECIFICATIONS

SYMBOL SPECIFICATION

RATINGS

M5050

M50100

50A

1.7V @ 50A

1.625

(41.2)

.475

(12.1)

.815

(20.7)

.875

(22.2)

1.070

(27.2)

.535

(13.6)

1.750

(44.4)

Maximum DC Output Current (Tc = 85°C)

Maximum Voltage Drop @ Amps Peak

Operating Junction Temperature Range

Critical Rate of Rise of On-State Current @ TJ=125°C

Critical Rate of Rise of Off-State Voltage [V/μs]

AC Line Input Voltage

(Repetitive Peak Reverse Voltage)

100A

1.4V @ 100A

di/dt

dv/dt

RMS

-40°C to +125°C

100A/μs

500V/μs

100A/μs

500V/μs

1.880

(47.7)

.250 X .032 THK.

4 PLCS.

10-32 SCREW

4 PLCS.

MOUNTING

HOLE/SLOT

0.20 (5.1) DIA.

120 (400 V

RRM

)

240 (600 V

RRM

)

280 (800 V

RRM

)

380 (1000 V

RRM

)

480 (1200 V

RRM

)

600A

1500

150mA

3.0V

0.5W

5.0V

0.7°C/W

2500 V

RMS

1500A

9350

150mA

3.0V

0.5W

5.0V

0.36°C/W

2500 V

RMS

TSM

1.365

(34.6)

1.055 1.140

(26.8)(29.0)

G(AV)

qJC

ISOL

Maximum Non-Repetitive Surge Current

(1/2Cycle, 60Hz)

Maximum I2T for Fusing (t=8.3ms) [A2sec]

Maximum Required Gate Current

to Trigger @ 25°C

Maximum Required Gate Voltage

to Trigger @ 25°C

Average Gate Power

Maximum Peak Gate Voltage (Reverse)

Maximum Thermal Resistance Junction to

Ceramic Base per Chip

Isolation Voltage

2.265

(57.5)

MECHANICAL SPECIFICATIONS

Weight: (typical)

3.75 oz. ( 106g)

For recommended applications and more information contact:

USA : Sales Support (866) 258-5057Tech Support (866) 258-5057 FAX (619) 690-7432

Tech

Cynergy3 Components, 2320 Paseo de las Americas, Ste. 104, San Diego, CA 92154

Email : sales@cynergy3.com WEB SITE: http://www.cynergy3.com

UK: +44 (0)1202 365070 FAX +44 (0)1202 365090 Cynergy3 Components Ltd., 7 Cobham

Road, Ferndown Industrial Estate, Ferndown, Dorset BH21 7PE, Email : sales@cynergy3.com.

ASIA, Thailand: +66 (0) 2 665 2517 FAX +66 (0) 2 665 2588 Cynergy3 Asia

18/8 Fico Place 12th Floor Soi Sukhumvit 21 (Asoke) Klongtoey Nua, Wattana Bangkok,

Thailand 10110

SERIES M50

Rev. 080205

PAGE 1 OF 2
