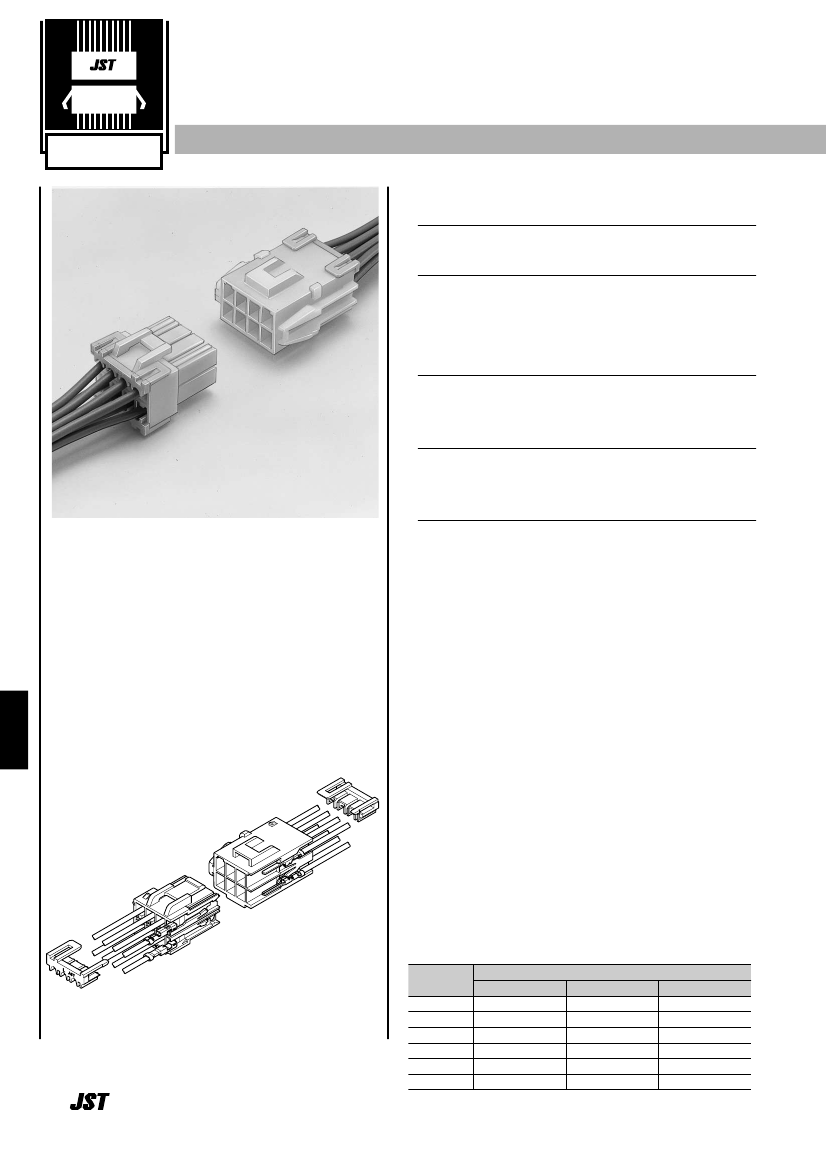

Crimp
HL
CONNECTOR
3.96mm
(.156") pitch
Disconnectable Crimp style Wire-to-wire connectors
Features ––––––––––––––––––––––––
• Low insertion force contact
The low insertion force contacts reduce surface finish wear and
reduce the effects of stress relaxation.
• Housing lance
The resilient plastic housing lances secure the contacts in the
housings. Since the lances are in the housings rather than on
the contacts, they are not affected by handling, and allow the
contacts to be lightly inserted without undue force. This
establishes a feeling of uniform insertion and a noticeable
change in that feeling when insertion is completed.
• Inner-housing lock
This inner-housing lock secures the plug to the receptacle and
prevents accidental disconnection. The lock is protected and
is not affected by external forces that might result from the
routing of wires.
• Secondary retainers
The secondary retainers enhance safety in case of partial
insertion or accidental release of the contact. Even if a contact
is inserted incompletely, the retainer guides the contact to the
proper position and securely locks it in place.
• Panel lock construction
Our unique compact panel lock is designed to prevent tangling
with wires and accidental breakage because of handling.
Specifications –––––––––––––––––––
• Current rating: 7A AC, DC max.
• Voltage rating: 300V AC, DC max.
• Temperature range: -25˚C to +90˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/7m
Ω
max.
After environmental testing/10m
Ω
max.
• Insulation resistance: 1,000M
Ω
min.
• Withstanding voltage: 1,500V AC/minute
• Applicable wire: AWG #22 to #18
0.3 to 0.75mm
2
• Applicable panel thickness: 0.7 to 2.0mm(.028" to .079")
* Contact JST if Lead-Free product is required.
* Temperature Range:
The aforementioned temperature range of this connector is
described in JST Standard Product Specification.
Maximum temperature registered in UL is 105˚C.
*Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
Note: The current rating varies depending on the number of
circuits and the wire size used in each connector.
The table below lists the current rating as a function of the
number of circuits and wire size.
Current unit: A
Circuits
#18
2
3
4
7
6
6
4
4
3
Wire size (AWG)
#20
5
4
4
3
3
2
#22
4
4
4
3
3
2
Standards ––––––––––––––––––––––
0
Recognized E60389
1
Certified LR20812
2
R9551072
802
8
9
12
HL
CONNECTOR

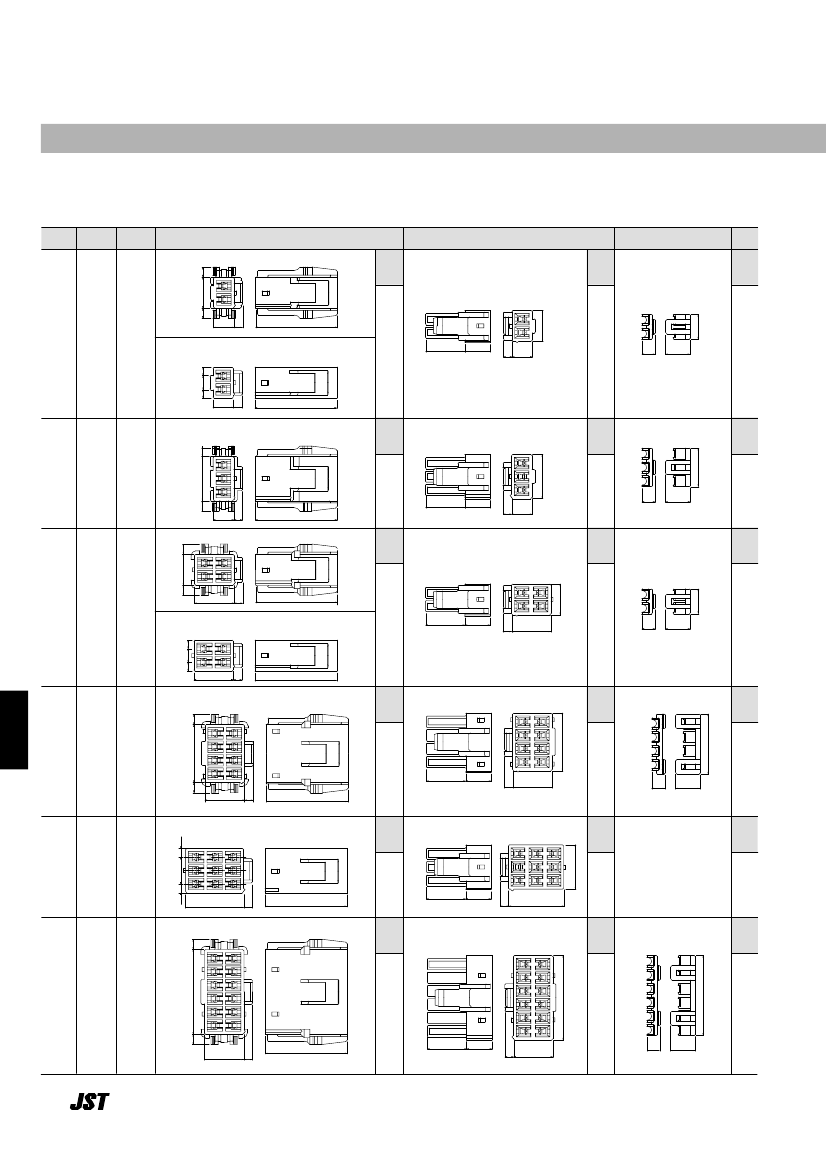

Panel layout––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
7.5(.295)
7.5(.295)
D
9.8(.386)
3.0(.118)
A
B
E
0.7(.028)
A
B
Circuits
2
3
4
8
12
Receptacle
housing
HLR-02V
HLR-03V
HLR-04V
HLR-08V
HLR-12V
Panel hole
shape
Panel hole dimensions mm(in.)
A
±0.13
(.005)
9.5(.374)
13.5(.531)
9.5(.374)
17.4(.685)
25.3(.996)
E
B
±0.13(.005)
15.7( .618)
19.7( .776)
15.7( .618)
23.6( .929)
31.6(1.244)
C
±0.1
(.004)
4.4 (.173)
4.4 (.173)
5.6 (.220)
5.6 (.220)
5.6 (.220)
D
±0.13(.005)
6.4(.252)
6.4(.252)
12.0(.472)
12.0(.472)
12.0(.472)
E
±0.1
(.004)
1.0 (.039)
1.0 (.039)
3.2 (.126)
3.2 (.126)
3.2 (.126)
Note:
1. Punch holes in the panel according to the sketch and table shown above. Burrs must be removed.
2. The strength of the panel must be considered when punching two or more holes.
3. The connector must be inserted from the same side as the hole is punched.

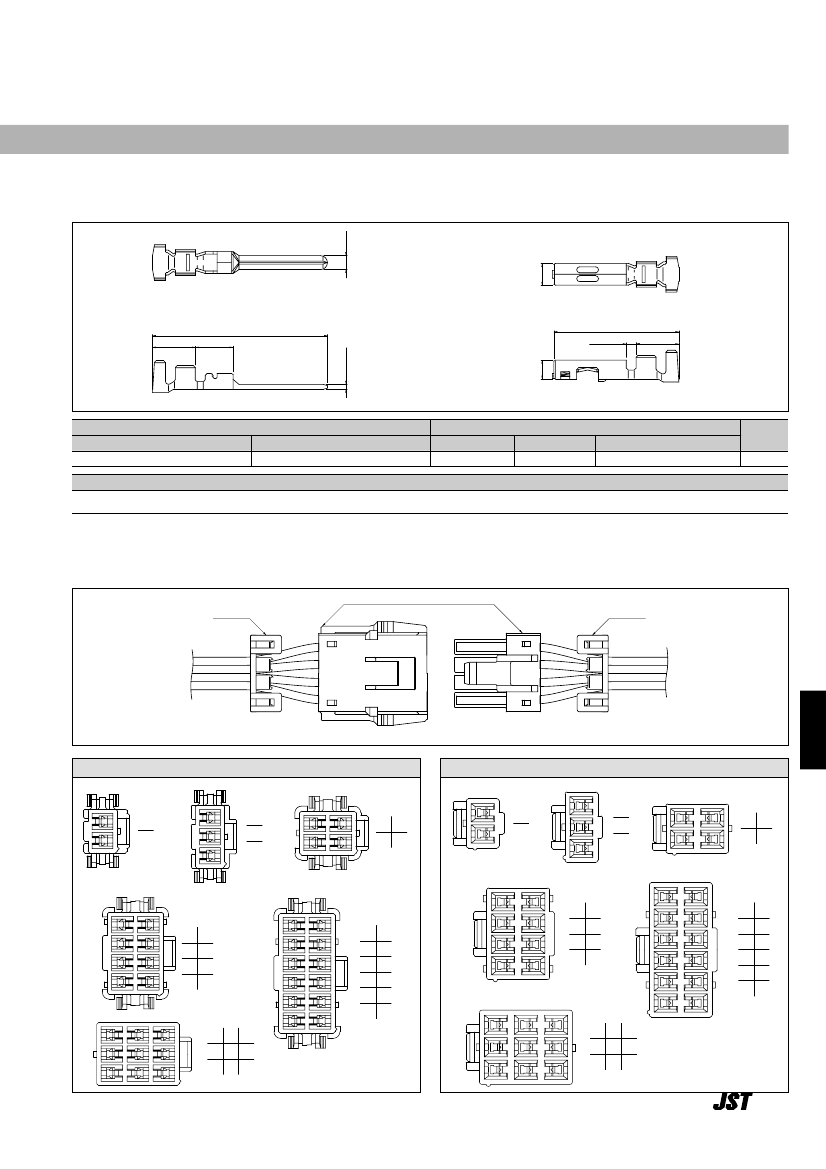

Assembly layout ––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
(2 and 3 circuits)
(4, 8 and 12 circuits)
4 circuits : 15.0(.591)
8 to 12 circuits : 15.1(.594)
(including retainer)
31.6(1.244)
34.2(1.346) (including retainer)
31.6(1.244)
34.2(1.346) (including retainer)
Applicator for the semi-automatic press AP-K2N –––––––––––––––––––––––––––––––
Contact
SSF-21T-P1.4
SSM-21T-P1.4
Crimp applicator MKS-L
with safety cover
without safety cover
APLMK SSF/M21-14
APLMK SSF/M21-14
APLNC SSF/M21-14
APLNC SSF/M21-14
9.5(.374)
Compact crimp applicator MKS-LS
with safety cover
without safety cover
–
–
–
–
Strip-crimp applicator MKS-SC
with safety cover
–
–
C
D
14.7(.579)
C
Applicable panel
thickness mm(in.)
0.7 to 2.0
(.028 to .079)
