A3002-341-010-001-G2-Z datasheet, PDF

Datasheet> All Categories > The connector> The connector> A3002-341-010-001-G2-Z

A3002-341-010-001-G2-Z: DescriptionTelecom and Datacom Connector, 8 Contact(s), Male, Straight, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size387KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric View All

A3002-341-010-001-G2-Z Overview

Telecom and Datacom Connector, 8 Contact(s), Male, Straight, Solder Terminal, Locking, Receptacle

A3002-341-010-001-G2-Z Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT
Board mount options	PEG
body width	0.657 inch
subject depth	0.65 inch
body length	0.632 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact resistance	20 mΩ
Contact style	TELCOM, MODULAR
Dielectric withstand voltage	1000VAC V
Insulation resistance	500000000 Ω
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	A3002
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of ports	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
Plating thickness	FLASH inch
Rated current (signal)	1.5 A
reliability	COMMERCIAL
Terminal length	0.128 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	8
Base Number Matches	1

Preview

Download Datasheet

View All

(Option)

3.85

Pin 1

3.85

0.90

8.89

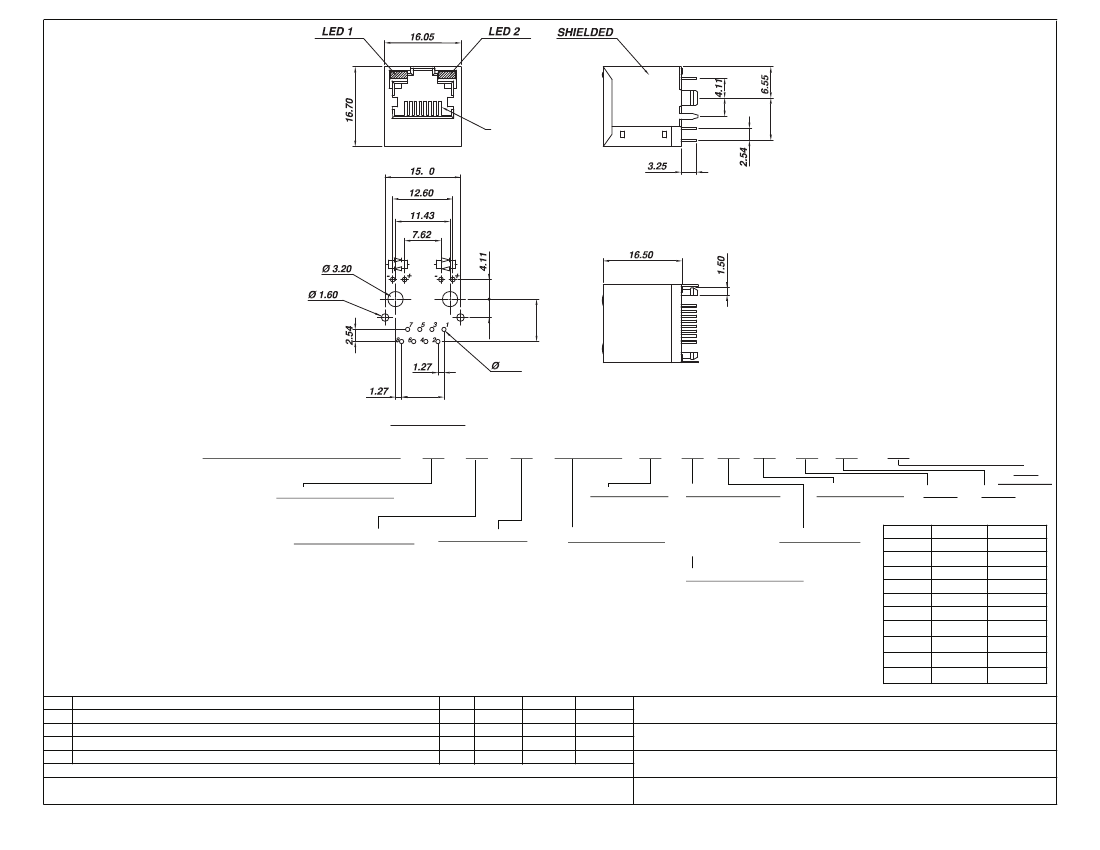

HOW TO ORDER:

PCB LAYOUT

(Top View)

RoHS

Compliant

LED 2:

ELECTRICAL:

NUMBER OF POSITIONS

CURRENT RATING: 1.5A Max.

3 - 8 Pos

VOLTAGE RATING: 120V AC

CONTACT RESISTANCE: 20milli-Ohms Max.

NUMBER OF CONTACTS:

TEMPERATURE RANGE: -40°C TO +85°C

4 - 8 CONTACTS

INSULATION RESISTANCE: 500M-Ohms

DIELECTRIC VOLTAGE: 1,000 Vrms 60 Sec. Min.

MATERIAL:

SPRING WIRE: 0.35mm Thickness Phosphor Bronze

Gold Plating Over 50u" Nickel

INSULATOR: High Temp Glass Filled Polyester 94V-0

ENVIRONMENTAL:

Mates with Modular Plug Conforming to FCC Part 68, Subpart F

8.89

KEYING OPTION:

0 - NON KEYED

SHIELD OPTION:

1 - SHIELDED

NUMBER OF PORTS:

01 - SINGLE PORT

PCB GROUND TAB

PLATING OVERALL:

LED 1:

1 - BACK 3.85 mm

0 - FULL Au FLASH

CHOOSE OPTIONS

FROM TABLE BELLOW

1 - 10u" Au

OPTION FOWARD REVERSE

2 - 30u" Au

FLANGE OPTION:

GREEN

------

3 - 50u" Au

0 - NO FLANGE

SELECTIVE PLATING:

5 - 50u" Au CONTACT AREA/TIN TAIL

6 - Au FLASH CONTACT AREA/TIN TAIL

7 - 10u" Au CONTACT AREA/TIN TAIL

8 - 15u" Au CONTACT AREA/TIN TAIL

9 - 30u" Au CONTACT AREA/TIN TAIL

8.89

YELLOW

GREEN

YELLOW

GREEN

YELLOW

GREEN

YELLOW

RED

------

ORANGE

RED

YELLOW

GREEN

YELLOW

Rev

Issued

Revised For RoHS Compliance

Revised Temperature Range

SCALE:N/A

TOL. DEC.

.X +/- 0.25

.XX +/- 0.13

.XXX +/- 0.05

Date

Drawn Checked Approved

D.H.

05/28/04

S.M.

09/30/05

A.M.

S.M.

8/16/07

B.S.

S.M.

SMP TECHNOLOGY, INC.

RJ45, Top Entry, Single Port, Shielded, Back 3.85 mm, with LED's

ANGLE +0.45

-0.15

UNIT: mm

P /N: a 3 0 0 2 - 3 4 1 - 0 1 0 - x 0 1 - x x

Pg: 1
