390096-5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 390096-5

390096-5: DescriptionCONNECTOR, 336 CONTACT(S), FEMALE, VERTICAL SINGLE PART CARD EDGE CONN, SOLDER, SOCKET; CategoryThe connector The connector; File Size125KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

390096-5 Overview

CONNECTOR, 336 CONTACT(S), FEMALE, VERTICAL SINGLE PART CARD EDGE CONN, SOLDER, SOCKET

390096-5 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	STAGGERED CONFIGURATION
Body/casing type	SOCKET
Connector type	CARD EDGE CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	390096
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	336
Base Number Matches	1

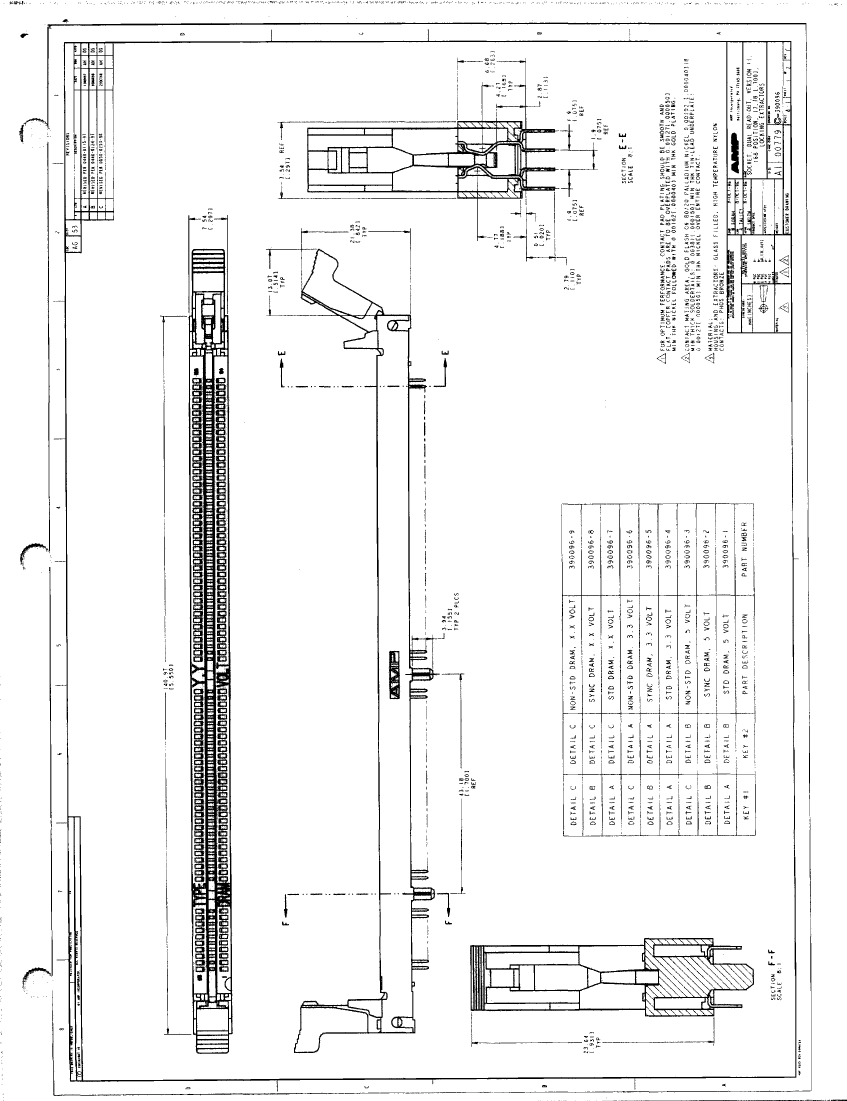

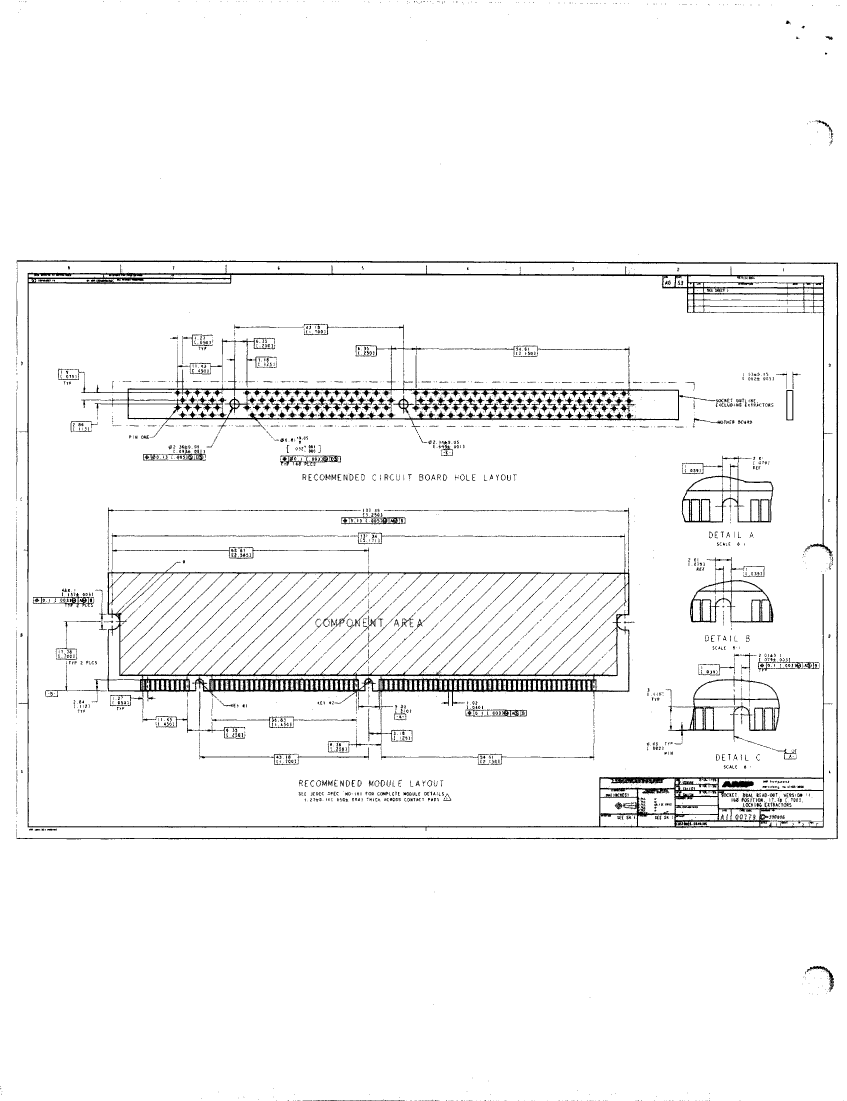

Preview

Download Datasheet

View All

390096-5 Related Products

	390096-5	390096-8	390096-3	390096-6	390096-2	390096-1	390096-7	390096-4	390096-9
Description	CONNECTOR, 336 CONTACT(S), FEMALE, VERTICAL SINGLE PART CARD EDGE CONN, SOLDER, SOCKET	CONNECTOR, 336 CONTACT(S), FEMALE, VERTICAL SINGLE PART CARD EDGE CONN, SOLDER, SOCKET	CONNECTOR, 336 CONTACT(S), FEMALE, VERTICAL SINGLE PART CARD EDGE CONN, SOLDER, SOCKET	CONNECTOR, 336 CONTACT(S), FEMALE, VERTICAL SINGLE PART CARD EDGE CONN, SOLDER, SOCKET	CONNECTOR, 336 CONTACT(S), FEMALE, VERTICAL SINGLE PART CARD EDGE CONN, SOLDER, SOCKET	CONNECTOR, 336 CONTACT(S), FEMALE, VERTICAL SINGLE PART CARD EDGE CONN, SOLDER, SOCKET	CONNECTOR, 336 CONTACT(S), FEMALE, VERTICAL SINGLE PART CARD EDGE CONN, SOLDER, SOCKET	CONNECTOR, 336 CONTACT(S), FEMALE, VERTICAL SINGLE PART CARD EDGE CONN, SOLDER, SOCKET	CONNECTOR, 336 CONTACT(S), FEMALE, VERTICAL SINGLE PART CARD EDGE CONN, SOLDER, SOCKET
Reach Compliance Code	unknown	unknow	unknow	unknown	unknown	unknown	unknown	unknown	unknown
Other features	STAGGERED CONFIGURATION	STAGGERED CONFIGURATION	STAGGERED CONFIGURATION	STAGGERED CONFIGURATION	STAGGERED CONFIGURATION	STAGGERED CONFIGURATION	STAGGERED CONFIGURATION	STAGGERED CONFIGURATION	STAGGERED CONFIGURATION
Body/casing type	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	390096	390096	390096	390096	390096	390096	390096	390096	390096
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2	2	2	2
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	336	336	336	336	336	336	336	336	336
Base Number Matches	1	1	1	1	1	1	1	1	1
