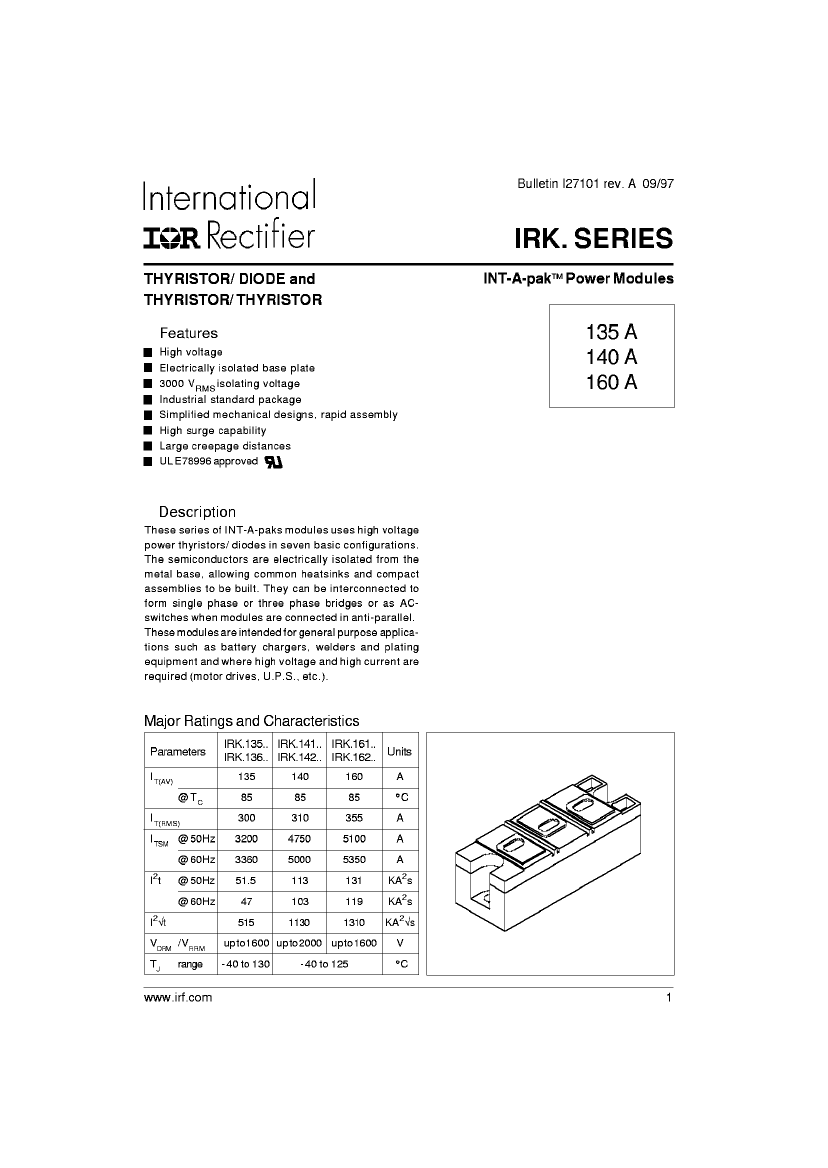

Silicon Controlled Rectifier, 355A I(T)RMS, 160000mA I(T), 1200V V(DRM), 1200V V(RRM), 2 Element

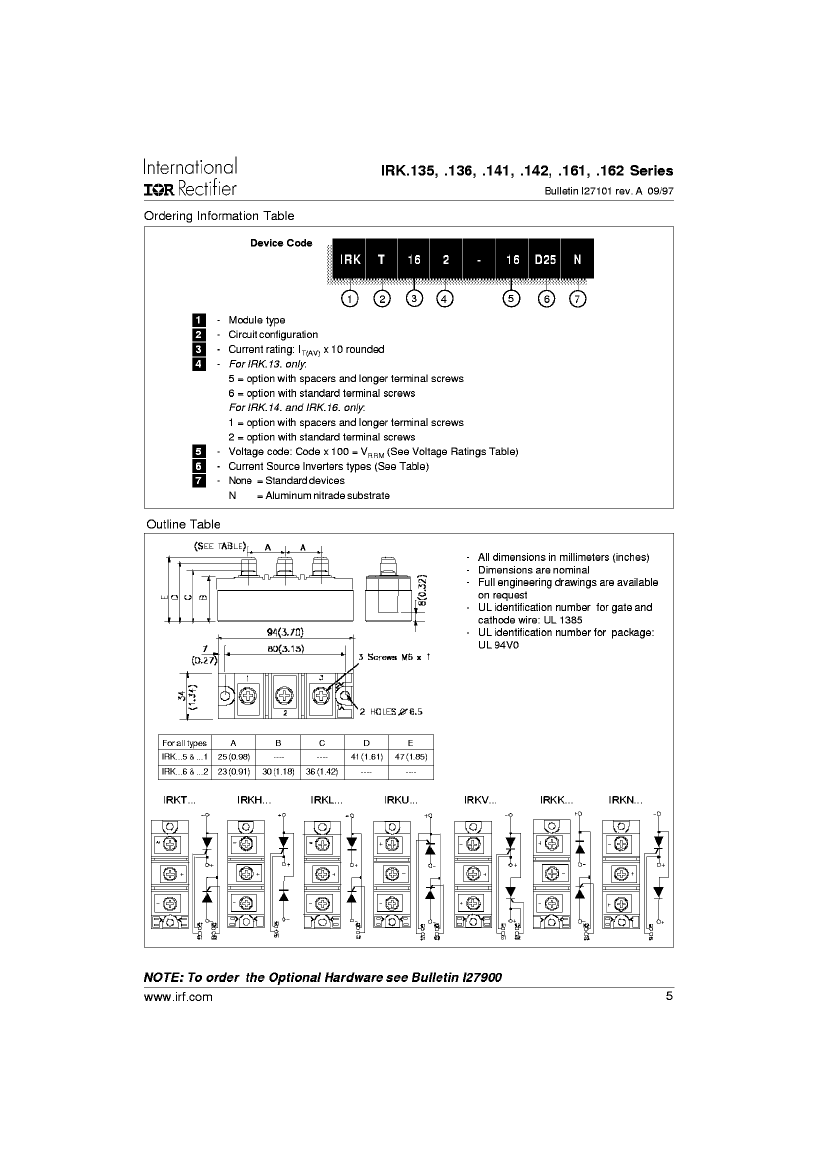

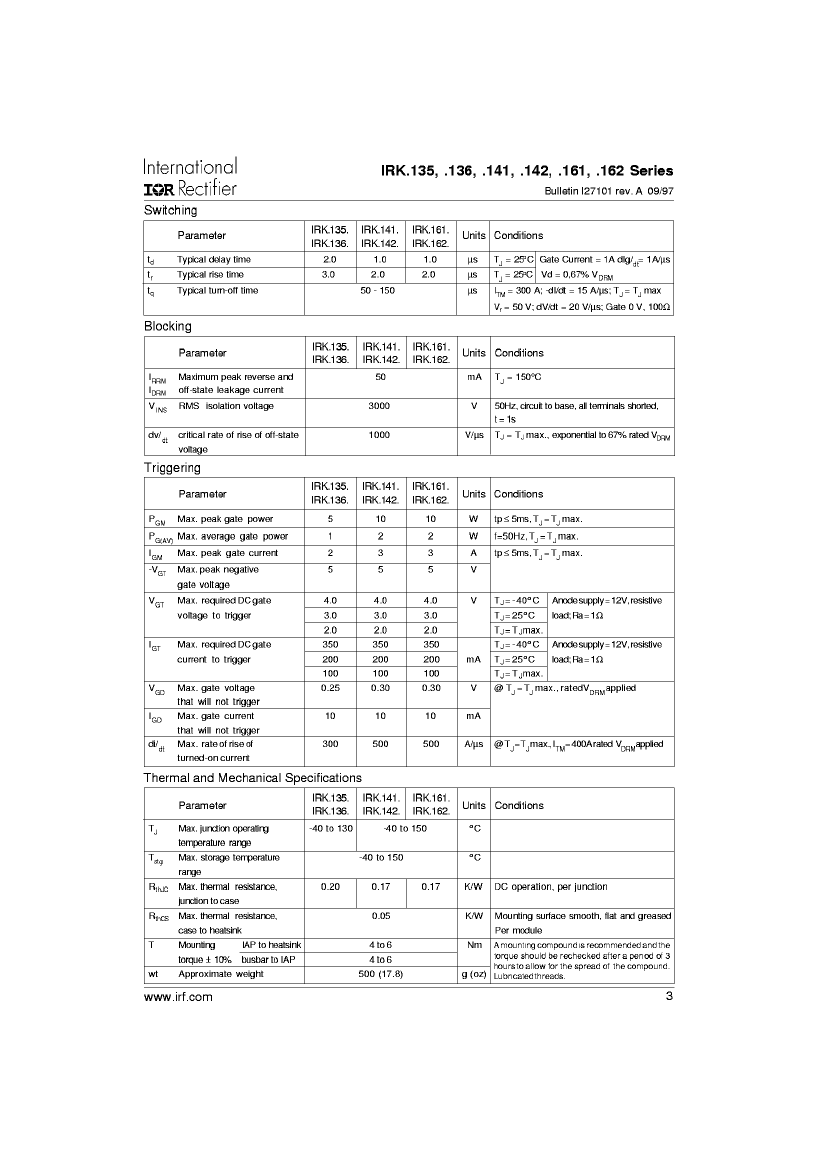

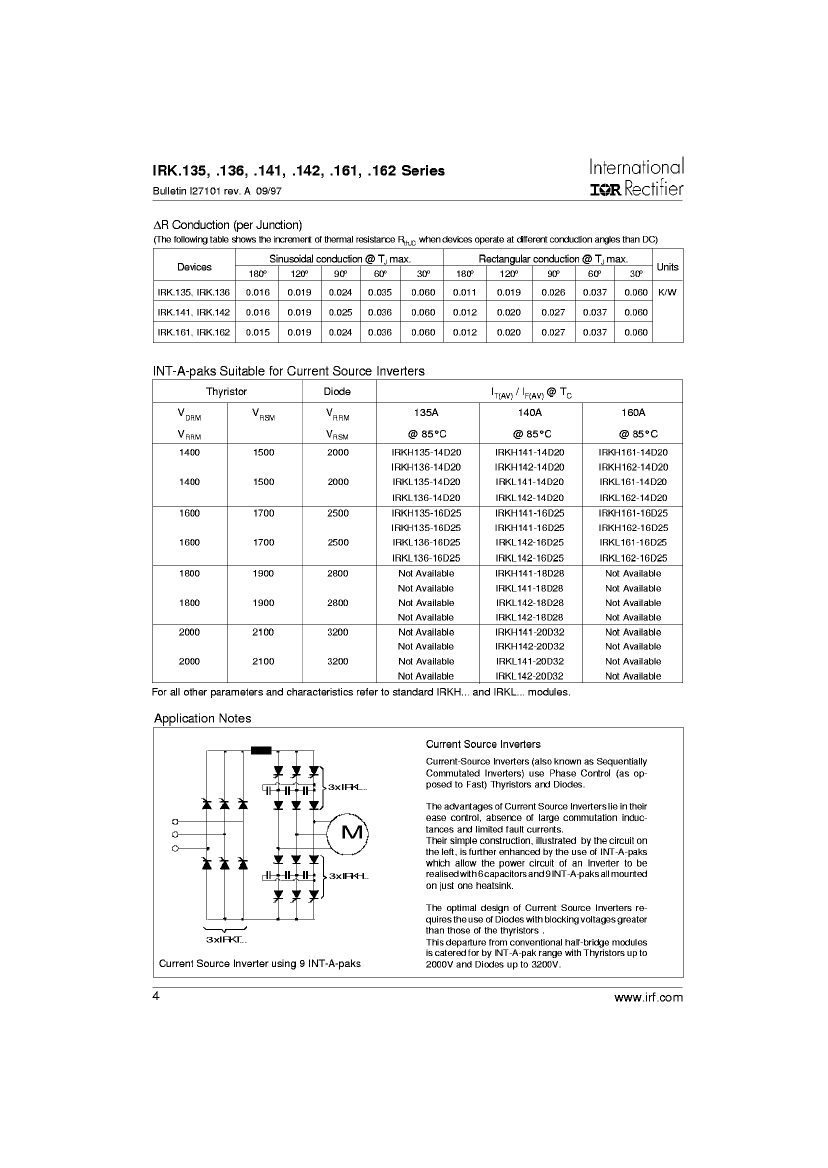

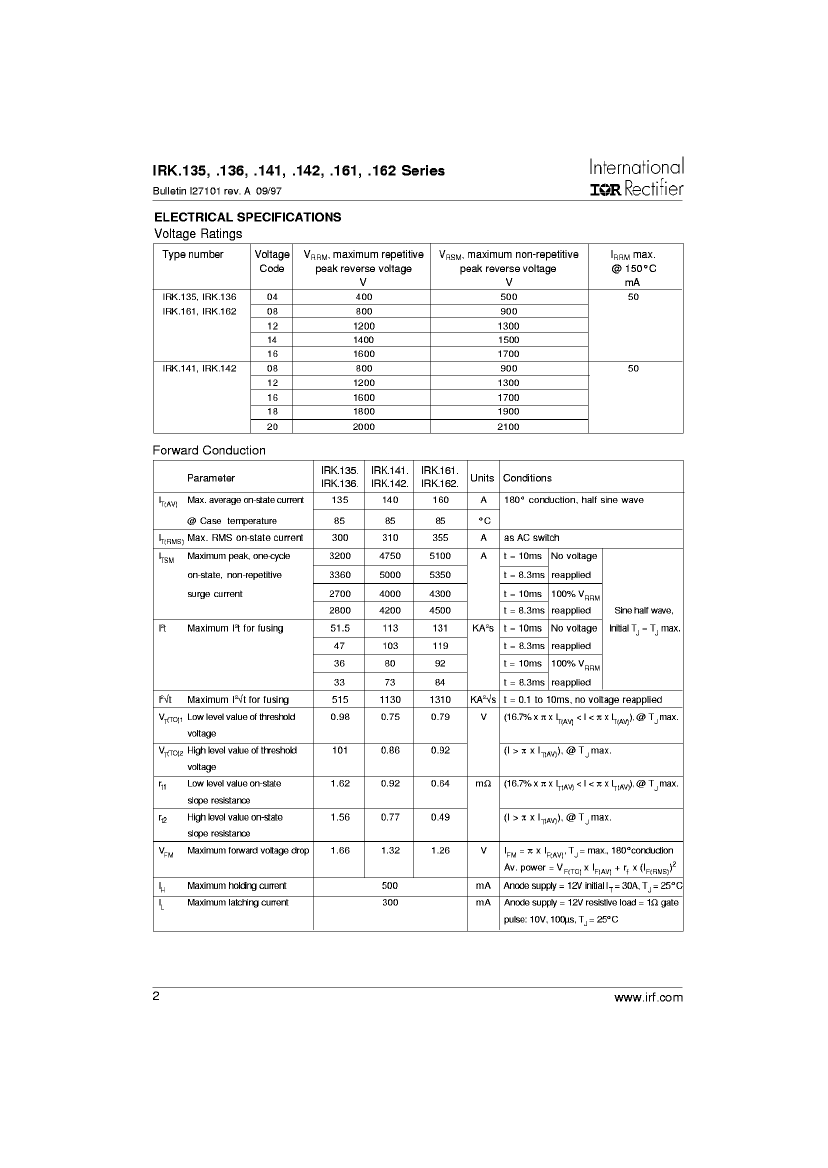

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | International Rectifier （ Infineon ） |
| package instruction | FLANGE MOUNT, R-PUFM-D3 |
| Reach Compliance Code | compliant |
| Other features | UL APPROVED |
| Shell connection | ISOLATED |
| Nominal circuit commutation break time | 150 µs |
| Configuration | SERIES CONNECTED, 2 ELEMENTS |
| Critical rise rate of minimum off-state voltage | 1000 V/us |
| Maximum DC gate trigger current | 200 mA |
| Maximum DC gate trigger voltage | 3 V |
| Quick connection description | 2G-2GR |
| Description of screw terminals | A-K-AK |
| Maximum holding current | 500 mA |
| JESD-30 code | R-PUFM-D3 |
| JESD-609 code | e0 |
| Maximum leakage current | 50 mA |
| On-state non-repetitive peak current | 4500 A |
| Number of components | 2 |
| Number of terminals | 3 |
| Maximum on-state current | 160000 A |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -40 °C |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | FLANGE MOUNT |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Certification status | Not Qualified |
| Maximum rms on-state current | 355 A |
| Maximum repetitive peak off-state leakage current | 50000 µA |
| Off-state repetitive peak voltage | 1200 V |
| Repeated peak reverse voltage | 1200 V |
| surface mount | NO |
| Terminal surface | TIN LEAD |
| Terminal form | SOLDER LUG |
| Terminal location | UPPER |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Trigger device type | SCR |
| Base Number Matches | 1 |
