BY329-1000

Description
Rectifier Diode, 1 Phase, 1 Element, 8A, 1000V V(RRM), Silicon
CategoryDiscrete semiconductor    diode
File Size267KB,11 Pages
ManufacturerYAGEO
Websitehttp://www.yageo.com/
Download Datasheet Parametric Compare View All

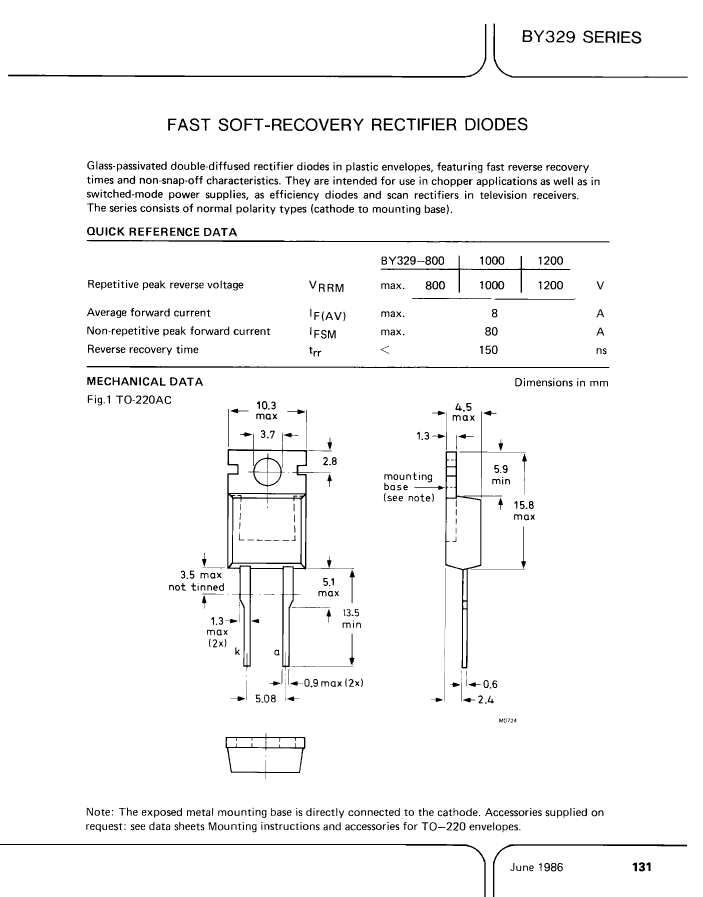

BY329-1000 Overview

Rectifier Diode, 1 Phase, 1 Element, 8A, 1000V V(RRM), Silicon

BY329-1000 Parametric

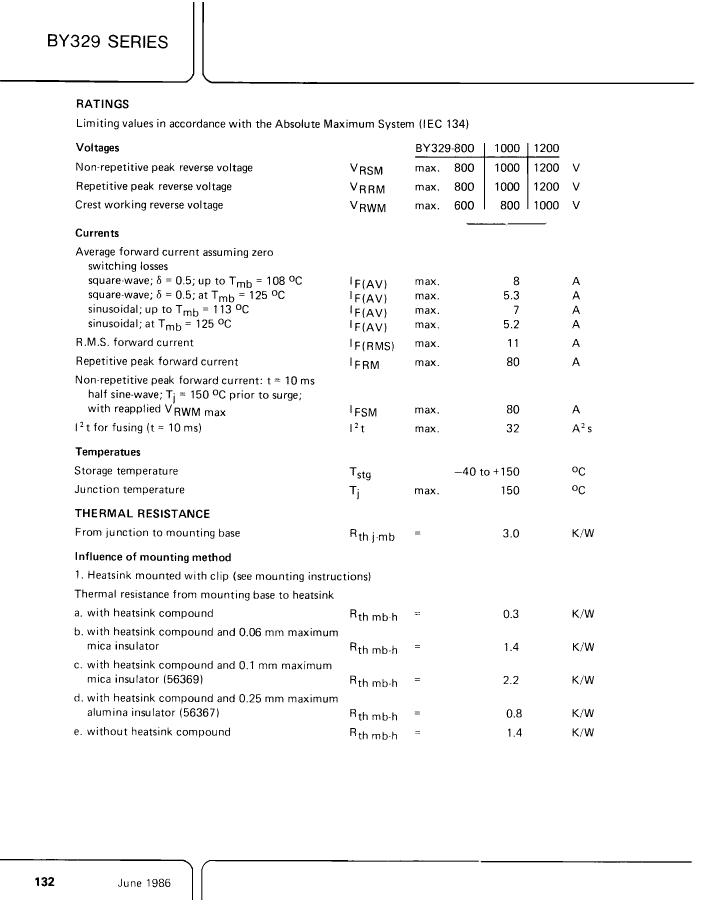

Parameter NameAttribute value
MakerYAGEO
package instructionR-PSFM-T2
Reach Compliance Codeunknown
Other featuresLEAKAGE CURRENT IS NOT AT 25 DEG C
applicationFAST SOFT RECOVERY
Shell connectionCATHODE
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeRECTIFIER DIODE

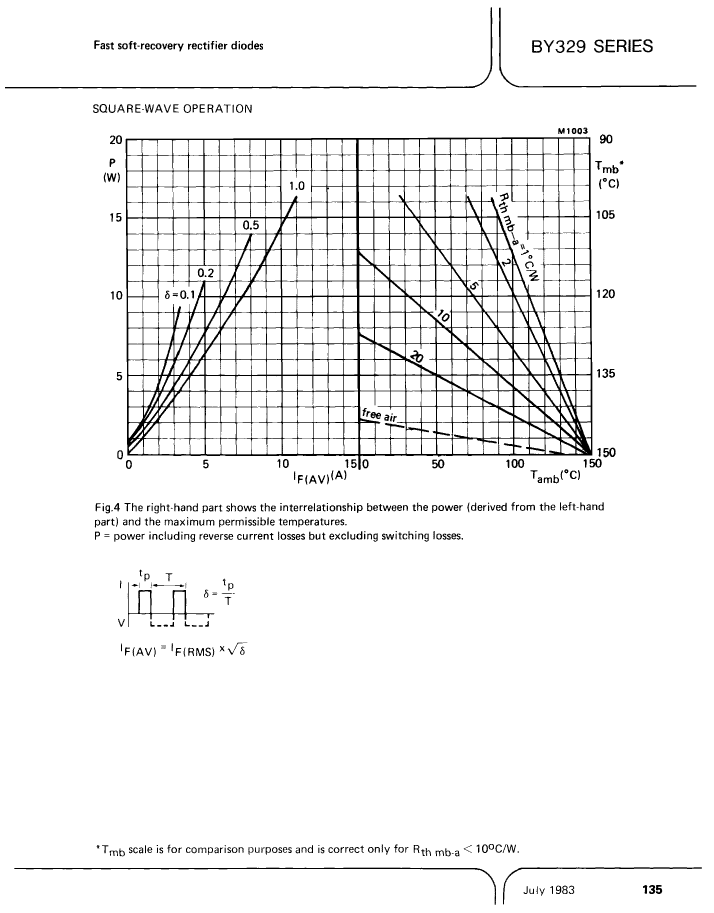

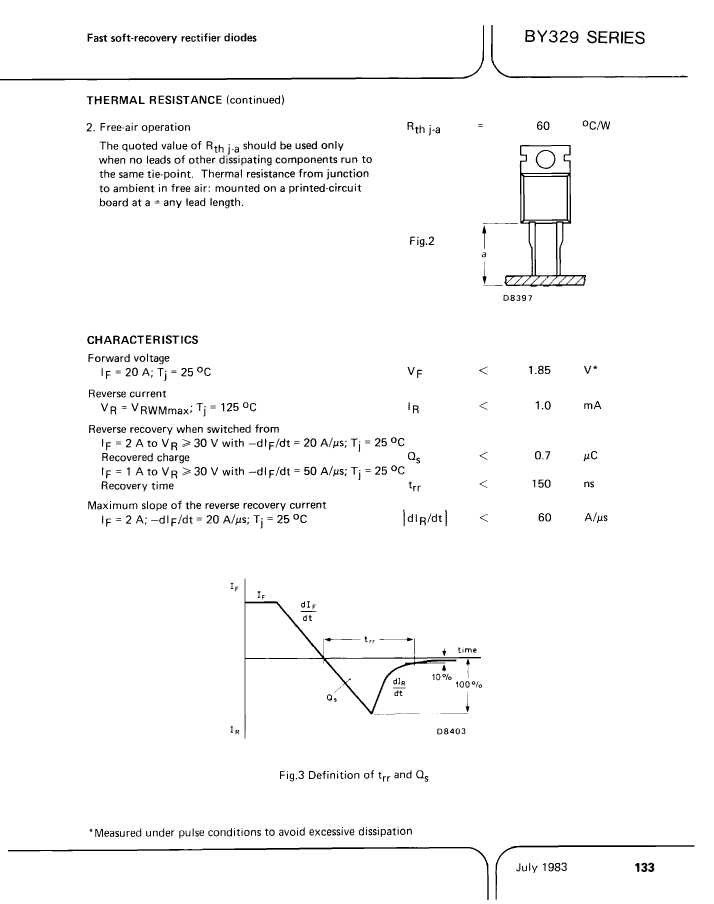

Maximum forward voltage (VF)1.85 V
JESD-30 codeR-PSFM-T2
Maximum non-repetitive peak forward current80 A
Number of components1
Phase1
Number of terminals2
Maximum operating temperature150 °C
Maximum output current8 A

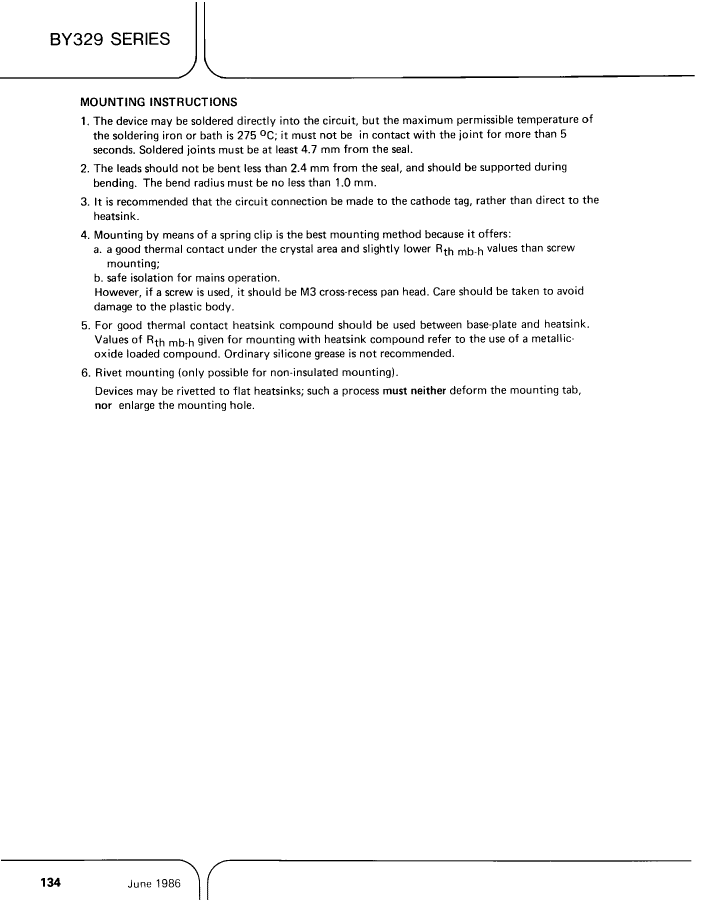

Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Certification statusNot Qualified
Maximum repetitive peak reverse voltage1000 V
Maximum reverse current1000 µA
Maximum reverse recovery time0.15 µs
surface mountNO
Terminal formTHROUGH-HOLE
Terminal locationSINGLE
Base Number Matches1

BY329-1000 Related Products

BY329-1000 BY329-1200 BY329-800
Description Rectifier Diode, 1 Phase, 1 Element, 8A, 1000V V(RRM), Silicon Rectifier Diode, 1 Phase, 1 Element, 8A, 1200V V(RRM), Silicon Rectifier Diode, 1 Phase, 1 Element, 8A, 800V V(RRM), Silicon
Maker YAGEO YAGEO YAGEO
package instruction R-PSFM-T2 R-PSFM-T2 R-PSFM-T2
Reach Compliance Code unknown unknown unknown
Other features LEAKAGE CURRENT IS NOT AT 25 DEG C LEAKAGE CURRENT IS NOT AT 25 DEG C LEAKAGE CURRENT IS NOT AT 25 DEG C
application FAST SOFT RECOVERY FAST SOFT RECOVERY FAST SOFT RECOVERY
Shell connection CATHODE CATHODE CATHODE
Configuration SINGLE SINGLE SINGLE
Diode component materials SILICON SILICON SILICON
Diode type RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE
Maximum forward voltage (VF) 1.85 V 1.85 V 1.85 V
JESD-30 code R-PSFM-T2 R-PSFM-T2 R-PSFM-T2
Maximum non-repetitive peak forward current 80 A 80 A 80 A
Number of components 1 1 1
Phase 1 1 1
Number of terminals 2 2 2
Maximum operating temperature 150 °C 150 °C 150 °C
Maximum output current 8 A 8 A 8 A
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR RECTANGULAR
Package form FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT
Certification status Not Qualified Not Qualified Not Qualified
Maximum repetitive peak reverse voltage 1000 V 1200 V 800 V
Maximum reverse current 1000 µA 1000 µA 1000 µA
Maximum reverse recovery time 0.15 µs 0.15 µs 0.15 µs
surface mount NO NO NO
Terminal form THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE
Terminal location SINGLE SINGLE SINGLE
Base Number Matches 1 1 -
