55C80BILE3 datasheet, PDF - EEWORLD Datasheet

55C80BILE3: DescriptionSilicon Controlled Rectifier, 86A I(T)RMS, 800V V(RRM), 1 Element, TO-209AC, TO-94, 3 PIN; CategoryAnalog mixed-signal IC Trigger device; File Size178KB，3 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric View All

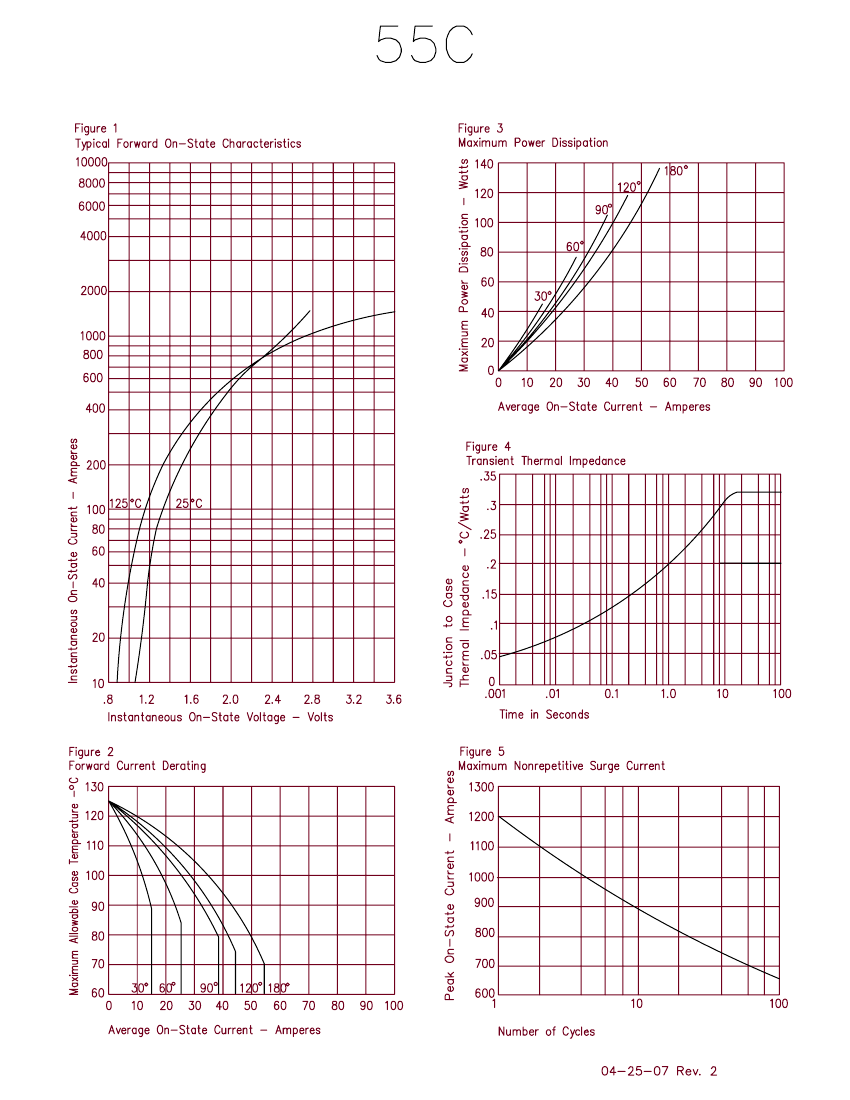

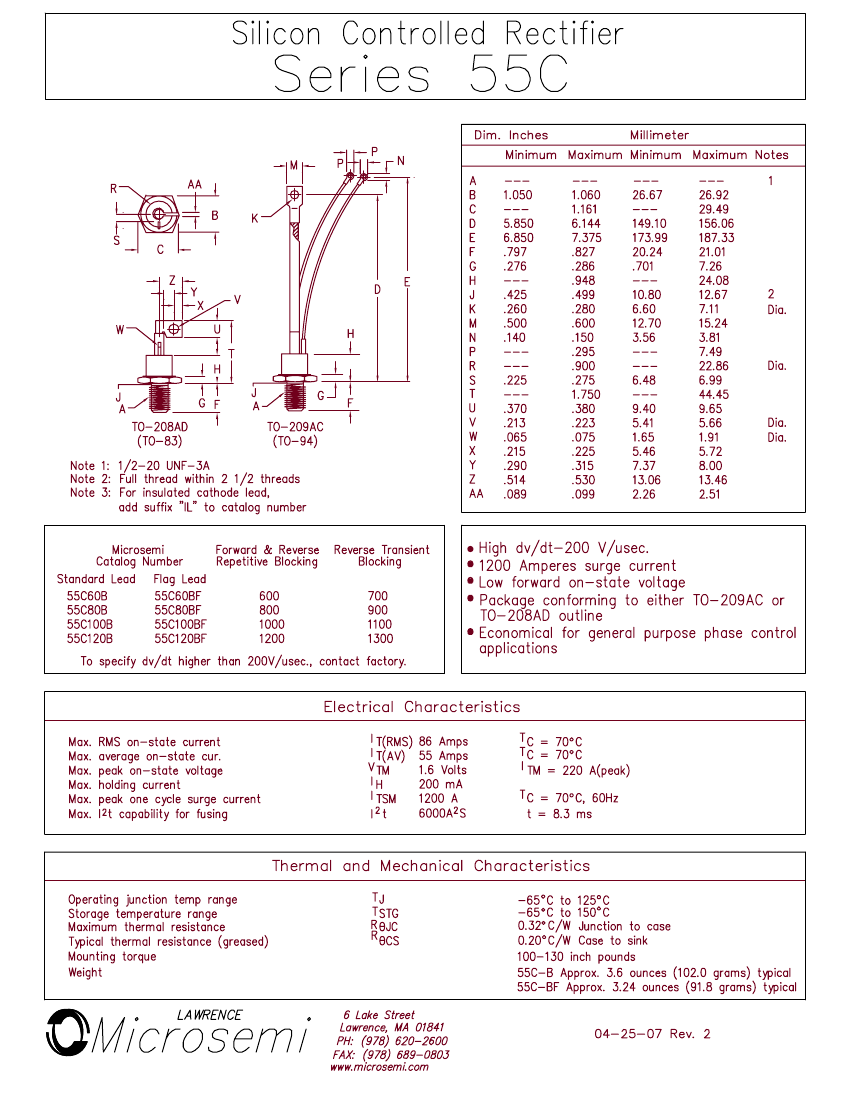

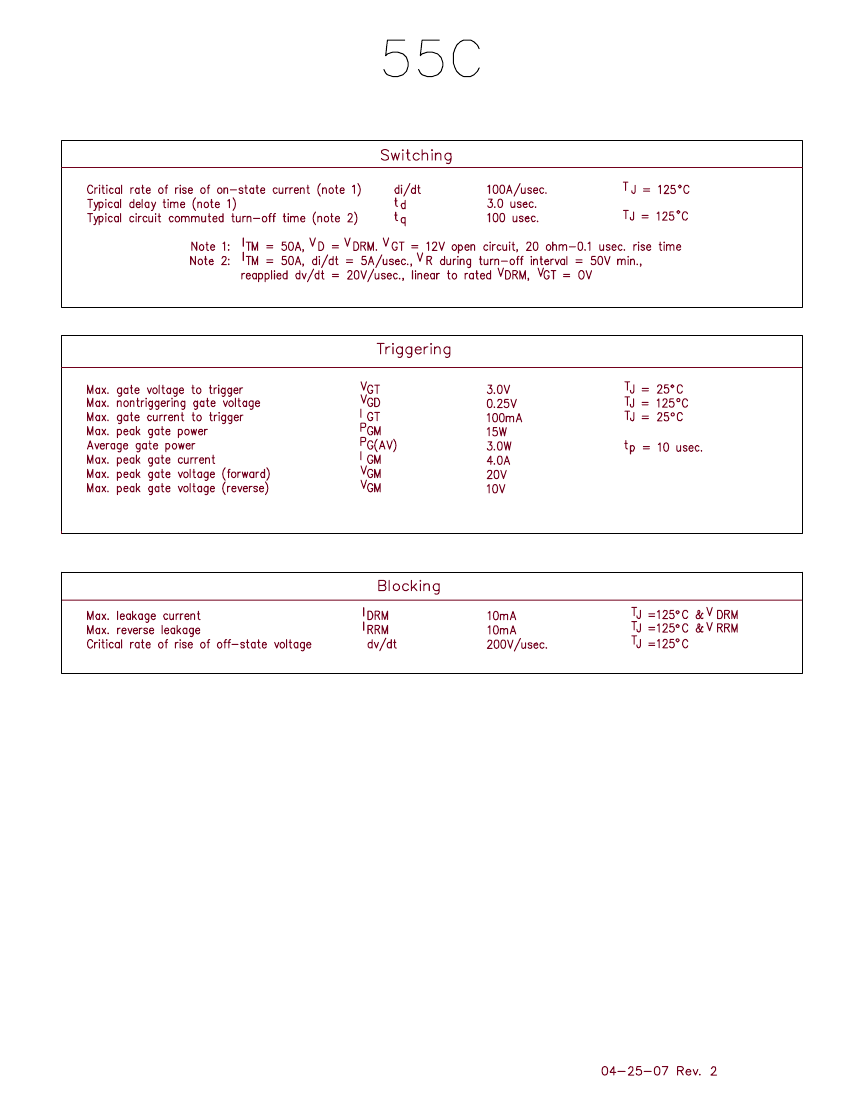

55C80BILE3 Overview

Silicon Controlled Rectifier, 86A I(T)RMS, 800V V(RRM), 1 Element, TO-209AC, TO-94, 3 PIN

Parameter Name	Attribute value
package instruction	POST/STUD MOUNT, O-MUPM-H3
Reach Compliance Code	unknown
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Maximum DC gate trigger current	100 mA
JEDEC-95 code	TO-209AC
JESD-30 code	O-MUPM-H3
Number of components	1
Number of terminals	3
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Maximum rms on-state current	86 A
Repeated peak reverse voltage	800 V
surface mount	NO
Terminal form	HIGH CURRENT CABLE
Terminal location	UPPER
Trigger device type	SCR
Base Number Matches	1
