IndustrialNet
™
Category 5e Shielded
600 V-Rated Patch Cords
specifications
IndustrialNet
™

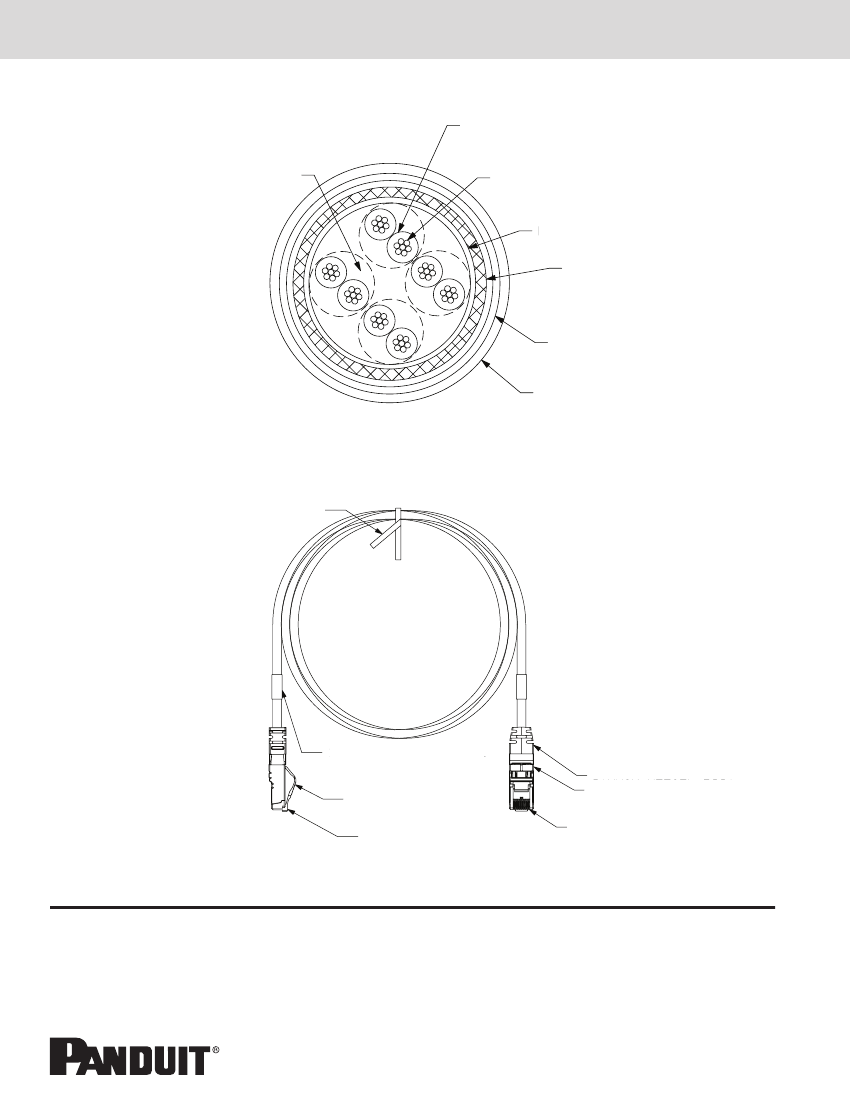

patch cords shall be constructed of Category 5e, industrial
grade, 24 AWG stranded, twisted 4-pair shielded SF/UTP cable with a flame
retardant (CM) thermoplastic elastomer (TPE) jacket. Patch cord cable shall be
offered in multiple colors and lengths for design flexibility. Each patch cord shall
be pre-terminated to include Category 5e RJ45 shielded modular plugs on each
end, with a black strain relief boot, and wired according to the T568A standard.
Each patch cord is designed to support high-flex applications and is rated for
600 V panel or on-machine applications when the space is shared with high
voltage power cables.
S P E C I F I C AT I O N S H E E T
IndustrialNet
™
Category 5e Shielded
600 V-Rated Patch Cords
CM/CMX
outdoor:
*ISTPHCH1MTL
IndustrialNet
™
Category 5e SF/UTP
Copper Cable
CM/CMX outdoor
2-pair:
4-pair:
ISFCH5C02A**-XG
ISFCH5C04A**-XG
technical information
Electrical/
mechanical performance:
Exceeds channel and component requirements of
ANSI/TIA-568-C.2 Category 5e and ISO 11801 Class D
standards at swept frequencies up to 100MHz; meets ODVA
Ethernet/IP electrical and mechanical performance requirements
Meets all applicable ANSI/TIA-968-A requirements; contacts plated with 50
microinches of gold for superior performance
Meets IEC 60603-7
UL 1863 approved
Rated IP20
Compliant
Meets IEEE 802.3af and IEEE 802.3at for PoE applications
UL AWM Style 2463 (80°C 600 V)
Flex Life Test: 1 million cycles at 10x cable diameter; 10 million cycles at 20x
cable diameter
Torsion Life Test: 3 million cycles, 360°
-20°C to 70°C (-4°F to 158°F) operating
-40°C to 70°C (-40°F to 158°F) storage
T568A
7.2mm (0.285 in.) nominal
CM (UL1685)
1 unit per polyethylene bag, 10 units per carton
IndustrialNet
™
Category 6/5e RJ45
Field Terminable Plug
Field
terminable plug:
ISPS688FA
FCC and ANSI
compliance:
IEC compliance:
UL-rated:
IP compliance:
RoHS compliancy status:
PoE compliance:
Other
standard compliances:
IndustrialNet
™
M12 D-Code Field
Terminable Plug
Field
terminable plug:
ISPS5E44MFA
IndustrialNet
™
M12 D-Code to RJ45
Panel Mount Adapter
Panel
mount adapter:
ICAM12DRJS
Temperature rating:
Wiring scheme:
Cable jacket diameter:
Flame rating:
Packaging:
Mini-Com
®
Modular Patch Panel
8-port:
DIN Rail Adapter
1-port:
CADIN1IW***
CDPP8RG
key features and benefits
Robust
600V-rated construction
100% performance tested
for wire map, NEXT, and
return loss
Centered
de-embedded plug
Integral pair manager
Flexible stranded cable
Allows for patch runs between automation devices in industrial environments;
rated for 600 V panel or on-machine applications when the space is shared
with high voltage power cables; plug contact plated with 50 microinches of gold
Confidence that each patch cord delivers specified performance
Performs in center of ANSI/TIA-568-C.2 component range,
ensuring interoperability and optimum performance
Optimizes performance and consistency by reducing untwist
at the plug
24 AWG stranded copper cable with a nominal diameter of
7.2mm (0.285 in.) allows for high density applications and superior panel
cable management
Identification of performance level, length, and quality control number for
future traceability
*For other lengths, change the length
designation (1M) of the part number to the
desired length (0.3M, 0.6M, 2M, 3M, 5M,
10M, 15M, or 20M); to designate color,
replace TL (Teal) suffix with BL (Black),
RD (Red), or YL (Yellow). For example,
the part number for a 2-meter teal patch
cord is ISTPHCH2MTL.
**To designate color, add suffix TL (Teal),
BL (Black), RD (Red), BU (Blue), GY (Gray),
or YL (Yellow).
***For standard colors other than Off White,
replace IW in part number with BL (Black),
EI (Electric Ivory), IG (International Gray), or
WH (White).
Identification provides
applications
IndustrialNet
™
patch cords provide an ideal solution to
support Industrial Ethernet from the Local Area
Network (LAN) based support offices to the
processing devices on the plant floor. The industrial
Ethernet patch cord is a key component to an overall
Industrial Ethernet application. The patch cord will be
the interface that protects the integrity of the Ethernet
data transfer from the switch or PLC out to the devices
or up to the horizontal plant backbone. The patch cord
incorporates a durable oil and UV resistant TPE
jacketed cable with modular plugs and is fully shielded
shielded for use in high noise (EMI/RFI) environments.
Key applications include:
• 10BASE-T (Ethernet)
• 100BASE-T (Fast Ethernet)
• 100BASE-T (Fast Ethernet)
• Industrial Ethernet
• Ethernet/IP
• Control Panel deployments featuring power
source voltages
• Uplinks featuring gigabit data transmission
from the control panel to the consolidation point
• High flex applications – Robotic, C-Track
www.panduit.com
