5962-9454502HXX datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> converter> 5962-9454502HXX

5962-9454502HXX: DescriptionSynchro or Resolver to Digital Converter, Hybrid, DIP-34; CategoryAnalog mixed-signal IC converter; File Size244KB，6 Pages; ManufacturerData Device Corporation

Download Datasheet Parametric Compare View All

5962-9454502HXX Overview

Synchro or Resolver to Digital Converter, Hybrid, DIP-34

5962-9454502HXX Parametric

Parameter Name	Attribute value
Parts packaging code	MODULE
package instruction	DIP-34
Contacts	34
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	BUILT-IN-TEST; PROGRAMMABLE RESOLUTION
Maximum angular accuracy	2 arc min
Converter type	SYNCHRO OR RESOLVER TO DIGITAL CONVERTER
JESD-30 code	R-XQMA-P34
Number of digits	16
Number of functions	1
Number of terminals	34
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Qualified
Signal/output frequency	5000 Hz
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
technology	HYBRID
Temperature level	MILITARY
Terminal form	PIN/PEG
Terminal location	QUAD
Base Number Matches	1

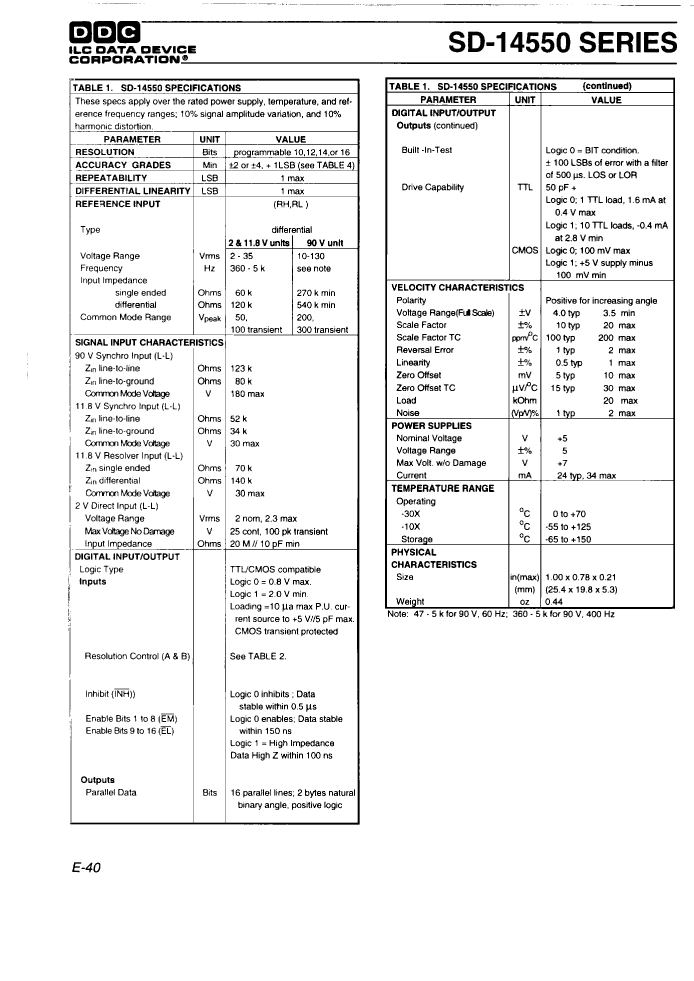

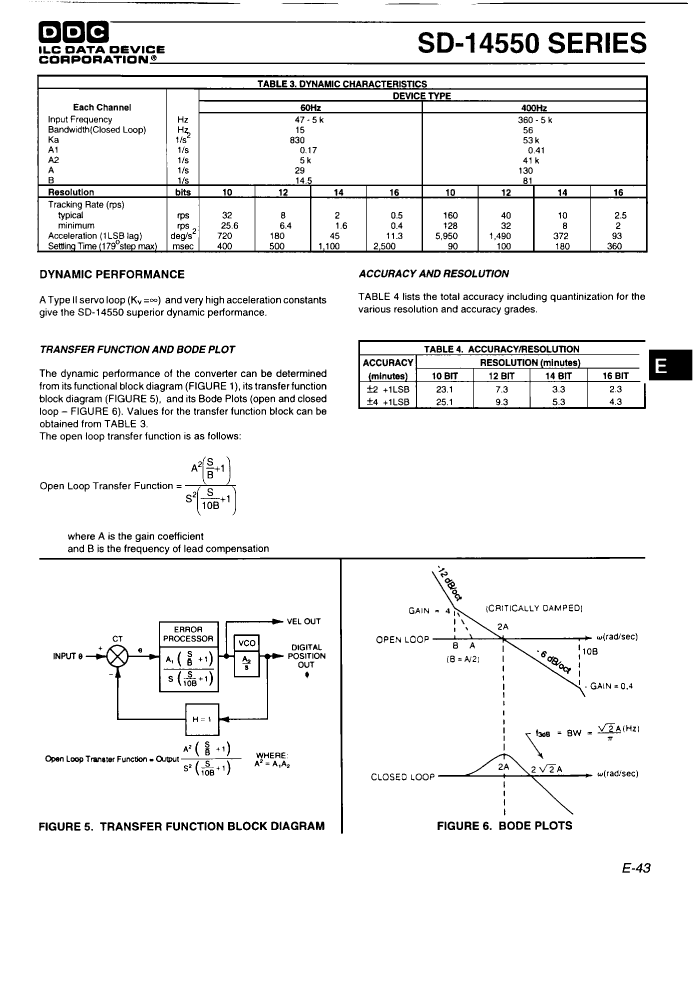

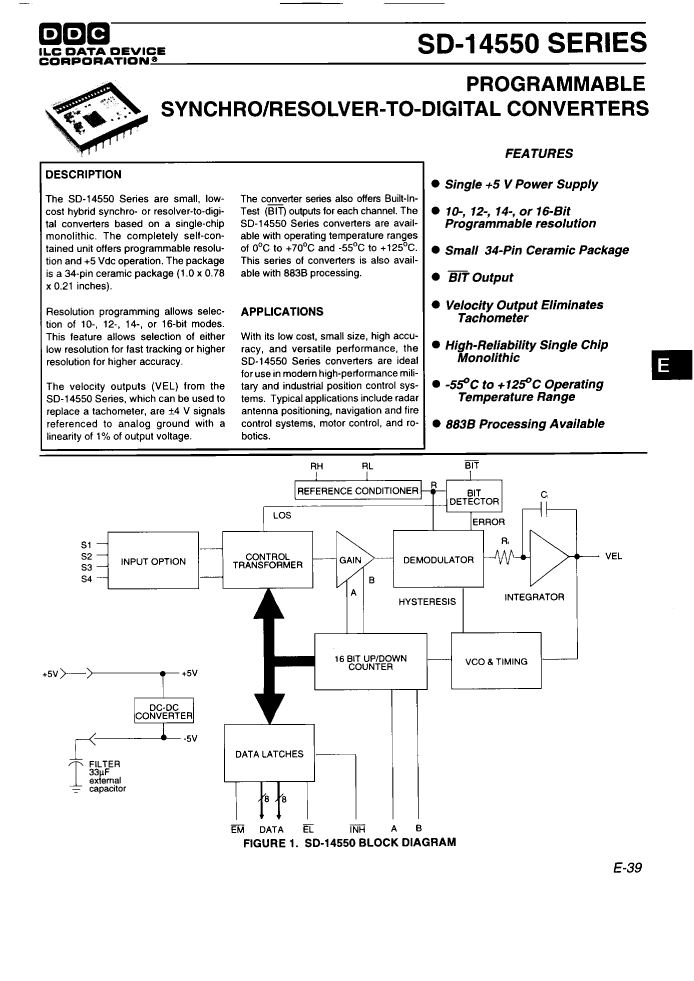

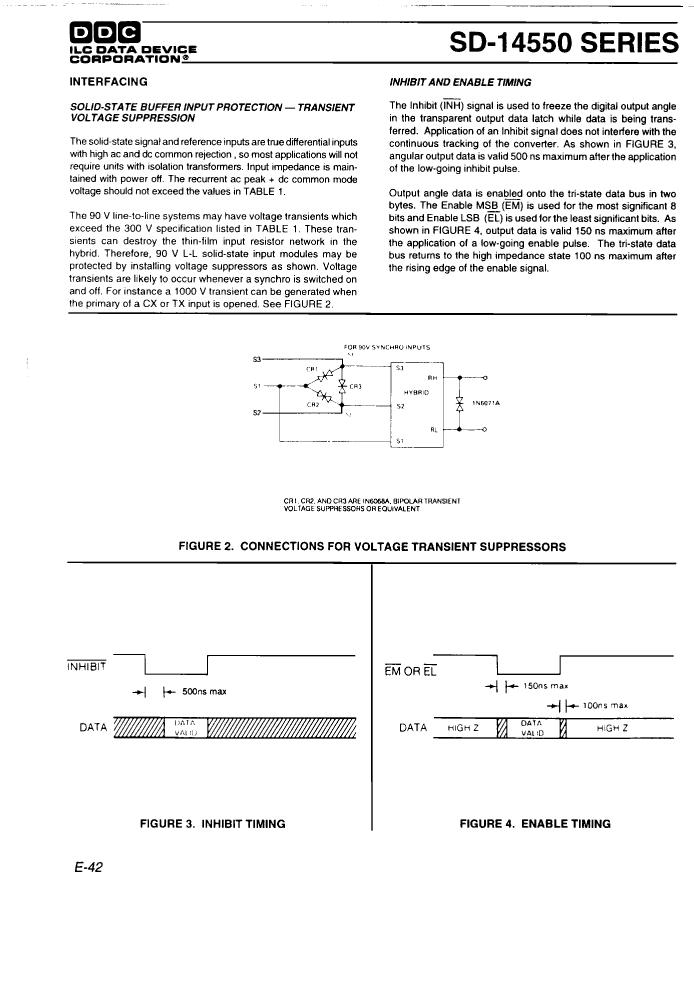

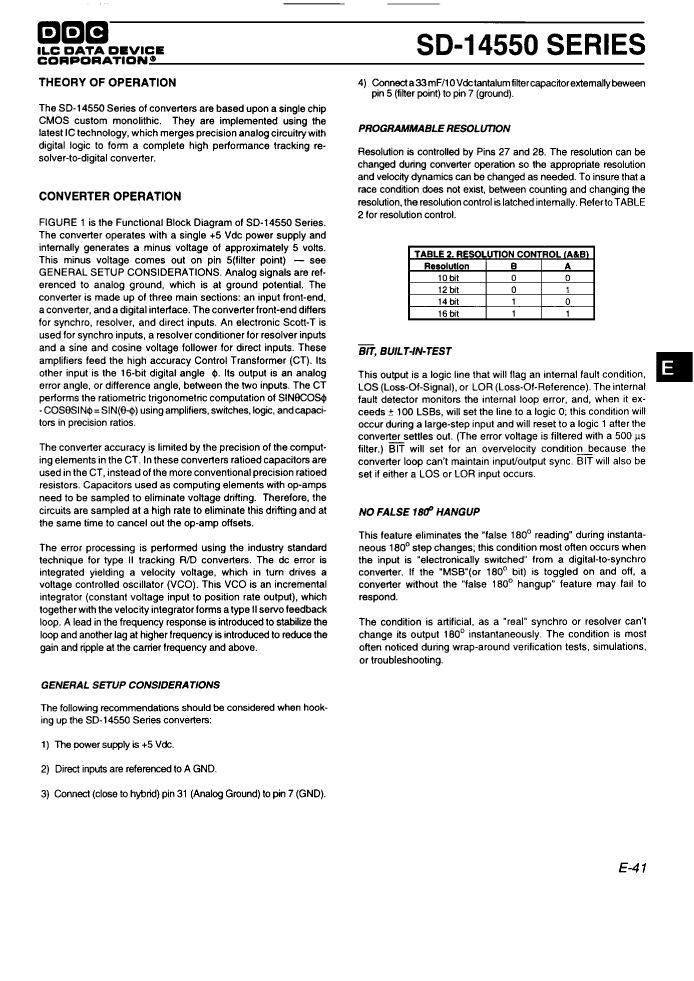

Preview

Download Datasheet

View All

5962-9454502HXX Related Products

	5962-9454502HXX	5962-9454302HXX	5962-9454301HXX	5962-9454401HXX	5962-9454304HXX	5962-9454303HXX	5962-9454501HXX	5962-9454403HXX	5962-9454404HXX	5962-9454402HXX
Description	Synchro or Resolver to Digital Converter, Hybrid, DIP-34	Synchro or Resolver to Digital Converter, Hybrid, DIP-34	Synchro or Resolver to Digital Converter, Hybrid, DIP-34	Synchro or Resolver to Digital Converter, Hybrid, DIP-34	Synchro or Resolver to Digital Converter, Hybrid, DIP-34	Synchro or Resolver to Digital Converter, Hybrid, DIP-34	Synchro or Resolver to Digital Converter, Hybrid, DIP-34	Synchro or Resolver to Digital Converter, Hybrid, DIP-34	Synchro or Resolver to Digital Converter, Hybrid, DIP-34	Synchro or Resolver to Digital Converter, Hybrid, DIP-34
Parts packaging code	MODULE	MODULE	MODULE	QIP	MODULE	MODULE	MODULE	QIP	QIP	QIP
package instruction	DIP-34	DIP-34	DIP-34	DIP-34	DIP-34	,	,	DIP-34	DIP,	DIP-34
Contacts	34	34	34	34	34	34	34	34	34	34
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	BUILT-IN-TEST; PROGRAMMABLE RESOLUTION	BUILT-IN-TEST; PROGRAMMABLE RESOLUTION	BUILT-IN-TEST; PROGRAMMABLE RESOLUTION	PROGRAMMABLE RESOLUTION	BUILT-IN-TEST; PROGRAMMABLE RESOLUTION	BUILT-IN-TEST; PROGRAMMABLE RESOLUTION	BUILT-IN-TEST; PROGRAMMABLE RESOLUTION	PROGRAMMABLE RESOLUTION	PROGRAMMABLE RESOLUTION	PROGRAMMABLE RESOLUTION
Maximum angular accuracy	2 arc min	4 arc min	4 arc min	4 arc min	2 arc min	2 arc min	4 arc min	2 arc min	2 arc min	4 arc min
Converter type	SYNCHRO OR RESOLVER TO DIGITAL CONVERTER	SYNCHRO OR RESOLVER TO DIGITAL CONVERTER	SYNCHRO OR RESOLVER TO DIGITAL CONVERTER	SYNCHRO OR RESOLVER TO DIGITAL CONVERTER	SYNCHRO OR RESOLVER TO DIGITAL CONVERTER	SYNCHRO OR RESOLVER TO DIGITAL CONVERTER	SYNCHRO OR RESOLVER TO DIGITAL CONVERTER	SYNCHRO OR RESOLVER TO DIGITAL CONVERTER	SYNCHRO OR RESOLVER TO DIGITAL CONVERTER	SYNCHRO OR RESOLVER TO DIGITAL CONVERTER
JESD-30 code	R-XQMA-P34	R-XQMA-P34	R-XQMA-P34	R-XQIP-P34	R-XQMA-P34	R-XQMA-P34	R-XQMA-P34	R-XQIP-P34	R-XQIP-P34	R-XQIP-P34
Number of digits	16	16	16	16	16	16	16	16	16	16
Number of functions	1	1	1	1	1	1	1	1	1	1
Number of terminals	34	34	34	34	34	34	34	34	34	34
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	IN-LINE	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	IN-LINE	IN-LINE	IN-LINE
Certification status	Qualified	Qualified	Qualified	Qualified	Qualified	Qualified	Qualified	Qualified	Qualified	Qualified
Signal/output frequency	5000 Hz	5000 Hz	5000 Hz	5000 Hz	5000 Hz	5000 Hz	5000 Hz	5000 Hz	1000 Hz	1000 Hz
Maximum supply voltage	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
Base Number Matches	1	1	1	1	1	1	1	1	1	1
Maximum analog input voltage	-	11.8 V	11.8 V	90 V	11.8 V	11.8 V	-	90 V	90 V	90 V
