RL-6280
SURFACE MOUNT
POWER INDUCTORS
DESCRIPTION

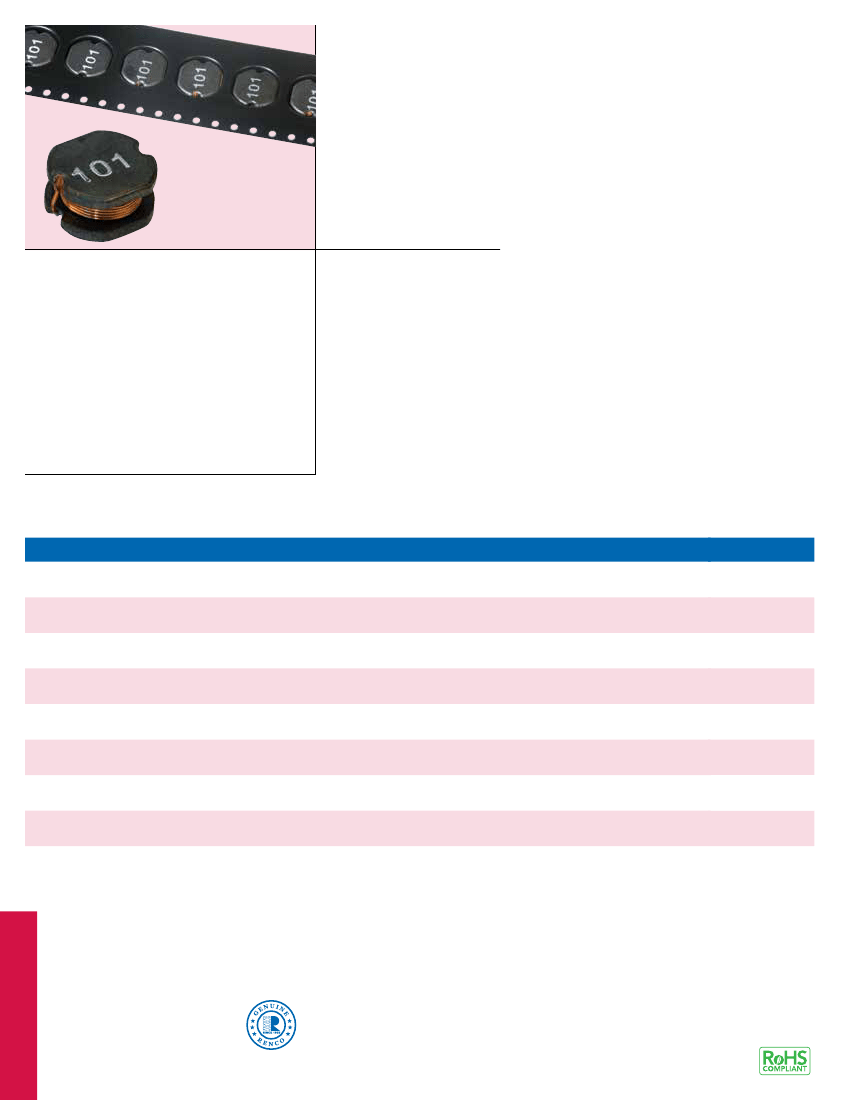

• SMD Power Inductor
FEATURES & APPLICATIONS
•
•
•
•
Inductance from 1.0 µH to 820 µH
Operating currents from 0.24 A to 3.80 A
Operating frequencies from DC to 8MHz
Typical applications include: switching power supplies,
and RFI/EMC filtering
ENVIRONMENTAL DATA
• Storage temperature range:
-55°C to +130°C
• Operating temperature range:
-40°C to +130°C
PACKAGING INFORMATION
• Packaging information: pg. 505
Verify operation with sample in actual circuit. Order samples at www.rencousa.com.
MECHANICAL DIMENSIONS
U.S. Standard (mm)
PART NUMBER
RL-6280-0
RL-6280-1
RL-6280-1.5
RL-6280-2
RL-6280-3
RL-6280-4
RL-6280-4.5
RL-6280-5
RL-6280-6
A (MAX.)
0.138±0.0118
(3.50±0.30)
0.177±0.0118
(4.50±0.30)
0.228±0.0118
(5.80±0.30)
0.228±0.0118
(5.80±0.30)
0.307±0.0118
(7.80±0.30)
0.307±0.0118
(7.80±0.30)
0.394±0.0118
(10.0±0.30)
0.394±0.0157
(10.0±0.40
0.512 ±0.020
(13.0 ±0.50)
B (MAX.)
0.118±0.0118
(3.00±0.30)
0.157±0.0118
(4.00±0.30)
0.205±0.0118
(5.20±0.30)
0.205±0.0118
(5.20±0.30)
0.276±0.0118
(7.00±0.30)
0.276±0.0118
(7.00±0.30)
0.354±0.0118
(9.00±0.30)
0.354±0.0118
(9.00±0.30)
0.512 ±0.020
(13.0 ±0.50)
C (MAX.)
0.0866±0.0118
(2.20±0.30)
0.126±0.0118
(3.20±0.30)
0.0984±0.0138
(2.50±0.35)
0.177±0.0138
(4.50±0.35)
0.138±0.0197
(3.50±0.50)
0.197±0.0197
(5.00±0.50)
0.158±0.0197
(4.00±0.50)
0.213±0.0157
(5.40±0.40)
D (REF.)
0.063 (1.60)
0.069 (1.75)
0.085 (2.15)
0.085 (2.15)
0.118 (3.00)
0.118 (3.00)
0.148 (3.75)
0.148 (3.75)
0.187(4.75)
E (REF.)
F (REF.)
PART WEIGHT
0.08g (0.003oz)
0.17g (0.006oz)
0.24g (0.008oz)
0.41g (0.014oz)
0.57g (0.020oz)
0.70g (0.025oz)
1.11g (0.039oz)
1.27g (0.045oz)
4.5g (0.159oz)
0.0314 (0.80) 0.138 (3.50)
0.059 (1.50)
0.067 (1.70)
0.067 (1.70)
0.079 (2.00)
0.079 (2.00)
0.098 (2.50)
0.098 (2.50)
0.177 (4.50)
0.177 (4.50)
0.217 (5.50)
0.217 (5.50)
0.295 (7.50)
0.295 (7.50)
0.374 (9.50)
0.374 (9.50)
0.551 (14.0)
0.276±0.012
(7.00±0.30)
SURFACE MOUNTS
RENCO ELECTRONICS INC.
286
595 International Place, Rockledge, FL 32955-4200 USA • www.rencousa.com • ISO 9001 Certified
Toll Free Engineering Hot Line: 800.645.5828 • P: 321.637.1000 • F: 321.637.1600
BOTTOM VIEW
B
SIDE VIEW
RECOMMENDED LAND PATTERN
SCHEMATIC
ST
D
A
NON TINNED
C
E
FN
F
RL-6280-0, RL-6280-1
Renco Part No.
RL-6280-0
RL-6280-0-1.0
RL-6280-0-1.4
RL-6280-0-1.8
RL-6280-0-2.2
RL-6280-0-2.7
RL-6280-0-3.3
RL-6280-0-3.9
RL-6280-0-4.7
RL-6280-0-5.6
RL-6280-0-6.8
RL-6280-0-8.2
RL-6280-0-10
RL-6280-0-12
RL-6280-0-15
RL-6280-0-18
RL-6280-0-22
RL-6280-0-27
RL-6280-0-33
RL-6280-0-39
RL-6280-0-47
RL-6280-0-56
RL-6280-0-68
RL-6280-0-82
RL-6280-0-100
RL-6280-0-120
RL-6280-0-150
RL-6280-0-180
RL-6280-0-220
RL-6280-0-270
RL-6280-0-330
RL-6280-0-390
RL-6280-0-470
Inductance
(µH)
1.0 ± 20%
1.4 ± 20%
1.8 ± 20%
2.2 ± 20%
2.7 ± 20%
3.3 ± 20%
3.9 ± 20%
4.7 ± 20%
5.6 ± 20%
6.8 ± 20%
8.2 ± 20%
10 ± 20%
12 ± 20%
15 ± 20%
18 ± 20%
22 ± 20%
27 ± 20%
33 ± 20%
39 ± 20%
47 ± 10%
56 ± 10%
68 ± 10%
82 ± 10%
100 ± 10%
120 ± 10%
150 ± 10%
180 ± 10%
220 ± 10%
270 ± 10%
330 ± 10%
390 ± 10%
470 ± 10%
DCR Max.
(Ohms)
0.055
0.06
0.07
0.09
0.10
0.13
0.15
0.18
0.21
0.23
0.31
0.35
0.39
0.54
0.62
0.72
0.82
1.10
1.20
1.60
1.80
2.00
2.50
3.00
3.50
4.00
5.00
5.50
6.00
7.00
8.00
12.00
Isat
(A)
2.50
2.00
1.90
1.70
1.60
1.30
1.20
1.10
1.00
0.95
0.90
0.80
0.70
0.65
0.60
0.55
0.50
0.45
0.40
0.38
0.20
0.18
0.16
0.15
0.14
0.13
0.12
0.10
0.10
0.10
0.10
0.09
Irms
(A)
2.50
2.00
1.90
1.70
1.60
1.30
1.20
1.10
1.00
0.95
0.90
0.80
0.70
0.65
0.60
0.55
0.50
0.45
0.40
0.38
0.20
0.18
0.16
0.15
0.14
0.13
0.12
0.10
0.10
0.10
0.10
0.09
Renco Part No.
RL-6280-1
RL-6280-1-1.0
RL-6280-1-1.4
RL-6280-1-1.8
RL-6280-1-2.2
RL-6280-1-2.7
RL-6280-1-3.3
RL-6280-1-3.9
RL-6280-1-4.7
RL-6280-1-5.6
RL-6280-1-6.8
RL-6280-1-8.2
RL-6280-1-10
RL-6280-1-12
RL-6280-1-15
RL-6280-1-18
RL-6280-1-22
RL-6280-1-27
RL-6280-1-33
RL-6280-1-39
RL-6280-1-47
RL-6280-1-56
RL-6280-1-68
Inductance
(µH)
1.0 ± 20%
1.4 ± 20%
1.8 ± 20%
2.2 ± 20%
2.7 ± 20%
3.3 ± 20%
3.9 ± 20%
4.7 ± 20%
5.6 ± 20%
6.8 ± 20%
8.2 ± 20%
10 ± 20%
12 ± 20%
15 ± 20%
18 ± 20%
22 ± 20%
27 ± 20%
33 ± 20%
39 ± 20%
47 ± 10%
56 ± 10%
68 ± 10%
DCR Max.
(Ohms)
0.033
0.038
0.042
0.047
0.052
0.058
0.076
0.094
0.101
0.117
0.132
0.182
0.210
0.235
0.338
0.378
0.522
0.540
0.587
0.844
0.937
1.117
Isat
(A)
3.80
3.30
2.91
2.60
2.43
2.15
1.98
1.70
1.60
1.41
1.26
1.15
1.05
0.92
0.84
0.76
0.71
0.64
0.59
0.54
0.50
0.46
Irms
(A)
3.80
3.30
2.91
2.60
2.43
2.15
1.98
1.70
1.60
1.41
1.26
1.15
1.05
0.92
0.84
0.76
0.71
0.64
0.59
0.54
0.50
0.46
RENCO ELECTRONICS INC.
595 International Place, Rockledge, FL 32955-4200 USA • www.rencousa.com • ISO 9001 Certified
Toll Free Engineering Hot Line: 800.645.5828 • P: 321.637.1000 • F: 321.637.1600
287
SURFACE MOUNTS
NOTES:
1. INDUCTANCE WITH NO D.C. TESTED AT 100 kHz, 0.1 Vrms
2. Irms - CURRENT THAT CAUSES THE TEMPERATURE TO
RISE APPROX. 40ºC ABOVE AMBIENT OF 25ºC
3. Isat - DC CURRENT THAT WILL CAUSE INDUCTANCE
TO DROP BY 10%
4. ELECTRICAL SPECIFICATIONS MEASURED AT 25ºC
RL-6280-1.5, RL-6280-2
Renco Part No.
RL-6280-1.5
RL-6280-1.5-1.0
RL-6280-1.5-1.4
RL-6280-1.5-1.8
RL-6280-1.5-2.2
RL-6280-1.5-2.7
RL-6280-1.5-3.3
RL-6280-1.5-3.9
RL-6280-1.5-4.7
RL-6280-1.5-5.6
RL-6280-1.5-6.8
RL-6280-1.5-8.2
RL-6280-1.5-10
RL-6280-1.5-12
RL-6280-1.5-15
RL-6280-1.5-18
RL-6280-1.5-22
RL-6280-1.5-27
RL-6280-1.5-33
RL-6280-1.5-39
RL-6280-1.5-47
RL-6280-1.5-56
RL-6280-1.5-68
RL-6280-1.5-82
RL-6280-1.5-100
RL-6280-1.5-120
RL-6280-1.5-150
RL-6280-1.5-180
RL-6280-1.5-220
RL-6280-1.5-270
RL-6280-1.5-330
RL-6280-1.5-390
RL-6280-1.5-470
RL-6280-1.5-560
Inductance
(µH)
1.0 ± 20%
1.4 ± 20%
1.8 ± 20%
2.2 ± 20%
2.7 ± 20%
3.3 ± 20%
3.9 ± 20%
4.7 ± 20%
5.6 ± 20%
6.8 ± 20%
8.2 ± 20%
10 ± 20%
12 ± 20%
15 ± 20%
18 ± 20%
22 ± 20%
27 ± 20%
33 ± 20%
39 ± 20%
47 ± 10%
56 ± 10%
68 ± 10%
82 ± 10%
100 ± 10%
120 ± 10%
150 ± 10%
180 ± 10%
220 ± 10%
270 ± 10%
330 ± 10%
390 ± 10%
470 ± 10%
560 ± 10%
DCR Max.
(Ohms)
0.030
0.035
0.040
0.040
0.055
0.070
0.080
0.090
0.110
0.140
0.150
0.165
0.250
0.280
0.320
0.420
0.450
0.550
0.580
0.830
0.900
0.970
1.200
1.500
1.700
1.95
2.600
3.400
4.000
4.500
5.000
7.000
8.000
Isat
(A)
4.80
4.20
3.80
3.50
3.10
3.00
2.80
2.70
2.20
1.90
1.80
1.50
1.40
1.20
1.10
1.00
0.90
0.80
0.75
0.70
0.65
0.60
0.55
0.50
0.47
0.45
0.40
0.35
0.30
0.27
0.25
0.23
0.21
Irms
(A)
4.80
4.20
3.80
3.50
3.10
3.00
2.80
2.70
2.20
1.90
1.80
1.50
1.40
1.20
1.10
1.00
0.90
0.80
0.75
0.70
0.65
0.60
0.55
0.50
0.47
0.45
0.40
0.35
0.30
0.27
0.25
0.23
0.21
Renco Part No.
RL-6280-2
RL-6280-2-10
RL-6280-2-12
RL-6280-2-15
RL-6280-2-18
RL-6280-2-22
RL-6280-2-27
RL-6280-2-33
RL-6280-2-39
RL-6280-2-47
RL-6280-2-56
RL-6280-2-68
RL-6280-2-82
RL-6280-2-100
RL-6280-2-120
RL-6280-2-150
RL-6280-2-180
RL-6280-2-220
Inductance
(µH)
10 ± 20%
12 ± 20%
15 ± 20%
18± 20%
22± 20%
27± 20%
33 ±20%
39 ±20%
47 ±10%
56 ±10%
68 ±10%
82 ±10%
100 ±10%
120 ±10%
150 ±10%
180 ±10%
220 ±10%
DCR Max.
(Ohms)
0.10
0.12
0.14
0.15
0.18
0.20
0.23
0.32
0.37
0.42
0.46
0.60
0.70
0.93
1.10
1.38
1.57
Isat
(A)
1.44
1.40
1.30
1.23
1.11
0.97
0.88
0.80
0.72
0.68
0.61
0.58
0.52
0.48
0.40
0.38
0.35
Irms
(A)
1.44
1.40
1.30
1.23
1.11
0.97
0.88
0.80
0.72
0.68
0.61
0.58
0.52
0.48
0.40
0.38
0.35
NOTES:
1. INDUCTANCE WITH NO D.C. TESTED AT 100 kHz, 0.1 Vrms
2. Irms - CURRENT THAT CAUSES THE TEMPERATURE TO
RISE APPROX. 40ºC ABOVE AMBIENT OF 25ºC
3. Isat - DC CURRENT THAT WILL CAUSE INDUCTANCE
TO DROP BY 10%
4. ELECTRICAL SPECIFICATIONS MEASURED AT 25ºC
SURFACE MOUNTS
RENCO ELECTRONICS INC.
288
595 International Place, Rockledge, FL 32955-4200 USA • www.rencousa.com • ISO 9001 Certified
Toll Free Engineering Hot Line: 800.645.5828 • P: 321.637.1000 • F: 321.637.1600
RL-6280-3, RL-6280-4
Renco Part No.
RL-6280-3
RL-6280-3-10
RL-6280-3-12
RL-6280-3-15
RL-6280-3-18
RL-6280-3-22
RL-6280-3-27
RL-6280-3-33
RL-6280-3-39
RL-6280-3-47
RL-6280-3-56
RL-6280-3-68
RL-6280-3-82
RL-6280-3-100
RL-6280-3-120
RL-6280-3-150
RL-6280-3-180
RL-6280-3-220
RL-6280-3-270
RL-6280-3-330
Inductance
(µH)
10 ± 20%
12 ± 20%
15 ± 20%
18 ± 20%
22 ± 20%
27 ± 20%
33 ± 20%
39 ± 20%
47 ± 10%
56 ± 10%
68 ± 10%
82 ± 10%
100 ± 10%
120 ± 10%
150 ± 10%
180 ± 10%
220 ± 10%
270 ± 10%
330 ± 10%
DCR Max.
(Ohms)
0.08
0.09
0.10
0.11
0.13
0.15
0.17
0.22
0.25
0.28
0.33
0.41
0.48
0.54
0.75
1.02
1.20
1.31
1.50
Isat
(A)
1.44
1.39
1.24
1.12
1.07
0.94
0.85
0.74
0.68
0.64
0.59
0.54
0.51
0.49
0.40
0.36
0.31
0.29
0.28
Irms
(A)
1.44
1.39
1.24
1.12
1.07
0.94
0.85
0.74
0.68
0.64
0.59
0.54
0.51
0.49
0.40
0.36
0.31
0.29
0.28
Renco Part No.
RL-6280-4
RL-6280-4-10
RL-6280-4-12
RL-6280-4-15
RL-6280-4-18
RL-6280-4-22
RL-6280-4-27
RL-6280-4-33
RL-6280-4-39
RL-6280-4-47
RL-6280-4-56
RL-6280-4-68
RL-6280-4-82
RL-6280-4-100
RL-6280-4-120
RL-6280-4-150
RL-6280-4-180
RL-6280-4-220
RL-6280-4-270
RL-6280-4-330
RL-6280-4-390
RL-6280-4-470
Inductance
(µH)
10 ± 20%
12 ± 20%
15 ± 20%
18 ± 20%
22 ± 20%
27 ± 20%
33 ± 20%
39 ± 20%
47 ± 10%
56 ± 10%
68 ± 10%
82 ± 10%
100 ± 10%
120 ± 10%
150 ± 10%
180 ± 10%
220 ± 10%
270 ± 10%
330 ± 10%
390 ± 10%
470 ± 10%
DCR Max.
(Ohms)
0.07
0.08
0.09
0.10
0.11
0.12
0.13
0.16
0.18
0.24
0.28
0.37
0.43
0.47
0.64
0.71
0.96
1.11
1.26
1.77
1.96
Isat
(A)
2.30
2.00
1.80
1.60
1.50
1.30
1.20
1.10
1.10
0.94
0.85
0.78
0.72
0.66
0.58
0.51
0.49
0.42
0.40
0.36
0.34
Irms
(A)
2.30
2.00
1.80
1.60
1.50
1.30
1.20
1.10
1.10
0.94
0.85
0.78
0.72
0.66
0.58
0.51
0.49
0.42
0.40
0.36
0.34
NOTES:
1. INDUCTANCE WITH NO D.C. TESTED AT 100 kHz, 0.1 Vrms
2. Irms - CURRENT THAT CAUSES THE TEMPERATURE TO
RISE APPROX. 40ºC ABOVE AMBIENT OF 25ºC
3. Isat - DC CURRENT THAT WILL CAUSE INDUCTANCE
TO DROP BY 10%
4. ELECTRICAL SPECIFICATIONS MEASURED AT 25ºC
RENCO ELECTRONICS INC.
595 International Place, Rockledge, FL 32955-4200 USA • www.rencousa.com • ISO 9001 Certified
Toll Free Engineering Hot Line: 800.645.5828 • P: 321.637.1000 • F: 321.637.1600
289
SURFACE MOUNTS
RL-6280-4.5, RL-6280-5
Renco Part No.
RL-6280-4.5
RL-6280-4.5-10
RL-6280-4.5-12
RL-6280-4.5-15
RL-6280-4.5-18
RL-6280-4.5-22
RL-6280-4.5-27
RL-6280-4.5-33
RL-6280-4.5-39
RL-6280-4.5-47
RL-6280-4.5-56
RL-6280-4.5-68
RL-6280-4.5-82
RL-6280-4.5-100
RL-6280-4.5-120
RL-6280-4.5-150
RL-6280-4.5-180
RL-6280-4.5-220
RL-6280-4.5-270
RL-6280-4.5-330
RL-6280-4.5-390
RL-6280-4.5-470
RL-6280-4.5-560
Inductance
(µH)
10 ± 20%
12 ± 20%
15 ± 20%
18 ± 20%
22 ± 20%
27 ± 20%
33 ± 20%
39 ± 20%
47 ± 10%
56 ± 10%
68 ± 10%
82 ± 10%
100 ± 10%
120 ± 10%
150 ± 10%
180 ± 10%
220 ± 10%
270 ± 10%
330 ± 10%
390 ± 10%
470 ± 10%
560 ± 10%
DCR Max.
(Ohms)
0.053
0.061
0.070
0.081
0.088
0.100
0.120
0.151
0.170
0.199
0.233
0.252
0.344
0.396
0.544
0.621
0.721
0.949
1.100
1.245
1.526
1.904
Isat
(A)
2.38
2.13
1.87
1.73
1.60
1.44
1.26
1.20
1.10
1.01
0.91
0.85
0.74
0.69
0.61
0.56
0.53
0.45
0.42
0.38
0.35
0.32
Irms
(A)
2.38
2.13
1.87
1.73
1.60
1.44
1.26
1.20
1.10
1.01
0.91
0.85
0.74
0.69
0.61
0.56
0.53
0.45
0.42
0.38
0.35
0.32
Renco Part No.
RL-6280-5
RL-6280-5-10
RL-6280-5-12
RL-6280-5-15
RL-6280-5-18
RL-6280-5-22
RL-6280-5-27
RL-6280-5-33
RL-6280-5-39
RL-6280-5-47
RL-6280-5-56
RL-6280-5-68
RL-6280-5-82
RL-6280-5-100
RL-6280-5-120
RL-6280-5-150
RL-6280-5-180
RL-6280-5-220
RL-6280-5-270
RL-6280-5-330
RL-6280-5-390
RL-6280-5-470
RL-6280-5-560
RL-6280-5-680
RL-6280-5-820
Inductance
(µH)
10 ± 20%
12 ± 20%
15 ± 20%
18 ± 20%
22 ± 20%
27 ± 20%
33 ± 20%
39 ± 20%
47 ± 10%
56 ± 10%
68 ± 10%
82 ± 10%
100 ± 10%
120 ± 10%
150 ± 10%
180 ± 10%
220 ± 10%
270 ± 10%
330 ± 10%
390 ± 10%
470 ± 10%
560 ± 10%
680 ± 10%
820 ± 10%
DCR Max.
(Ohms)
0.06
0.07
0.08
0.09
0.10
0.11
0.12
0.14
0.17
0.19
0.22
0.25
0.35
0.40
0.47
0.63
0.73
0.97
1.15
1.30
1.48
1.90
2.25
2.55
Isat
(A)
2.60
2.45
2.27
2.15
1.95
1.76
1.50
1.37
1.28
1.17
1.11
1.00
0.97
0.89
0.78
0.72
0.66
0.57
0.52
0.48
0.42
0.33
0.28
0.24
Irms
(A)
2.60
2.45
2.27
2.15
1.95
1.76
1.50
1.37
1.28
1.17
1.11
1.00
0.97
0.89
0.78
0.72
0.66
0.57
0.52
0.48
0.42
0.33
0.28
0.24
NOTES:
1. INDUCTANCE WITH NO D.C. TESTED AT 100 kHz, 0.1 Vrms
2. Irms - CURRENT THAT CAUSES THE TEMPERATURE TO
RISE APPROX. 40ºC ABOVE AMBIENT OF 25ºC
3. Isat - DC CURRENT THAT WILL CAUSE INDUCTANCE
TO DROP BY 10%
4. ELECTRICAL SPECIFICATIONS MEASURED AT 25ºC
SURFACE MOUNTS
RENCO ELECTRONICS INC.
290
595 International Place, Rockledge, FL 32955-4200 USA • www.rencousa.com • ISO 9001 Certified
Toll Free Engineering Hot Line: 800.645.5828 • P: 321.637.1000 • F: 321.637.1600
Analogue and Mixed Signal
京公网安备 11010802033920号
EEWORLD
