245077030110861

Description
Board Stacking Connector, 30 Contact(s), 2 Row(s), Female, Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking Mech, Receptacle,
CategoryThe connector    The connector
File Size245KB，4 Pages
ManufacturerAVX
Download Datasheet Parametric Compare View All

245077030110861 Overview

Board Stacking Connector, 30 Contact(s), 2 Row(s), Female, Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking Mech, Receptacle,

245077030110861 Parametric

Parameter NameAttribute value
Objectid1670927393
Reach Compliance Codecompliant
ECCN codeEAR99
YTEOL8.72
Other featuresWITH VACUUM PICK UP CLIP
body width0.276 inch
subject depth0.232 inch
body length0.866 inch
Body/casing typeRECEPTACLE
Connector typeBOARD STACKING CONNECTOR
Contact to complete cooperationGOLD (10)
Contact completed and terminatedGOLD (10)
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact styleBELLOWED TYPE
DIN complianceNO
Dielectric withstand voltage500VAC V
Filter functionNO
IEC complianceNO
insulator materialPOLYPHENYLENE SULFIDE
JESD-609 codee4
MIL complianceNO
Plug contact pitch0.039 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation option 1LOCKING MECH
Installation methodSTRAIGHT
Installation typeBOARD
PCB row number2
Number of rows loaded2
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing5.715 mm
Plating thickness10u inch
Rated current (signal)0.5 A
GuidelineUL
Terminal pitch1 mm
Termination typeSURFACE MOUNT
Total number of contacts30

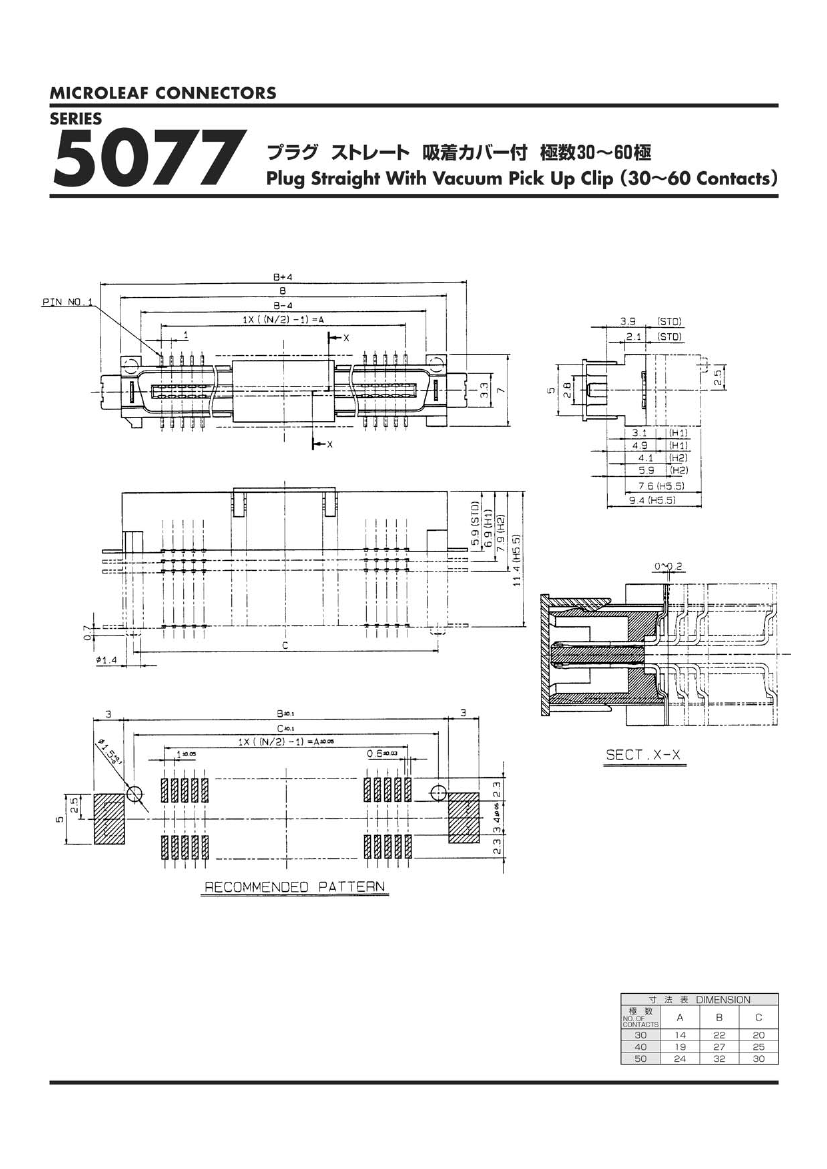

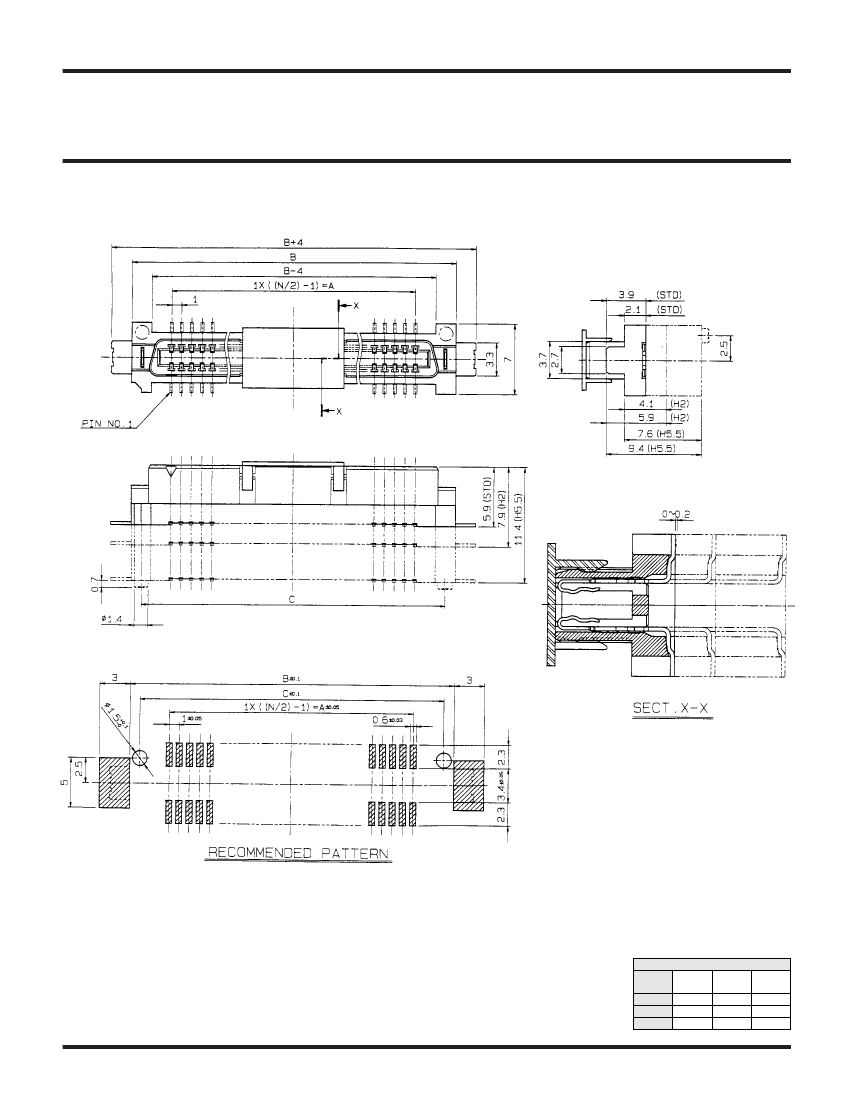

Preview

Download Datasheet
注文コー
ド
ORDERING CODE
5077
XX
5077
XXX
1 X X
XXX
Typical Example
ASSEMBLY
CODE
14
24

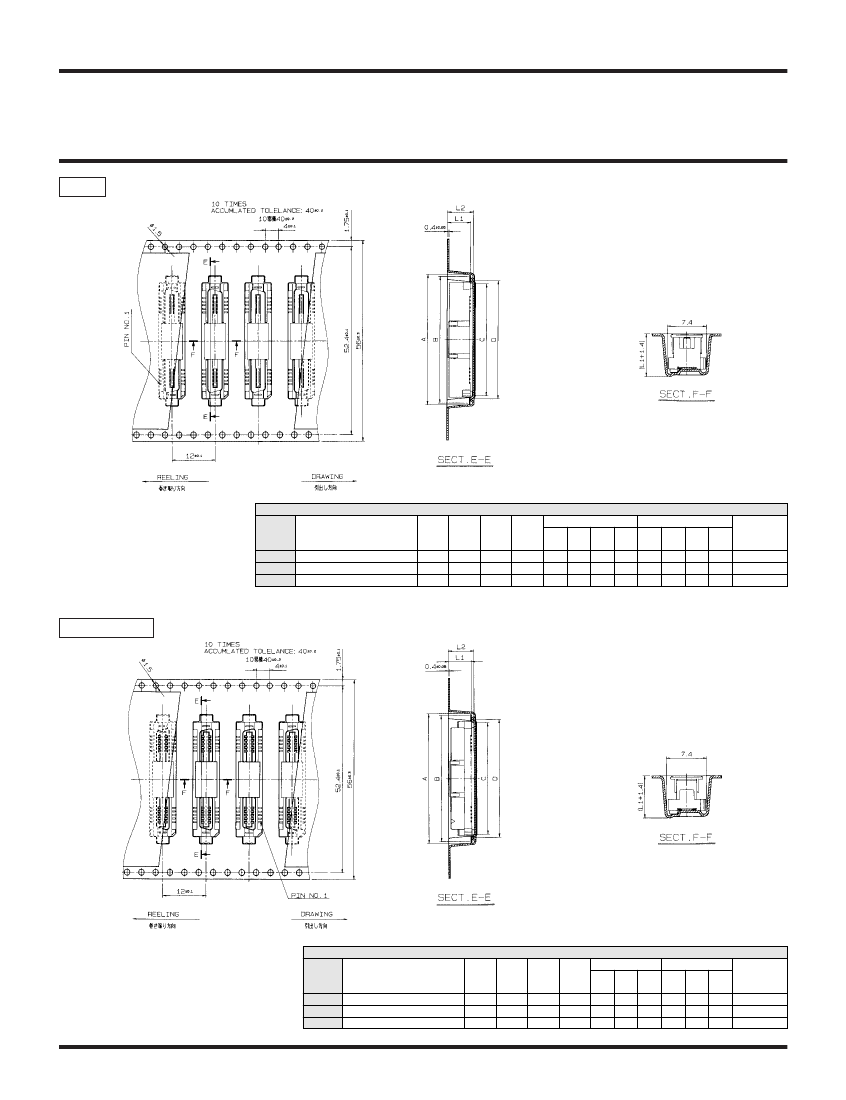

Plug Tape and Reel Package
Receptacle Tape and Reel Package
SERIES
NUMBER OF CONTACTS
CODE
030
040
050
No. of Pos.
30
40
50
TYPE
CODE
0
1
Without Boss
With Boss
TYPE
VARIATION
CODE
0
1
2
5
H1 Type (Plug)
H2 Type (Plug & Receptacle)
H5.5 Type (Plug & Receptacle)
VARIATION
Std. Type (Plug & Receptacle)
FINISH
CODE
861
GOLD-MATING AREA
Under Coated 1.2~4.0μm, Gold-Mating Area Au0.25μmMin.

245077030110861 Related Products

245077030110861 145077040105861 145077050102861 145077030111861 245077030115861 245077040115861 H1206CA2083DKW-W
Description Board Stacking Connector, 30 Contact(s), 2 Row(s), Female, Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking Mech, Receptacle, Board Stacking Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking Mech, Plug, Board Stacking Connector, 50 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking Mech, Plug, Board Stacking Connector, 30 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking Mech, Plug, Board Stacking Connector, 30 Contact(s), 2 Row(s), Female, Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking Mech, Receptacle, Board Stacking Connector, 40 Contact(s), 2 Row(s), Female, Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking Mech, Receptacle, Fixed Resistor, Thin Film, 0.3W, 208000ohm, 100V, 0.5% +/-Tol, -100,100ppm/Cel, 1206,
Reach Compliance Code compliant compli compli compliant compliant compliant compliant
JESD-609 code e4 e4 e4 e4 e4 e4 e4
Objectid 1670927393 - - 1670927371 1670927395 1670927401 275930510
ECCN code EAR99 - EAR99 EAR99 EAR99 EAR99 EAR99
YTEOL 8.72 - - 8.73 8.73 8.72 7.75
Other features WITH VACUUM PICK UP CLIP WITH VACUUM PICK UP CLIP WITH VACUUM PICK UP CLIP WITH VACUUM PICK UP CLIP WITH VACUUM PICK UP CLIP WITH VACUUM PICK UP CLIP -
body width 0.276 inch 0.276 inch 0.276 inch 0.276 inch 0.276 inch 0.276 inch -
subject depth 0.232 inch 0.528 inch 0.311 inch 0.272 inch 0.449 inch 0.449 inch -
body length 0.866 inch 1.063 inch 1.26 inch 0.866 inch 0.866 inch 1.063 inch -
Body/casing type RECEPTACLE PLUG PLUG PLUG RECEPTACLE RECEPTACLE -
Connector type BOARD STACKING CONNECTOR BOARD STACKING CONNECTOR BOARD STACKING CONNECTOR BOARD STACKING CONNECTOR BOARD STACKING CONNECTOR BOARD STACKING CONNECTOR -
Contact to complete cooperation GOLD (10) GOLD (10) GOLD (10) GOLD (10) GOLD (10) GOLD (10) -
Contact completed and terminated GOLD (10) GOLD (10) GOLD (10) GOLD (10) GOLD (10) GOLD (10) -
Contact point gender FEMALE MALE MALE MALE FEMALE FEMALE -
Contact material PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE -
contact mode RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR -
DIN compliance NO NO NO NO NO NO -
Dielectric withstand voltage 500VAC V 500VAC V 500VAC V 500VAC V 500VAC V 500VAC V -
Filter function NO NO NO NO NO NO -
IEC compliance NO NO NO NO NO NO -
insulator material POLYPHENYLENE SULFIDE POLYPHENYLENE SULPHIDE POLYPHENYLENE SULPHIDE POLYPHENYLENE SULFIDE POLYPHENYLENE SULFIDE POLYPHENYLENE SULFIDE -
MIL compliance NO NO NO NO NO NO -
Plug contact pitch 0.039 inch 0.039 inch 0.039 inch 0.039 inch 0.039 inch 0.039 inch -
Plug information MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE -
Mixed contacts NO NO NO NO NO NO -
Installation option 1 LOCKING MECH LOCKING MECH LOCKING MECH LOCKING MECH LOCKING MECH LOCKING MECH -
Installation method STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT -
Installation type BOARD BOARD BOARD BOARD BOARD BOARD -
PCB row number 2 2 2 2 2 2 -
Number of rows loaded 2 2 2 2 2 2 -
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE -
PCB contact pattern RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR -
PCB contact row spacing 5.715 mm 5.715 mm 5.715 mm 5.715 mm 5.715 mm 5.715 mm -
Plating thickness 10u inch 10u inch 10u inch 10u inch 10u inch 10u inch -
Rated current (signal) 0.5 A 0.5 A 0.5 A 0.5 A 0.5 A 0.5 A -
Guideline UL UL UL UL UL UL -
Terminal pitch 1 mm 1 mm 1 mm 1 mm 1 mm 1 mm -
Termination type SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT -
Total number of contacts 30 40 50 30 30 40 -
reliability - COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL - -
